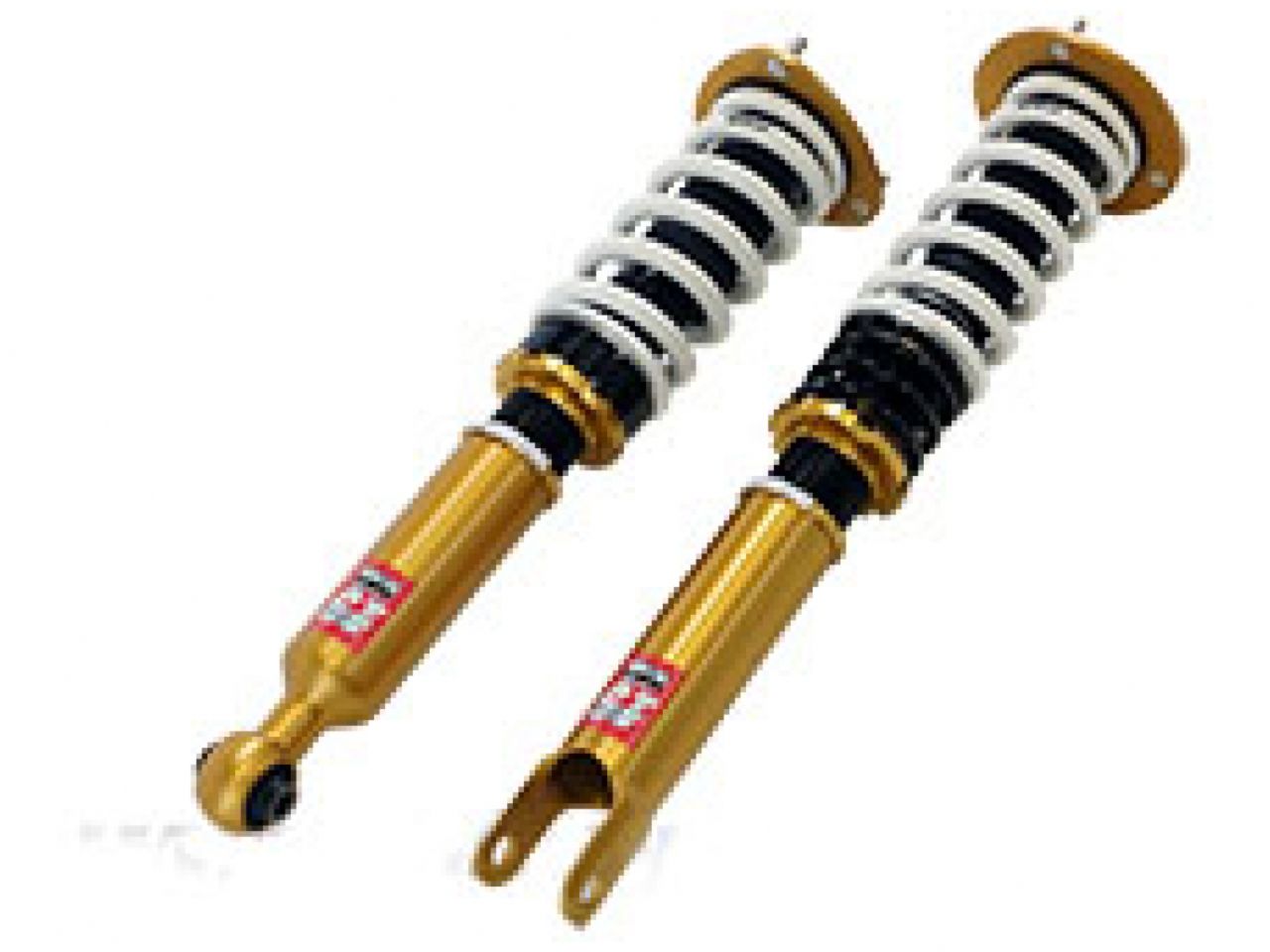

HKS Hipermax IV GT JZA80 Full Kit
We have made the newest technology of MAX IV GT for JZA80 for the best driving experience for both comfort and sport.
With the newest technology of MAX IV GT into JZA80 can make the drive fast and comfortable. We have set the goal of MAX IV to have both driving performance and comfort. Therefore HKS has analyzed and test the transient characteristic, not the general pin point so we could develop the suspension that has firmness and still comfortable damping feeling. For this result we have redesigned needle and developed variant port system that greatly improved the damping characteristic of driving feeling at a low speed.
For JZA80, stiff feeling of stock has improved, and luxurious handling by reducing the big behavior change.
It has damping but not so stiff and feel comfortable. It is smooth but does not float and stick to the ground. It fits wide range of driving conditions with one dial setting. And also it can drive from the street to circuit race by changing the dial.
Application:
| Engine | 2JZ-G(T)E |
| Model Year | 93/06 - 02/07 |
| Remarks | REAS installed vehicle can't use |
Specification:
| FRONT | REAR | |
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ? | ? |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) |
? ( 19.8 ) | ? ( 19.8 ) |
Ride Height:
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
| FRONT | Ride height *1 | 650 | ? | 692 ? 598 | 692 ? 607 |
| Against stock | -42 | ? | 0 ? -94 | 0 ? -85 | |
| REAR | Ride height *1 | 645 | ? | 668 ??563 | 668 ??602 |
| Against stock | -23 | ? | 0 ? -105 | 0 ? -66 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.

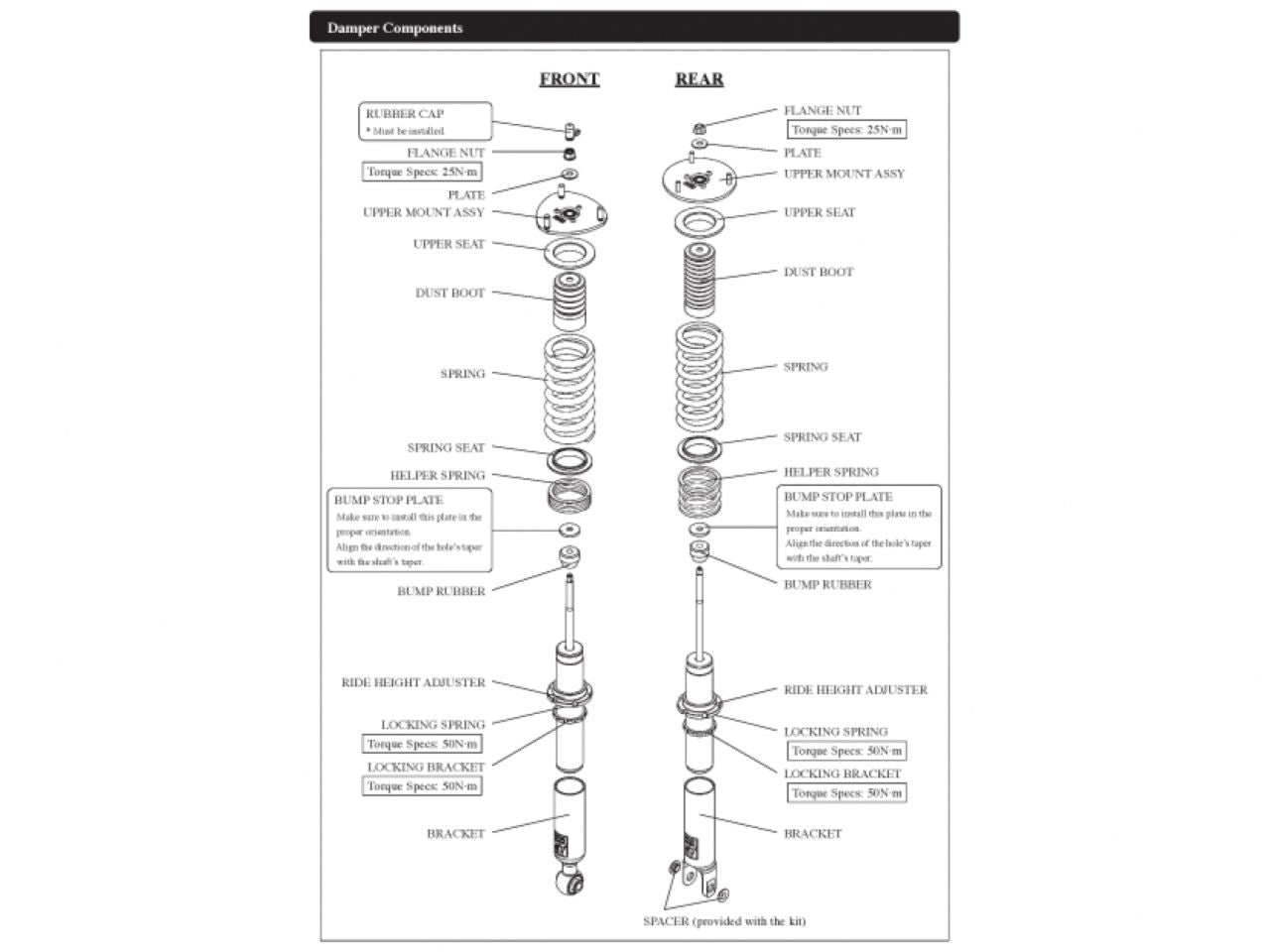

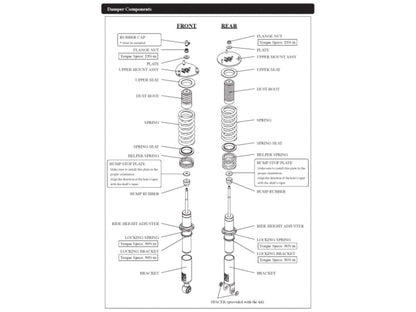

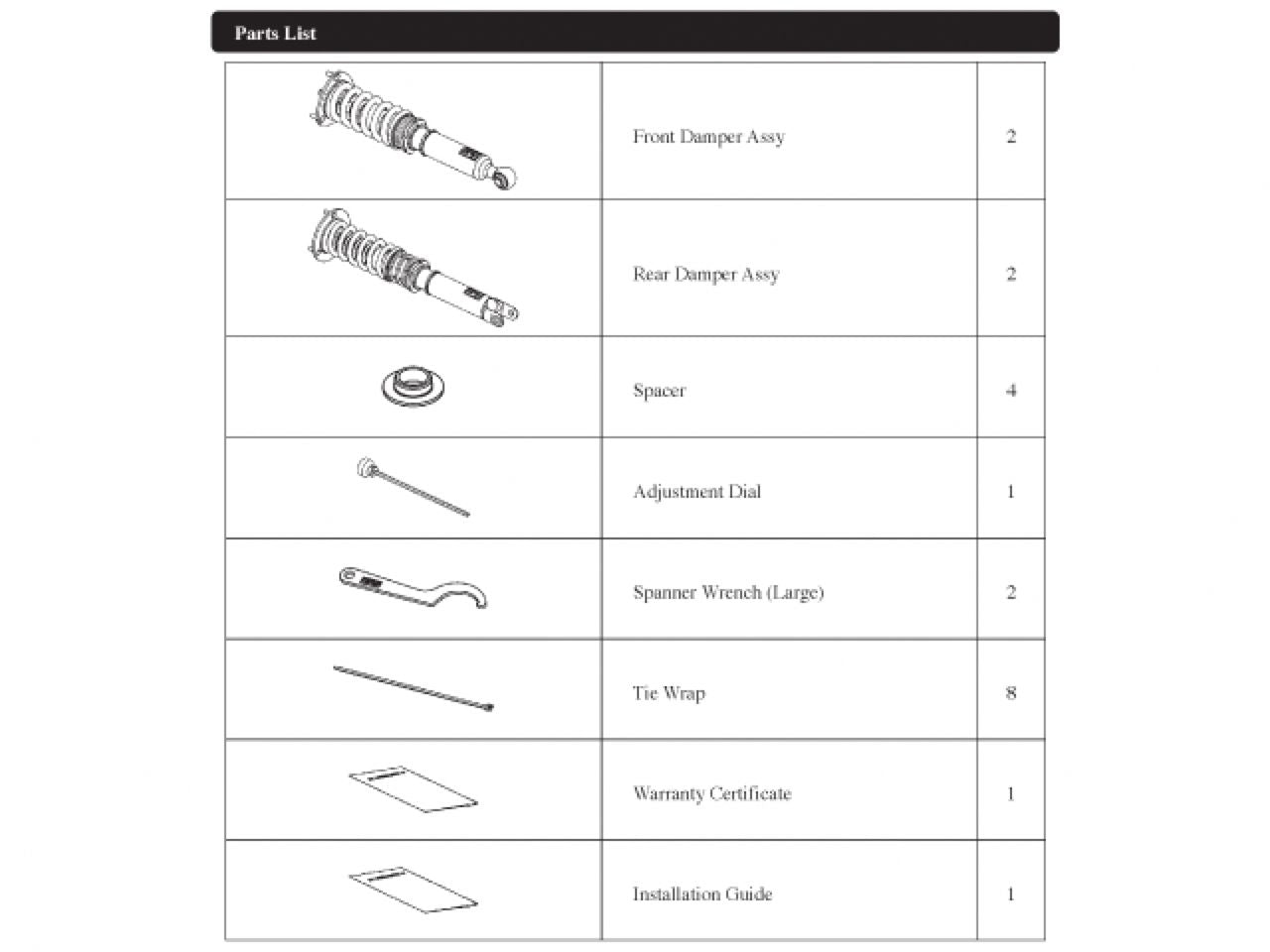

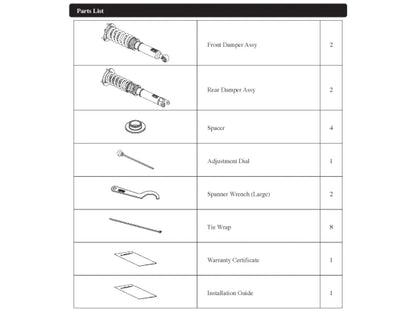

Kit information:
Spring of Full Kit
| F | R | |
| Spring rate N/mm(kgf/mm) | 137 ( 14 ) | 79 ( 8 ) |
| Free height (mm) | 200 | 200 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
Specification of damper:
| F | R | |
| Damping force (Rebound/Damping)N* | 2350 / 400 | 1000 / 200 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 41 / 49 | 80 / 56 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
373 | ? | 397 | 368 | 385 | ? | 408 | 354 |
| Spring Set length(mm) |
221 | ? | 221 | 240 | 269 | ? | 269 | 271 |
| Length to ride hight adjuster (mm) |
29 | ? | 53 | 5 | 33 | ? | 56 | 0 |
| Lever ratio | 1.78 | 1.31 | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
