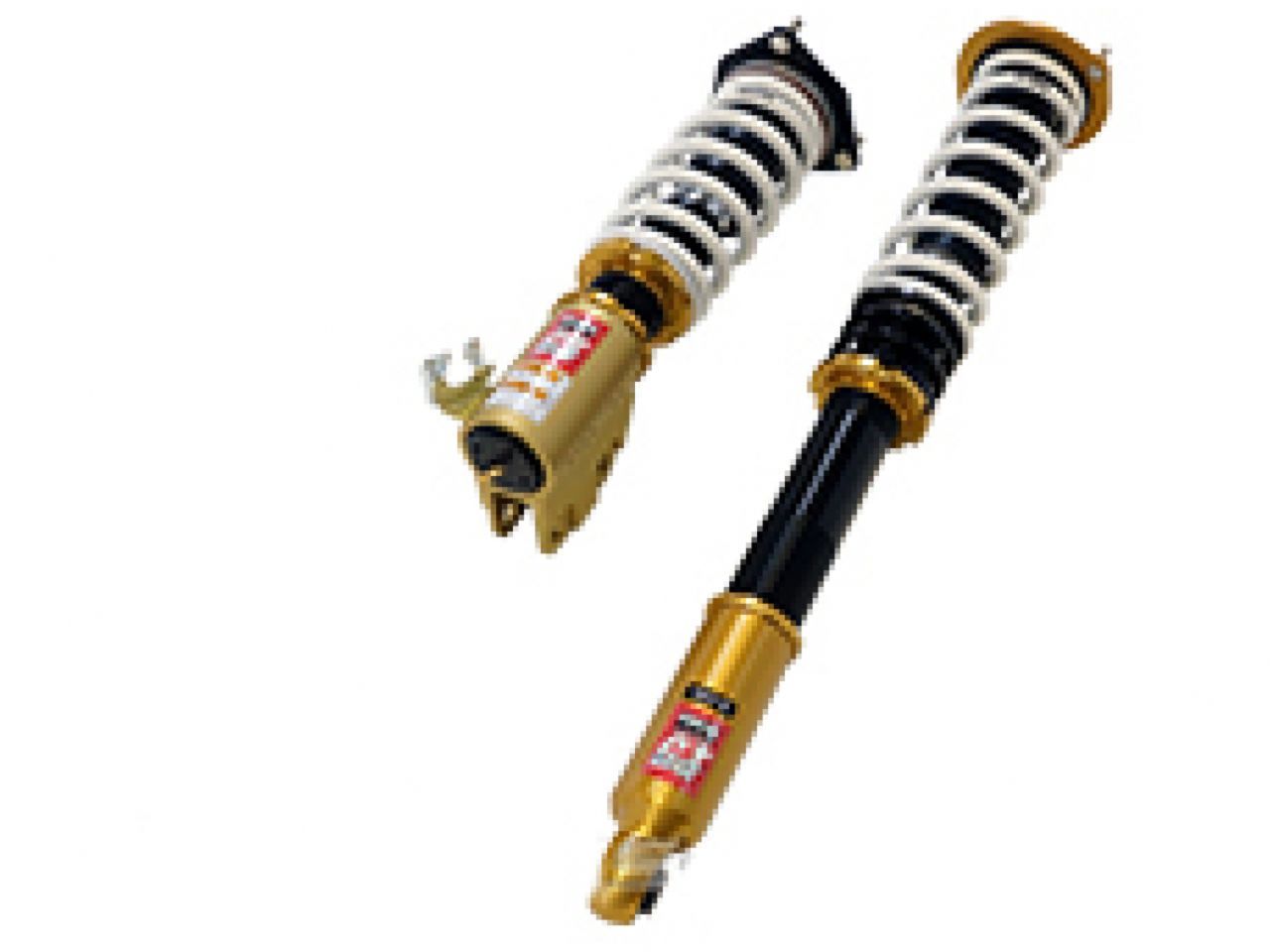

HKS Hipermax IV GT S15/S14 Full Kit
HKS Hipermax IV GT S15/S14 Full Kit
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policySingle Tube Damper Design
- Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.
Dust Boot
- Protect the shaft from the flying stones.
PNE Coating
- Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
M Shaft (?46 normal type)
- With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.
Adopted Pillow Ball Upper Mount
- For more accurate and sharp steering.
New Design Needle
- Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.
Reduction of Unsprung Weight
- In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
30 Step Damping Force Adjustment
- 30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
Specification:
| FRONT | REAR | |
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ? | ? |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) |
- | ? ( 19.8 ) |

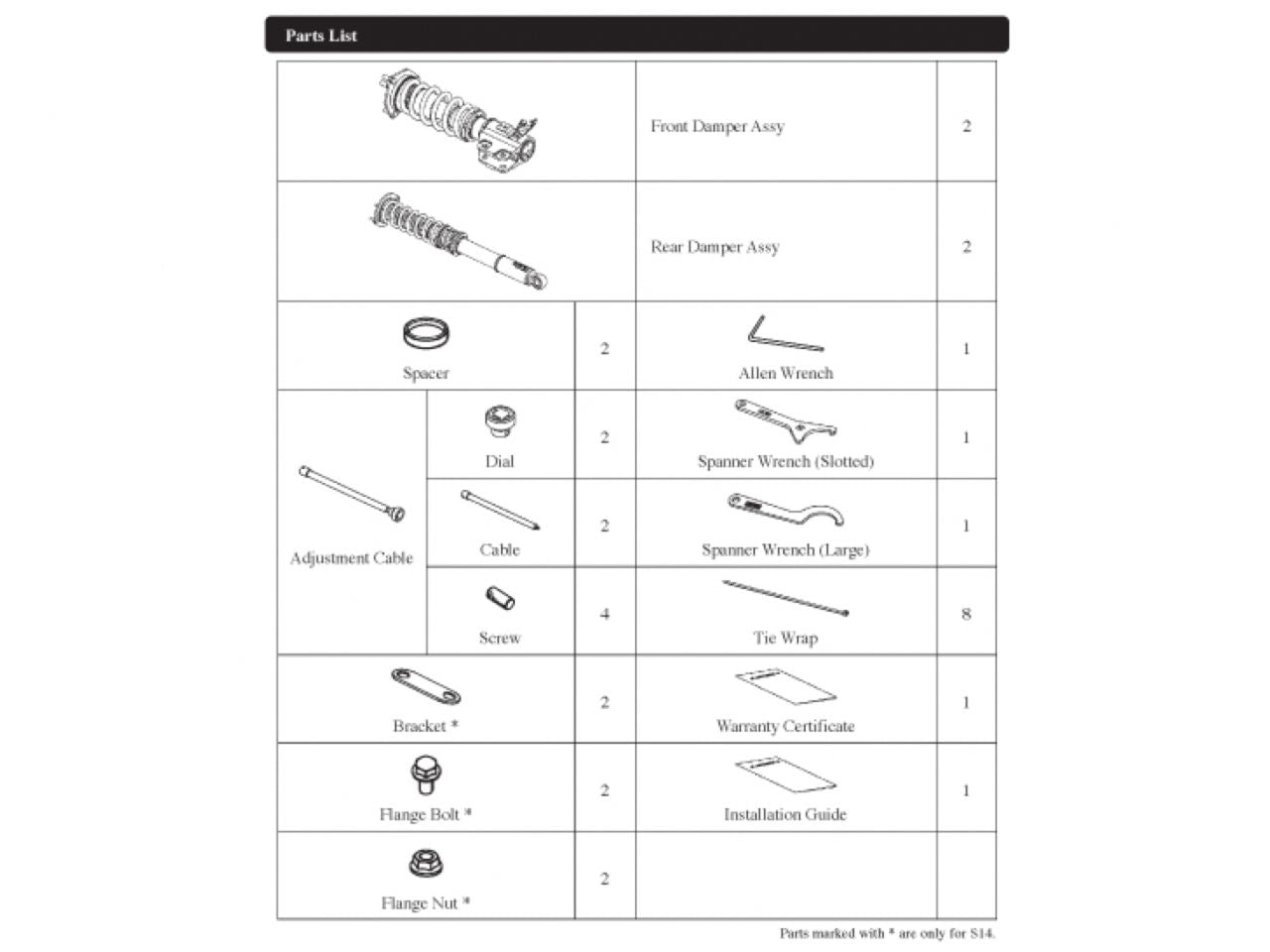

Kit Information
- Spring of Full Kit
| F | R | |
| Spring rate N/mm(kgf/mm) | 59 ( 6 ) | 49 ( 5 ) |
| Free height (mm) | 220 | 250 |
| Spring type | Straight Barrel type | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
- Specification of damper
| F | R | |
| Damping force (Rebound/Damping)N* | 839 / 382 | 211 / 137 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 32 / 81 | 79 / 85 |
- Setting Data
| F | R | |||||||
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
230 | ? | 271 | 230 | 486 | ? | 516 | 469 |
| Spring Set length(mm) |
207 | ? | 207 | 220 | 316 | ? | 301 | 325 |
| Length to ride hight adjuster (mm) |
30 | ? | 71 | 17 | 171 | ? | 201 | 145 |
| Lever ratio | 1.14 | 1.00 | ||||||
