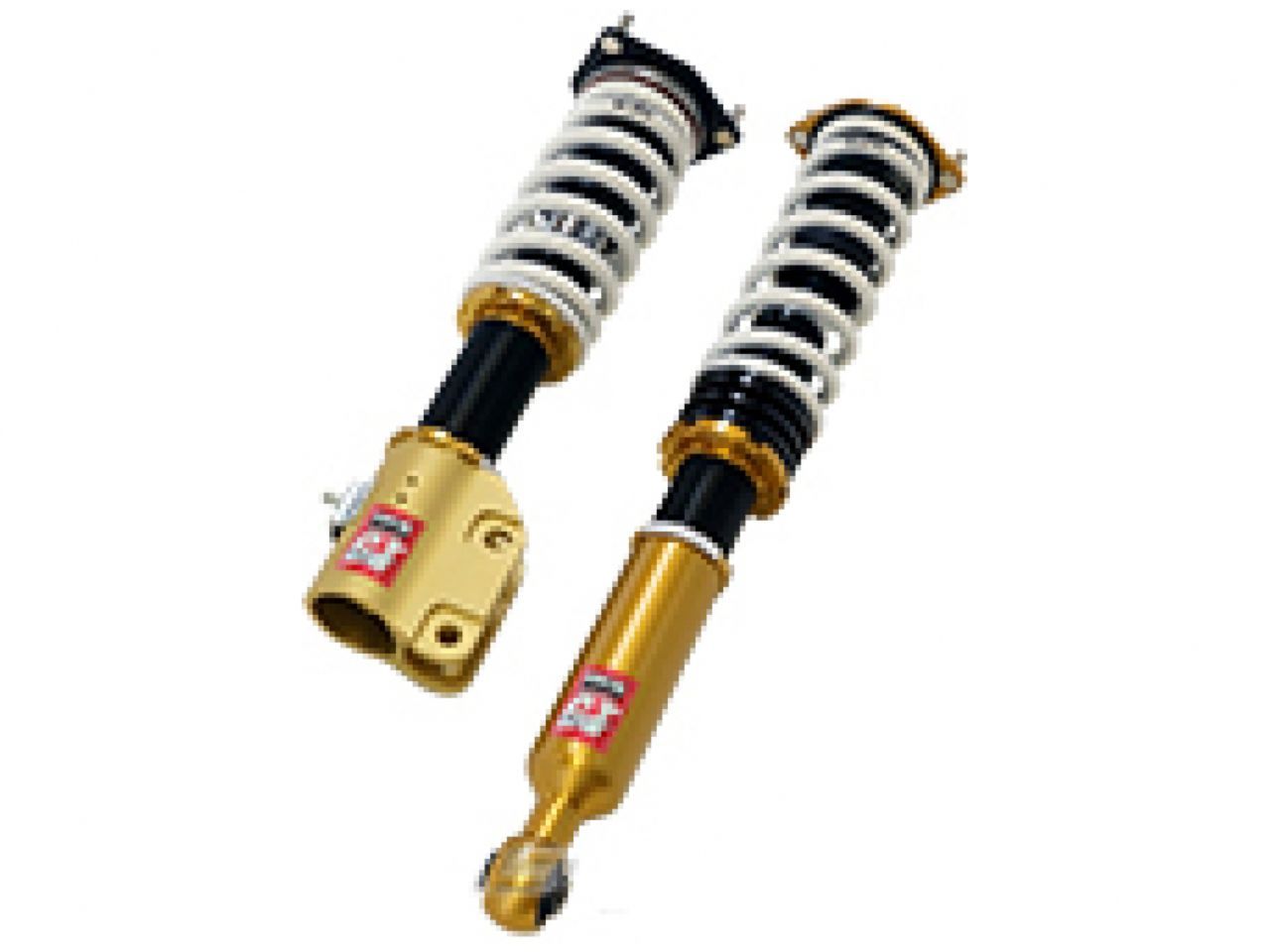

HKS Hipermax IV GT CZ4A Full Kit

• Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.

Dust Boot

• Protect the shaft from the flying stones.

PNE Coating

• Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.

M Shaft (?46 normal type)

• With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.

Adopted Pillow Ball Upper Mount

• For more accurate and sharp steering.

New Design Needle

• Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.

Reduction of Unsprung Weight

• In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)

30 Step Damping Force Adjustment

• 30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.

Specification:

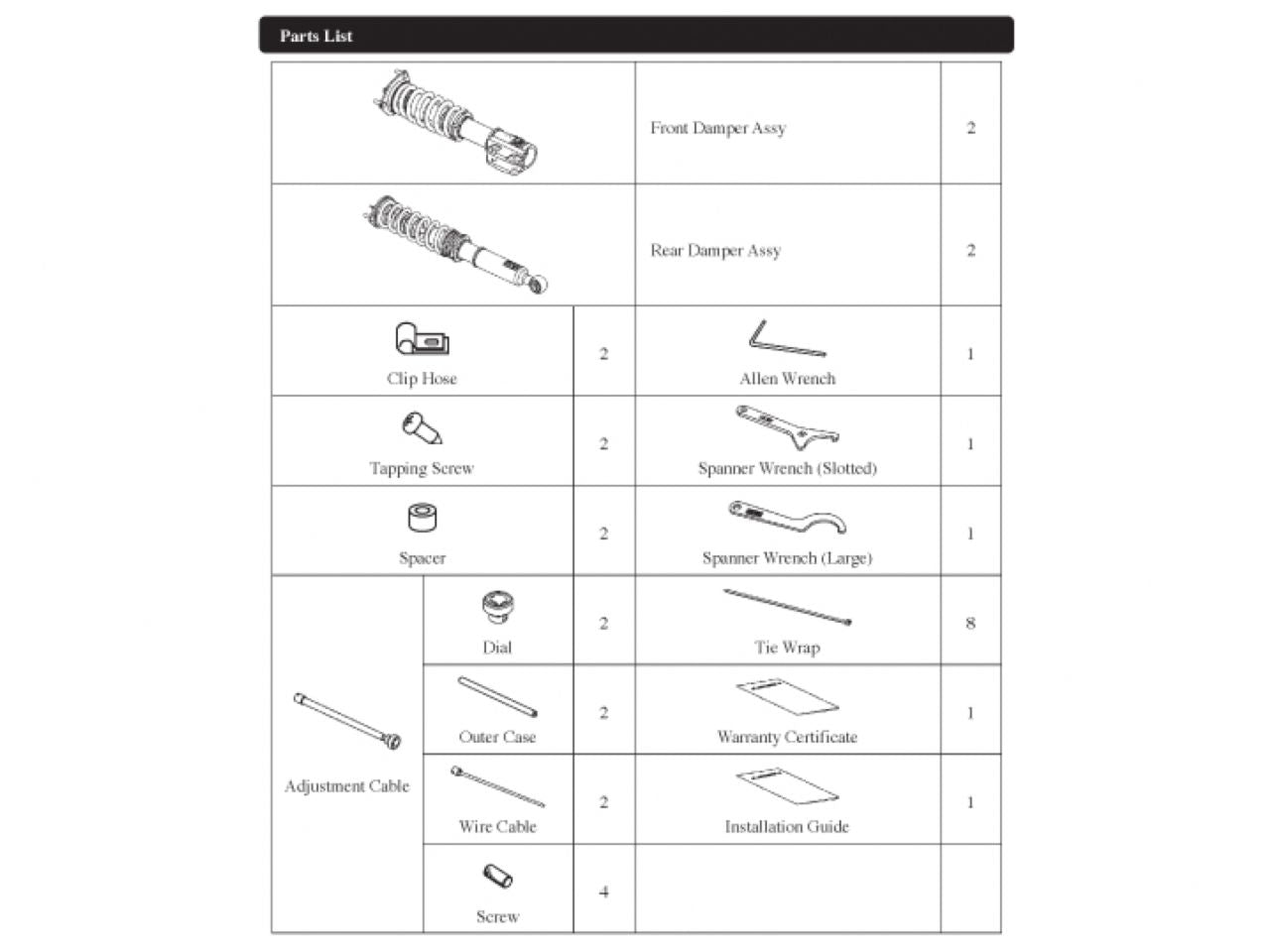

Kit Information

• Spring of Full Kit

• Specification of damper

• Setting Data
