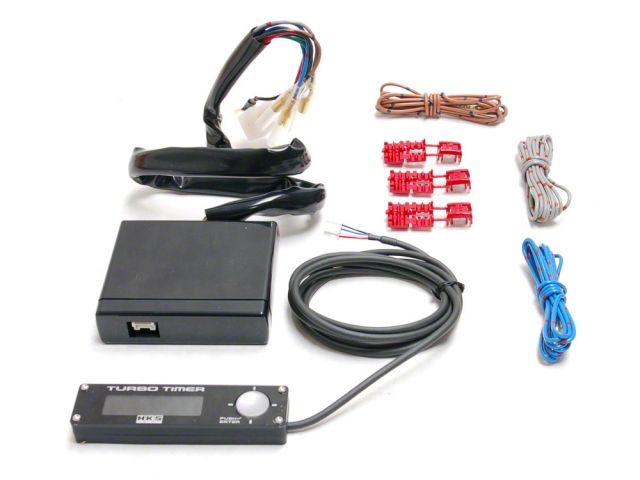

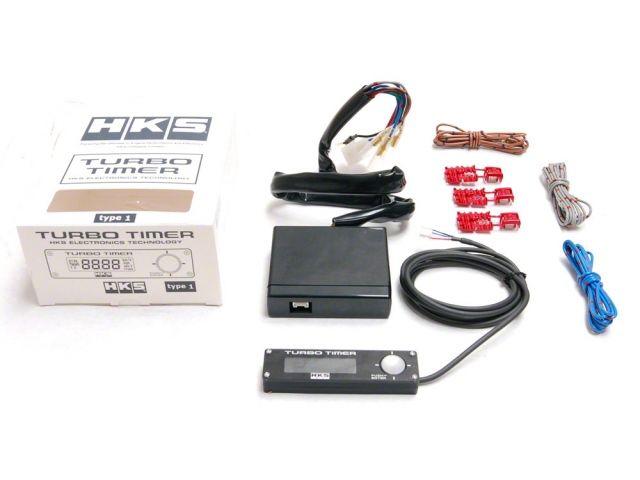

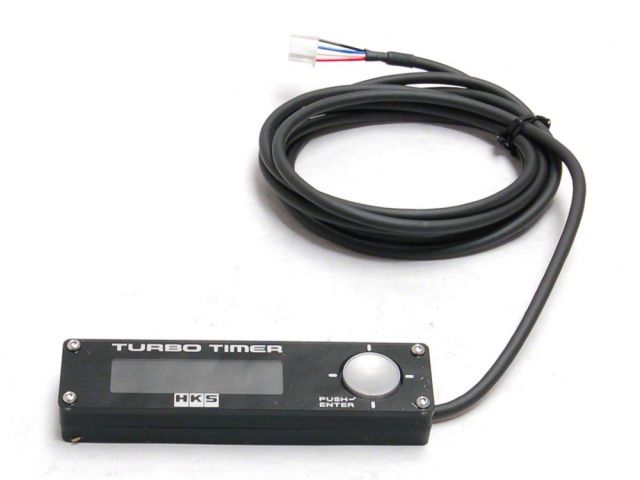

HKS Type-1 New Turbo Timer. HKS's new turbo timer for 2008 is the ninth generation turbo timer, now available! The Type-1 features standard turbo timer functions along with a blue backlit display, auto timing mode, vehicle speed and rpm display, and a two-stage RPM shift warning light.
HKS Type-1 turbo timer also features the 1/4 mile timer, 0-60, and a stopwatch function that can be used for lap timing. Display units can be changed from MPH or KPH.
- Part # 41001-AK010
- Positive Lit LCD

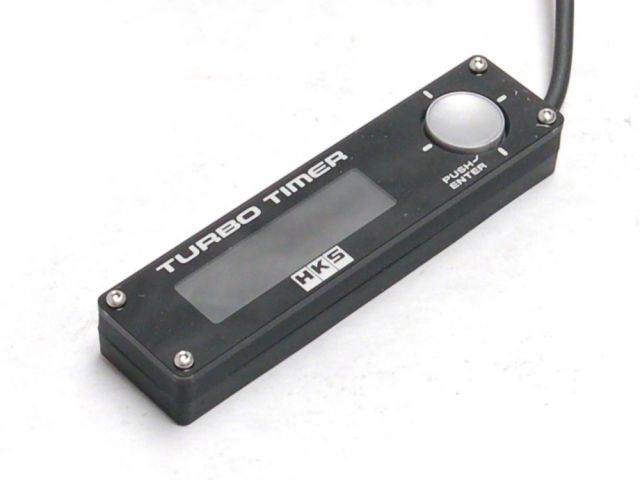

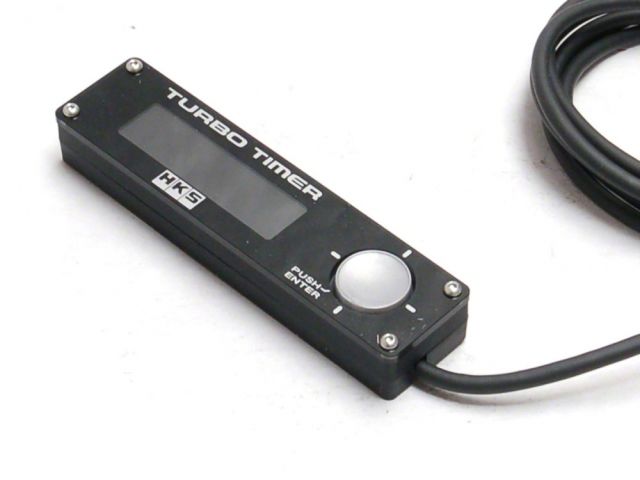

- Black Display Case (W:89.5mm/H:22.5mm/D:13mm)
- LCD Display (W:41.5mm/H:11mm)

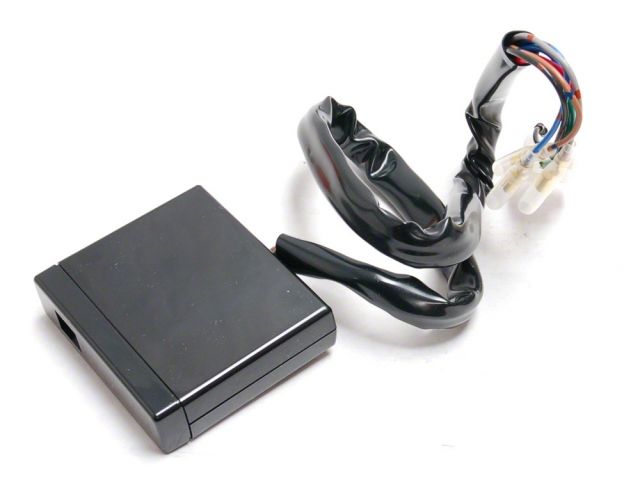

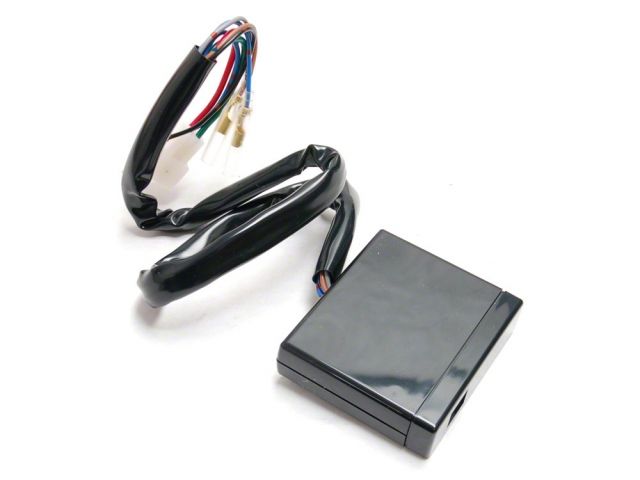

- Black Control Unit Case (W:69.0mm/H:80.0mm/D:21.0mm)
- Timer Functions:
- Manual Mode (0-10 Minutes)
- Memory Mode #1 (1 touch, 1 Minute Setting)
- Memory Mode #2 (1 touch, 3 Minute Setting)
- Auto Mode (0-5 Minute Setting)
- Battery Voltage Display:
- Battery Voltage
- Peak Value Indication
- ON/OFF Warning Function
- Vehicle Speed Indication Function:
- Vehicle Speed
- Peak Speed Hold Value
- Speed Warning Function
- Engine RPM Indication Function:
- Engine RPM
- Peak Engine RPM Hold Value
- Engine RPM Warning Function
- Display in either MPH/SAE or KPH/Metric
- Metric Distance Time Functions:
- Acceleration Distance (0-100m, 0-200m, 0-400m)
- Section Time (200-400m)
- Acceleration Time (0-100km/h, 100-150km/h)
- Auto or Manual Start for Quarter Mile Function
- SAE Distance Time Functions:
- Acceleration Distance (0-60 foot, 0-1/8 mile, 0-1/4 mile)
- Auto or Manual Start for Quarter Mile Function
- Stopwatch Tool Time Measurement
- Total Elapsed Time
- Lap Times

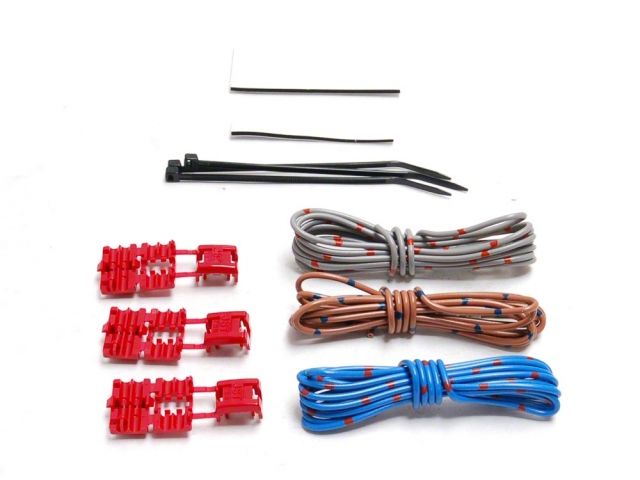

- Compatible with all HKS Turbo Timer Harnesses
|
