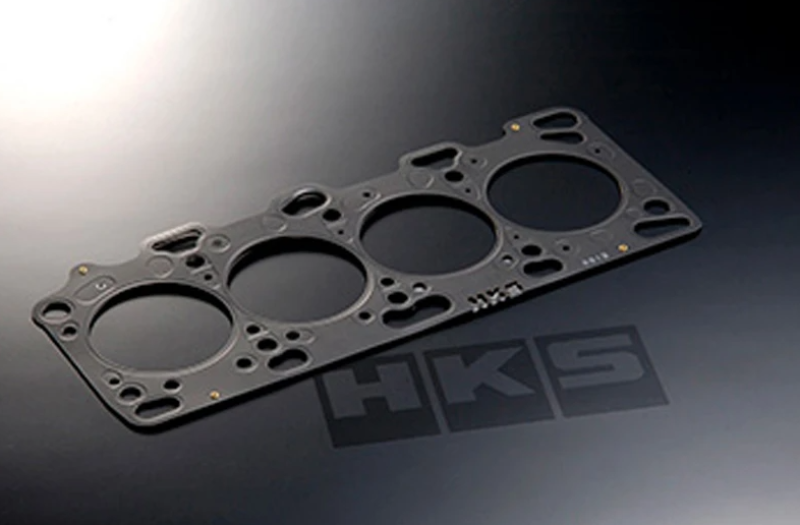

HKS 87-92 Supra MK3 2.0mm Stopper Head Gasket
HKS 87-92 Supra MK3 2.0mm Stopper Head Gasket
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 9 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyHKS metal head gaskets are engineered to resist severe levels of heat that are generated by high-horsepower and high-boost applications. All HKS head gaskets are constructed with multiple layers of steel and coated with a special fluorine rubber to provide exceptional sealing. HKS head gaskets are designed to accommodate standard and certain oversized cylinder bores.
For most applications, multiple gasket thicknesses are available to change the dynamic compression ratio for various levels of tuning and engine conditions. (Note: HKS gaskets are not designed to cure sealing problems caused by head or block irregularities.)
- Stopper-Type gasket consists of the maximum layers of plates possible and utilizes a molded stopper ring around each combustion chamber opening.
- Bead-Type gasket features a raised bead structure around each combustion chamber to ensure a precise seal.
- Grommet-Type Gasket employs a metal grommet around each combustion chamber, to ensure an excellent seal between the cylinder head and the engine block.
Specifications
| Bore | 86mm |
| Comp Ratio | 7.78:1 |
| Thickness | 2mm |
NOTE: COMPRESSION RATIO'S LISTED ARE FOR COMPARISON PURPOSES ONLY, ACTUAL RATIO ACHIEVED MAY VARY DEPENDING ON APPLICATION.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1987 - 1991 | Toyota | Supra | Turbo, Base |
