HKS 03-06 Mitsubishi EVO 8/9 GTII 7460R Sport Turbo Kit
Go to item 1 Go to item 2
HKS

HKS 03-06 Mitsubishi EVO 8/9 GTII 7460R Sport Turbo Kit

SKU: 07TGM | MPN:  11004-AM003

Sale price$2,523.50 USD Regular price$2,575.00 USD

Sold out

Features:

  • Factory replacement type Sports Turbine Kit for Lancer Evolution IV - IX.
  • The turbine assembly utilizes the reverse rotation ball bearing which is inhouse designed and manufactured by HKS.
  • The heat durability is enhanced by 4 times of the conventional kit. The product performance is maintained and stabilized.
  • The product durability and reliability are improved by utilizing the heat resistant steel to the turbine wheel and housing.
Vehicle specification
  • HKS GT II 7460R KAI S.T.K.
  • HKS Forged Piston
  • HKS Connecting Rods
  • HKS Camshaft + VALCON
  • HKS R type intercooler
  • HKS Oil Cooler
  • HKS Racing Suction kit
  • HKS FUEL UPGRADE KIT
  • HKS Super Turbo Muffler
  • HKS Metal catalyser
  • HKS F-CON iS
  • HKS EVC5

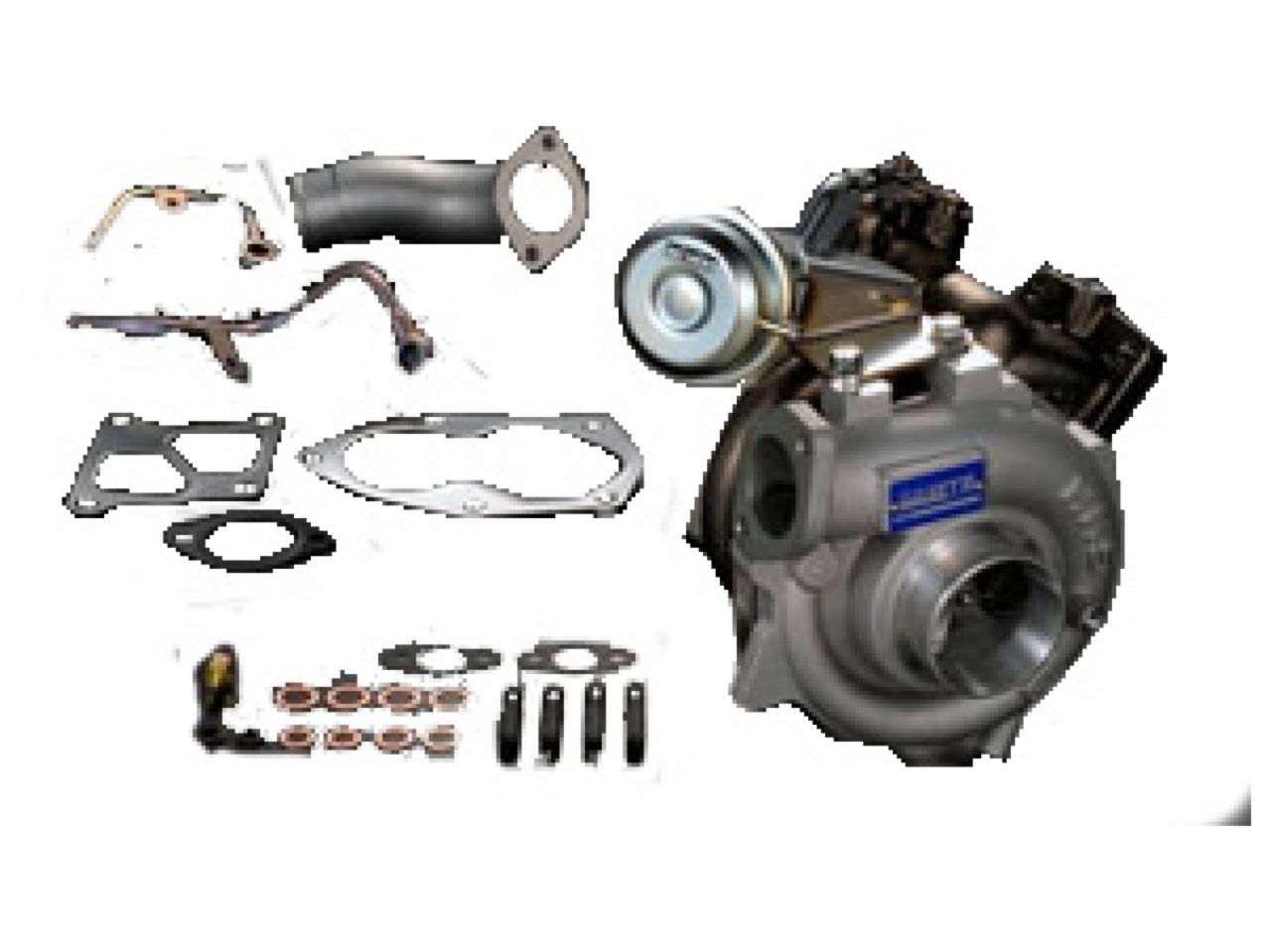

Parts for the kit
  • GT II 7460R KAI ASSY
  • actuator
  • air outlet pipe
  • water cooling pipe
  • Other parts

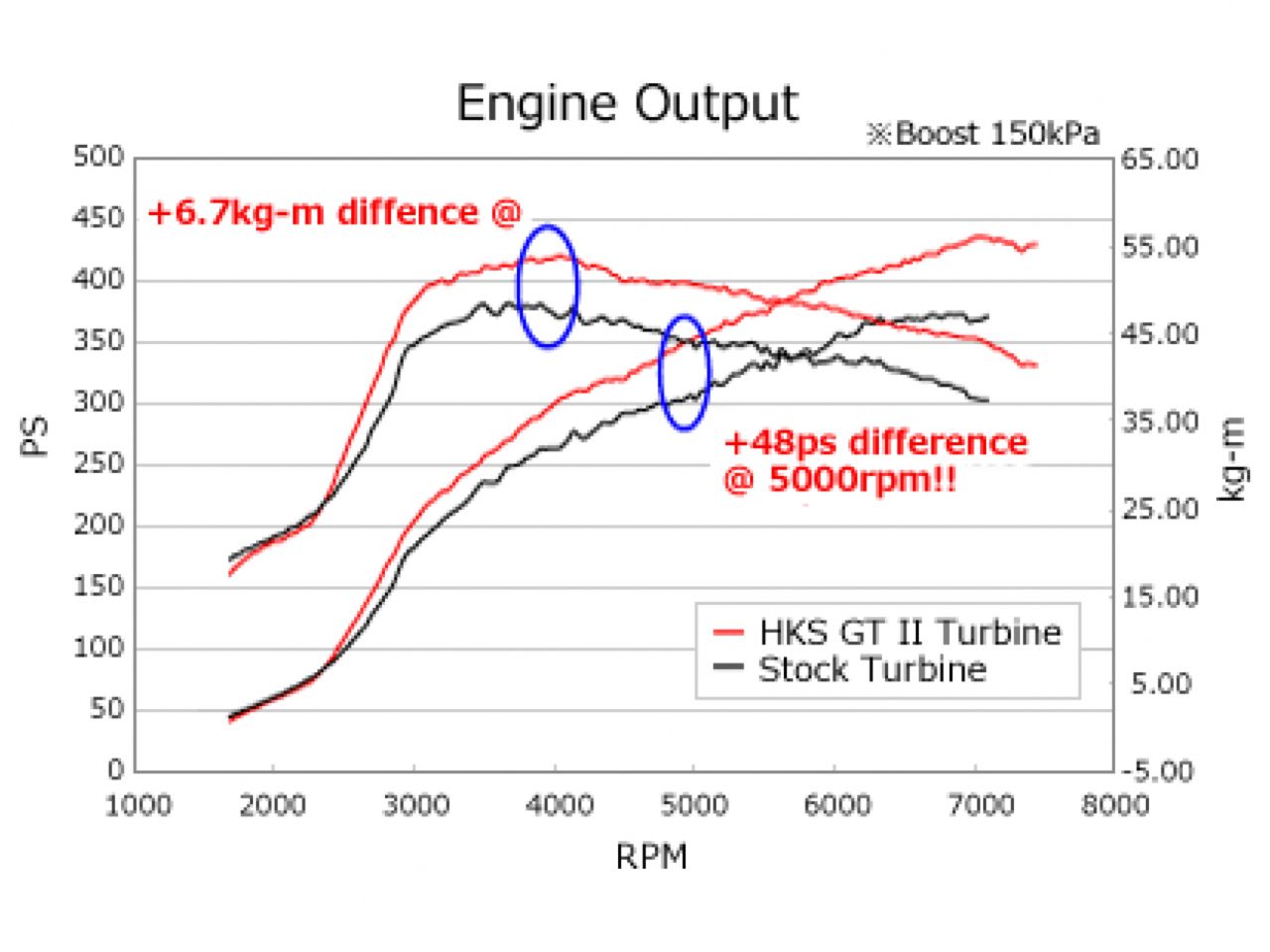

Performance Power Torque
HKS GT II 7460R KAI SPORTS TURBINE KIT 435.5ps/7000rpm 53.9kg-m/4040rpm
NORMAL (BOOST UP/EVO IX) 372.5ps/6890rpm 48.5kg-m/3670rpm
Remarks for installation
  • Estimated installation time:4-6 hrs.
  • Spark spark plugs must be replaced.

* Surging may occur if the exhaust system and/or suction parts are replaced to one of less resistance type to improve boost response.



Performance Power Torque
HKS GT II 7460R KAI SPORTS TURBINE KIT 459.2ps/7000rpm 61.0kg-m/3740rpm
Model control
device		 compressor wheel compressor housing turbine wheel exhaust housing
trim Inlet dia.
(mm)		 Outlet dia.
(mm)		 Inlet dia.
(mm)		 Outlet dia.
(mm)		 A/R trim outer dia.
(mm)		 Outlet dia.
(mm)		 inlet
flange		 outlet
flange		 A/R
Actuator 450 49 52.0 74.00 for 4G63 for 4G63 0.82 81 60.0 54.0 for 4G63 for 4G63 0.74
Vehicle Model Engine Model Year Type Turbine Size Boost Pressure Code No. Price Remarks
LANCER EVOLUTION CT9A 4G63 01/02-07/09 GT II SPORTS TURBINE KIT GT II 7460R KAI 78.5kPa (0.8kgf/cm2) 11004-AM003   with enhanced actuator


Vehicle Fitments:

Year Make Model Submodel
2003 - 2006 Mitsubishi Lancer Evolution
2005 - 2006 Mitsubishi Lancer LS Diamond, Evolution MR, Evolution RS
2002 - 2006 Mitsubishi Lancer LS, OZ Rally, ES
2004 - 2006 Mitsubishi Lancer Ralliart, DE
2006 Mitsubishi Lancer SE, Evolution SE
2004 Mitsubishi Lancer Sportback Ralliart, Sportback
