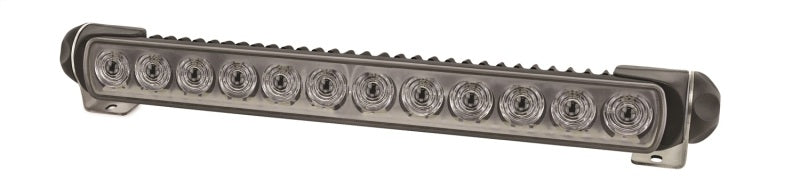

Hella Led Lamp Light Bar 9-34v 350/16in Pen Mv Ece

Long range

• Off road use (Driving and Pencil beam versions  ECE approved)

• Trucks / SUVs / ATVs / UTVs / Off-road vehicles

Features:

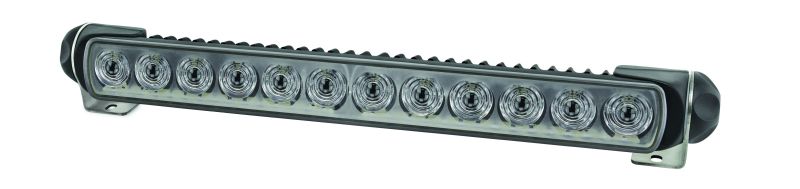

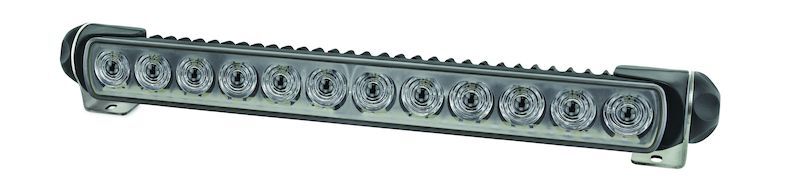

• Compact LED light bar

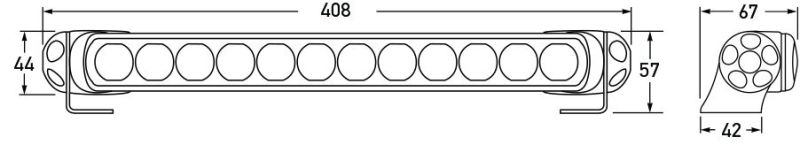

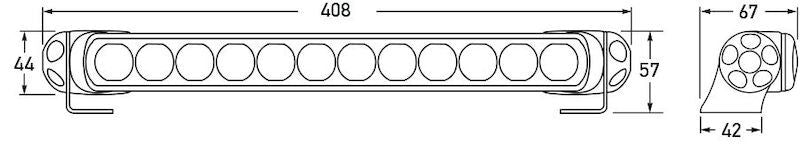

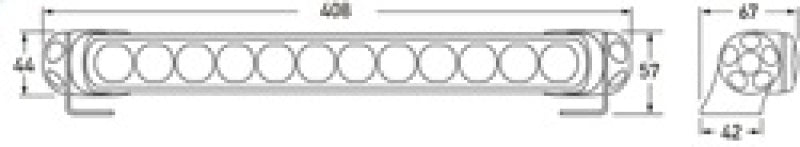

• 16” (408mm) long and low profile and lightweight at only 1.7 pounds (790 g)

• Developed for the special requirements of off-road vehicles and for aerodynamic installation on the roof of truck cabins.  But due to its slim design it can be mounted in various spaces on heavy duty trucks, pick-ups and cars

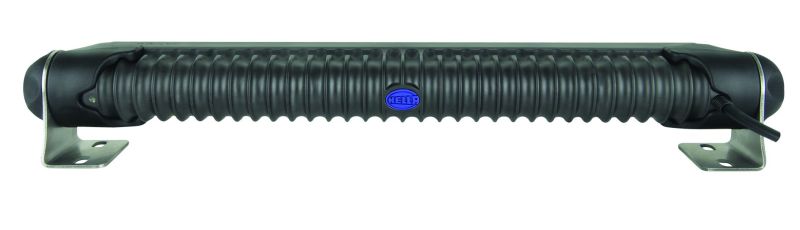

• The rear of the housing is an innovative ribbed design

• Effective heat dissipation from the LED electronics through the housing made of thermoconductive plastic

• Suitable for horizontal mounting

• Stainless steel mounting brackets allow flexible positioning on the vehicle

• Double mounting bracket available (sold separately)

• 1500 Lumens for Driving and Pencil Beam versions

• 2200 Lumens for Wide and Narrow Beam versions (on 'High' setting)

• Two intensity light settings for Wide and Narrow Beam versions (220 Lumens on "Low" setting)

• 12 V / 25 W, 24 V / 25 W (Multivolt)

• Fully sealed and submersible

Specifications:

• Voltage: Multivolt 9-34V DC

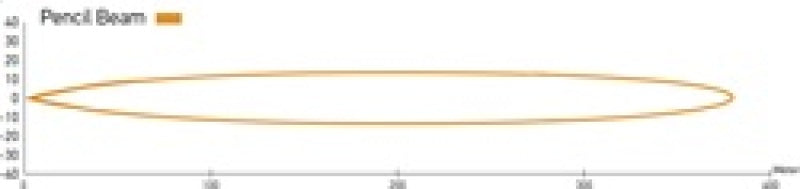

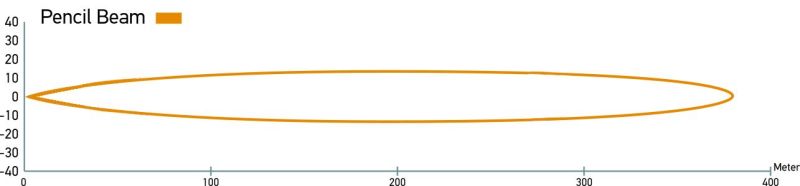

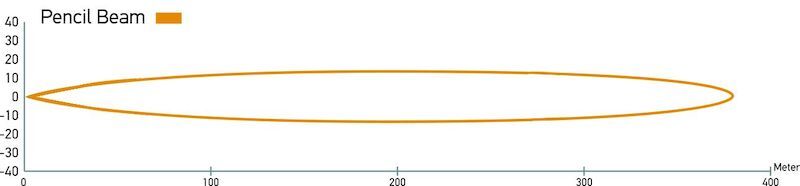

• Beam Pattern: Driving Beam, Pencil Beam, Wide Beam and Narrow Beam

• Number of LEDs: 12

• Power Consumption: 25W

• Luminous Flux: 1500lm & 2200lm

• Light Temperature: 6000K

• Weight: 1.7 pounds (790 g)

• Connection: Wire Leads

• Mounting Bracket: Stainless Steel

• Approval: Driving and Pencil Beams are ECE approved

Mounting:

• Horizontal

• Pendant

Technology:

• LED

• Free-Form

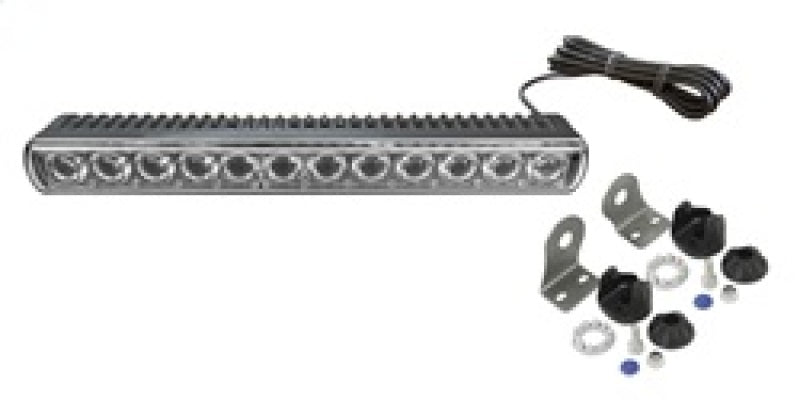

Single Light Bar includes:

• (1) Light Bar

• Mounting Hardware

• Step-by-Step Mounting Instructions
