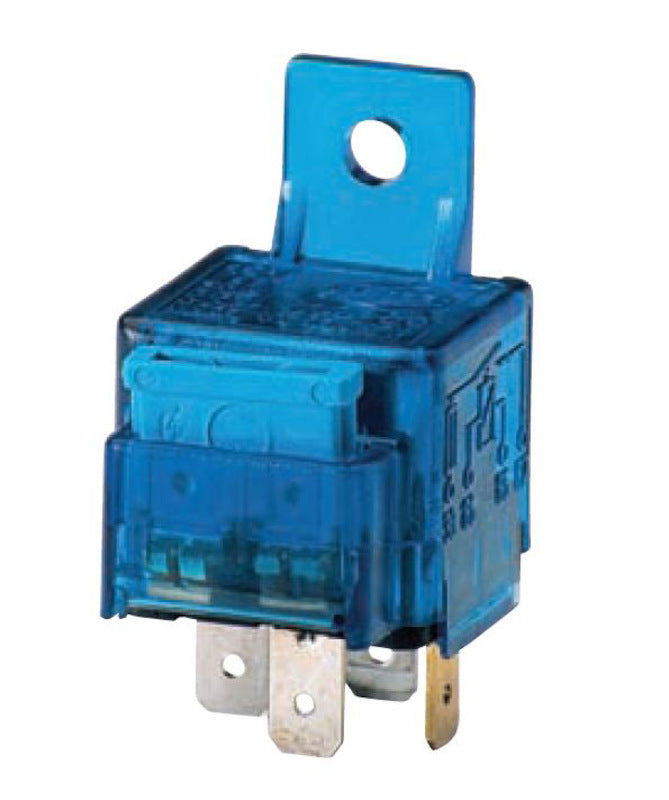

Hella Relay 12V 25A SPST 25A Fuse Bkt

Hella Relay 12V 25A SPST 25A Fuse Bkt

sku: 0UC36 | mpn: 003530041
$35.00
$35.00 $35.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
  • 12 Volt
  • SPST / Form A
  • With Built-in 15Amp Fuse
  • 25 Amp Continuous
  • Mounting Bracket
  • Nominal Voltage: 12V
  • Rated Continuous Load: N/O 25A at 23° C
  • Ambient Temperature: -40° C...+85° C
  • Contact Form: 1 Form A / SPST N/O
  • Contact Material: AgNi
  • Operating / Drop out Voltage: ? 9.0V / ?1.3V
  • Max. Coil Voltage: 24V
  • Coil Resistance: 85 Ohm ± 10%
  • Suppression: Fuse
  • Mechanical Cycles: 10,000,000
  • Operating / Releasing Time: ? 10 ms / ? 15 ms
  • Dielectric Strength: ? 1,000 VDC
  • Max. Inrush Load: ---
  • Resistive Load / Switching Cycles: N/O 25A, 100,000 cycles
  • Inductive Load / Switching Cycles: ---
  • Lamp Load (capacitive) / Switching: Cycles ---
  • Vibration: 20 - 200 Hz, 50m/s², 6 h per axis
  • Mechanical Shock: 500 m/s², 11 ms, period: 1 min, 1,000 times
  • IP Rating: IP54 DIN IEC 60 529

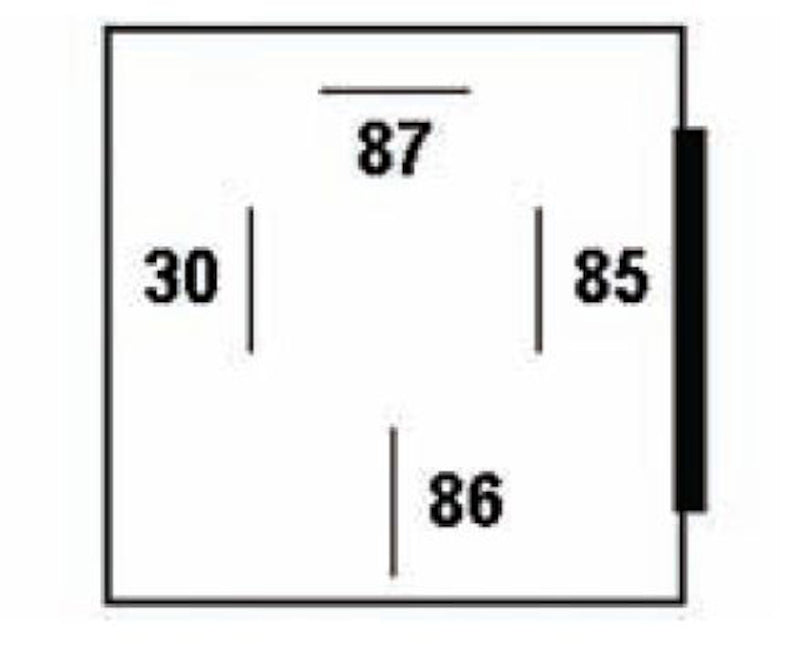

  • Terminals:
    • 85, 86: ISO 8092 6.3 x 0.8, St3, gal Sn
    • 30: ISO 8092 6.3 x 0.8, E-Cu, gal Sn
    • 87: ISO 8092 6.3 x 0.8, E-Cu
