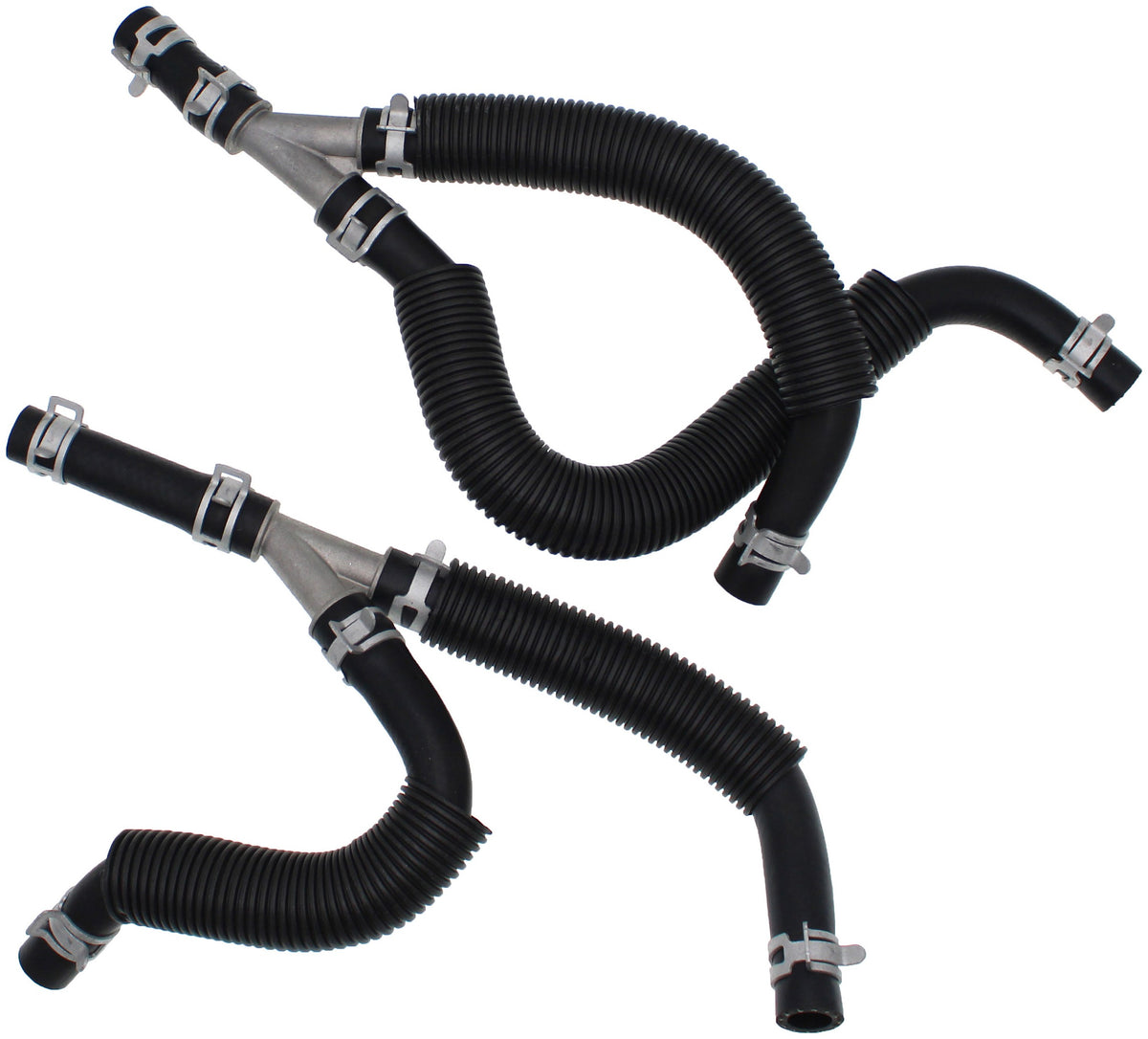

Dorman Heater Hose Assembly

Quality engineered to resist corrosion and coolant leaks, the Dorman HVAC Heater Hose Assembly is designed to limit the possibility of overheating and subsequent engine damage. Original HVAC heater hose assemblies typically require replacement due to cracks in the original Y-connector plastic construction. Our OE FIX repair solution addresses this common failure mode by upgrading the Y-connector material to aluminum for increased durability and a longer service life. Plus, Dorman Heater Hose Assemblies are application-specific, and ensure the easiest, cost-savings alternative to replacing the entire assembly.

• Save time and money by replacing the failed original hose, instead of the entire heater hose assembly
• Includes necessary clamps for a complete repair
• Replacement of failed hose seals the cooling system, restoring drivability
• Rigorous quality control measures have been undertaken to ensure this part conforms to product standards

Applications:

YearMakeModelConfigurationPositionsApplication Notes2010ChryslerTown and CountryV6 201 3.3L (3301cc)Heater Hose and Tube Assembly; Supply and Return; w/Auxiliary Heater2010ChryslerTown and CountryV6 231 3.8L (3778cc)Heater Hose and Tube Assembly; Supply and Return; w/Auxiliary Heater2010ChryslerTown and CountryV6 241 4.0L (3952cc)Heater Hose and Tube Assembly; Supply and Return; w/Auxiliary Heater2010DodgeGrand CaravanV6 201 3.3L (3301cc)Heater Hose and Tube Assembly; Supply and Return; w/Auxiliary Heater2010DodgeGrand CaravanV6 231 3.8L (3778cc)Heater Hose and Tube Assembly; Supply and Return; w/Auxiliary Heater2010DodgeGrand CaravanV6 241 4.0L (3952cc)Heater Hose and Tube Assembly; Supply and Return; w/Auxiliary Heater

Product Specifications

Color/Finish:Natural

Coolant Hose Heat Shield Included:No Heat Shield Required

Coolant Hose Length:18 In.

Coolant Hose Material:Aluminum and Rubber

Coolant Hose Protective Sleeve Included:Yes

Coolant Hose Type:Single I.D. (Inside Diameter)

End 1 Attachment Type:Hose

End 2 Attachment Type:Hose

End 3 Attachment Type:Hose

Hose End (1) Inside Diameter (In):0.6 In.

Hose End (1) Outside Diameter (In):0.9 In.

Hose End (2) Inside Diameter (In):0.6 In.

Hose End (2) Outside Diameter (In):0.9 In.

Hose End (3) Inside Diameter (In):0.6 In.

Hose End (3) Outside Diameter (In):0.9 In.

Maximum Working Pressure (psi):100

Package Contents:Heater Hose Assembly

Package Quantity:1

Packaging Type:Bag

Thermostatically Controlled:No

With Clamps:Yes

Vehicle Fitments:
