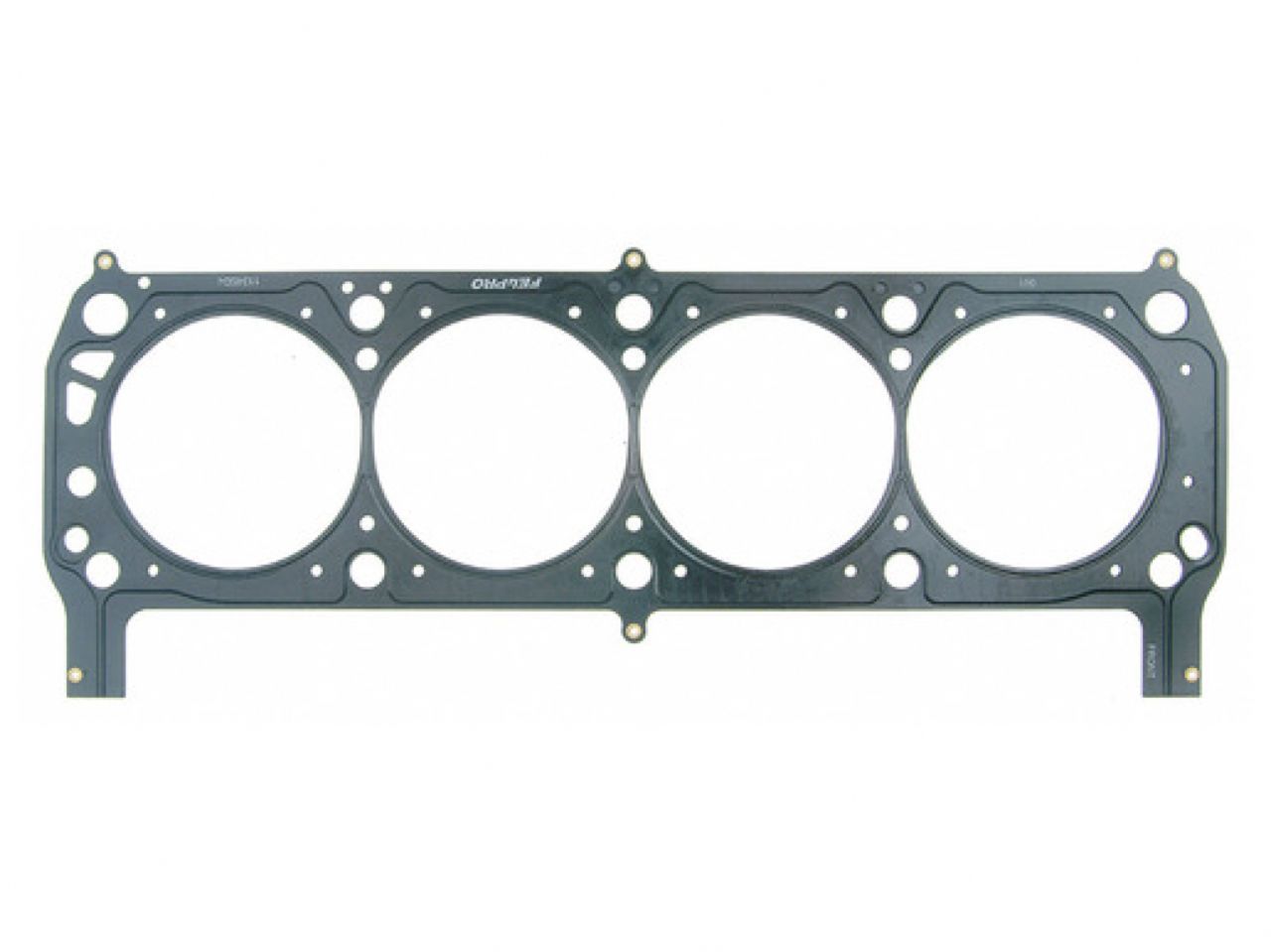

FelPro Head Gasket

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

Features:

Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.

The latest development in Fel-Pro Performance head gasket technology is the PermaTorque®MLS (multi-layer steel) series.

Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.

Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron

Not intended for use in emission controlled vehicles.

Specifications:

• Part Type: Head Gasket
• Mfg: Ford Performance
• Engine Family: Ford V8 Windsor Small Block
• Engine Displacement: 260, 289, 302, 351W Windsor
• Bore Size (in.): 4.180
• Thickness (in.): 0.0425
• Combustion Chamber Volume (cc): 9.40
• Combustion Seal Design: MLS bore bead
• Materials/Construction: PermaTorqueMLS® multi-layer steel
• Application Notes: Will also fit Yates cylinder head
• Product Notes: 4 active layers; No shim layer
