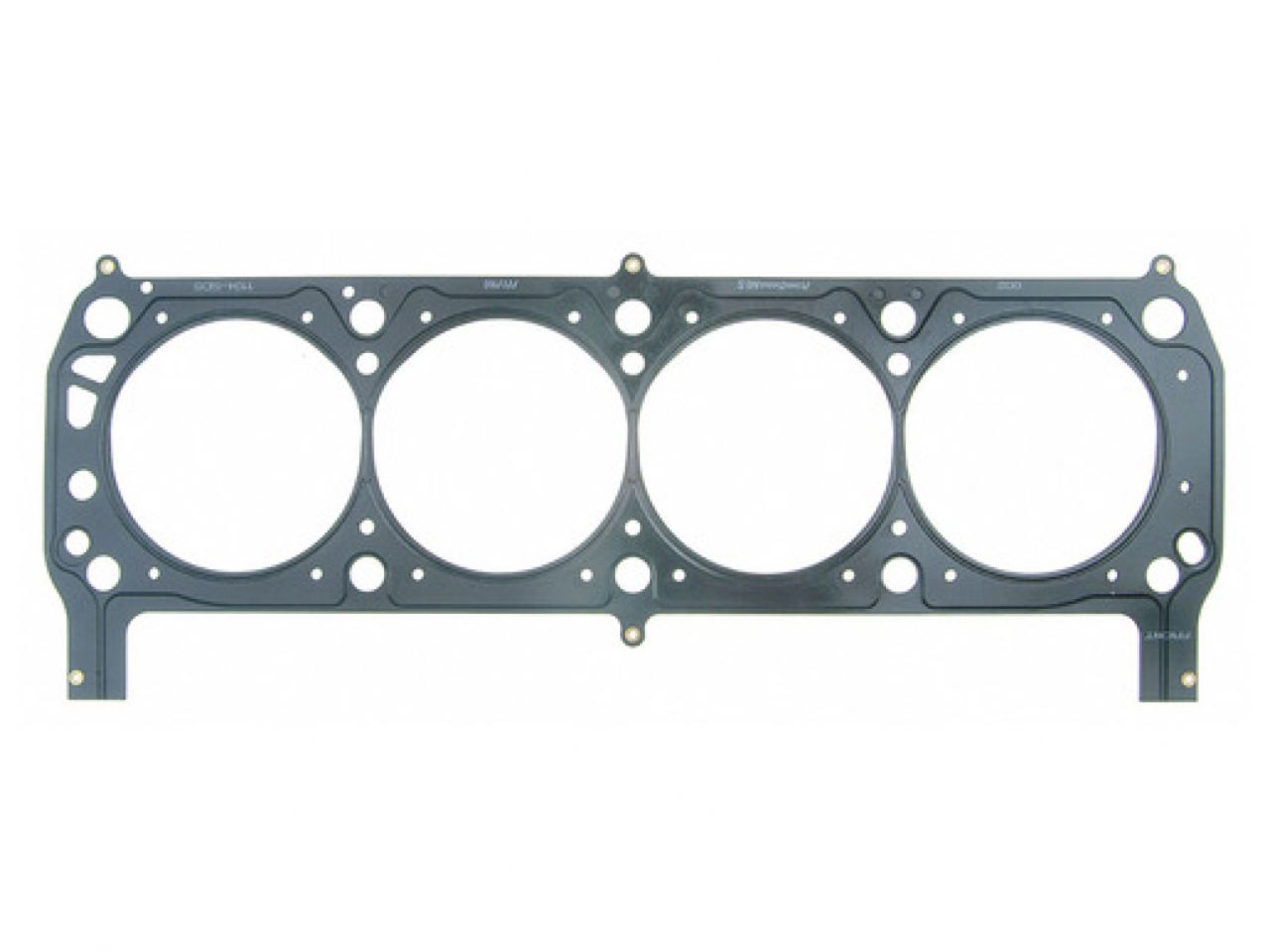

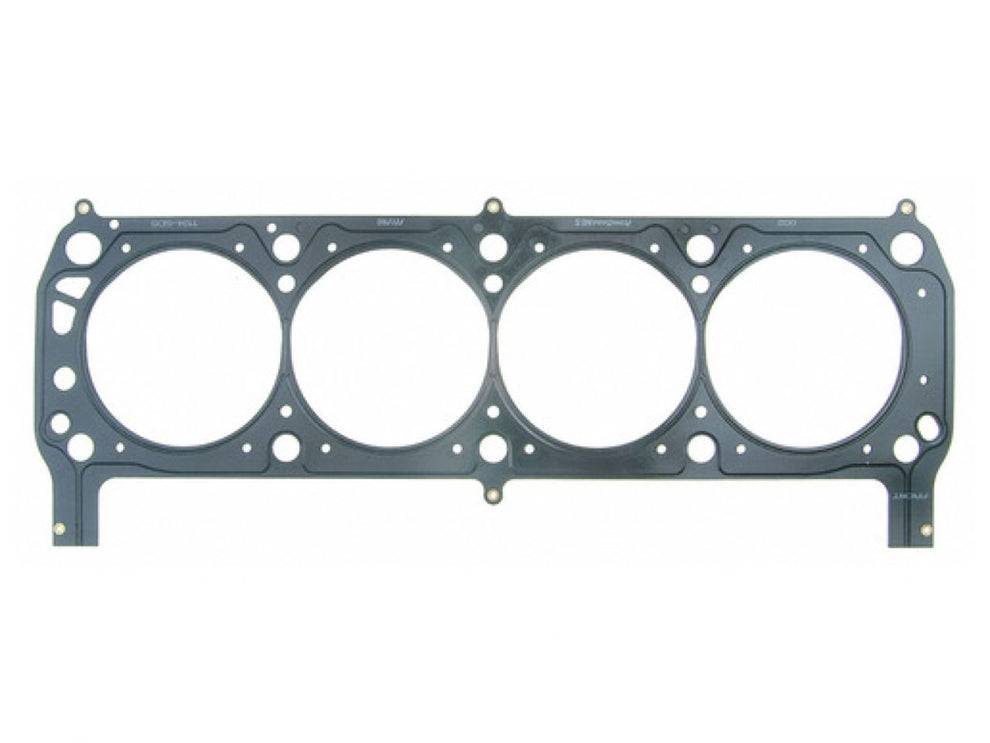

FelPro Head Gasket

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

• Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
• The latest development in Fel-Pro Performance head gasket technology is the PermaTorque®MLS (multi-layer steel) series.
• Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.
• Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron
• Not intended for use in emission controlled vehicles.

Specifications

Part Type: Head Gasket

Mfg.: Ford Performance

Engine Family: Ford V8 Windsor Small Block

Engine Displacement: 260, 289, 302, 351W Windsor

Bore Size (in.): 4.180

Thickness (in.): 0.052

Combustion Chamber Volume (cc): 11.00

Combustion Seal Design: MLS bore bead

Materials/Construction: PermaTorqueMLS® multi-layer steel
