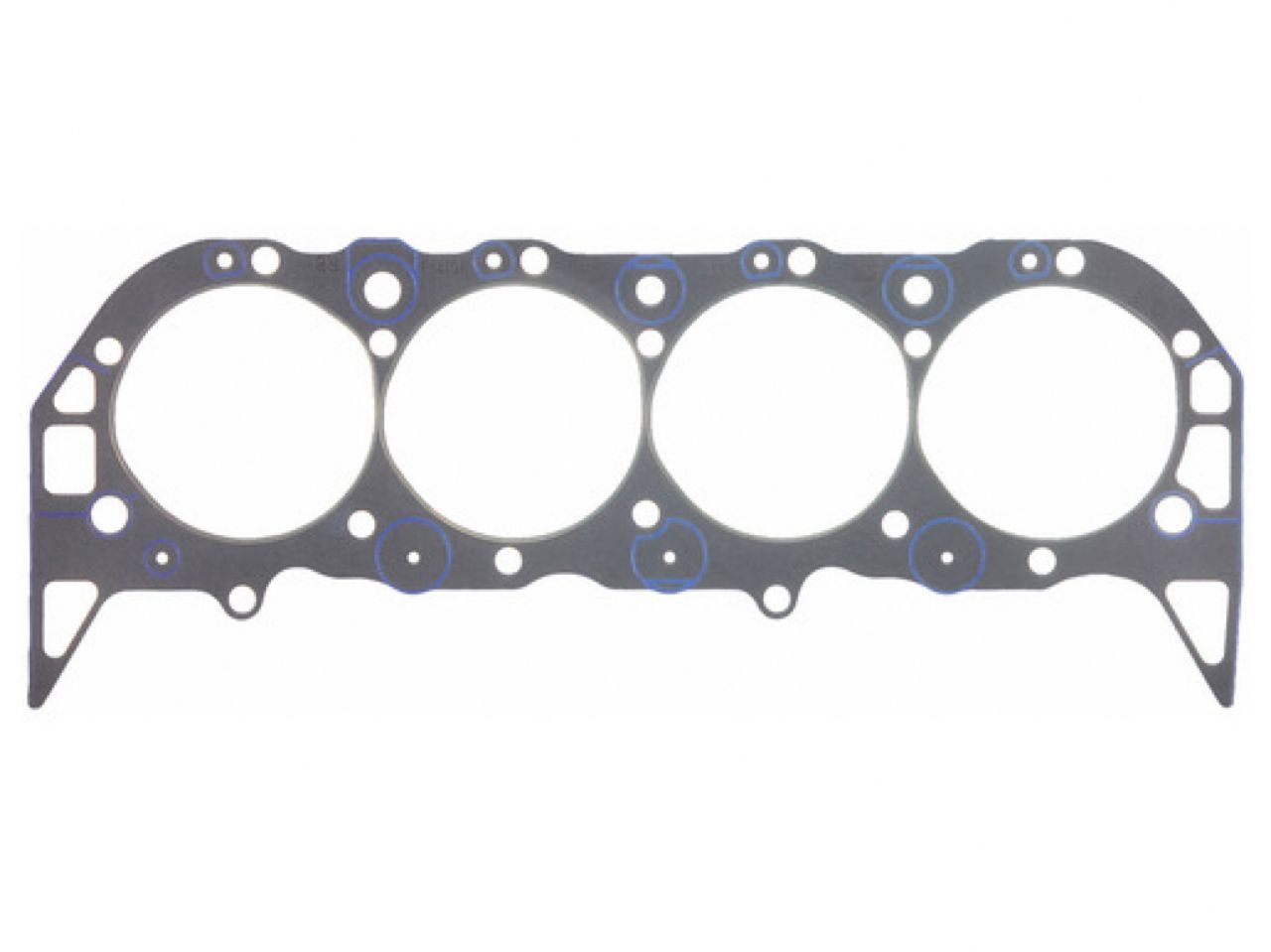

FelPro Head Gasket

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

• Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
• Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber.
• Raises combustion sealing force to roughly three times that of standard head gaskets.
• Steel wire rings for the greatest combustion seal strength.
• Not intended for use in emission controlled vehicles.

Specifications

Part Type: Head Gasket

Mfg.: GM Performance

Engine Family: Chevrolet V8 Big Block

Engine Displacement: 3396, 402, 427, 454, 502, 510, 540, 572

Bore Size (in.): 4.540

Thickness (in.): 0.039

Combustion Chamber Volume (cc): 10.50

Combustion Seal Design: Pre-flattened copper wire

Materials/Construction: Steel core laminate
