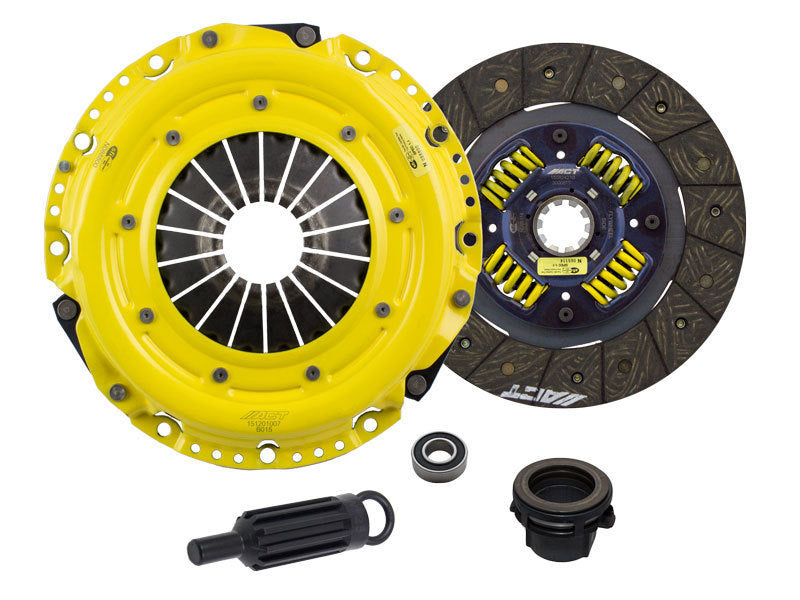

ACT 01-06 BMW M3 E46 HD/Perf Street Sprung Clutch Kit

kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

- Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle;

- Life: Longer friction life, extended by ACT's exclusive diaphragm design;

- Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade;

- Recommended Use: Recommended for street and race use;

- ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Application List

BMW M3 (2001-2006) - Base 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated

Specifications

Pressure Plate Type: Heavy Duty

Input Shaft Diameter (Inches): 1-3/8

Friction Surface Diameter (mm): 240

Item Description: HD/Perf Street Sprung

Friction Surface Diameter (Inches): 9.4

Product Weight (lbs.): 14.9

Disc Type: Sprung Street Disc

Torque Capacity Over OE 52%

Torque Capacity (ft/lbs.) 465

Spline Count 10

Disc Material Organic

SFI 1.1

Vehicle Fitments:
