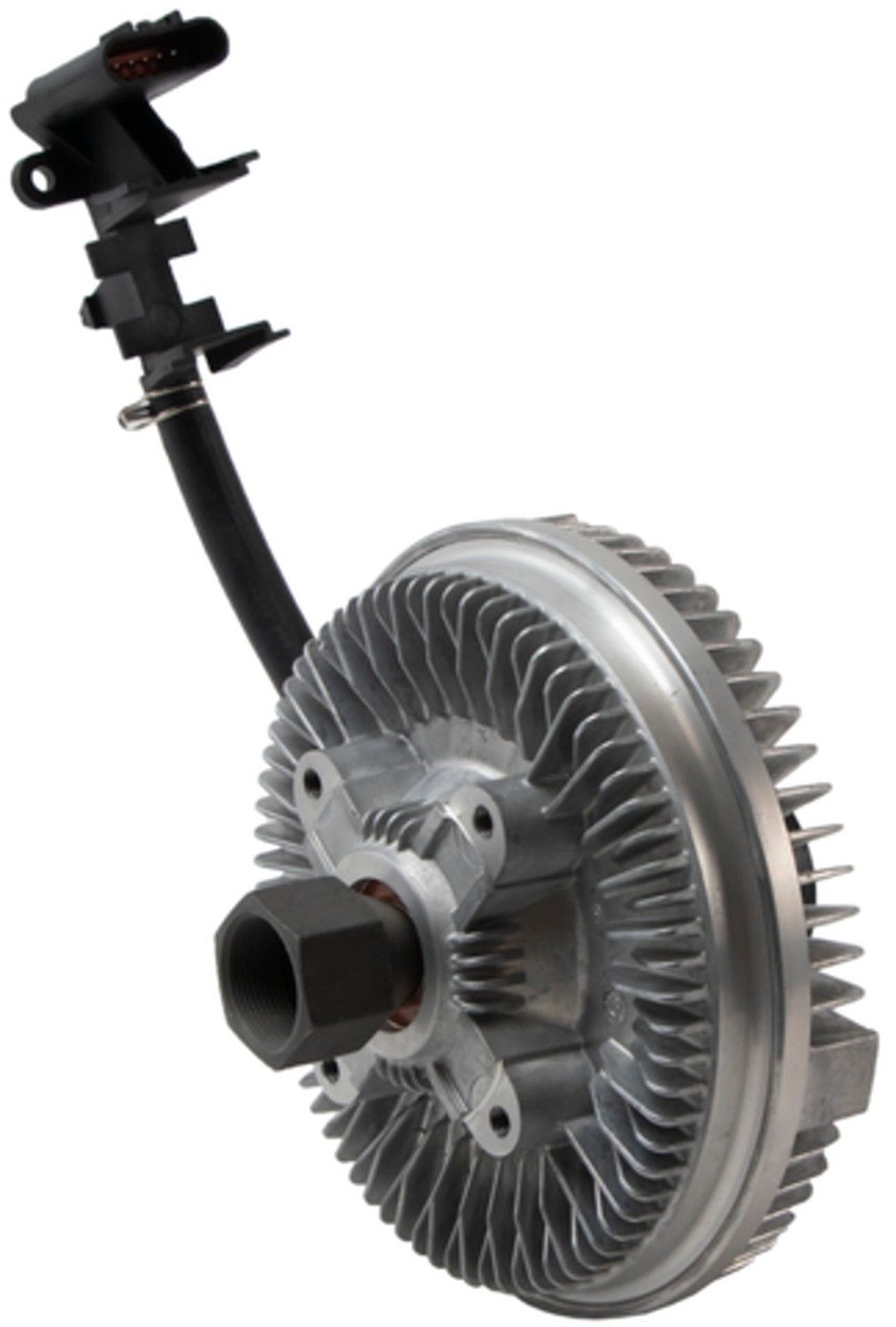

Hayden Reverse Rotation Severe Duty Electronic Fan Clutch 3200
Engine Cooling Fan Clutch. (3200) by Hayden
Designed, tested, and built by application
Fits: Buick Rainier (07-04) >> Chevy SSR (06-03); Trailblazer (09-02) >> GMC Envoy (09-02) >> Isuzu Ascender (07-03) >> Olds Bravada (04-02) >> Saab 9-7 (07-05)
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2007 | Buick | Rainier | CXL |
| 2004 - 2005 | Buick | Rainier | CXL Plus |
| 2003 - 2006 | Chevrolet | SSR | Base |
| 2004 - 2007 | Chevrolet | Trailblazer | A, B |
| 2003 - 2008 | Chevrolet | Trailblazer | Base |
| 2002 - 2007 | Chevrolet | Trailblazer | LS |
| 2002 - 2009 | Chevrolet | Trailblazer | LT |
| 2002 - 2003 | Chevrolet | Trailblazer | LTZ |
| 2002 - 2004 | Chevrolet | Trailblazer | North Face |
| 2005 | Chevrolet | Trailblazer | Q, R |
| 2006 - 2009 | Chevrolet | Trailblazer | SS |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | LS |
| 2002 - 2006 | Chevrolet | Trailblazer EXT | LT |
| 2002 - 2004 | Chevrolet | Trailblazer EXT | North Face |
| 2005 - 2009 | GMC | Envoy | Denali |
| 2002 - 2009 | GMC | Envoy | SLE, SLT |
| 2005 - 2006 | GMC | Envoy XL | Denali |
| 2002 - 2006 | GMC | Envoy XL | SLE, SLT |
| 2004 - 2005 | GMC | Envoy XUV | SLE, SLT |
| 2003 - 2006 | Isuzu | Ascender | Base, LS |
| 2003 - 2005 | Isuzu | Ascender | Limited |
| 2004 - 2007 | Isuzu | Ascender | S |
| 2002 - 2004 | Oldsmobile | Bravada | Base |
| 2006 - 2007 | Saab | 9-7x | 5.3i, 4.2i |
| 2005 | Saab | 9-7x | Arc, Linear |
| Bolt Quantity | 4 |
| Bolt Thread | M8 x 1.25 Hole |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 7.48 |
| Duty Rating | Electro-Viscous |
| Electronic Clutch? | Yes |
| Fan Bolt Circle IN | 3.81 |
| Fan Bolt Circle MM | 96.8 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.44 |
| Mount Dia. MM | 36 |
| Mount Hole Qty | 4 |
| Mount Type | HEX |
| Mounting Hardware? | Not Included |
| New or Reman | New |
| Overall Dia. IN | 7.48 |
| Overall Dia. MM | 190 |
| Overall Height IN | 5.52 |
| Overall Height MM | 140.2 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.77 |
| Pilot Depth MM | 19.3 |
| Pilot Dia. IN | 1.18 |
| Pilot Dia. MM | 30 |
| Rotation | REV |
| Style | Severe Duty |
| Type | Electronic |
Hayden Reverse Rotation Severe Duty Electronic Fan Clutch 3200
Sale price$177.73 USD
