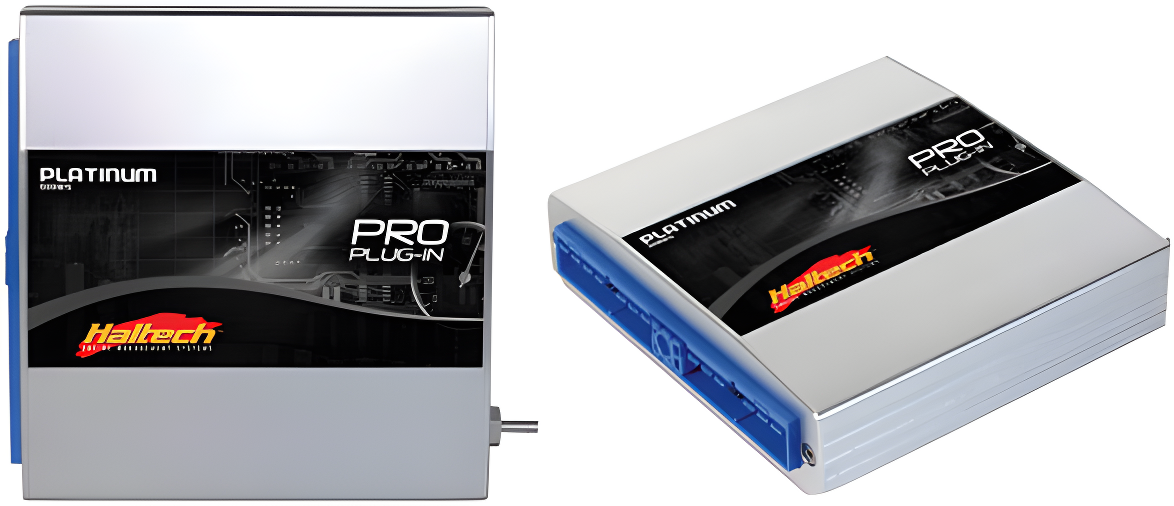

Wiring Specialties SR20DET ECU for Nissan S13 S14 S15 Pro Series HT-055112

Features:

• Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
• Uses the cars factory sensors
• Supports Sequential Injection (peak and hold) and Direct fire ignition
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping
• Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
• Diagnostic trouble code storing & Check engine light control (Access through laptop only)
• Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
• Wideband “auto tuning” using user definable target AFR table
• USB and CAN Communication Port

Specifications

Factory Outputs:

• 4 x Fuel Injector outputs
• 4 x Ignition outputs
• N-VCT (Nissan Variable CAM Timing Control)
• Tacho
• Boost Control
• AC Clutch Relay
• Idle Control
• Thermo Fan
• Check Engine Light
• Fuel Pump (Variable Speed) Factory Inputs:
• MAF sensors
• Throttle Position Sensor
• Oxygen sensors
• Coolant Temperature sensor
• Vehicle Speed Sensor
• Fuel Temperature sensor
• Knock Detection Sensor Expansion I/O*:
• 2 x Analogue Voltage inputs
• 2 x Analogue Temperature inputs
• 4 x Digital Outputs *Optional auxiliary harness required to be purchased Haltech Part # HT040003 Functions:
• Closed Loop O2 Control
• Closed & Open Loop Boost Control
• Gear Setup
• ACF On Base Tables
• Transient Throttle Enhance
• Decel Cut
• Over Boost
• Rev Limiter Correction Tables: Fuel Ignition Boost:
• Cranking
• Air Temp Target Correction
• Zero Throttle Gear Correction
• Cylinder Trim
• TPS Correction
• Generic Correction 1
• Generic Correction 2
• Gear Correction
• Post Start
• Air Temp Duty Correction Miscellaneous:
• Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing Power Requirements:
• Source: 8.6 to 16.5 Volts DC
• Consumption: 530mA @ 12Volts DC Physical ECU Dimensions:
• Length: 154mm (174mm with MAP nipple)
• Width: 158mm
• Height: 42mm
• Weight: 680g (1.5 lb) Applications:
• Nissan S-Chassis SR20DET 64-Pin ECU Connector ONLY Transmission:
• Manual only (Automatic not supported) Read more The Kit Includes:
• Pro Plug-in ECU, USB Cable, Programming Software CD, Quick Start Guide, Instruction Manual (on CD)
