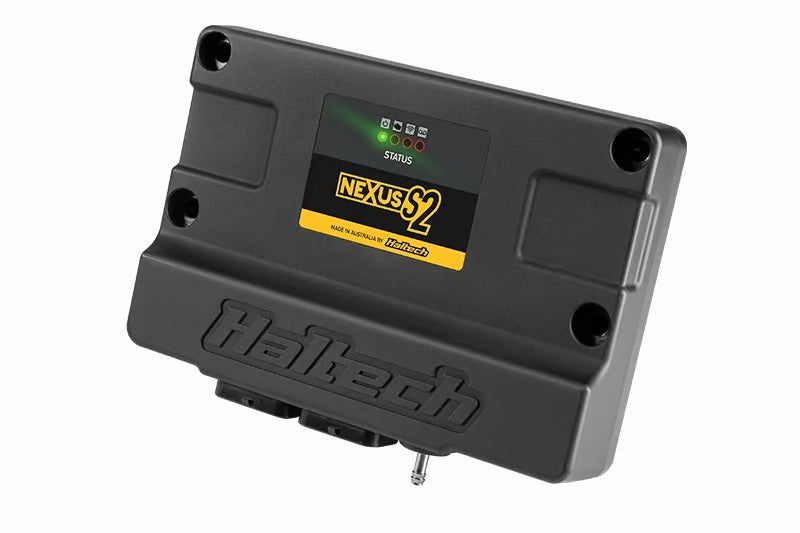

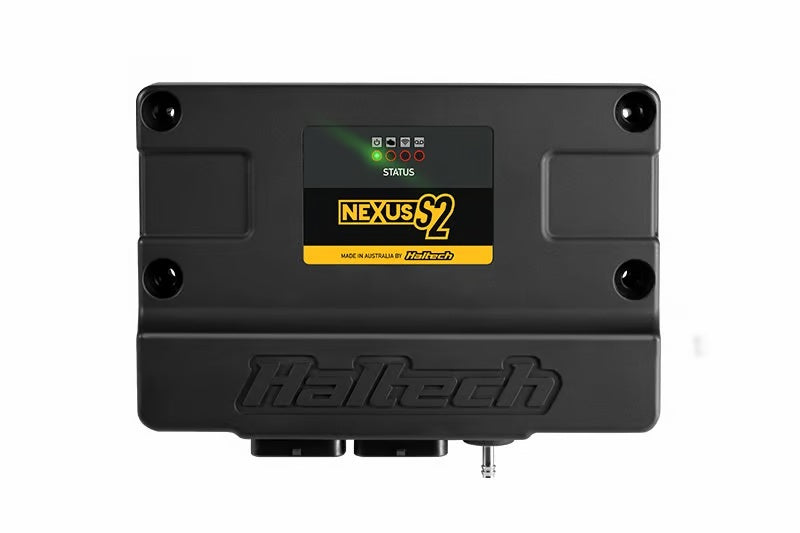

Haltech NEXUS S2 (ECU Only) HT-212000

Haltech NEXUS S2 (ECU Only) HT-212000

Regular price $2,020.32
Regular price Sale price $2,020.32
Sale Sold out

Shipping calculated at checkout.

14 in stock

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

ECU OVERVIEW
Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
  • 4 x peak/hold injector drivers (can be used as low side drive outputs)
  • 4 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
  • Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory
ECU FEATURES
  • Controlled via NSP (Nexus Software Programmer)
  • Long Term Learning
  • Stepper Motor Control
  • 4D Closed Loop Boost Control
  • Closed Loop CO2 Control
  • Rotational Idle
  • Launch Control
  • Traction Control
  • Anti-Lag
  • Dual Knock Control
  • Trans Brake Control
  • Race Timer
  • Multi Stage Fuel Injection
  • Multi-level Engine Protection
  • 6 Stage Nitrous Control
  • 4-sensor variable cam control
  • Intake Air Bleed Control
  • Flat Shift Control
  • Shock Travel & Ride Height Control
  • Advanced Torque Management
  • On-board Wi-Fi
  • On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
  • Ford AODE/4R70W
  • GM 4L60E
  • GM 4L80E
  • Toyota A340E
  • Lenco
  • Liberty
Analog Voltage Inputs (AVI) 11
Differential Engine Position Inputs 2 (Trigger and Home)
Digital Pulsed Inputs (DPI) 0
Synchronized Pulsed Inputs (SPI) 6
Knock Sensor Inputs 2
On-board Wideband Controller 1 x NTK/LSU 4.9
Injection 4 (peak and hold)
Ignition 4
Ignition Switch Input 1
Engine Control Relay output 1
Total Digital Pulsed Outputs (DPO) 6
Half Bridge Outputs (HBO) 4 8A
On-Board PDM NO
25A High Current Outputs (HCO) 0
CAN Bus Networks 2
MAP sensor Internal (4 BAR)
Inertia / G-Sensor NO
USB 2.0 USB-C
Low Power Up via Cable YES
Wi-Fi YES
Compatible with Haltech Connect App YES
Anti-Lag/Rotational Idle YES
Boost Control 4D Closed Loop
Closed Loop O2 Control Dual
CO2 Control YES
Drive-By-Wire Throttle Dual
Engine Protection Multi-Level
Flat Shift Support Advanced
Flex Fuel YES
Intake Air Bleed Control YES
Knock Control Dual
Launch Control YES
Long Term Learning Up to 4D
Nitrous Control Stages Up to 6
Race Timer YES
Rolling Anti-Lag YES
Shock Travel & Ride Height YES
Torque Management (Driveshaft and Engine RPM Targeting) YES
Traction Control YES
Trans Brake YES
Tuning Table Resolution 32x32x8 4D
Variable Cam Control Up to 4
Onboard storage 128MB
