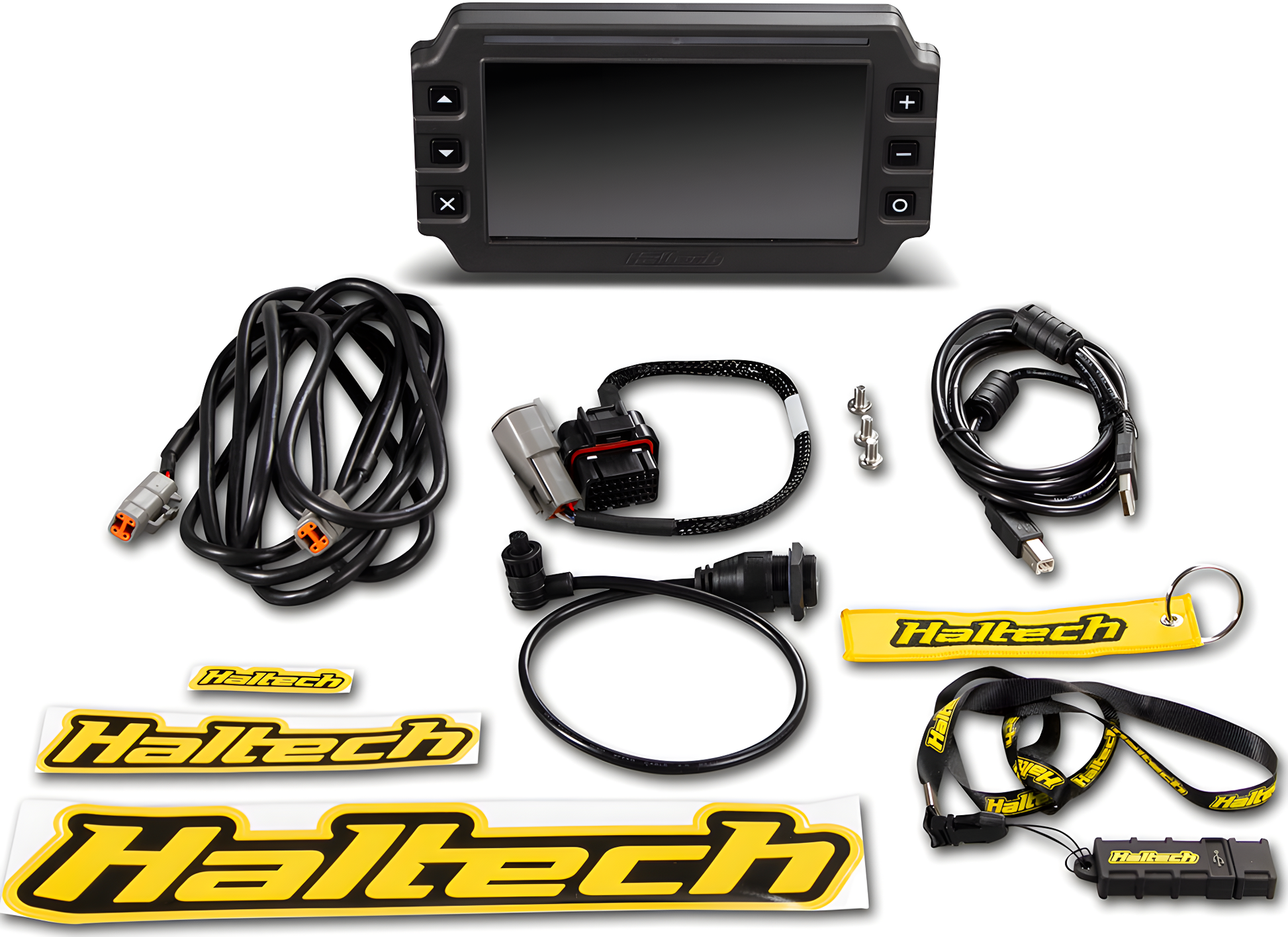

Wiring Specialties SR20DET Haltech iC-7 Display Dash OBD2 Kit HT-067012

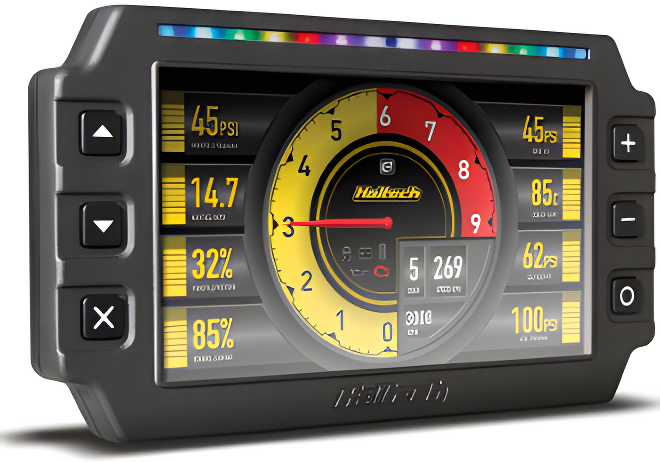

Haltech iC-7 OBD-II Colour Display Dash Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package. Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The iC-7 can also connect directly (via CAN) to most late model vehicles using the factory OBD-II port. • Ideal replacement for individual analogue gauge clusters. • Easy to install and configure. • User adjustable brightness control with automatic dimming. • User configurable channels, units and alarms. • 14 programmable, seven colour shift light LEDs. • Controlled via easily accessible, face-mounted control buttons. • Configuration via Haltech IC-7 software and USB cable. • Screen size: 7in. Case size: 217 x 122mm (8.5″ x 4.8″) • IP66 water resistance rating The iC-7 is configured using a brand new, intuitive software. With this software you can change various aspects of the dash behaviour including: • Ranges of channels. Eg. the maximum RPM on a needle style tacho or a bar graph. • Red ranges for channels. Eg. when a numeric display changes to red, red zone on a tacho. • Display units. Eg. metric or imperial, Lambda or AFR. • The channel to be displayed at each location on the screen. • The connection method. Eg. Haltech CAN or OBD-II. • Shift light RPM points and colours. • Alarm thresholds, colour for on-screen display and shift lights, manual or auto reset methods. Screen: Full colour 7” TFT display Outside Dimensions: 217 x 122mm (8.5″ x 4.8″) Compatible with: All currrent Haltech ECUs via CAN. What’s in the box: • Haltech iC-7 Display Dash • 34 Pin main connector harness • DTM-4 to DTM-4 CAN extension cable • USB to M5 right angle cable • USB Cable • Mounting Screws • USB flash drive with iC-7 Software • Quick Start Guide • Haltech stickers and a fabric keyring tag
