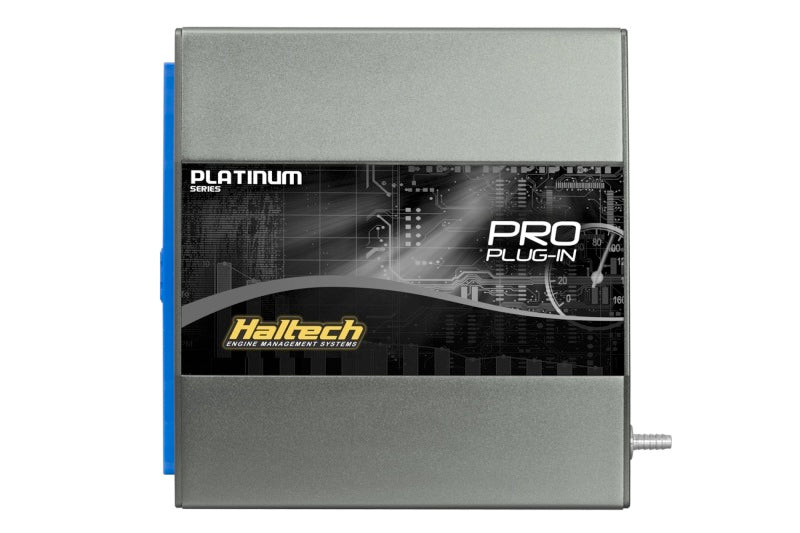

Haltech Platinum PRO Direct Plug-in Nissan R32/33 Skyline Kit MT
Nissan R32/33 Pro Plugin ECU has been updated and now includes direct Flex Fuel support and reconfigured expansion I/O with switchable pull ups allowing the tuner to use a more flexible combination of pressure and temperature sensors.
Features:
Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
Uses the cars factory sensors
Supports R32 GT-R twin MAF sensors
Supports Sequential Injection (peak and hold) and Direct fire ignition
Windows 2000, XP, Vista, Windows 7 compatible software
Real time programming, instant hesitation free adjustment while engine is running
Fully user definable 32 x 32 mapping
Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
OBD II Code Storing & Malfunction Indicator Light (MIL) Control (Access through laptop
only )
Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
Wideband "auto tuning" using user definable target AFR table
Flex Fuel Support
USB and CAN Communication Port
Factory Outputs:
6 x Fuel Injector outputs
6 x Ignition outputs
Tacho, Boost Control, AC Clutch Relay, Idle Control
Thermo Fan, Check Engine Light, Fuel Pump (Variable Speed)
N-VCT ( Nissan Variable CAM Timing Control)
Factory Inputs:
MAF sensors, Throttle Position Sensor, Oxygen sensors,
Coolant Temperature sensor, Vehicle Speed Sensor,
Air Temperature sensor.
Expansion I/O*:
4 x Analogue voltage inputs (with switchable pull up)
1 x Digital pulsed input
2 x Digital pulsed outputs
2 x Digital switched outputs
*Optional auxiliary harness can be purchased Haltech Part # HT-040003
Functions:
Closed Loop O2 Control
Decel Cut Over Boost Rev Limiter
Closed & Open Loop Boost Control
Gear Setup
ACF On Base Tables
Transient Throttle Enhance
Correction Tables: Fuel Ignition Boost:
Cranking
Air Temp Target Correction
Coolant Temperature Correction
Map Correction
Zero Throttle Gear Correction
Cylinder Trim
TPS Correction
Generic Correction 1
Generic Correction 2
Gear Correction
Post Start
Air Temp Duty Correction
Post Start
Miscellaneous:
Data Logging: 448Kb of onboard data logging,
Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
Max 20 channels logging capability
Tune can be password protected in software
Rugged anodized aluminum casing
Power Requirements:
Source: 8.6 to 16.5 Volts DC
Consumption: 530mA @ 12Volts DC
Physical Dimensions:
ECU Dimensions Length: 154mm (174mm with MAP nipple) Width: 158mm Height: 42mm Weight: 680g (1.5 lb)
Applications:
Nissan Skyline R32, Nissan Skyline R33 Variations: GT-R, GTS-t
Engine Codes: RB20DET, RB25DET, RB26DETT
Transmission: Manual only (Automatic not supported)
