Wiring Specialties SR20DET ECU & Electronics S13 PRO Series HT-150600

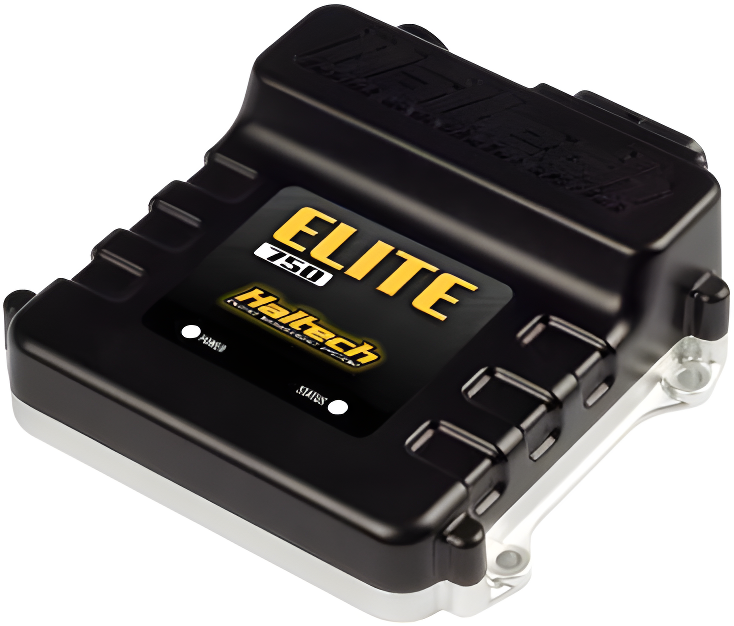

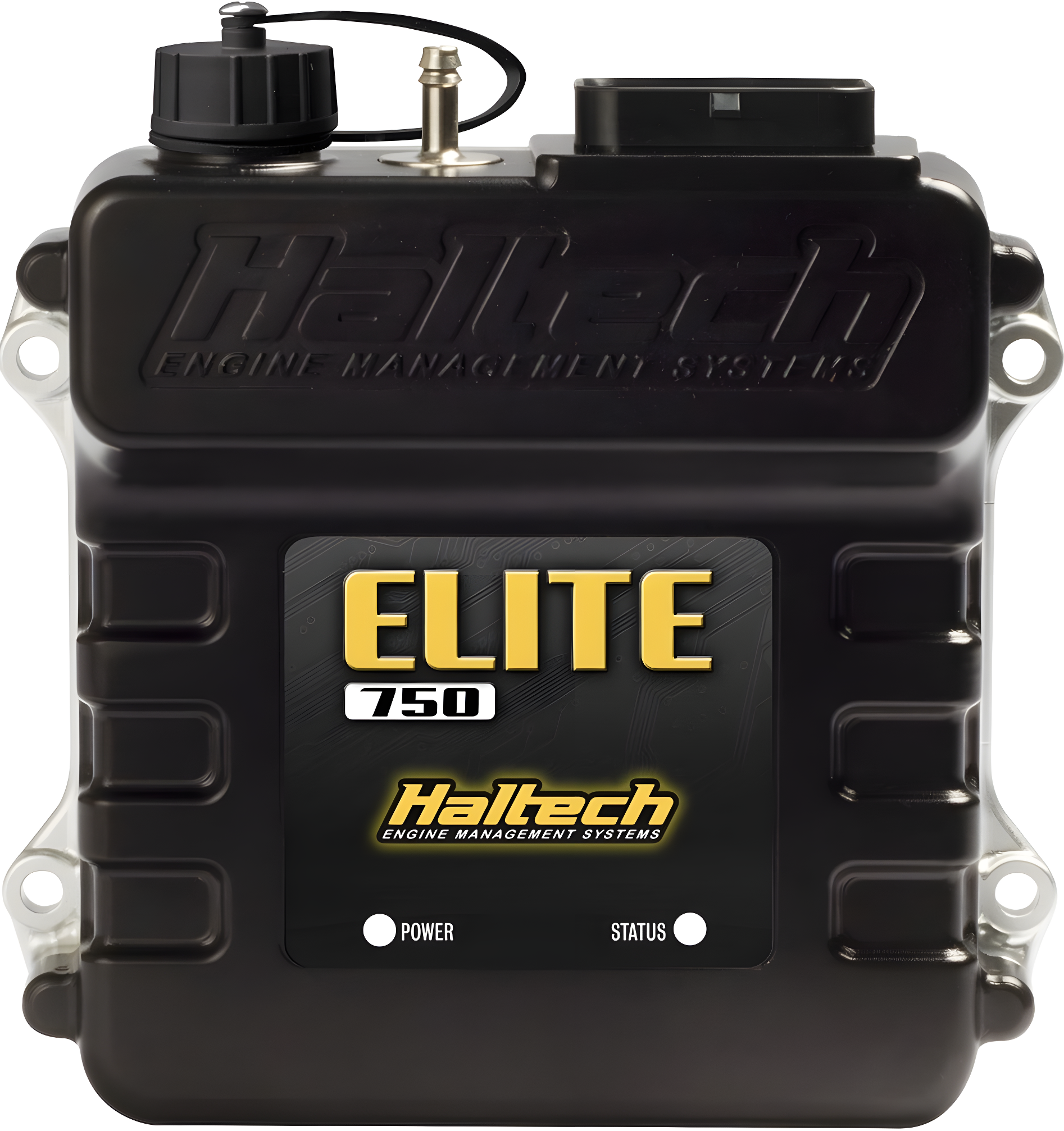

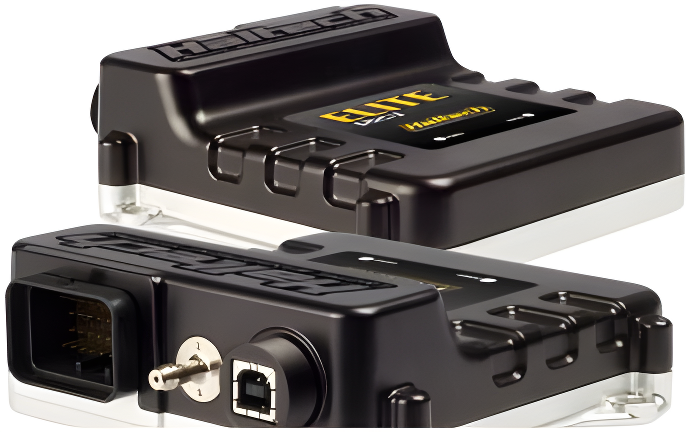

Part Number: HT-150600 Includes: Elite 750 ECU, Waterproof USB cap, USB programming cable and software CD. The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite ECUs at an affordable price. Featuring 6 fuel and ignition channels, on-board data logging and flex fuel tuning the Elite 750 is a powerful, compact ECU. Recommended for 4 or 6 cylinder engines. Nissan VVT / Toyota VVTi capable. FEATURES:

• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 6 x Fuel injection outputs (peak and hold (0-8A peak / 0-2A hold)
• 6 x Ignition outputs
• 2 x Engine position inputs with extensive trigger type support
• 2 x digital pulsed inputs
• 5 x digital pulsed outputs
• 2 x analogue voltage inputs
• 1 x throttle position input
• 1 x coolant temperature input
• 1 x air temperature input
• 1 x CAN Bus communication for Haltech CAN expansion
• Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
• On-board data logging
• ESP calibration software
• Multi-fuel support. support for petrol (gasoline) methanol and ethanol
• E85 flex fuel ready – direct connection to sensor
• User definable tables
• Closed loop O2 control – with long term learning
• Closed loop idle control – with learning for consistent idle stability
• Single sensor VVT*
• Auto tune capabilities – short and long term fuel and idle learning
• ECU comes fully enabled, no additional charges for advanced features.
• Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems or Haltech Multiplex CDI systems
• Load sensing by:
• Throttle Position Sensor (TPS),
• Manifold Absolute Pressure (MAP) or
• Mass Air Flow (MAF)
