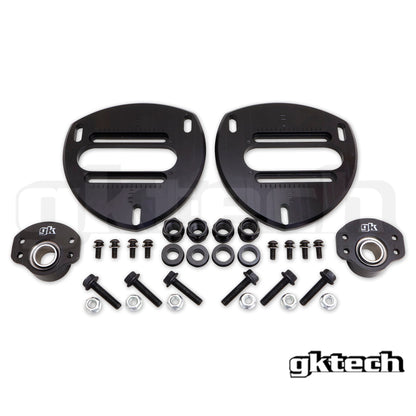

GKTech FR-S / GR86 / BRZ camber and caster adjustable strut tops

Name: GKTech FR-S / GR86 / BRZ camber and caster adjustable strut tops
Brand: GKtech
SKU: 9IUIF
Price: 359.0 USD
Availability: OutOfStock

GKTech FR-S / GR86 / BRZ camber and caster adjustable strut tops

sku: 9IUIF | mpn: GT86-DTOP

$359.00

Sale Sold out

Out of stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Quantity

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Return policy

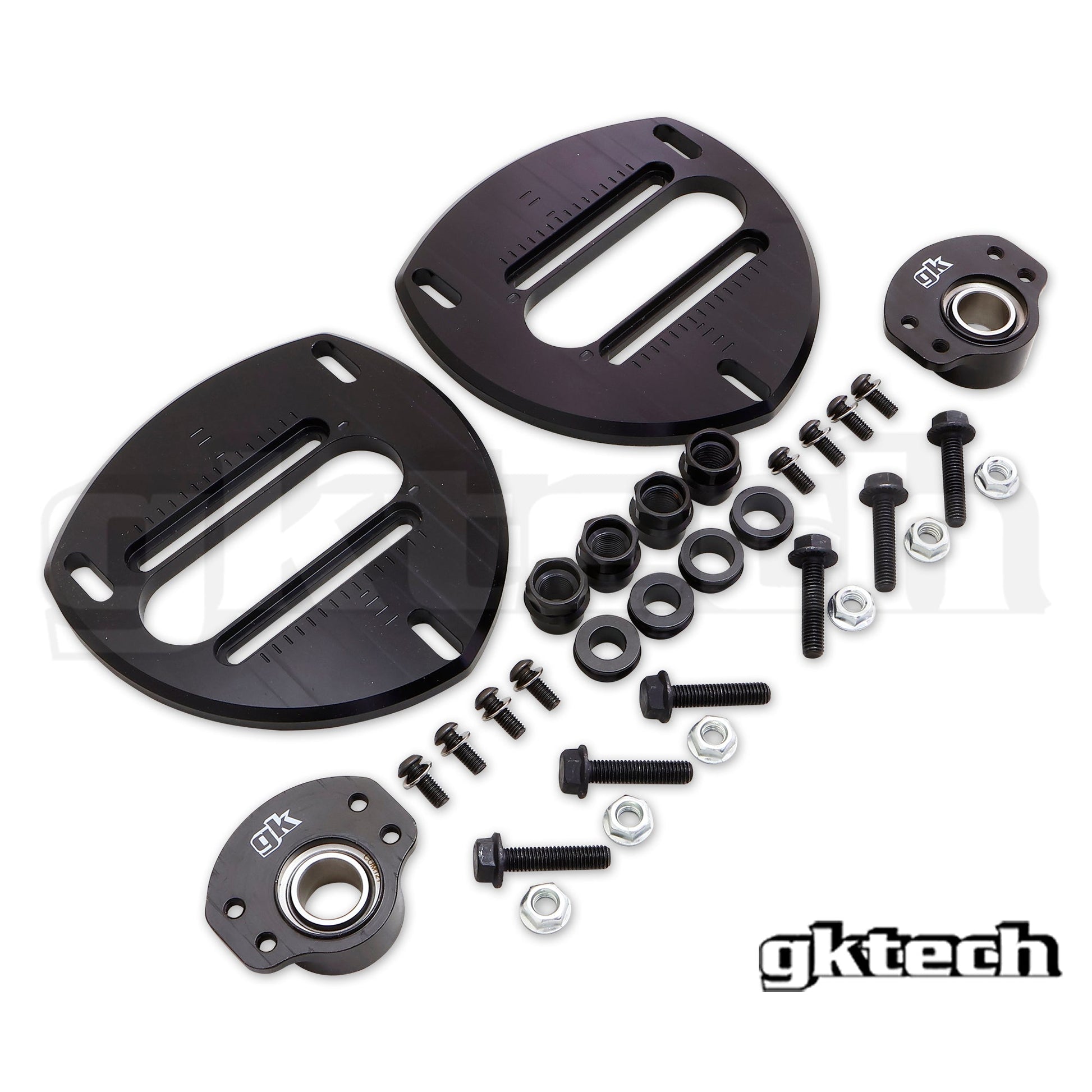

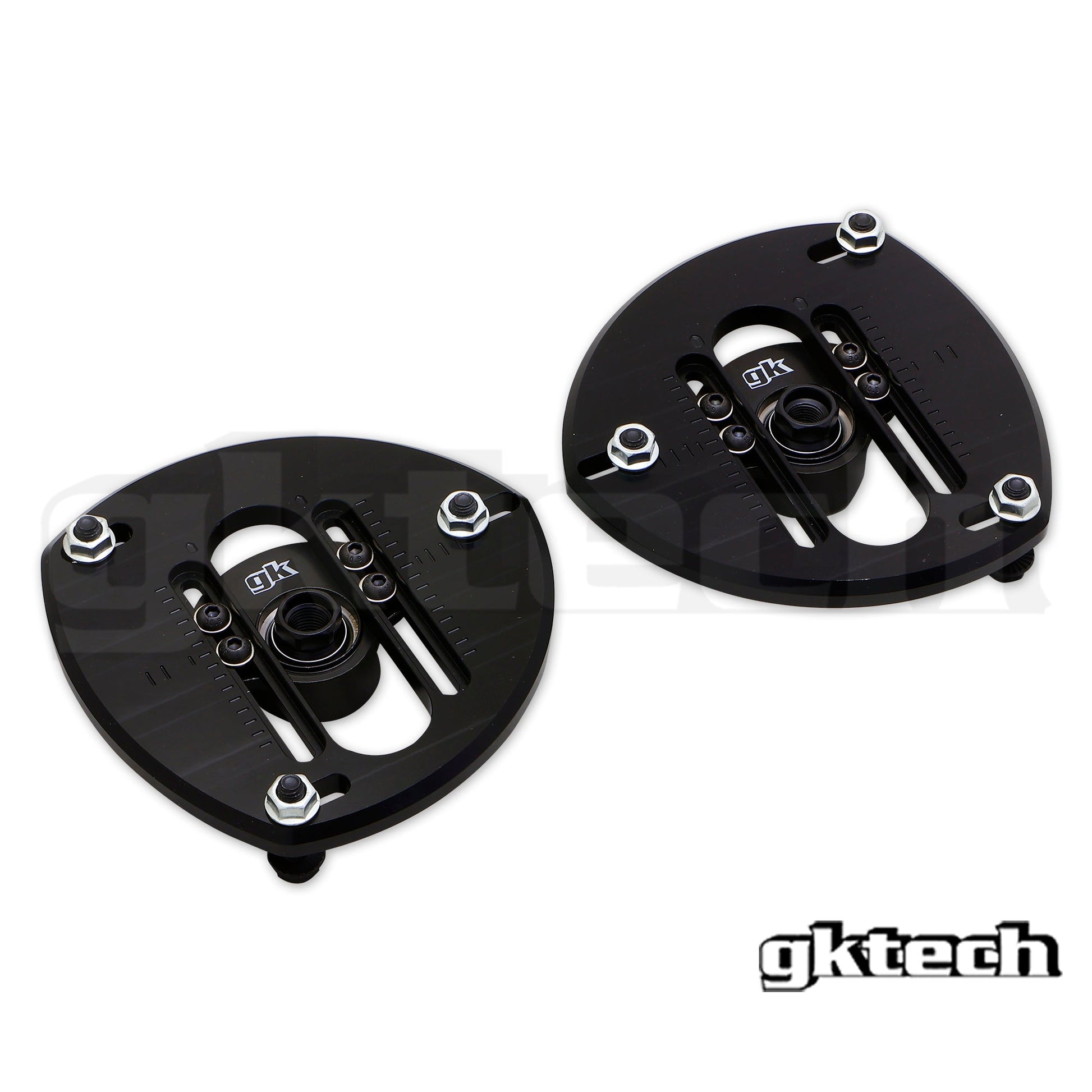

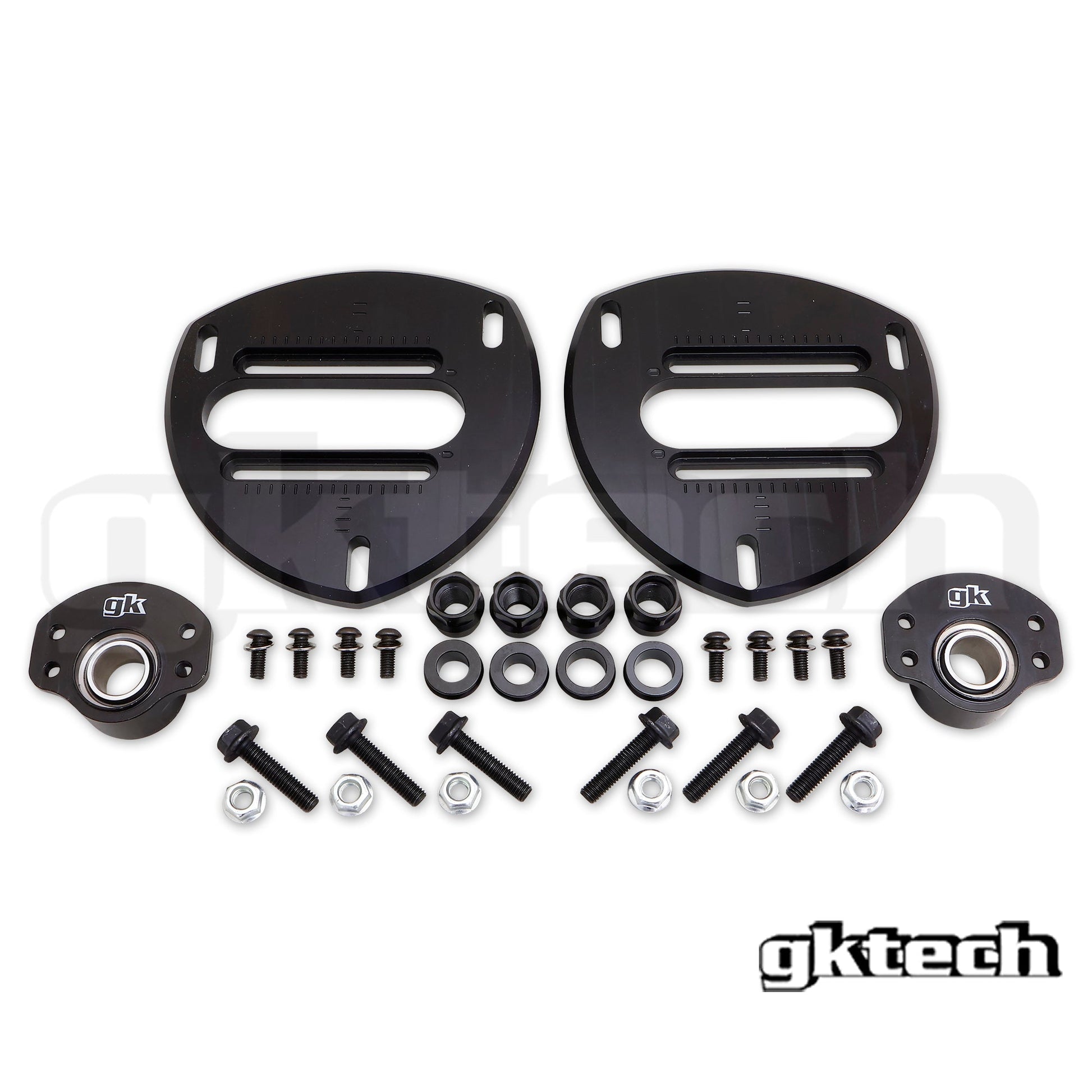

The GKTech strut tops offer a straightforward, bolt-on solution for your coil overs, requiring no additional modifications. Easily accessible bolts on the strut top allow for on-car adjustment of both camber and caster, providing a significant adjustment range.

Adjustment Range:

Caster Adjustment: 1.5° (-1.0° to +0.5° relative to OEM)
Camber Adjustment: 8.0° (-3.0° to +5.0° relative to OEM)
Engraved increments of 0.5° for precise adjustment
On-car adjustment for both camber and caster

The main plate is precision CNC machined from lightweight 6061-T6 billet aluminium, while the adjuster boasts high-strength 4130 billet chromoly steel. Our strut tops feature a common COM12T spherical bearing, PTFE-lined for maintenance-free lubrication, reducing unwanted movement and increasing performance compared to rubber-style bushings. All of this is assembled with high tensile hardware and locking nuts.

Materials:

Main Plate: Billet 6061-T6 Aluminium.
Adjuster: Billet 4130 Chromoly steel.
COM12T PTFE lined bearings.
Grade 10.9 high tensile bolts

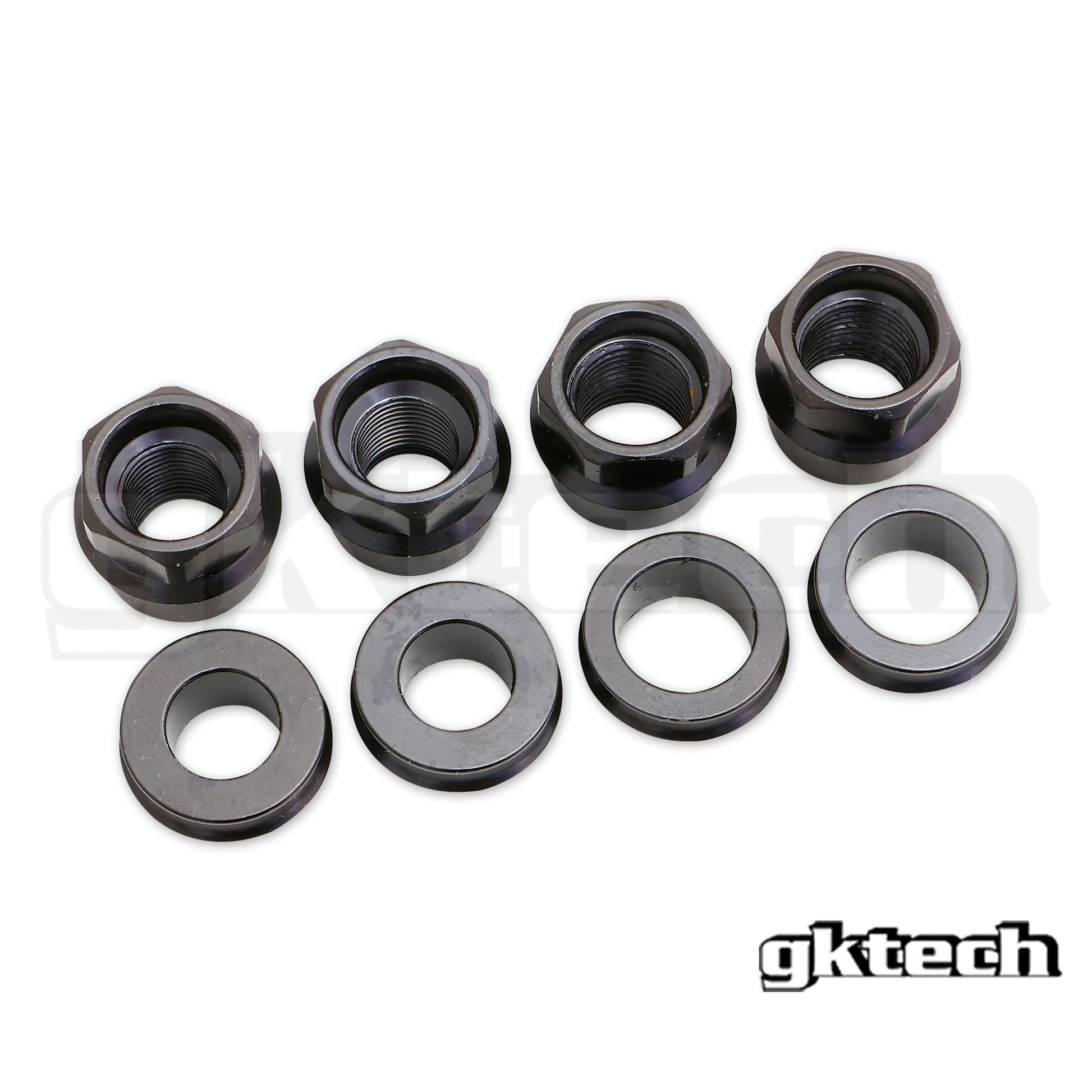

The design of the coil over adapter spacers ensures maximum misalignment, especially beneficial for high camber and high lock situations, promoting unrestricted movement and rotation of the coil over without binding. The spacers are designed to accommodate various coil over brands which are listed below.

Confirmed Coil over fitment:
