GSC Power Division 4G63T EVO 7-9 Stage 1 Beehive Valve Springs (Use factory retainers)

SKU: 0CFY1 | MPN:  5039
In stock
Sale price$224.90 USD Regular price$254.18 USD
Save $29.28

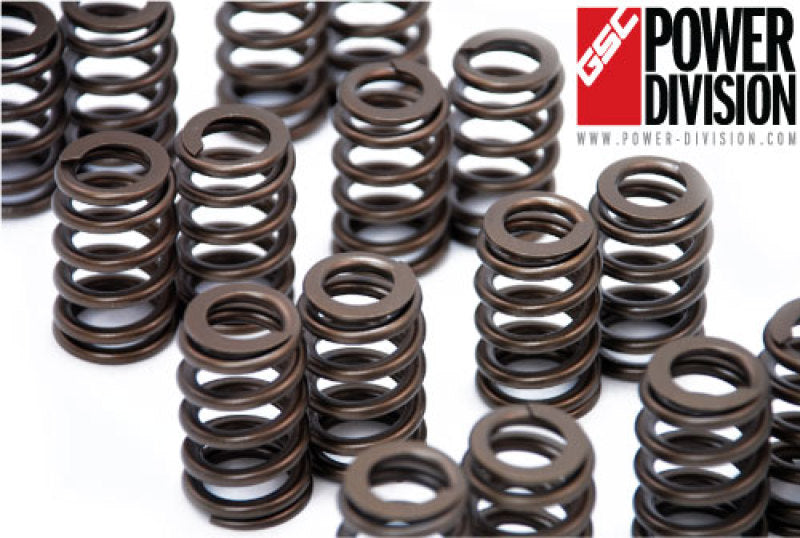

GSC Power-Division 4G63T Single Beehive Spring set for Evo 8/9

GSC Power-Division Beehive springs feature some of the most impressive manufacturing techniques in the industry. Our beehive spring uses an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. What this means to you is our spring has the highest level of spring load retention while still maintaining good fatigue threw out the life of the spring. Only the best materials go into the GSC Power-Division Beehive valve spring. Each batch is scrutinized for tensile strength properties, ductility, inclusion content, and fatigue toughness.

The beehive valve spring shape has become the buzz lately. Some have enquired as to the benefits of a beehive spring vs the dual springs that are sold by others. While some might find that the beehive spring design is new it has been used commonly in many OE engines as well as in all of the NASCAR and F1 engines of today. Why? The beehive shape is more stable than standard single or dual cylindrical springs. The beehive design which incorporates an ovate wire is more than capable of the performance demands that were previously only matched by a Dual Springs. With the smaller and lighter retainer used on the beehive valve spring allow for higher RPM and more valve control.  So beehive valve springs, with there lighter weight retainers allow for engine's to rev quicker and maintain a more stable valve motion than the traditional cylindrical springs of yesteryear.

Beehive Spring Benefits:

  • Rev faster
  • Lighter components
  • More durable design
  • Less stress on valvetrain components
  • Lower spring frequency for more precise valve control.
  • More valve control equals more aggressive cam profiles
  • Nano Peened for faster break in and less stressed springs
  • All of these items help to return more power for you to enjoy!

The GSC 5039 Beehive spring is a factory replacement and will use your stock OEM retainer and valve seat to ensure an easy and inexpensive upgrade for your upgraded camshafts.

5039 Beehive spring pressure:

  • 1.56"=86 lbs / .450"=220lbs / .625"= Coil bind.

5039 Beehive Rev and Boost range (using an S2 profile camshaft set)

  • Max RPM: 8200
  • Max boost: 25 psi

5039 Beehive Max lift

  • Do to stock retainer max lift is 11.2mm at the valve or .259" cam lobe lift.


Vehicle Fitments:

Year Make Model Submodel
1993 - 1994 Eagle Talon DL, ES
1995 - 1998 Eagle Talon ESi
1990 - 1998 Eagle Talon TSi, Base
1990 - 1997 Mitsubishi Eclipse Base
1990 - 1999 Mitsubishi Eclipse GSX, GST, GS
1995 - 1999 Mitsubishi Eclipse RS
1996 - 1999 Mitsubishi Eclipse Spyder GS, Spyder GST
1991 - 1992 Mitsubishi Galant GSX, GS, Base, VR-4, GSR, LS
2004 - 2006 Mitsubishi Lancer DE, Ralliart
2002 - 2006 Mitsubishi Lancer ES, OZ Rally, LS
2003 - 2006 Mitsubishi Lancer Evolution
2005 - 2006 Mitsubishi Lancer Evolution MR, Evolution RS, LS Diamond
2006 Mitsubishi Lancer Evolution SE, SE
2004 Mitsubishi Lancer Sportback, Sportback Ralliart
1990 - 1994 Plymouth Laser Base, RS
