GReddy OIL COOLER STD HIGH BLOCK, ENG: M20x1.5, FILTER: M20xP1.5, 10AN - () NEW! 12401194
GReddy OIL COOLER STD HIGH BLOCK, ENG: M20x1.5, FILTER: M20xP1.5, 10AN - () NEW! 12401194
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Engine Oil Cooler
- Category
- Oil Coolers
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 1.5 lb
Billable shipping weight; may include dimensional weight.

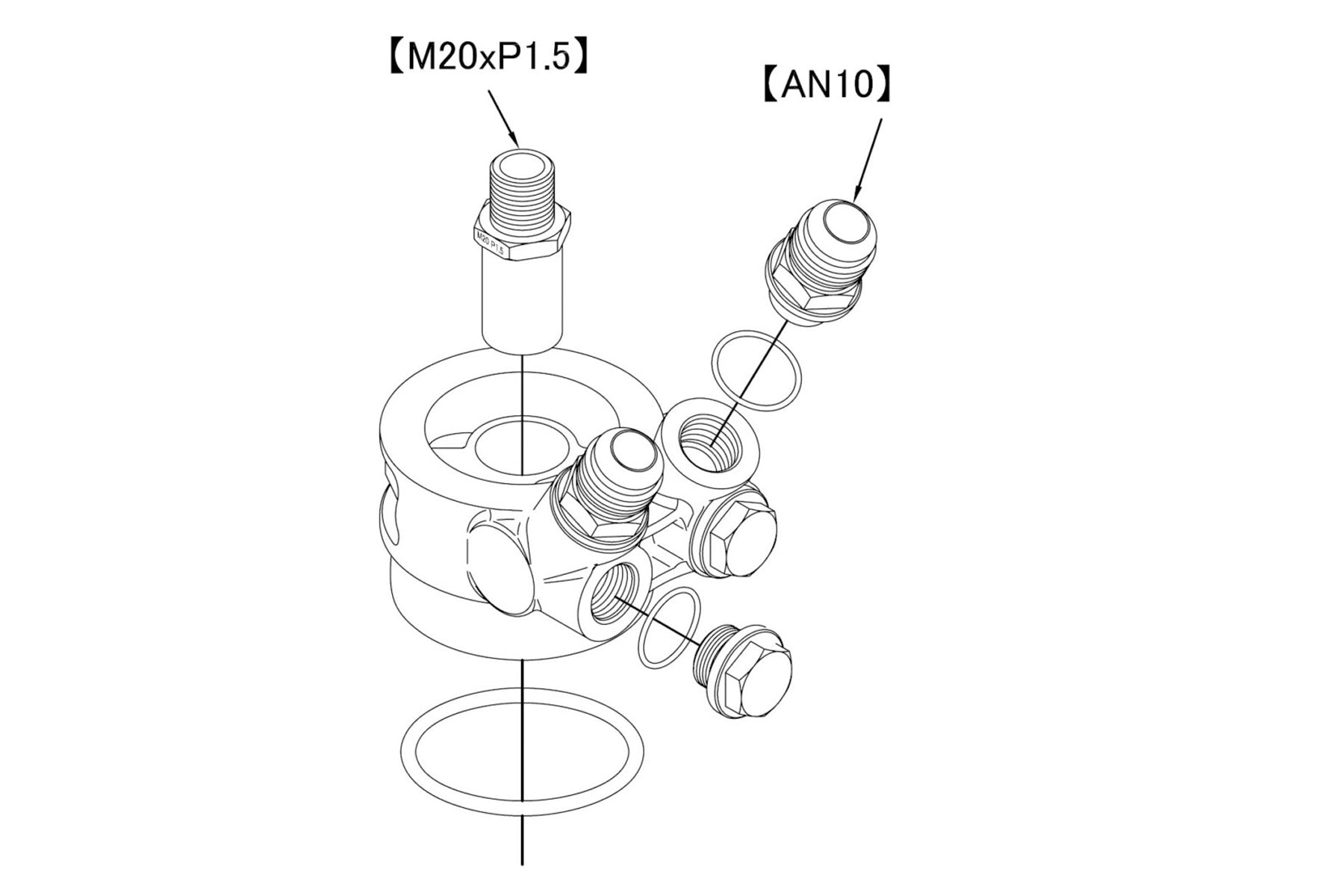

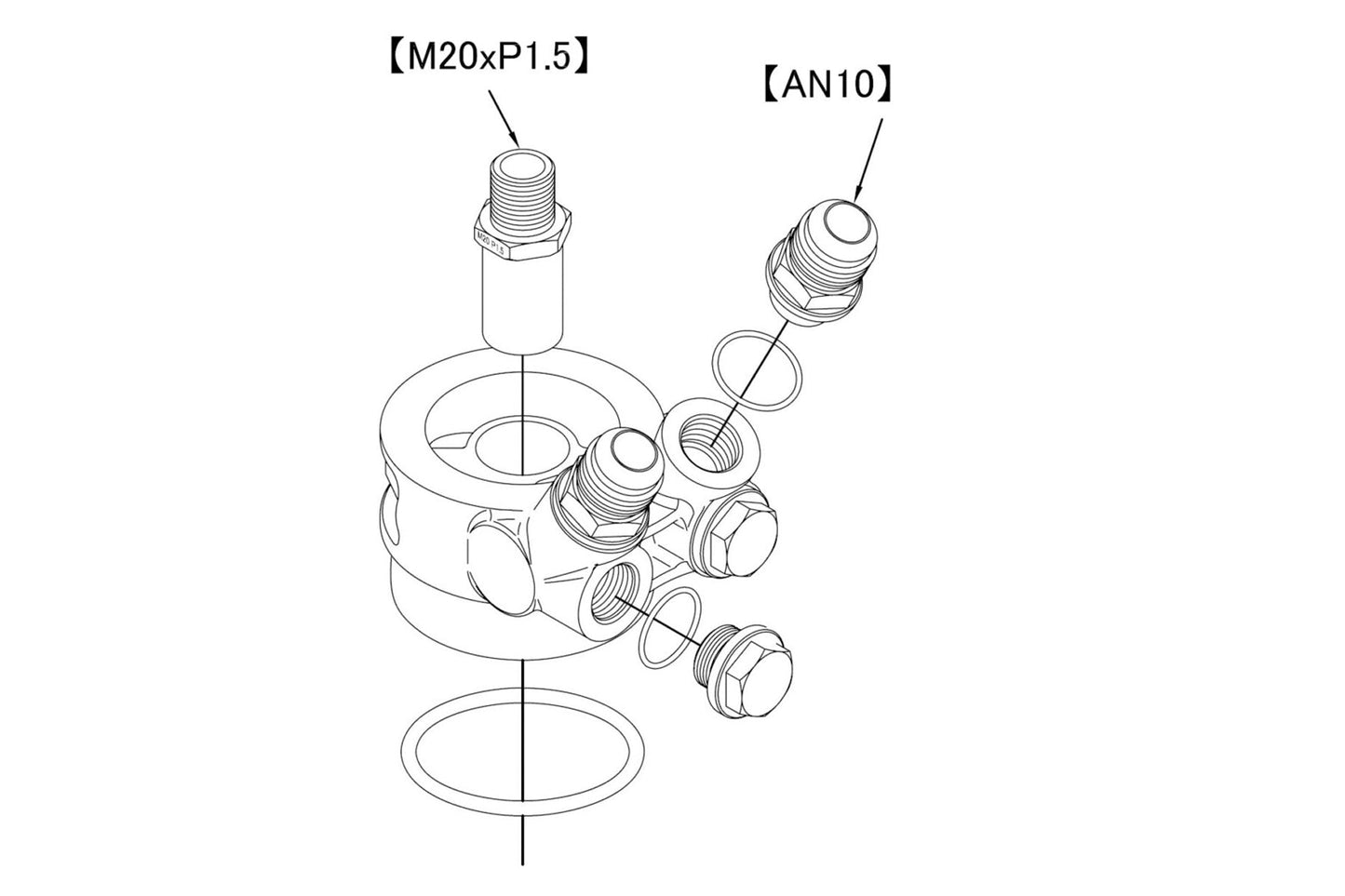

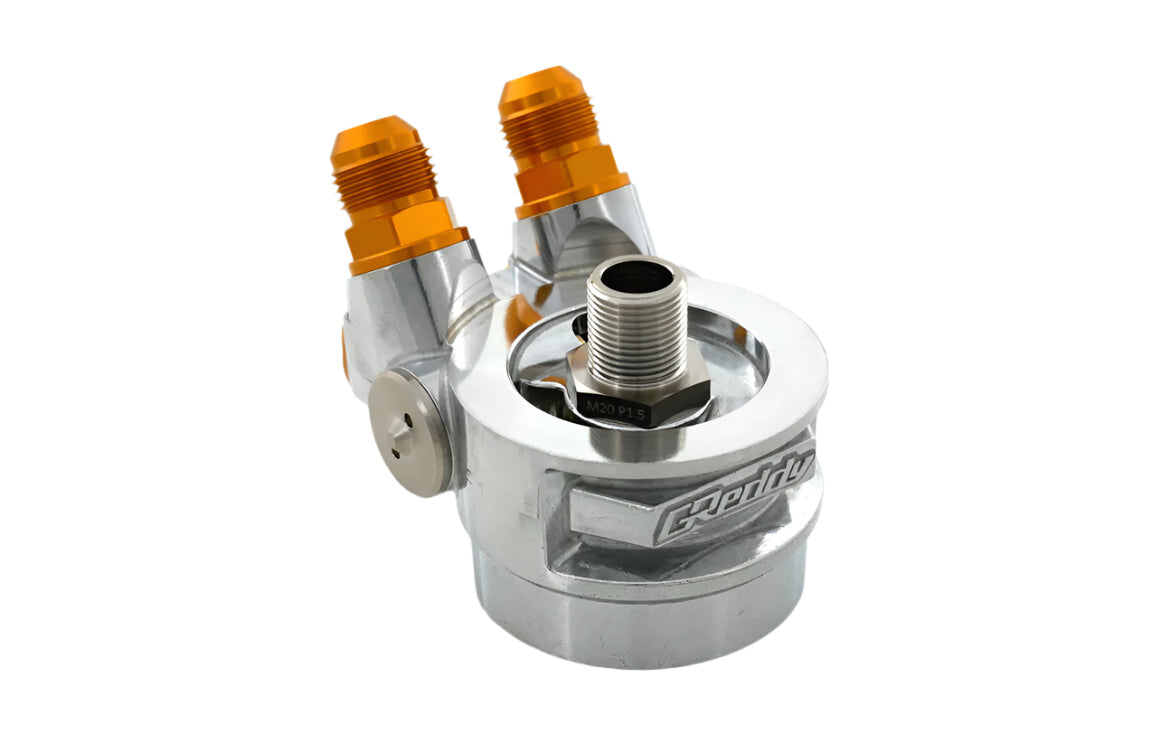

12401194 New Revised (Type E) -10 Standard High-Type Oil Cooler Block Adapter Model (as used in FRS,BRZ, 86, GR86 oil cooler applications) with built-in spacer and extended center bolt.
GReddy Universal Oil Block with AN -10 Fittings. With built-in GReddy Thermostat (70-80 C)
Ideal for custom Oil Cooler Kit applications.
Block M20xP1.5 (Filter M20xP1.5)** - Make: (as used in Subaru FA engine applications like the FRS, 86, BRZ, GR86 and WRX)
**FILTER M20 x P1.5 use GReddy Sized Oil Filters : OX-04 P/N 13901104, or OX-5 P/N 13901105
Use P/N 16400720 for 1/8PT ports to use with Pressure & Temperature Sensors
* Replacement 57mm main O-Ring - 12401103
** Optional GReddy Direct M18xP1.5 O-ring fittings - 1240215X
Product features
◆ Replacement thermostatic oil cooler block adapter for std. GReddy oil cooler kits
◆ Key component to build your very own custom GReddy oil cooler kit.
◆ The design of the oil block with built-in thermostat has been improved & updated, and the oil flow path has been reviewed to optimize the flow rate at low and high temperatures.
◆ Use factory replacement oil filter or matching GReddy oil filter per application.
* Oil filters with an outer diameter of Φ80 or less, O-ring inner diameters of Φ52 or more ~ outer diameters of Φ76 or less can be installed.
◆ Optional Oil block STD high type 12401194 is a 20mm high mount type of oil block STD. Compared to the spacer type, the installation work has been simplified, and the weight has been reduced. In addition, by making the mounting surface Φ70, it is possible to accommodate special mounting seating surfaces.
* Except for the lift-up part, it has the same design as the oil block STD. Please pay attention to the surrounding clearance.
◆ The updated screw size is engraved on the center bolt so that it can be identified at a glance.
Optional GReddy Oil Cooler Blocks with smaller -8AN or larger -12AN fittings
12401193 M20 x P1.5 GReddy Oil Cooler High Block -8AN (supersedes 12401119 + 12002803)
12401195 M20 x P1.5 GReddy Oil Cooler High Block -12AN (supersedes 12401119 + 12002803)
