CATALOG GREDDY PRO/SPEC 45 DEG. QUICK-RELEASE HOSE END(s) - BLACK/GOLD - (12860445 12860645 12860845 12861045 12861245 12861645 12862045)
CATALOG GREDDY PRO/SPEC 45 DEG. QUICK-RELEASE HOSE END(s) - BLACK/GOLD - (12860445 12860645 12860845 12861045 12861245 12861645 12862045)
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Purchase information
Returns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Fuel Hose Fitting
- Category
- Fuel Lines
- Shipping dimensions (L × W × H)
-04 to -20 GReddy PRO/SPEC 45 deg.

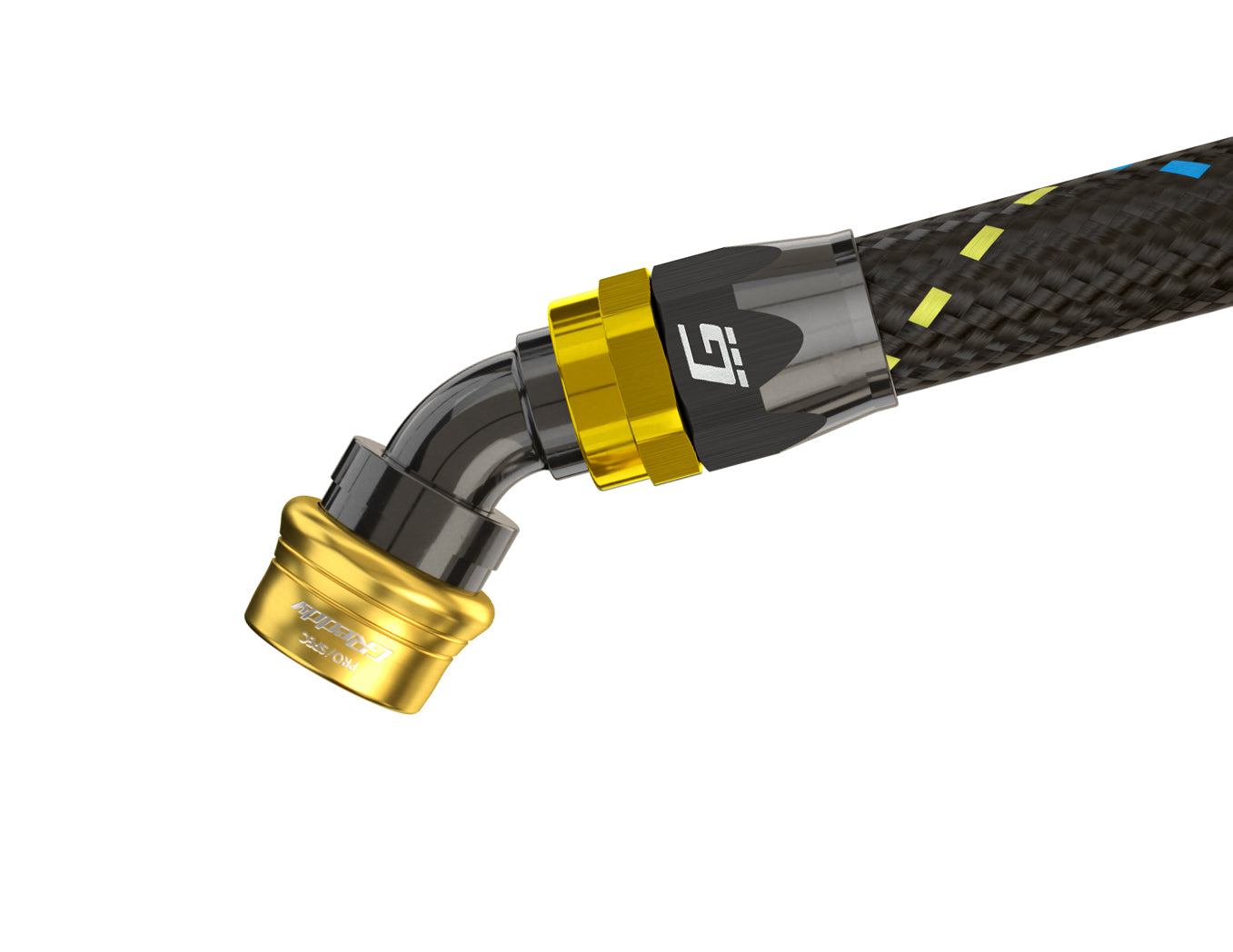

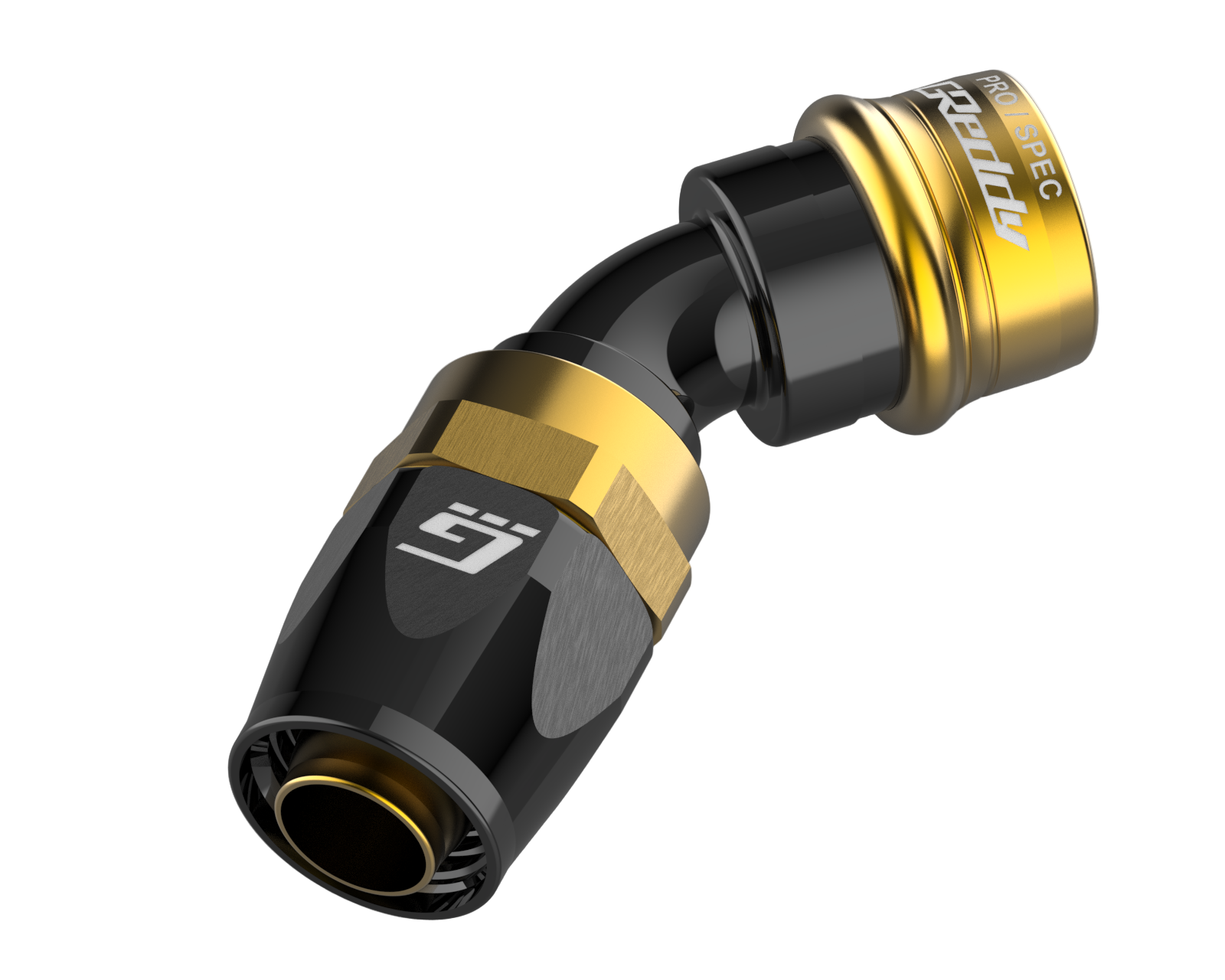

Crafted from billet 6061 aluminum, these 45 Degree GReddy PRO/SPEC Swivel Hose End Fittings offer ultimate service convenience, unparalleled durability and performance. *Our unique left-hand threaded hose nut allows for quick and easy hose seating, making these fittings a top choice in the market.
$39.00 12860445 - 04 Pro/Spec 45 deg. swivel
$43.50 12860645 - 06 Pro/Spec 45 deg. swivel
$48.50 12860845 - 08 Pro/Spec 45 deg. swivel
$52.00 12861045 - 10 Pro/Spec 45 deg. swivel
$52.50 12861245 - 12 Pro/Spec 45 deg. swivel
$59.00 12861645 - 16 Pro/Spec 45 deg. swivel
$86.50 12862045 - 20 Pro/Spec 45 deg. swivel
-
REQUIRED MATCHING FITTING: [GReddy ORB Male to PRO/SPEC], [GReddy Weld-on to PRO/SPEC], [GReddy male AN or GReddy female AN to PRO/SPEC] or [GReddy Male NPT to PRO/SPEC] Adapters *sold separately
All PRO/SPEC™ B-Type fittings require a matching PS-size adapter for your specific port. Ensure you select the correct adapter (e.g., a PS10 fitting requires a PS10 adapter, equivalent to AN10). - GReddy Nylon Braided Hoses are recommended for GReddy Fittings.
- Also available in other Straight, 30deg, 45deg, 60deg, 90deg, 120deg, 150deg and 180deg angles.
- U.S. & International Patents Pending.
GReddy PRO/SPEC™ 30° Quick Release Hose Ends provide secure, one-handed connection and easy removal without tools. Featuring dual seals and a bright locking band, they ensure leak protection and visible engagement. Designed for tight spaces, they eliminate wrench use during hose service. Tested up to 10,000 PSI and extreme conditions, these fittings reliably support fuel, oil, air, and coolant systems with added safety from a secondary lock.
These GReddy PRO/SPEC hose end features a strong forged 6061-T6 aluminum body with black anodizing for durability and corrosion resistance. Its 180° swivel allows easy hose routing in tight spaces and adjustable alignment after crimping. Dual FLUOROK™ FKM seals provide heat and chemical resistance up to 205°C, ensuring leak-free connections. The reusable compression design lets you assemble and service hoses without special tools. Replacement kits are available to maintain fitting performance over time.
GReddy PRO/SPEC™ B-Type fittings are designed to work best with GReddy Nylon-braided lines. While they may fit hoses from other brands, performance with those combinations is not guaranteed. The FLUOROK™ FKM seals are compatible with common fuels like gasoline and ethanol, as well as motor oil, gear oil, transmission oil, coolant, and air, rated for continuous use up to 205°C (401°F).
These hose ends are not compatible with methanol or nitromethane fuels. For those fuels, use Dyme PSI PRO/SPEC HM-Type (METHODEX™ seals), HX-Type (DYMAX-F™ seals), or FATBOY H-TYPE AN fittings. Size cross-compatibility: PS06/AN06 fits SAE J2044 3/8" barbs, and PS05/AN05 fits 5/16" SAE J2044 barbs. PS sizes match AN sizes for selection and flow purposes.
