GReddy OIL COOLER KIT NS1010G/STD DC2 Integra - () 12054602

GReddy OIL COOLER KIT NS1010G/STD DC2 Integra - () 12054602

sku: 02QKC | mpn: 12054602
$810.00
$0.00 $810.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

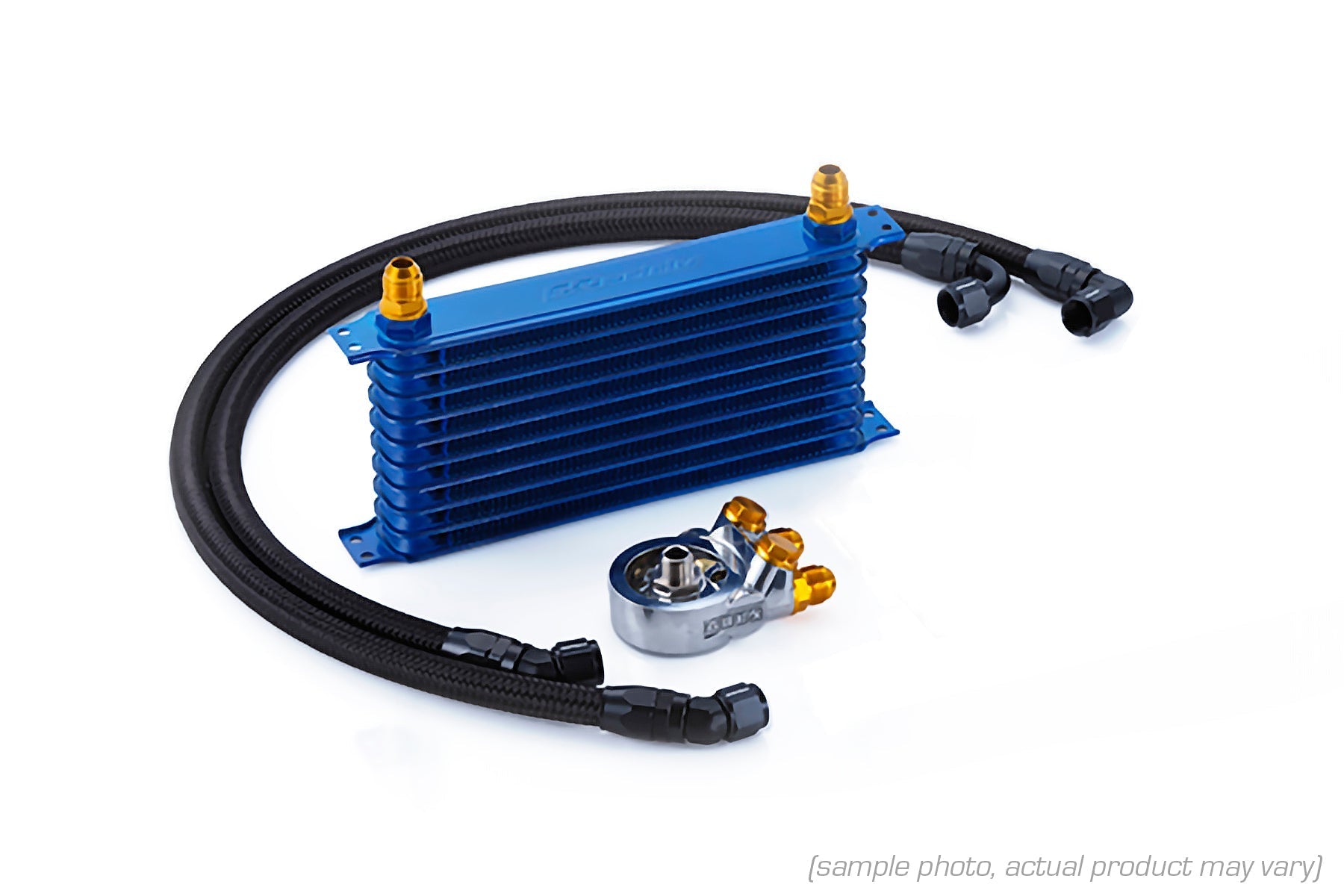

Oil cooler kit STD 10row for JDM DC2 Integra

Product Features

  • This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Use with genuine oil cooler block
  • Core type: NS1010G
  • Thermostat: Built-in block
  • Core installation position: In front of radiator
  • Center bolt size: M20 x P1.5

Compatible models: HONDA INTEGRA

  • Vehicle model: DC2
  • E/G model: B18C
  • Year: 95.10 ~ 01.07
  • CODE: 12054602

Remarks

  • Cannot be installed on VGS (Variable Gear Steering) vehicles.
  • Engines with center bolt M20 x P1.5 require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
  • Undercover processing required.
