GReddy Direct Air Intake GR86(ZN8)/BRZ(ZD8)
Product features

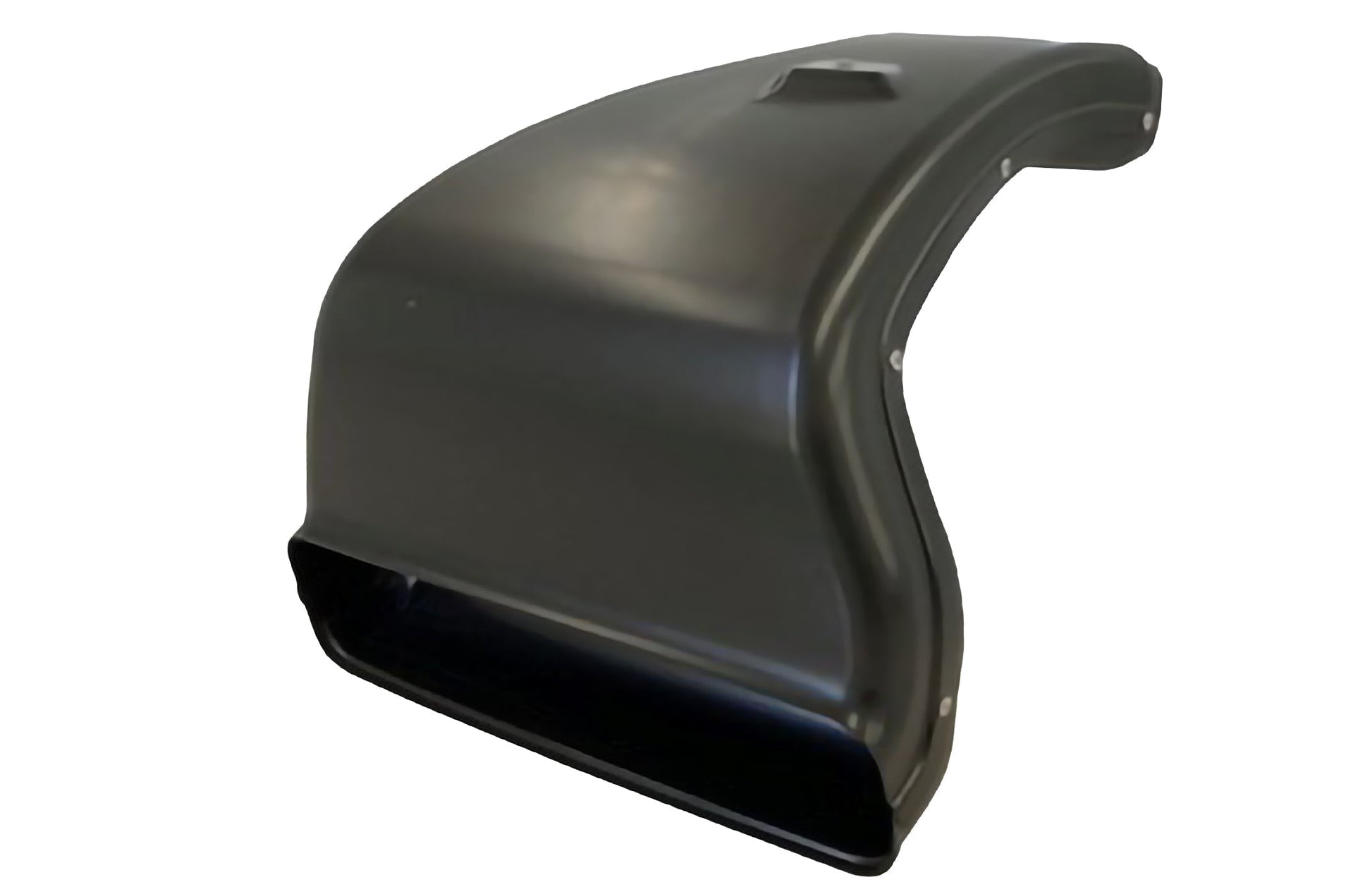

●This is an air intake duct that directly takes in the driving wind. (Made of PP: Polypropylene vacuum forming)

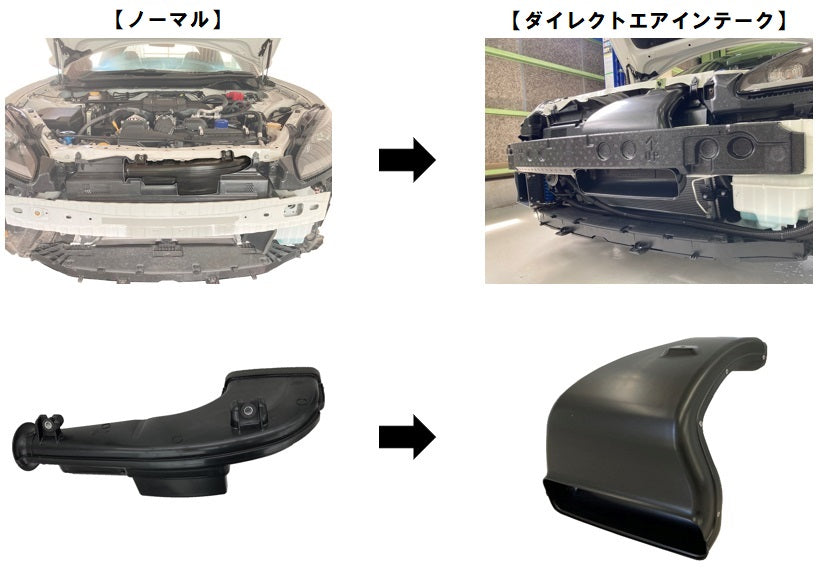

Replacement installation with the genuine air intake duct whose intake port is hidden behind the bumper. 300g lighter than our FRP products for ZN6/ZC6.

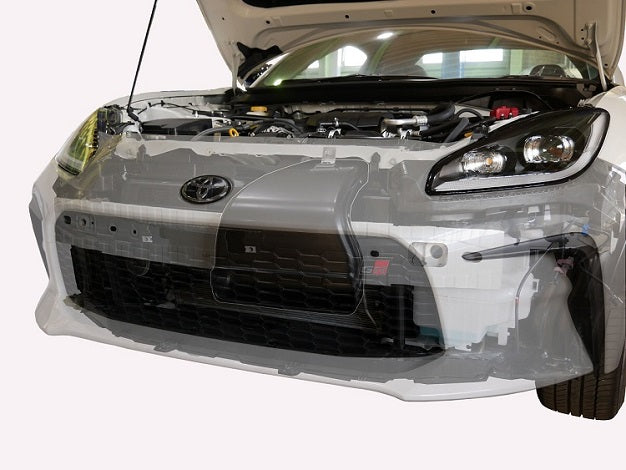

●A large duct intake port is installed in the radiator grille to actively draw fresh air into the air cleaner.
Specification
●Compatible with genuine cleaner box.
●Product installation requires removing and removing the Fr bumper, drilling and machining the reinforcement, and cutting the energy absorber (Styrofoam).
●Package size: W285 x D355 x H375 mm
●Package weight: 1.2kg

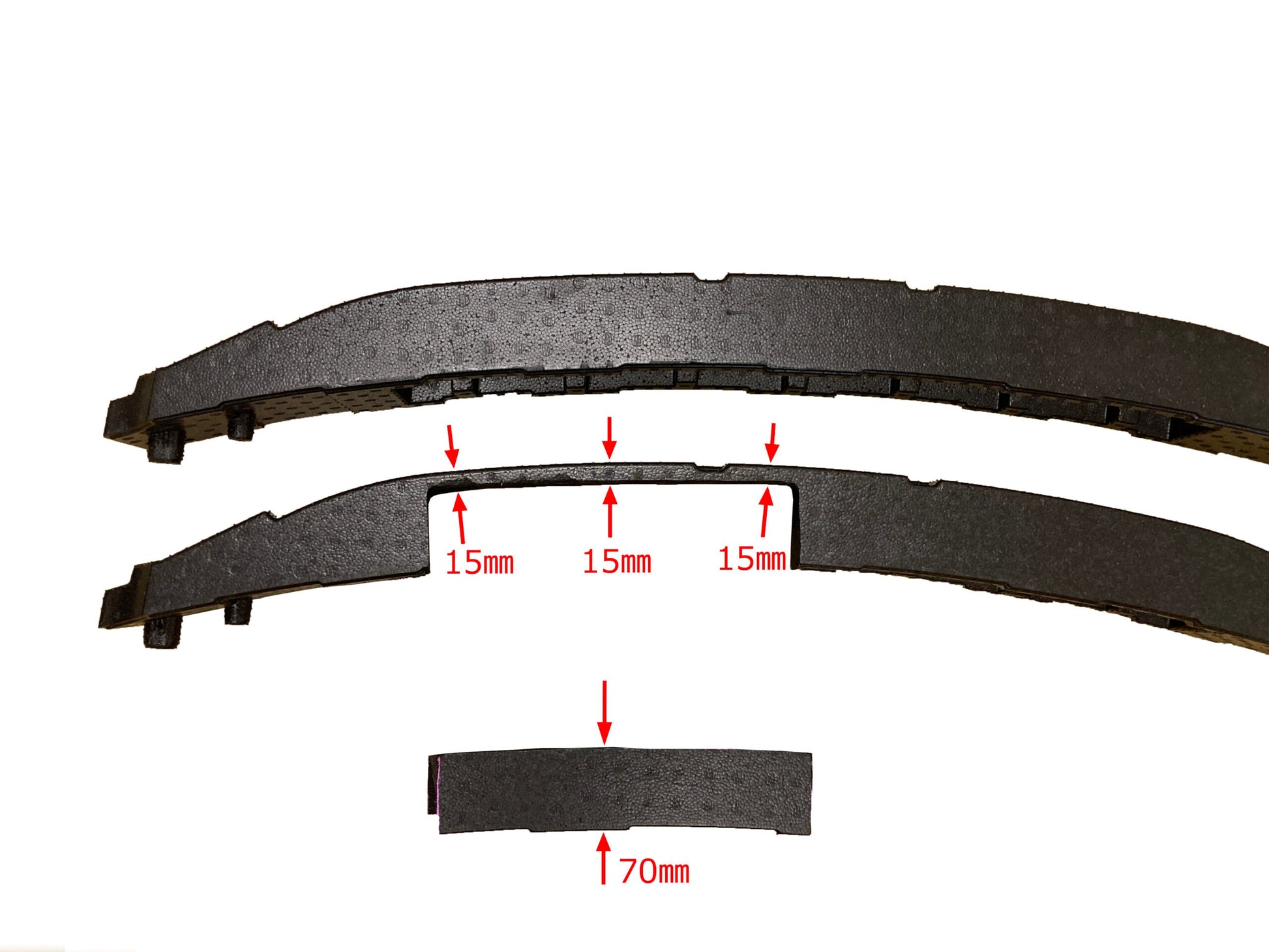

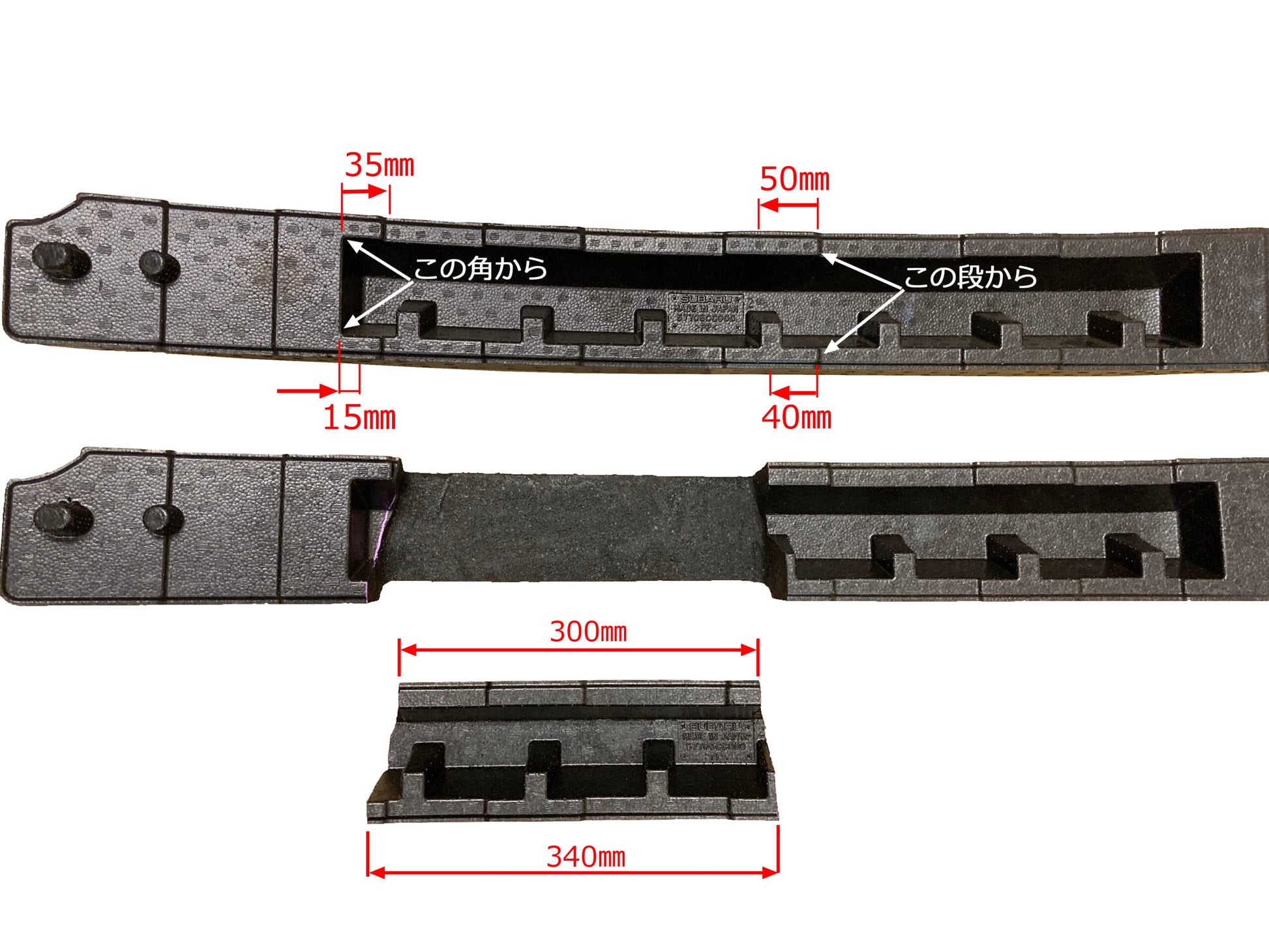

Reference cut dimensions of energy absorber
・Cut (using an air saw, saw, cutter, etc.) referring to the diagram below.
*Approximate dimensions. Please cut it into smaller pieces and gradually finish it according to the vehicle.
