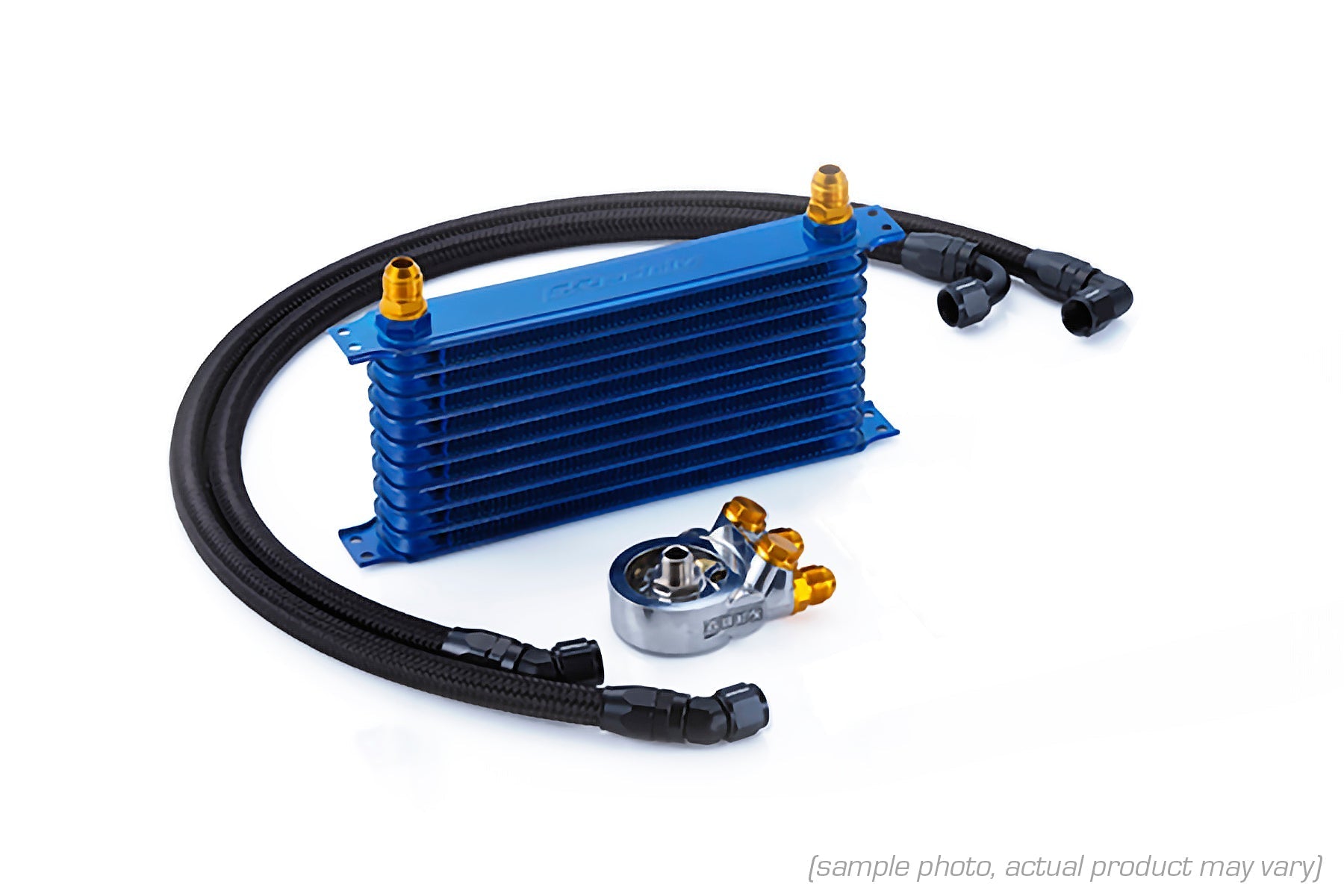

Oil cooler kit STD 10row for GXPA16 GR Yaris (G16E-GTS)

Product features

  • This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Core type: NS1010G
  • Thermostat: Built-in block
  • Core installation location: In front of Radiator
  • Center bolt size: 3/4-16UNF

Compatible models: GR Yaris

  • Vehicle model: GXPA16
  • E/G model: G16E-GTS
  • Year: 2020 09 〜
  • CODE:12014640

remarks:

  • Reinforce requires cutting modification
  • Radiator upper air guide plate requires modification.
