GReddy OIL FILTER RELOCATION KIT NA6CE - () 12044901
GReddy OIL FILTER RELOCATION KIT NA6CE - () 12044901
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policy
Engine: Center bolt size: M20xP1.5
Filter: 3/4-16UNF

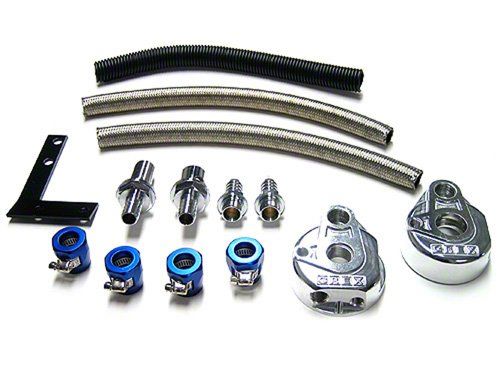

Application specific Oil Filter Relocation Kit (with -10 slip-on hoses and clamp fittings)

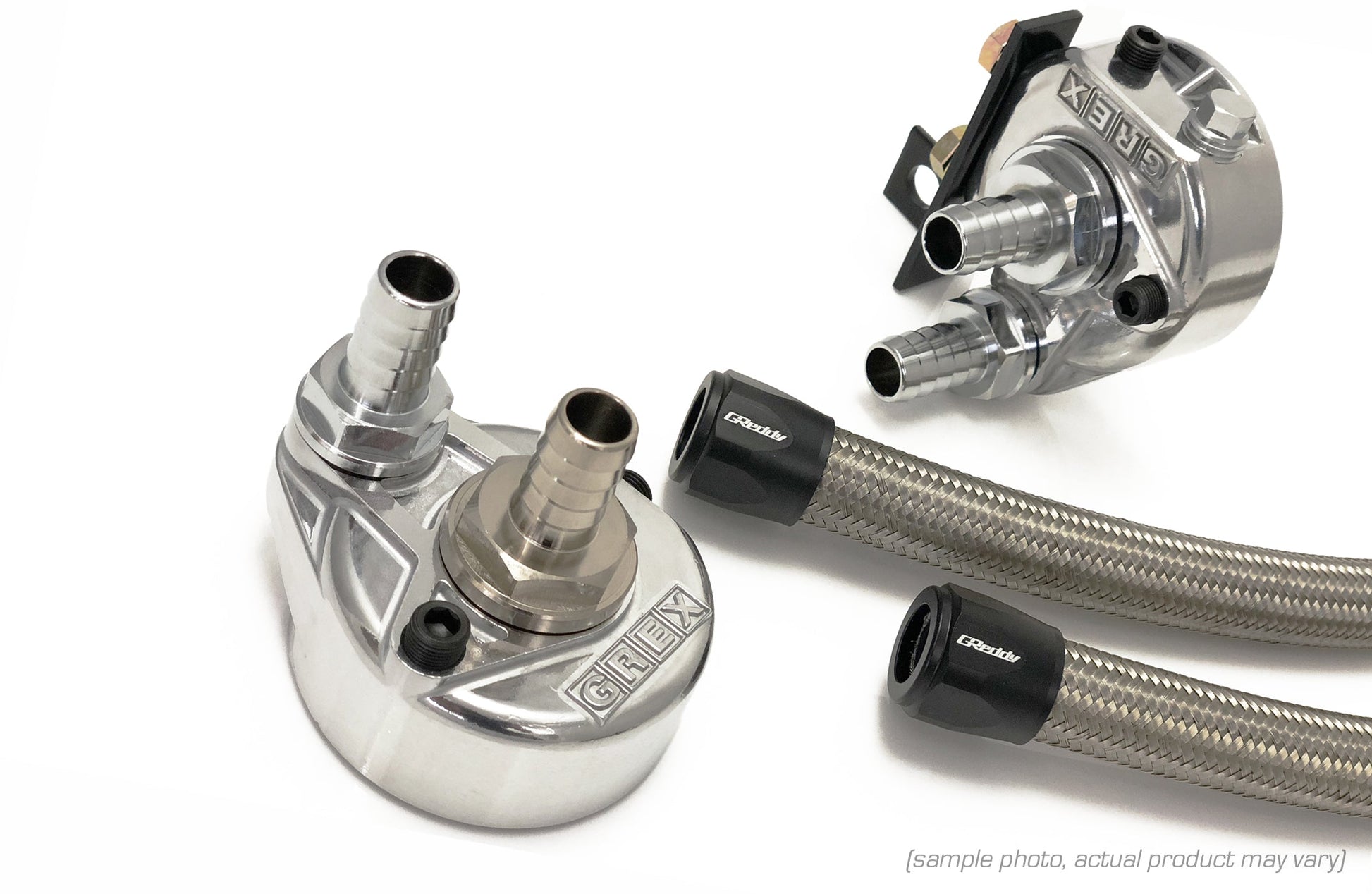

This kit allows you to economically relocate the factory oil filter for easy maintenance with a sporty look. Billet adapters allow for easy installation of (1/8BSP and/or M12xP1.25) gauge sensors, such as oil pressure and oil temperature. Also included are brackets, GReddy clamp fittings and braided-hoses (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)
| Model name | Type of vehicle | E/G | Year | Filter Element Mounting Position | Part# | remarks |
|---|---|---|---|---|---|---|
| Aristo | JZS161 | 2JZ-GTE | 97.08〜04.11 | Left Mission Side | 12014905 | |
| Supra | JZA80 | 2JZ-GTE | 93.05〜02.08 | Left Mission Side | 12014903 | |
| Soarer | JZZ30 | 1JZ-GTE | 91.05〜01.04 | Left Mission Side | 12014905 | |
| Mark II series | JZX81 | 1JZ-GTE | 90.08〜92.10 | Left Mission Side | 12014905 | |
| JZX90 | 1JZ-GTE | 92.10〜96.09 | Left Mission Side | 12014905 | When installing on H4.10 to H5.10 vehicles, it is necessary to change the oil filter bracket and process the water line. | |
| JZX100 | 1JZ-GTE | 96.09〜00.12 | Left Mission Side | 12014907 | ||
| Levin/Trueno | AE86 | 4A-GE | 83.05〜87.05 | LH strut side | 12014900 | |
| Silvia | PS13 | SR20DET | 91.01〜93.10 | RH strut side | 12024907 | |
| S14 / S15 | SR20DET | 93.10〜02.08 | RH strut side | 12024904 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. | |
| Skyline | HCR32 | RB20DET | 89.05〜93.08 | RH strut side | 12024901 | |
| ECR33 | RB25DET | 93.08〜98.06 | RH strut side | 12024903 | ||
| ER34 | RB25DET | 98.06〜01.06 | RH strut side | 12024910 | ||
| Skyline GT-R | BNR32 | RB26DETT | 89.08〜95.01 | RH strut side | 12024902 | |
| BCNR33 | RB26DETT | 95.01〜98.12 | RH strut side | 12024906 | ||
| BNR34 | RB26DETT | 99.01〜02.08 | RH strut side | 12024912 | ||
| Stager | WGNC34 | RB25DET | 96.09〜01.10 | RH strut side | 12024910 | |
| Integra | DC2 | B18C | 93.05〜01.07 | Intake Manifold side | 12054901 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. |
| Eunos Roadster | NA6CE | B6 | 89.06〜93.08 | Alternator side | 12044901 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. |
| RX-7 | FC3S | 13B-T | 85.10〜92.10 | LH strut side | 12044900 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. |
| FD3S | 13B-REW | 91.11〜02.08 | LH strut side | 12044902 | Engines with center bolt M20 × P1.5 cannot be installed on vehicles with I/J holders require an oil filter with a center bolt size of 3/4-16UNF. |
Also see Optional AN Fitting for Type G and Type F Remote Oil Blocks to convert slip-on fittings to AN fittings. (must also change Hose Fittings to AN style)
GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103
Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN) - 12401142
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN) - 12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN) - 12401149
