GReddy UNION NO.12 BANJO BOLT M10-P1.25 - () 11900590

GReddy UNION NO.12 BANJO BOLT M10-P1.25 - () 11900590

sku: 04F0J | mpn: 11900590
$30.00
$0.00 $30.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

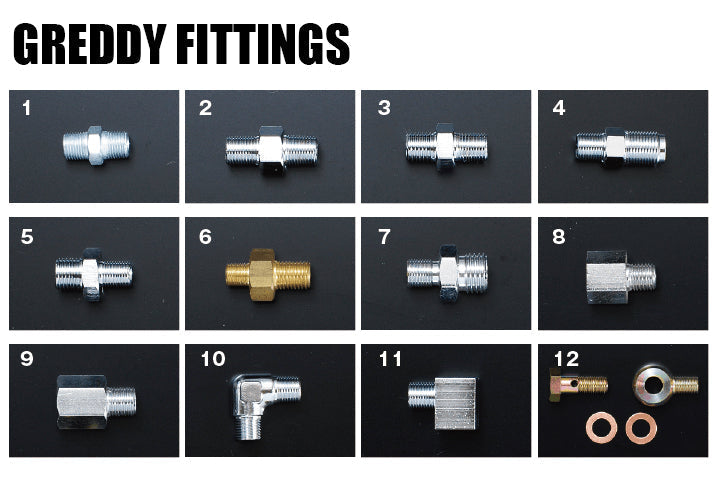

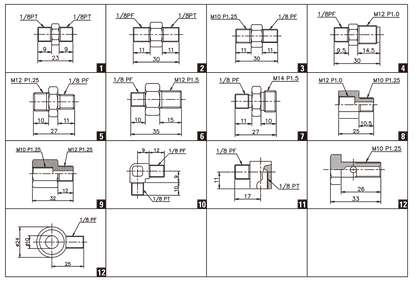

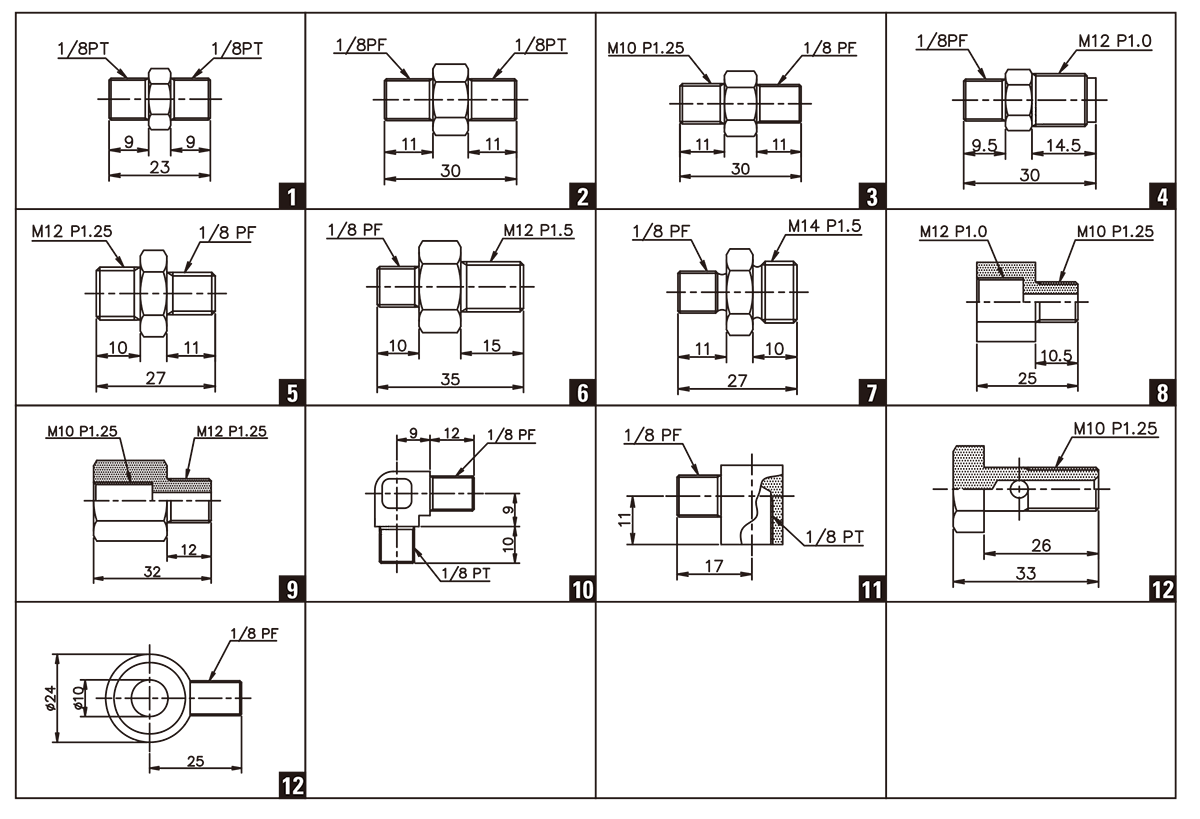

Fig. #12

size shape specification CODE remarks
1/8PT-1/8PT 1 11900561 Unichrome steel plated
1/8PT-1/8PF 2 11900562 Brass Cr plated
1/8PF-M10 P1.25 3 11900563 Unichrome steel plated
1/8PF-M12 P1.0 4 (Sales will end as soon as stock runs out) 11920060 Brass Cr plated
1/8PF-M12 P1.25 5 For SR20/1JZ/2JZ oil pressure extraction 11900575 Brass Cr plated
1/8PF-M12 P1.5 6 19 angle 11900568 Made of brass
1/8PF-M14 P1.5 7 13BT for oil pressure extraction (hole diameter 3φ) 11900576 Brass Cr plated
M10 P1.25 male - M12 P1.0 female 8 (Sales will end as soon as stock runs out) 11900565 Brass Cr plated
M12 P1.25 male - M10 P1.25 female 9 (Sales will end as soon as stock runs out) 11900566 Brass Cr plated
1/8PT male-1/8PF male 90° 10 11900570 Brass Cr plated
1/8PT female-1/8PF male 90° 11 11900572 Brass Cr plated

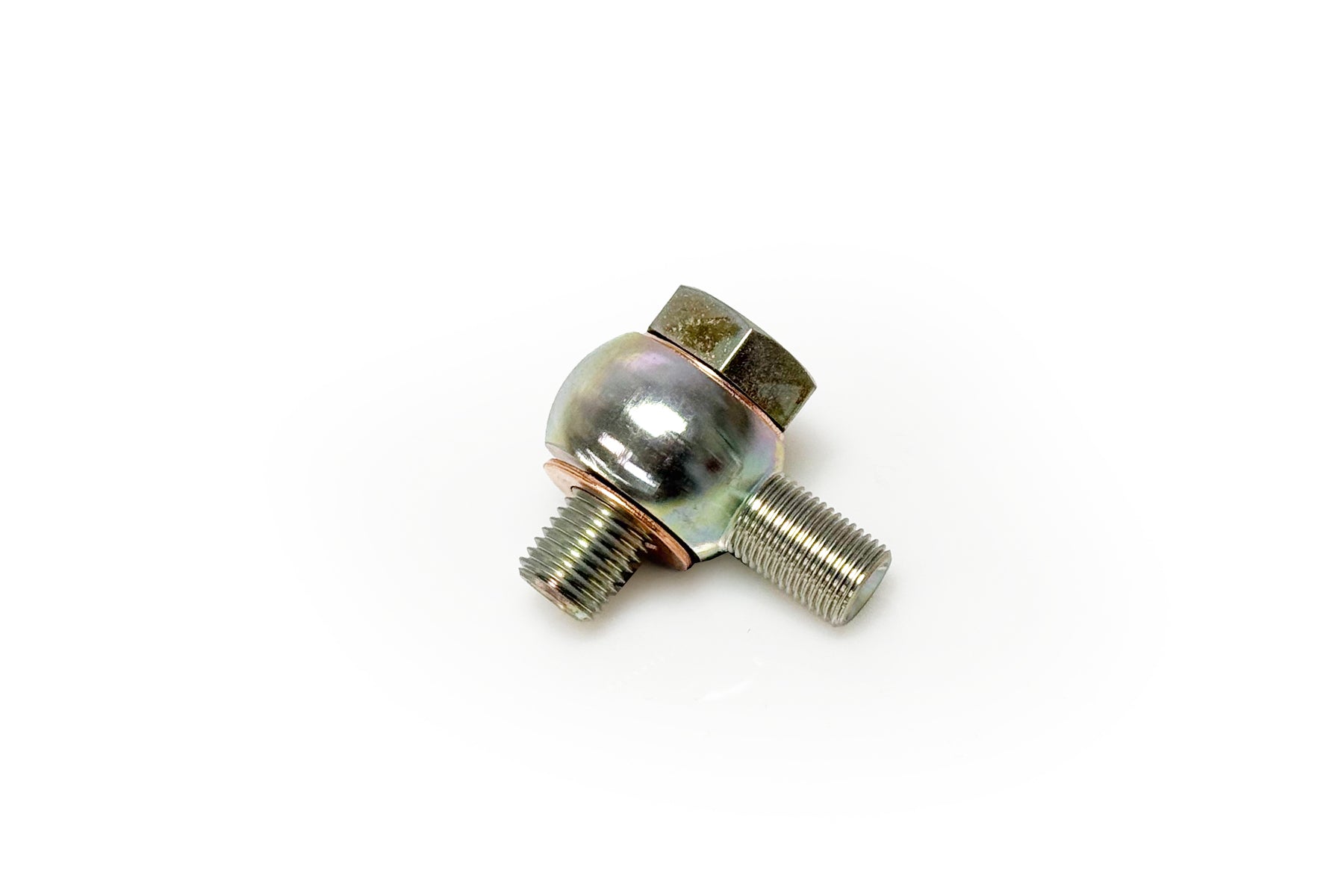

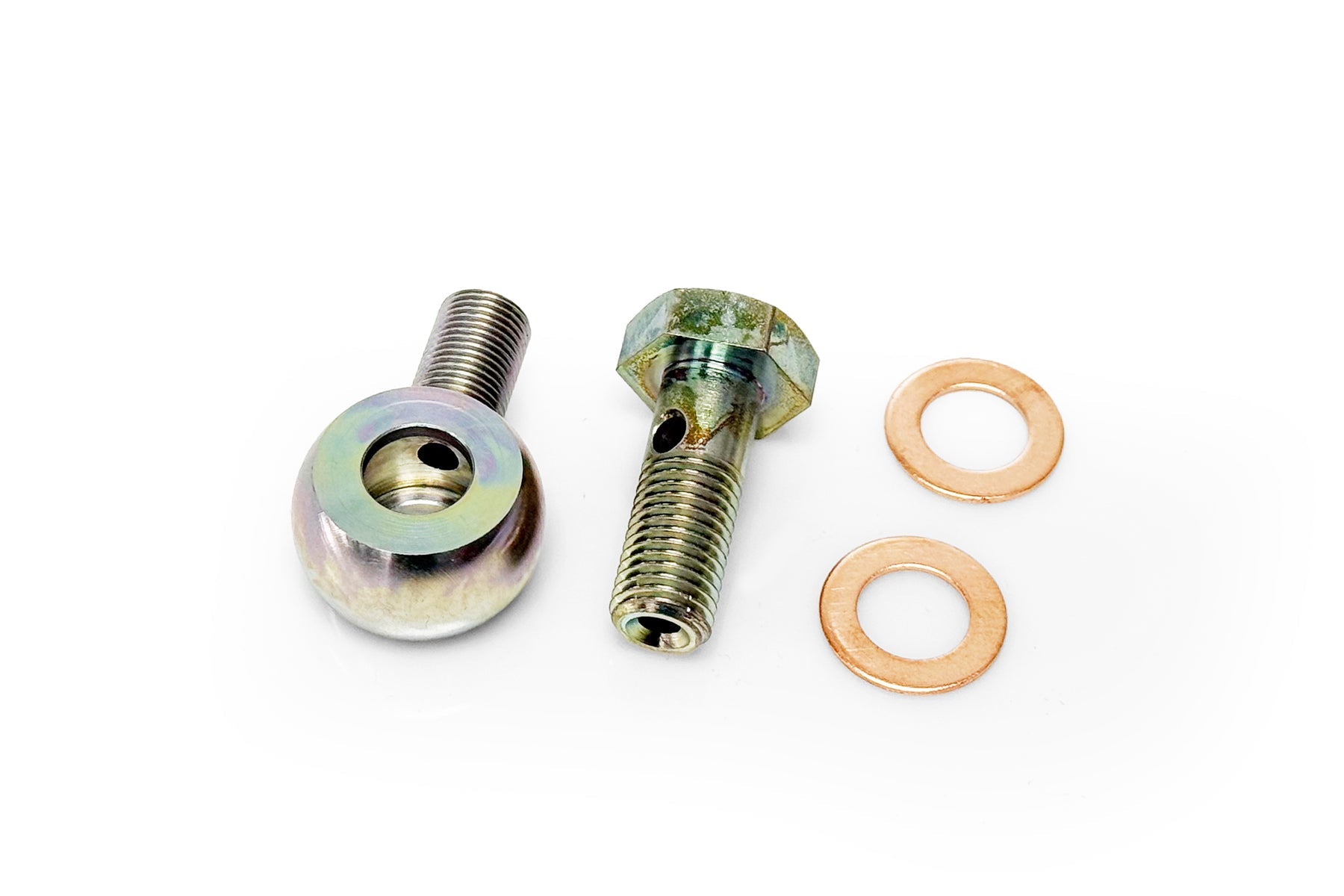

M10 banjo union SET 12 Male M10 P1.25/Female 1/8PF 11900590 Copper washer x 2 included, steel chromate
