Graywerks Engine Harmonic Balancer 102156
Graywerks Engine Harmonic Balancer 102156
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 1 left
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
- Shipping dimensions (L × W × H)
- Shipping weight
- 5.5 lb
- Barcode
- 00740993043119
Billable shipping weight; may include dimensional weight.

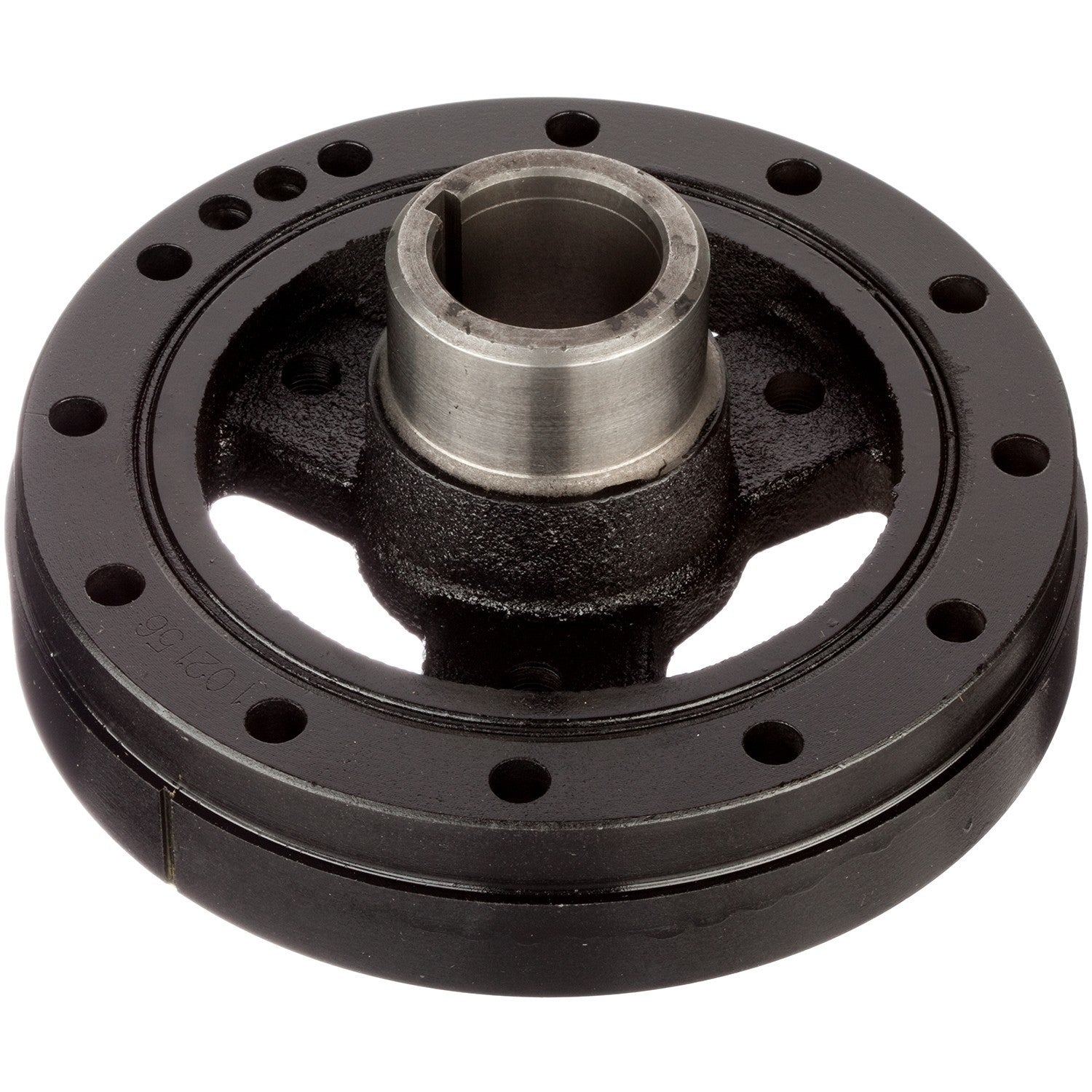

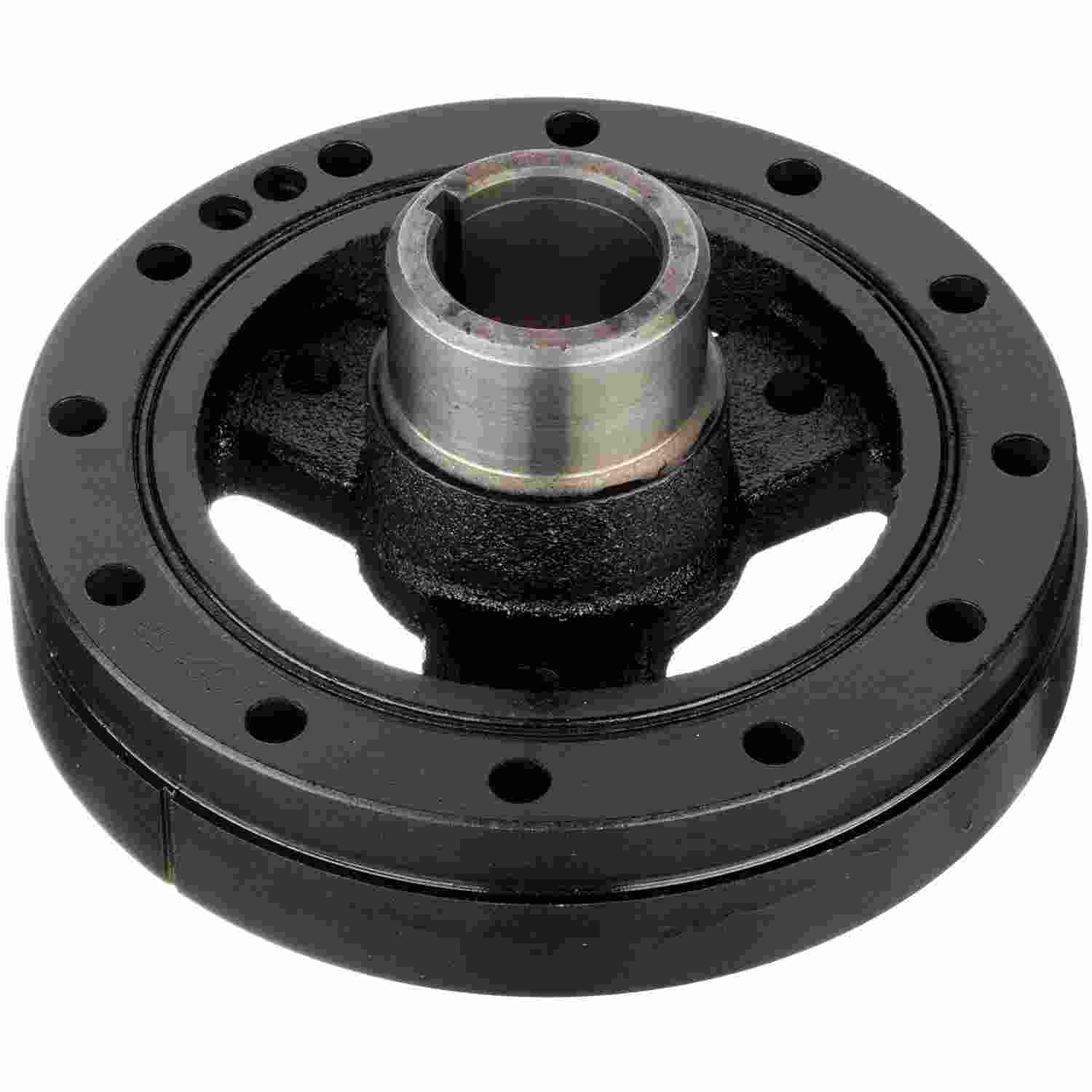

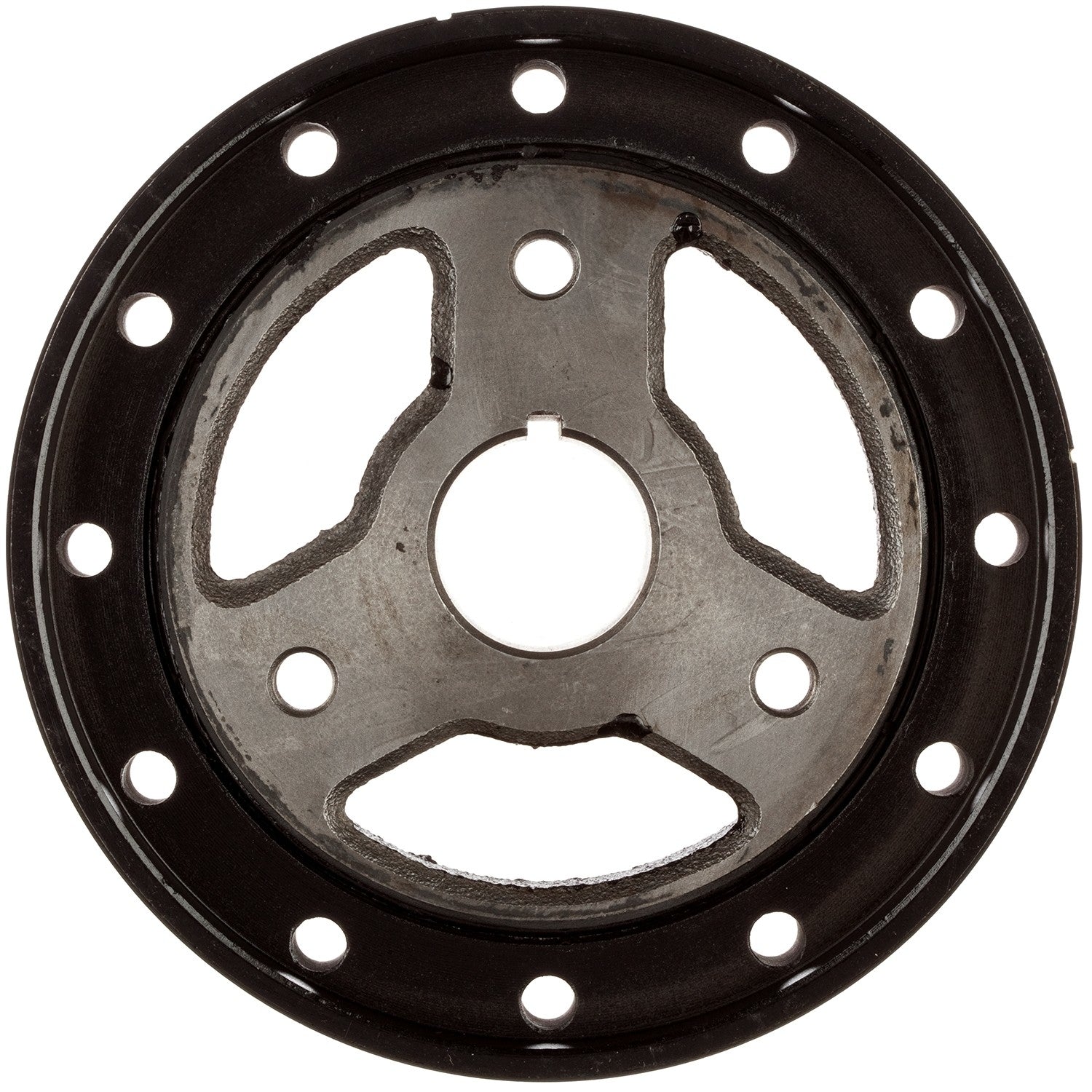

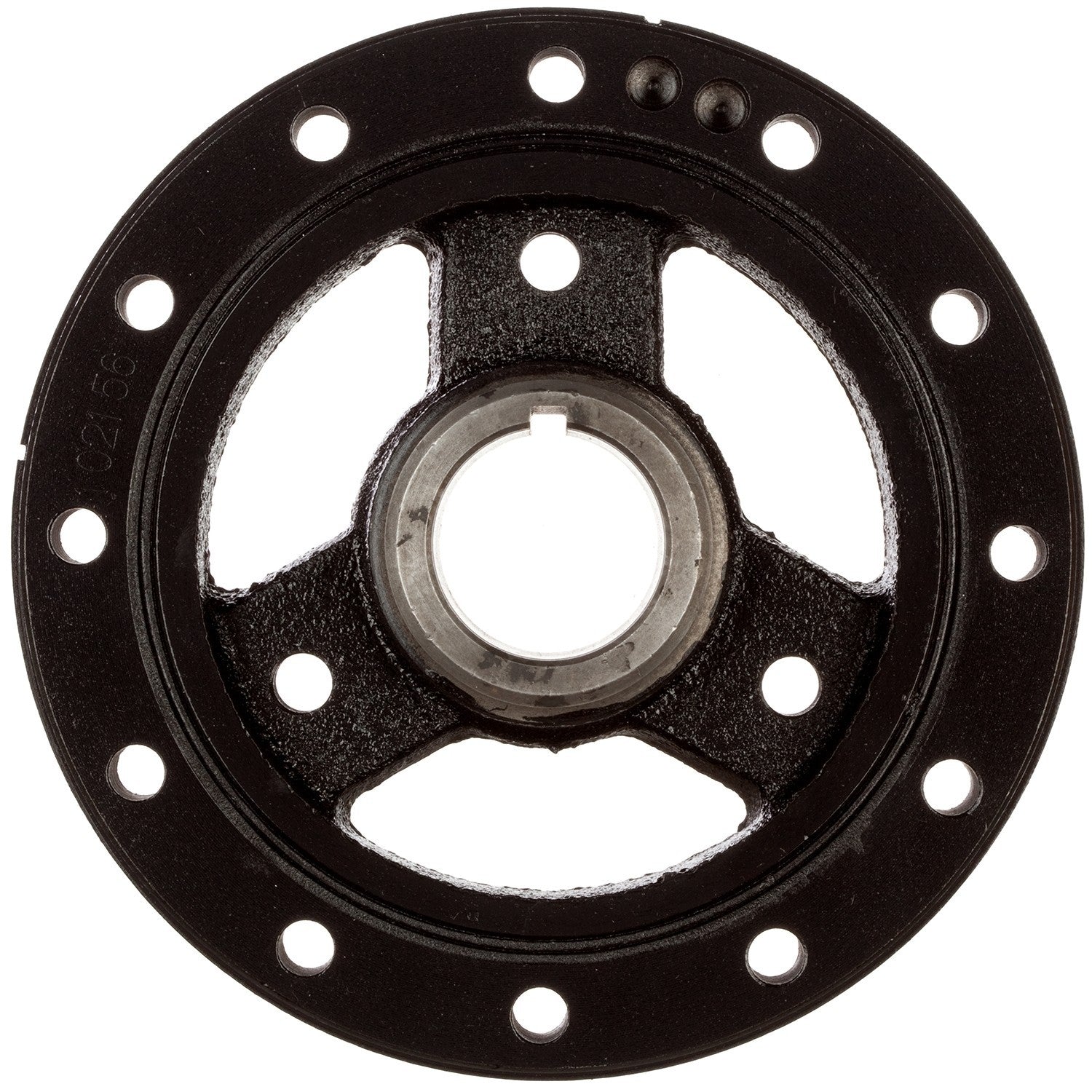

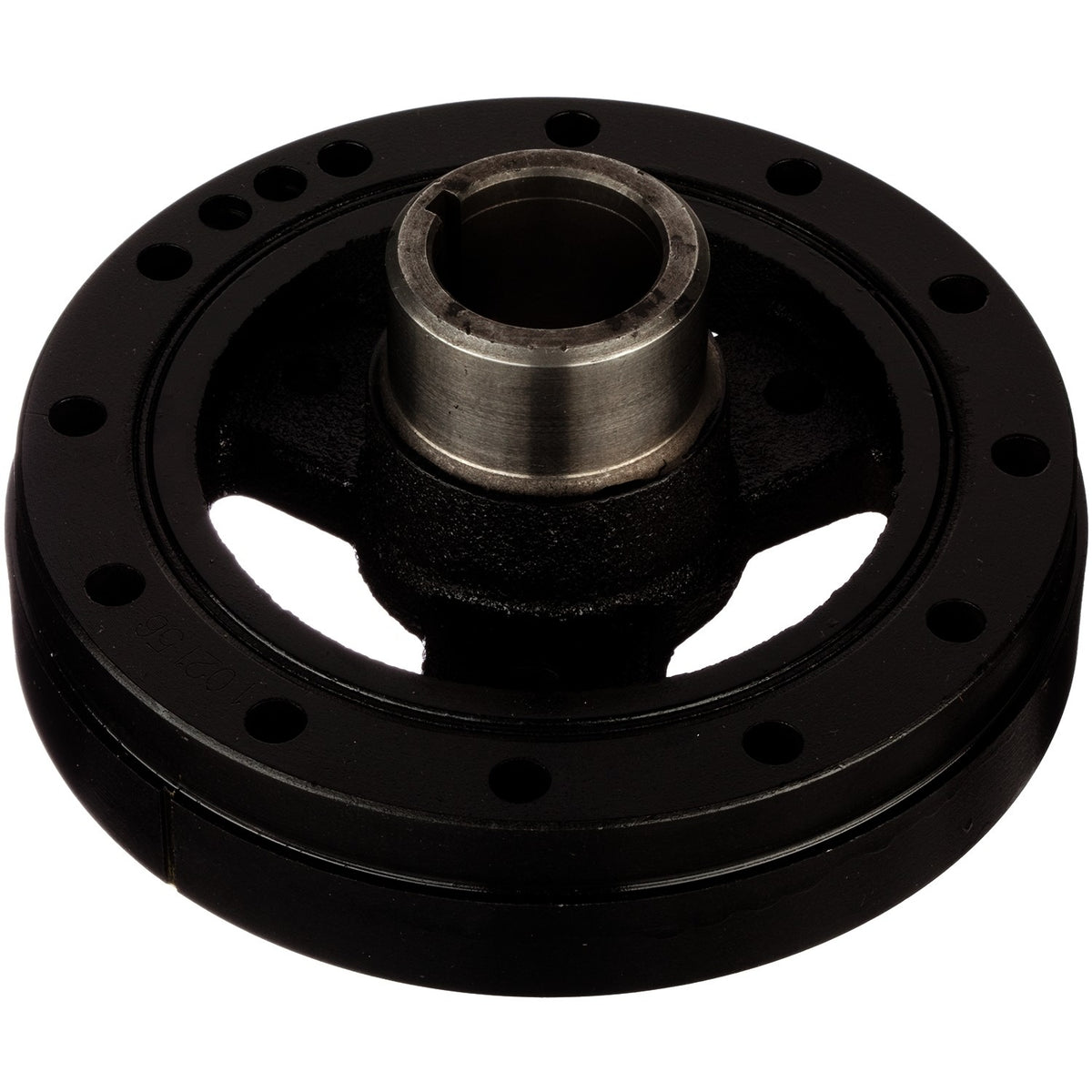

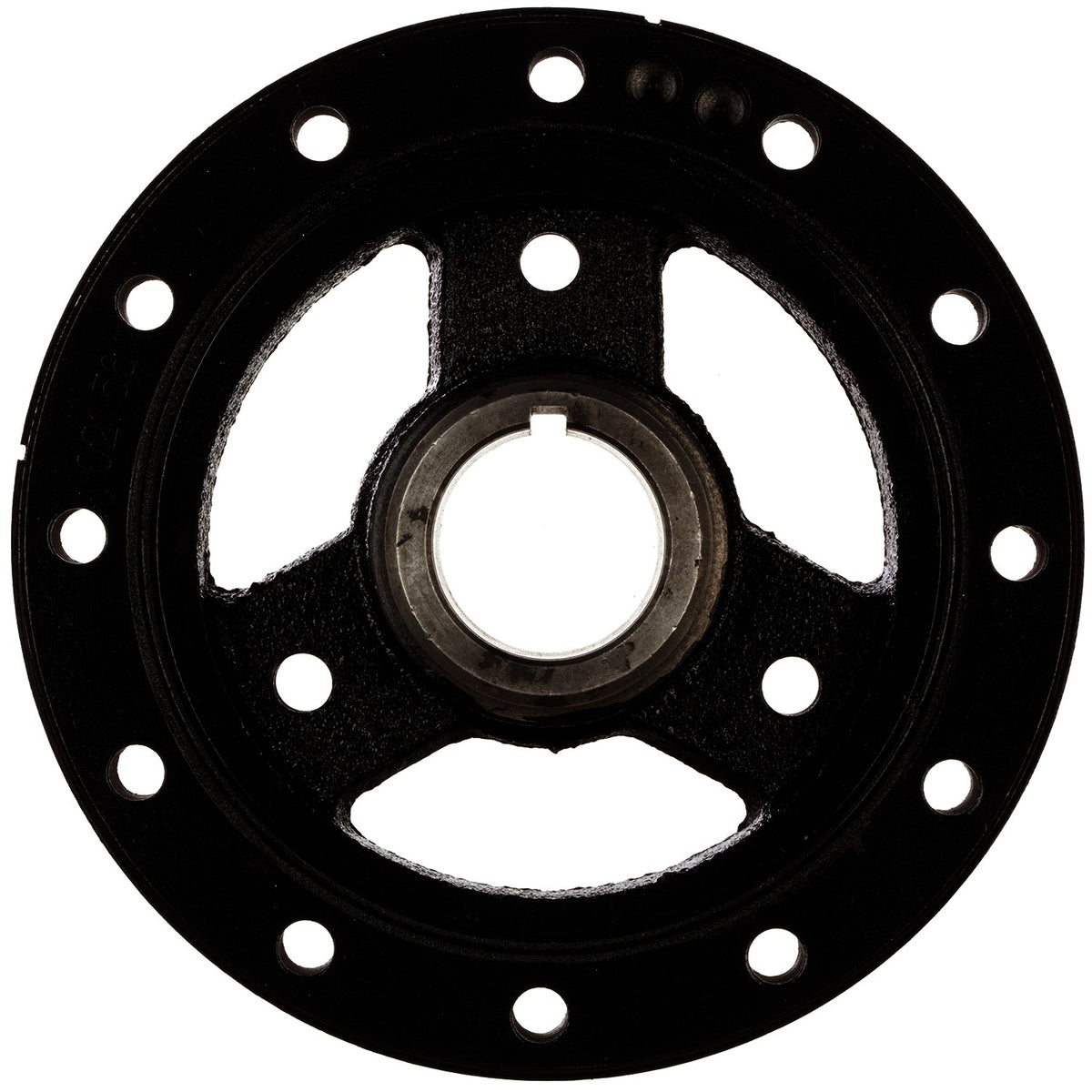

Engine Harmonic Balancer. (102156) by Graywerks
The purpose of an harmonic balancer is to absorb crankshaft vibrations. Harmonic balancers are typically constructed in three pieces. The first piece is often called a hub. It bolts to directly to the crankshaft. The hub is surrounded by rubber or fluid which dampens crankshaft vibrations. The outside layer is metal which has grooves on it for the belt. Over time the rubber and/or fluid layer deteriorate causing the outer pulley to shift forward. This causes belt miss alignment and can ultimately result in crankshaft failure. When the harmonic balancer is broken, it must be replaced. ATP Harmonic Balancers fit and function just like the original part restoring the engine to normal operation.
Fits: Chevrolet Astro 05-96, Chevrolet Blazer 05-95, Chevrolet C1500 98-96, Chevrolet Express 1500 09-96, Chevrolet Express 2500 05-96, Chevrolet G10 95, Chevrolet G20 95, Chevrolet G30 02-01, 96-95, Chevrolet K1500 98-96, Chevrolet P30 99-95, Chevrolet S10 04-95, Chevrolet Silverado 1500 09-99, GMC C1500 98-96, GMC G1500 95, GMC G2500 95, GMC Jimmy 05-95, GMC K1500 98-96, GMC P3500 99-96, GMC Safari 05-96, GMC Savana 1500 09-96, GMC Savana 2500 05-96, GMC Sierra 1500 09-99, GMC Sonoma 04-95, Isuzu Hombre 00-97, Oldsmobile Bravada 01-96
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 2005 | Chevrolet | Astro | LS, LT, Base |
| 1995 - 2005 | Chevrolet | Blazer | Base |
| 1995 - 1997 | Chevrolet | Blazer | Deluxe |
| 1996 - 2004 | Chevrolet | Blazer | LS |
| 1995 - 2002 | Chevrolet | Blazer | LT |
| 2002 | Chevrolet | Blazer | LTZ |
| 1999 - 2001 | Chevrolet | Blazer | Trailblazer |
| 2001 - 2005 | Chevrolet | Blazer | Xtreme |
| 2003 - 2005 | Chevrolet | Blazer | ZR2 |
| 1996 - 1997 | Chevrolet | C1500 | Base |
| 1996 - 1998 | Chevrolet | C1500 | WT, Cheyenne, Silverado |
| 1996 - 2009 | Chevrolet | Express 1500 | Base, LS |
| 2001 - 2009 | Chevrolet | Express 1500 | LT |
| 1996 - 2005 | Chevrolet | Express 2500 | LS, Base |
| 1995 | Chevrolet | G10 | Chevy Van, Beauville, Sportvan |
| 1995 | Chevrolet | G20 | Base, Sportvan, Chevy Van, Beauville |
| 2001 - 2002 | Chevrolet | G30 | Base |
| 1995 - 1996 | Chevrolet | G30 | Hi-Cube, Sportvan, Beauville, Chevy Van |
| 1996 - 1997 | Chevrolet | K1500 | Base |
| 1996 - 1998 | Chevrolet | K1500 | Cheyenne, Silverado, WT |
| 1995 - 1999 | Chevrolet | P30 | Base |
| 1995 - 2003 | Chevrolet | S10 | Base, ZR2 |
| 1995 - 2004 | Chevrolet | S10 | LS |
| 1995 - 1998 | Chevrolet | S10 | SS |
| 1999 - 2003 | Chevrolet | S10 | Xtreme |
| 2002 - 2004 | Chevrolet | S10 | ZR5 |
| 2002 | Chevrolet | Silverado 1500 | Custom |
| 2004 - 2009 | Chevrolet | Silverado 1500 | Hybrid |
| 1999 - 2009 | Chevrolet | Silverado 1500 | LS, Base, LT |
| 2007 - 2009 | Chevrolet | Silverado 1500 | LTZ |
| 2003 - 2006 | Chevrolet | Silverado 1500 | SS |
| 2002 - 2009 | Chevrolet | Silverado 1500 | WT |
| 2004 | Chevrolet | Silverado 1500 | Z71 |
| 1997 | GMC | C1500 | Sierra GT |
| 1996 - 1998 | GMC | C1500 | Sierra Special, Sierra SL, Sierra SLT, Sierra SLE |
| 1995 | GMC | G1500 | Rally, Vandura, Rally STX |
| 1995 | GMC | G2500 | Rally STX, Rally, Vandura |
| 2000 - 2001 | GMC | Jimmy | Diamond Edition |
| 1998 - 2000 | GMC | Jimmy | Envoy |
| 1995 - 2001 | GMC | Jimmy | SL, SLT, SLE |
| 1995 - 2005 | GMC | Jimmy | SLS, Base |
| 1996 - 1998 | GMC | K1500 | Sierra Special, Sierra SL, Sierra SLE, Sierra SLT |
| 1996 - 1999 | GMC | P3500 | Base |
| 1996 - 2002 | GMC | Safari | SL |
| 1996 - 2005 | GMC | Safari | SLE, Base, SLT |
| 1996 - 1998 | GMC | Safari | SLX |
| 1996 - 2009 | GMC | Savana 1500 | Base, SLE |
| 2006 - 2009 | GMC | Savana 1500 | LS, LT |
| 2009 | GMC | Savana 1500 | SL |
| 2001 - 2002 | GMC | Savana 1500 | SLT |
| 1996 - 2005 | GMC | Savana 2500 | SLE, Base |
| 2001 - 2002 | GMC | Savana 2500 | SLT |
| 2002 - 2005 | GMC | Sierra 1500 | Base |
| 2001 | GMC | Sierra 1500 | C3 |
| 2002 - 2009 | GMC | Sierra 1500 | Denali, WT |
| 2002 | GMC | Sierra 1500 | HT |
| 2005 - 2009 | GMC | Sierra 1500 | Hybrid |
| 1999 - 2009 | GMC | Sierra 1500 | SL, SLT, SLE |
| 1995 - 2001 | GMC | Sonoma | SLE |
| 1995 - 2004 | GMC | Sonoma | SLS, SL |
| 1997 - 2000 | Isuzu | Hombre | XS, S |
| 1996 - 2001 | Oldsmobile | Bravada | Base |
