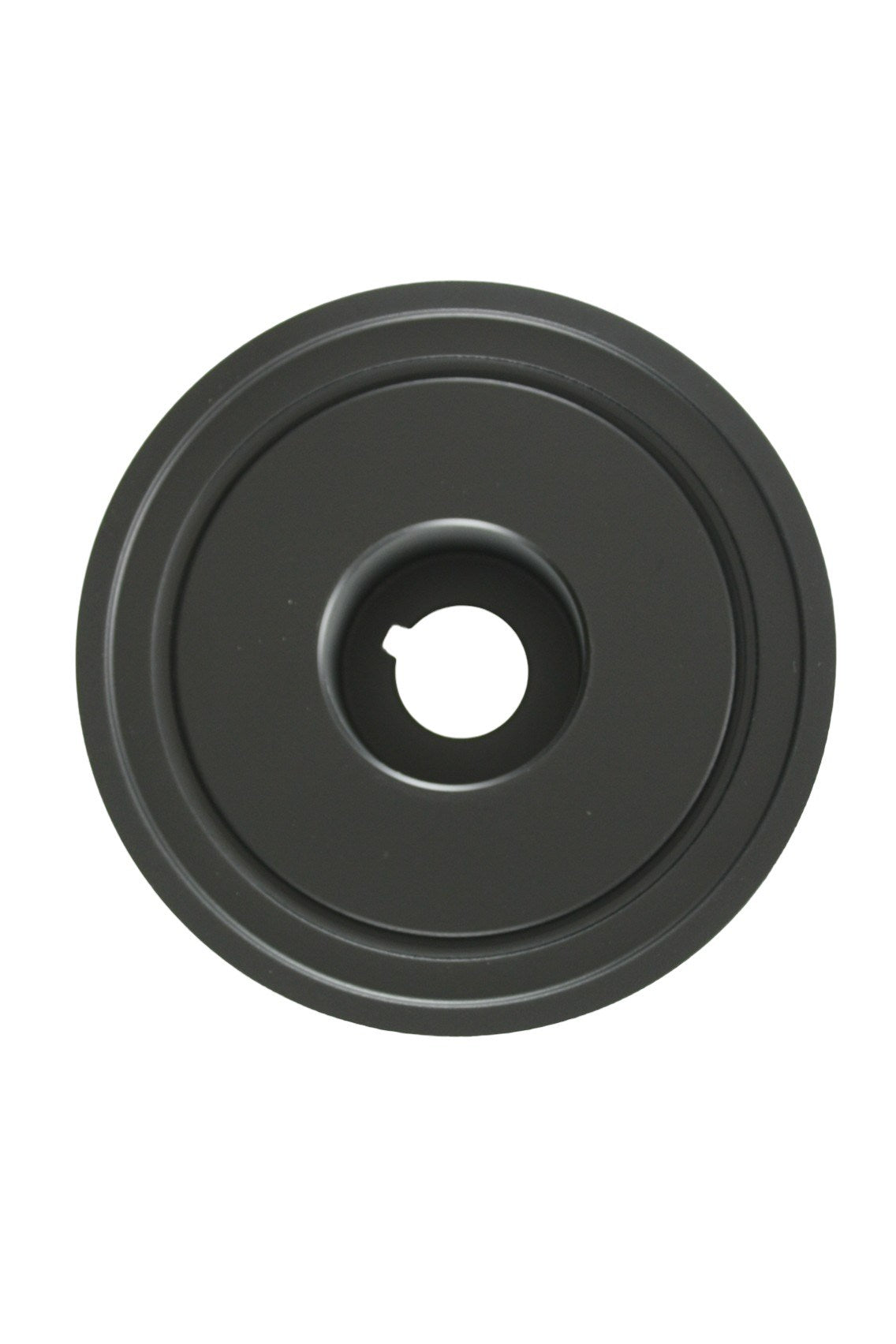

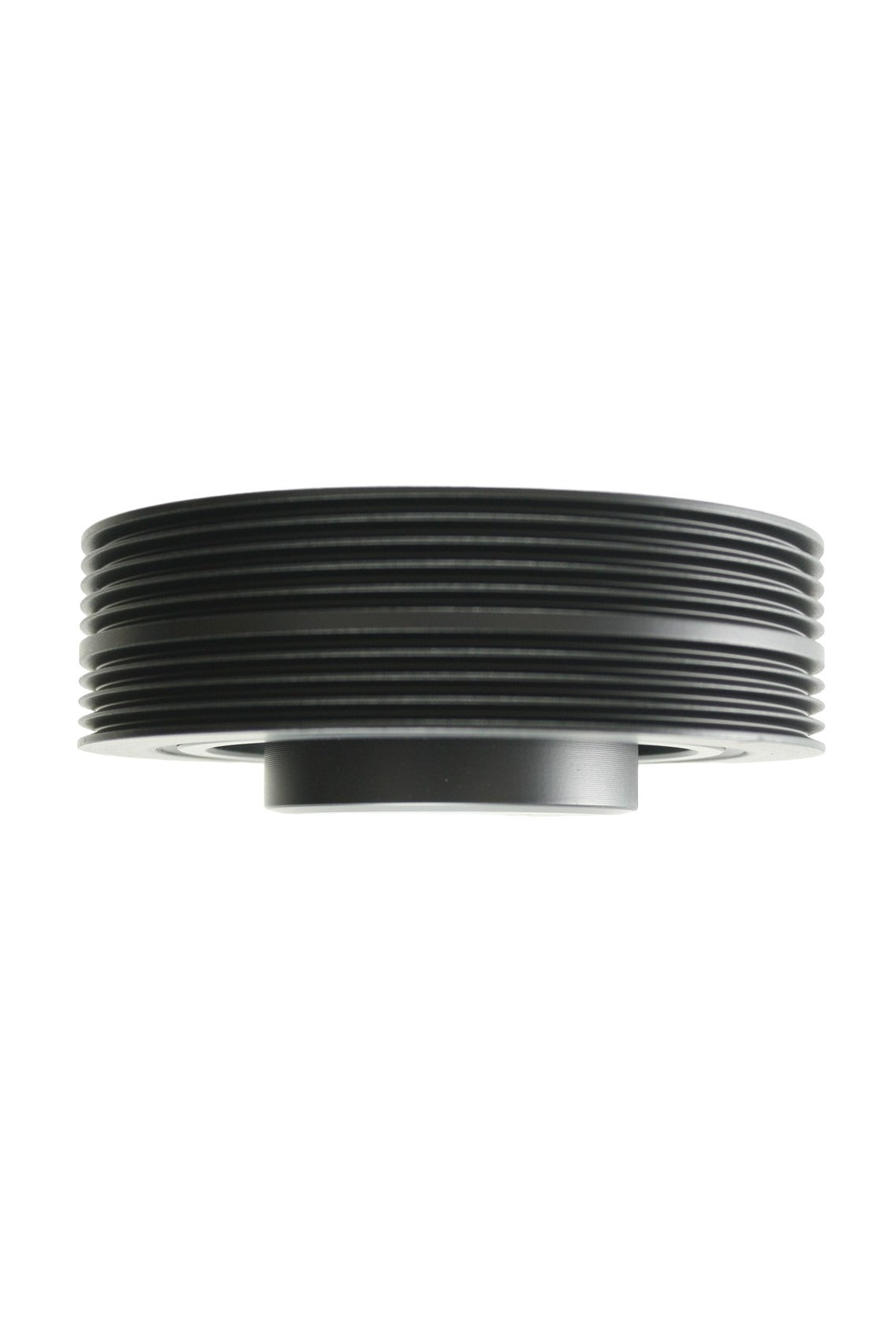

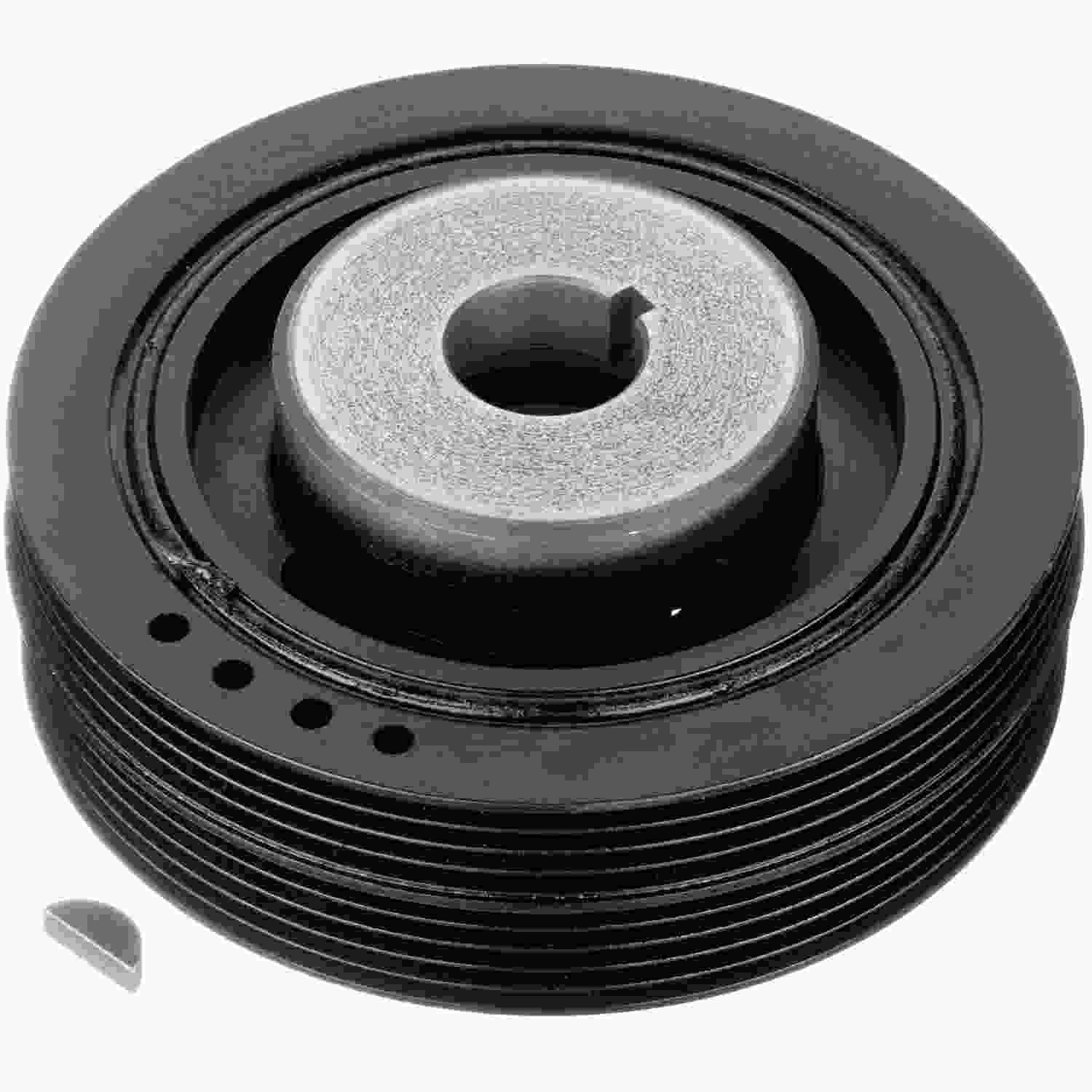

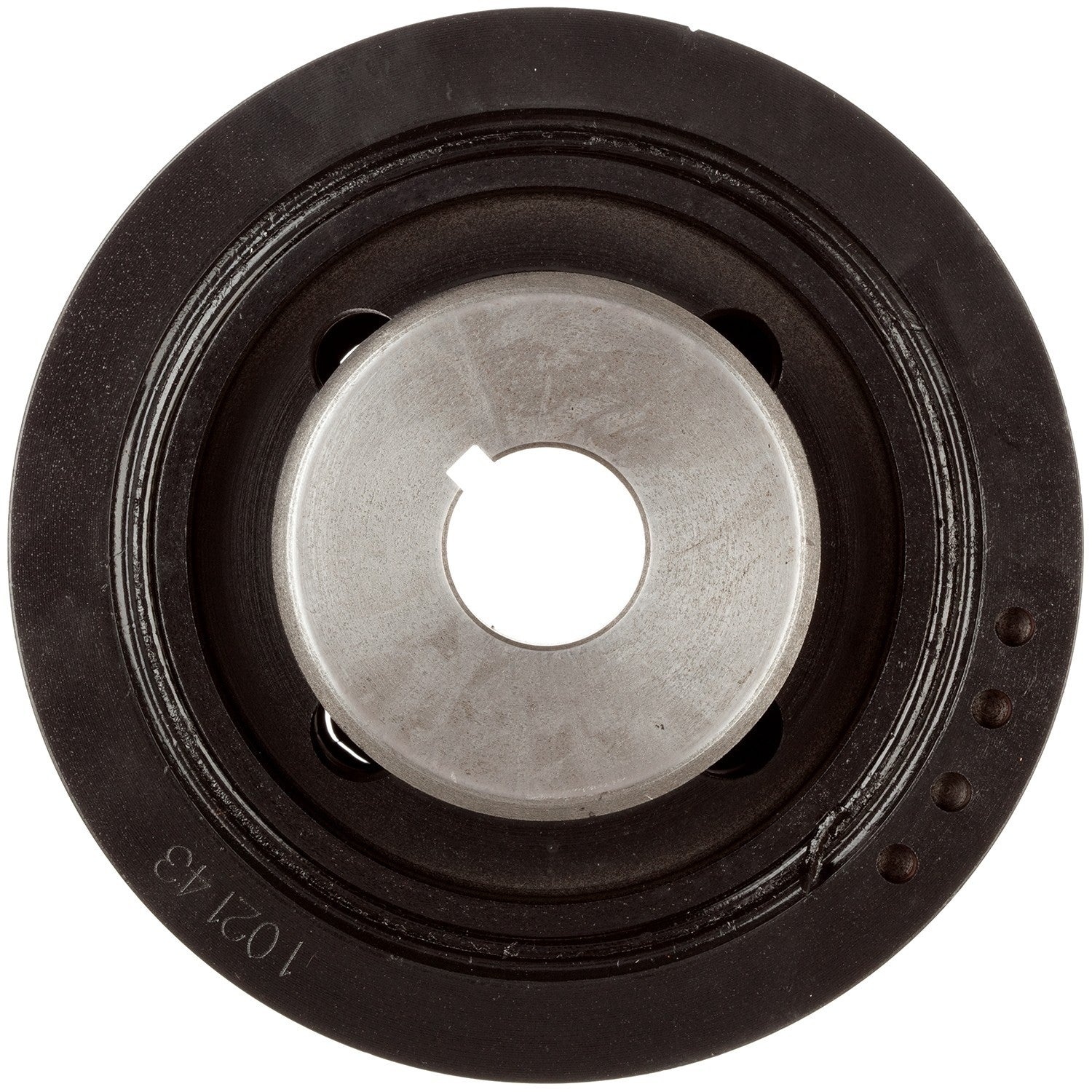

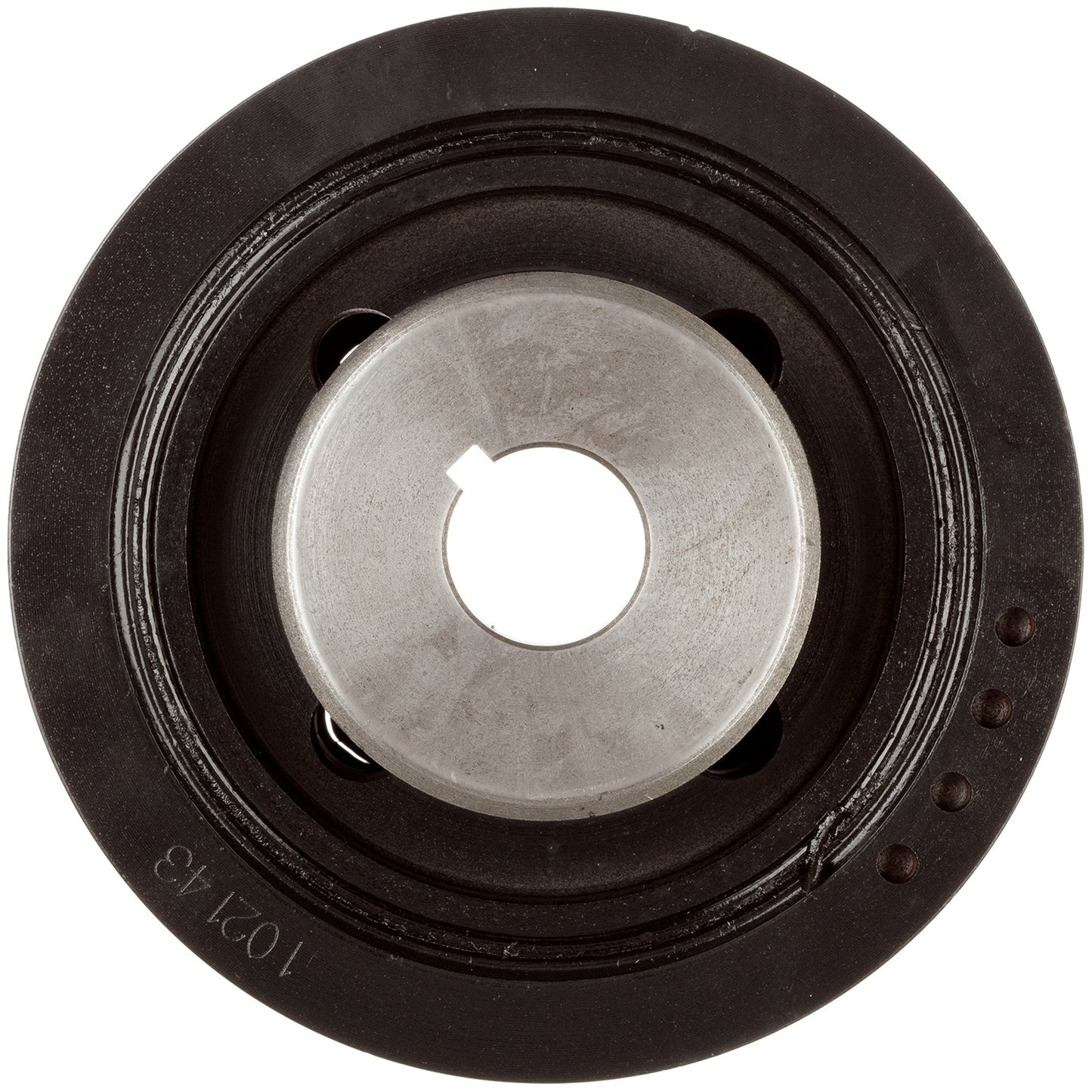

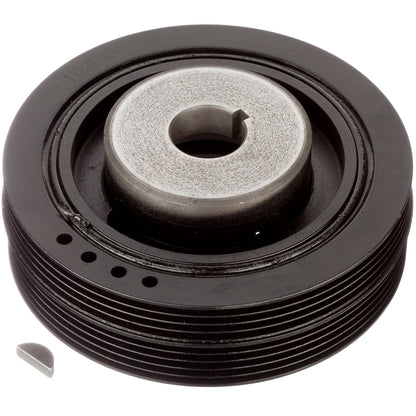

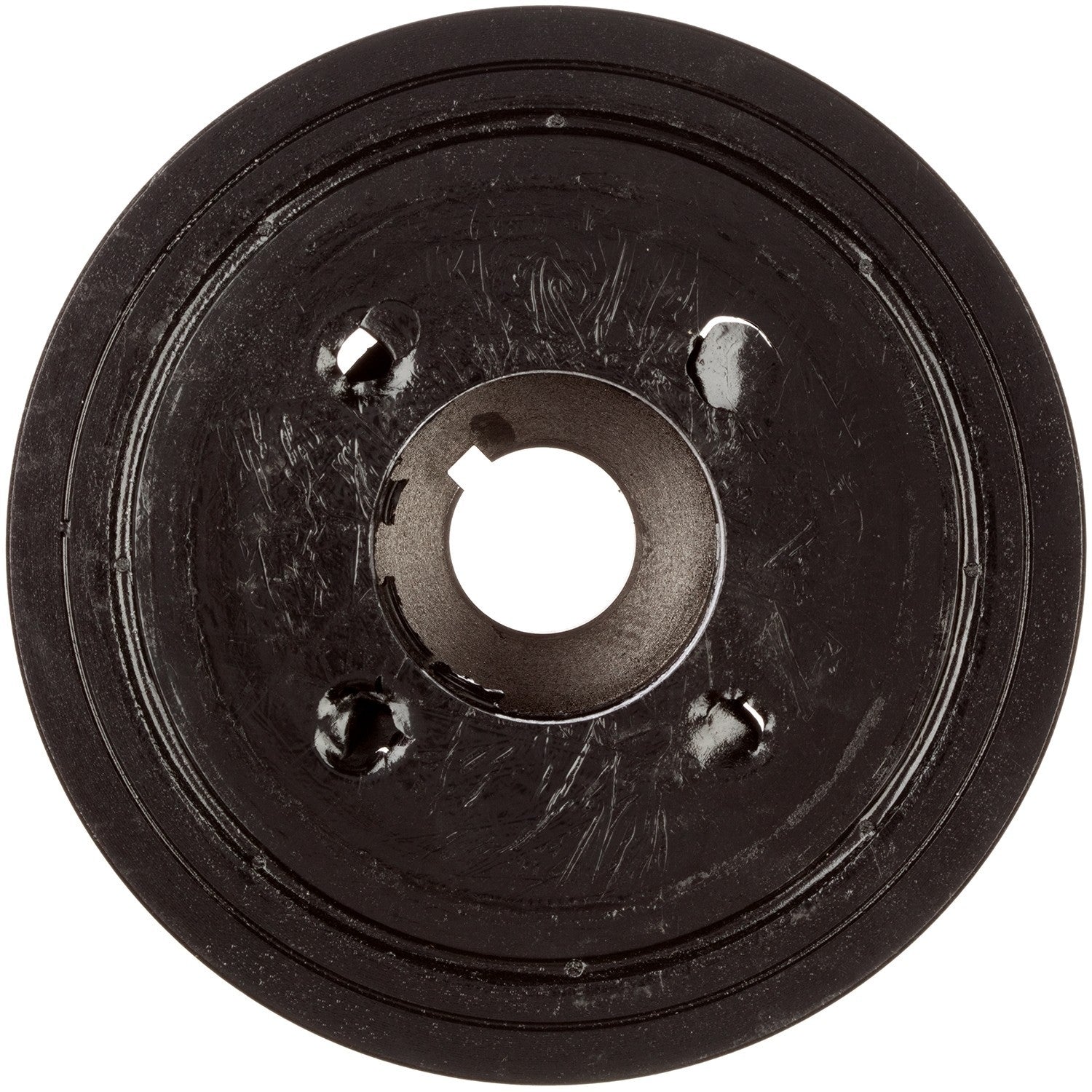

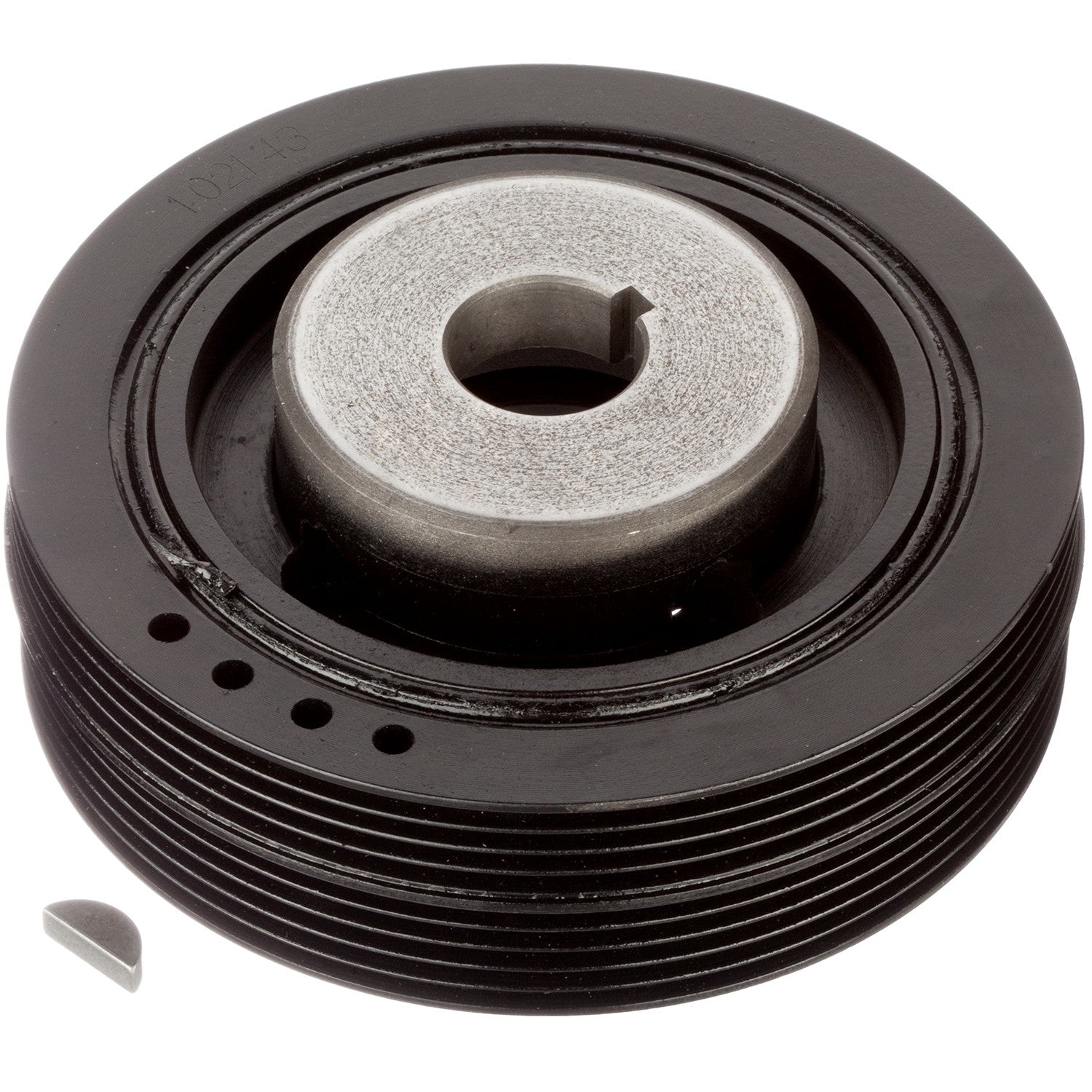

Graywerks Engine Harmonic Balancer 102143
Engine Harmonic Balancer. (102143) by Graywerks
The purpose of an harmonic balancer is to absorb crankshaft vibrations. Harmonic balancers are typically constructed in three pieces. The first piece is often called a hub. It bolts to directly to the crankshaft. The hub is surrounded by rubber or fluid which dampens crankshaft vibrations. The outside layer is metal which has grooves on it for the belt. Over time the rubber and/or fluid layer deteriorate causing the outer pulley to shift forward. This causes belt miss alignment and can ultimately result in crankshaft failure. When the harmonic balancer is broken, it must be replaced. ATP Harmonic Balancers fit and function just like the original part restoring the engine to normal operation.
Fits: Saab 9-2X 06-05, Subaru Baja 06-03, Subaru Forester 10-98, Subaru Impreza 14-98, Subaru Legacy 10-97, Subaru Outback 09-01, Subaru WRX STI 15
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Saab | 9-2X | 2.5i |
| 2005 - 2006 | Saab | 9-2X | Aero |
| 2005 | Saab | 9-2X | Linear |
| 2003 | Subaru | Baja | Base |
| 2003 - 2006 | Subaru | Baja | Sport |
| 2004 - 2006 | Subaru | Baja | Turbo |
| 2008 | Subaru | Forester | 2.5 X, Anniversary Edition, 2.5 XS Premium, Sports 2.5 XT, Sports 2.5 X, 2.5 XS, 2.5 XT |
| 1998 - 2002 | Subaru | Forester | L, S, Base |
| 2006 - 2008 | Subaru | Forester | X L.L. Bean Edition |
| 2009 - 2010 | Subaru | Forester | X Premium, X Limited, X Touring |
| 2005 | Subaru | Forester | XS L.L. Bean Edition |
| 2003 - 2010 | Subaru | Forester | XS, X |
| 2007 - 2010 | Subaru | Forester | XSL |
| 2004 - 2009 | Subaru | Forester | XT |
| 2006 - 2010 | Subaru | Forester | XT Limited |
| 2005 - 2010 | Subaru | Forester | XT Premium |
| 2010 | Subaru | Forester | XT Sports |
| 2008 | Subaru | Impreza | 2.0R |
| 2009 - 2010 | Subaru | Impreza | 2.5 GT |
| 2006 - 2011 | Subaru | Impreza | 2.5i |
| 2010 - 2011 | Subaru | Impreza | 2.5i Premium |
| 2014 | Subaru | Impreza | I Limited |
| 2013 - 2014 | Subaru | Impreza | I Sport, i |
| 1998 - 2001 | Subaru | Impreza | L |
| 1998 - 2004 | Subaru | Impreza | Outback |
| 2005 - 2011 | Subaru | Impreza | Outback Sport |
| 2009 - 2012 | Subaru | Impreza | R |
| 1998 - 2005 | Subaru | Impreza | RS |
| 2008 - 2014 | Subaru | Impreza | Sport |
| 2012 - 2014 | Subaru | Impreza | Sport Premium, Premium, Touring, Limited, Sport Limited, Base |
| 2002 - 2004 | Subaru | Impreza | TS |
| 2002 - 2014 | Subaru | Impreza | WRX |
| 2010 | Subaru | Impreza | WRX GT, 2.5i Limited, WRX SE, WRX STI Special Edition |
| 2006 - 2014 | Subaru | Impreza | WRX Limited |
| 2009 - 2014 | Subaru | Impreza | WRX Premium |
| 2004 - 2014 | Subaru | Impreza | WRX STI |
| 2007 - 2014 | Subaru | Impreza | WRX STI Limited |
| 2006 - 2007 | Subaru | Impreza | WRX TR |
| 2011 | Subaru | Impreza | XV |
| 2010 | Subaru | Legacy | 2.5i Premium, 3.6R Limited, 3.6R Premium, Sport, 3.6R, 2.5GT |
| 2007 - 2009 | Subaru | Legacy | 2.5i Special Edition |
| 2006 - 2010 | Subaru | Legacy | 2.5i, 2.5i Limited |
| 2008 - 2009 | Subaru | Legacy | 3.0 R Limited |
| 2009 | Subaru | Legacy | 3.0 R Premier, 3.0 R, 2.0R, 2.5i Touring |
| 2009 - 2010 | Subaru | Legacy | Base |
| 1997 - 2000 | Subaru | Legacy | Brighton |
| 1997 - 2010 | Subaru | Legacy | GT |
| 1998 - 2009 | Subaru | Legacy | GT Limited |
| 2006 - 2009 | Subaru | Legacy | GT spec.B |
| 2005 | Subaru | Legacy | i |
| 1997 - 2004 | Subaru | Legacy | L |
| 2004 | Subaru | Legacy | L 35th Anniversary |
| 2003 | Subaru | Legacy | L SE |
| 2005 - 2008 | Subaru | Legacy | Limited |
| 1999 | Subaru | Legacy | Limited 30th Anniversary, L 30th Anniversary, SUS 30th Anniversary |
| 1997 | Subaru | Legacy | LSi |
| 1997 - 1999 | Subaru | Legacy | Outback, Outback Limited |
| 1997 - 1998 | Subaru | Legacy | Postal |
| 2008 | Subaru | Legacy | Touring, 3.0, 2.0 |
| 2008 | Subaru | Outback | 2.5 XT, 2.5i Limited L.L. Bean Edition, Touring, 3.0 R, 2.5i L.L. Bean Edition, Premier |
| 2007 | Subaru | Outback | 2.5i Basic |
| 2006 - 2009 | Subaru | Outback | 2.5i Limited, 2.5i |
| 2009 | Subaru | Outback | 2.5i Special Edition, 3.0 R Limited, 3.0 R Premier |
| 2001 - 2008 | Subaru | Outback | Base, Limited |
| 2002 - 2004 | Subaru | Outback | H6 |
| 2004 | Subaru | Outback | H6 35th Anniversary Edition, H6 VDC |
| 2001 - 2004 | Subaru | Outback | L.L. Bean |
| 2005 - 2006 | Subaru | Outback | R |
| 2006 | Subaru | Outback | R VDC Limited |
| 2001 - 2003 | Subaru | Outback | VDC |
| 2005 | Subaru | Outback | VDC Limited, i |
| 2005 - 2009 | Subaru | Outback | XT Limited |
| 2005 - 2008 | Subaru | Outback | XT, R L.L. Bean Edition |
| 2015 | Subaru | WRX STI | Base, Limited, Launch Edition |
