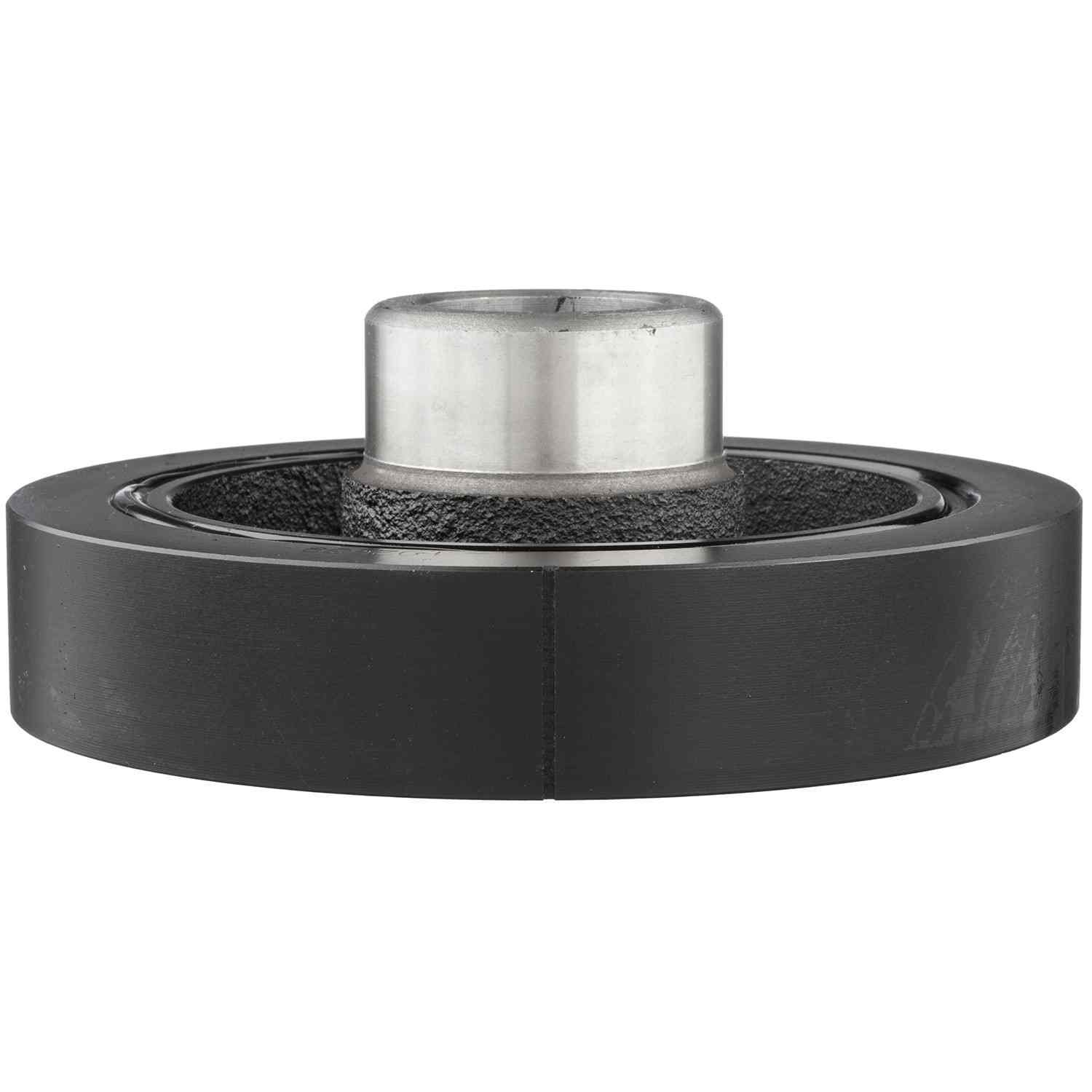

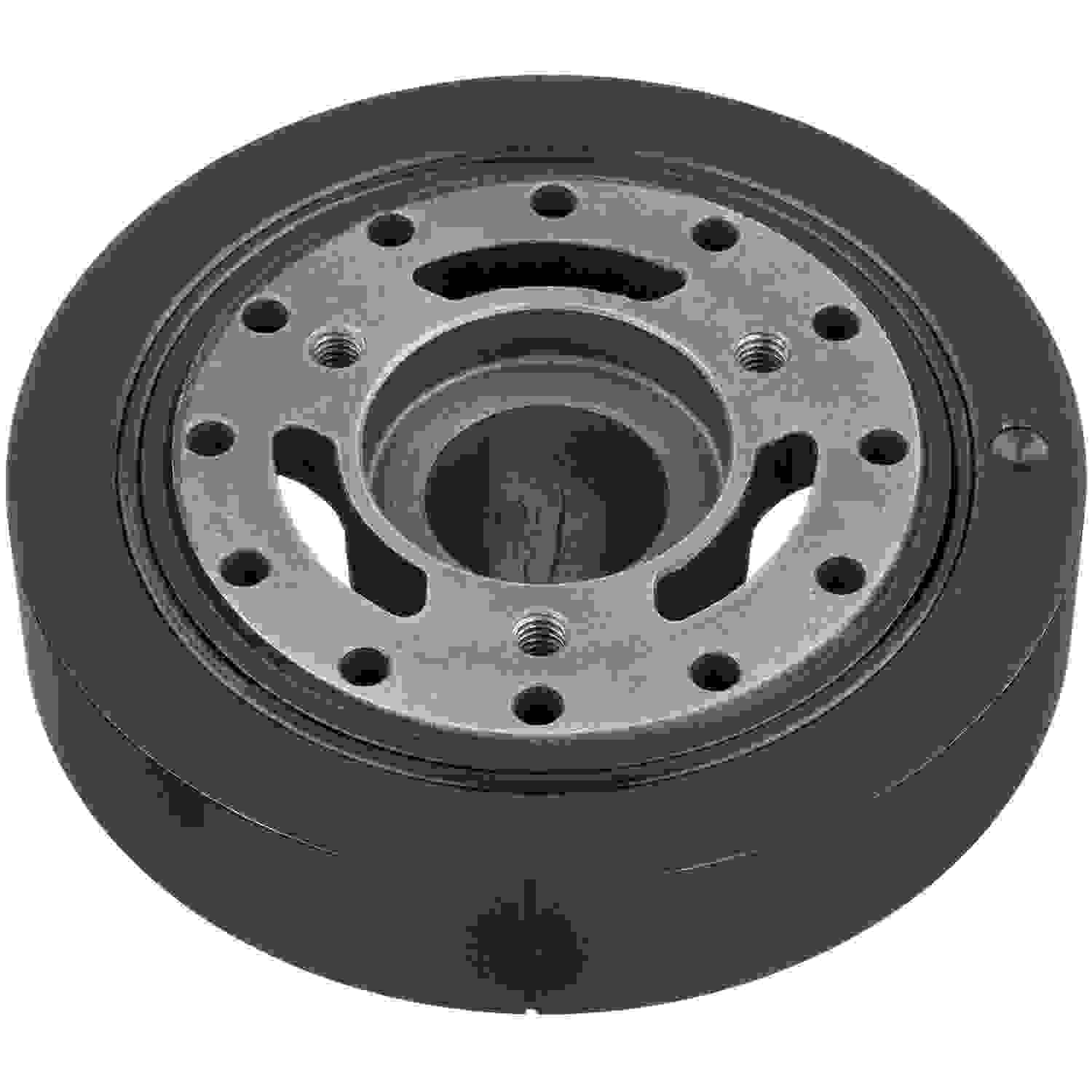

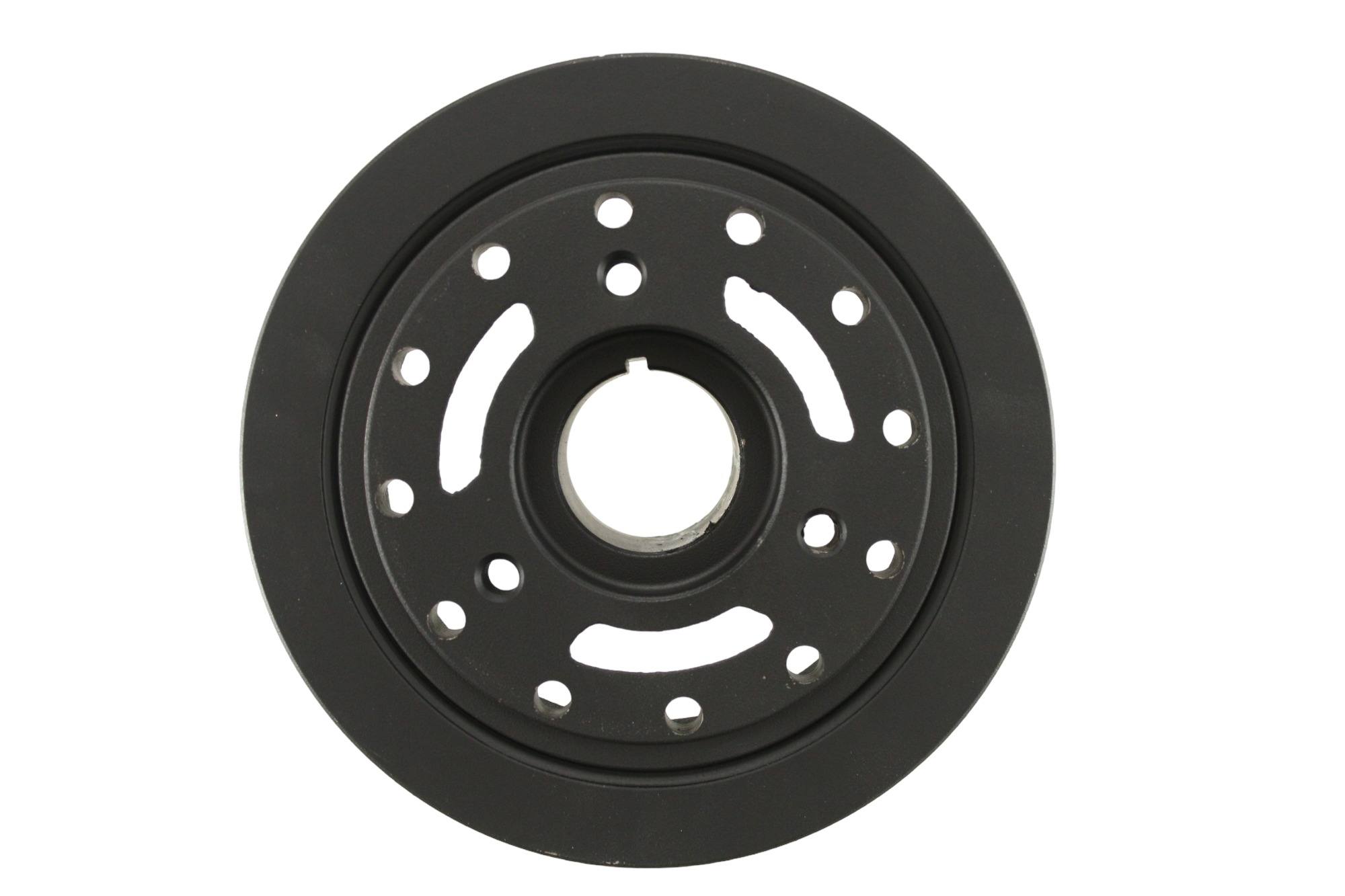

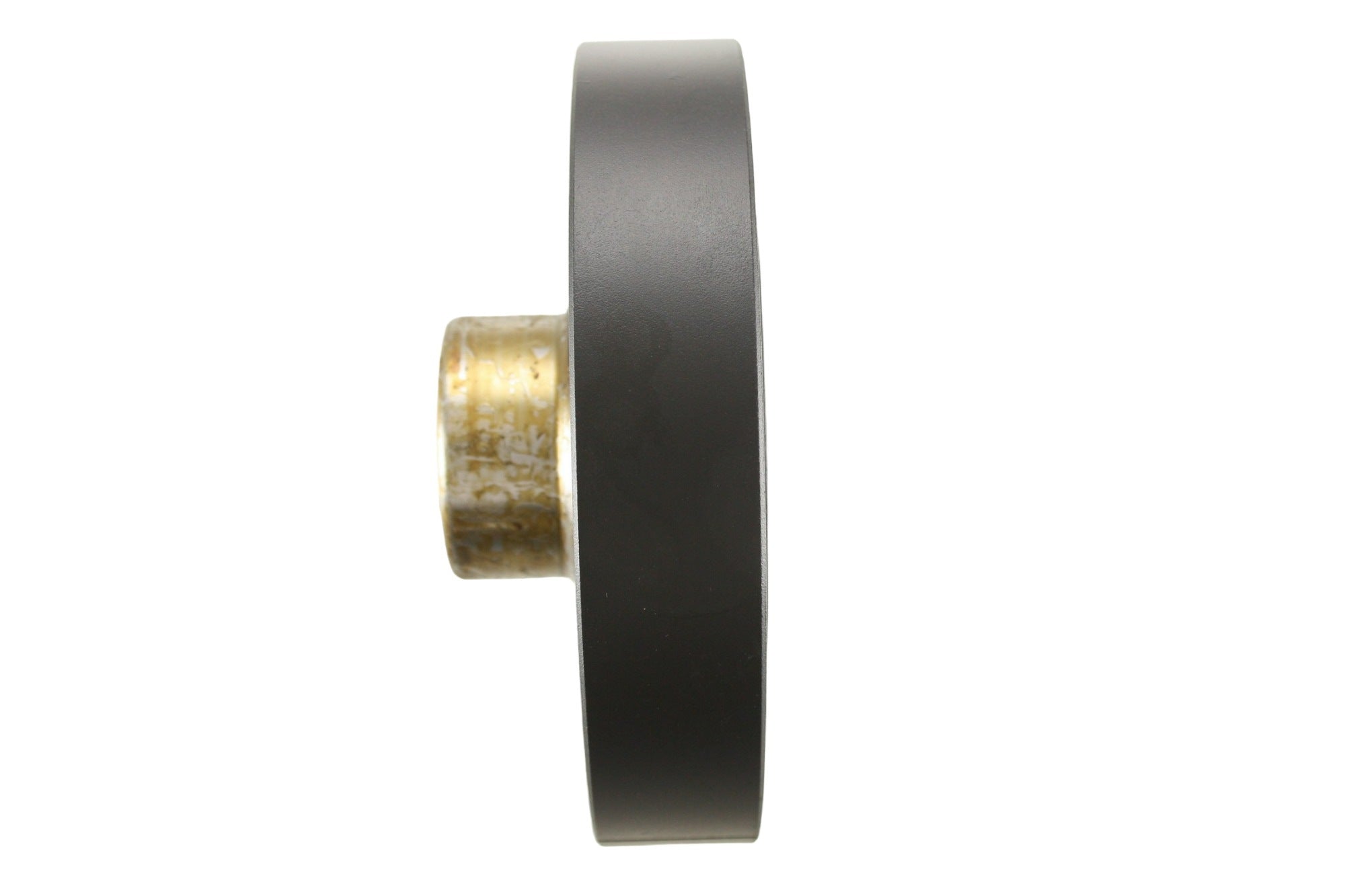

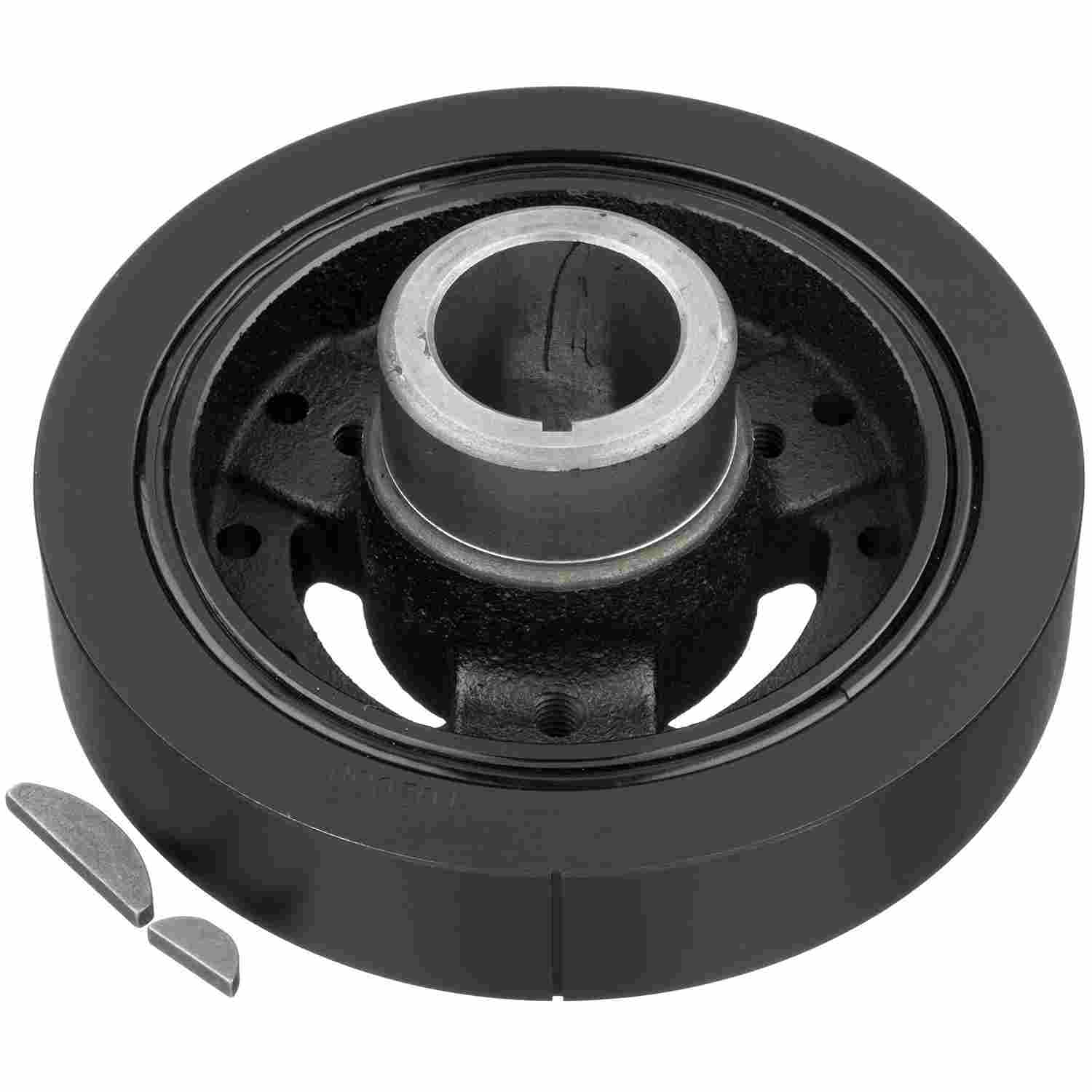

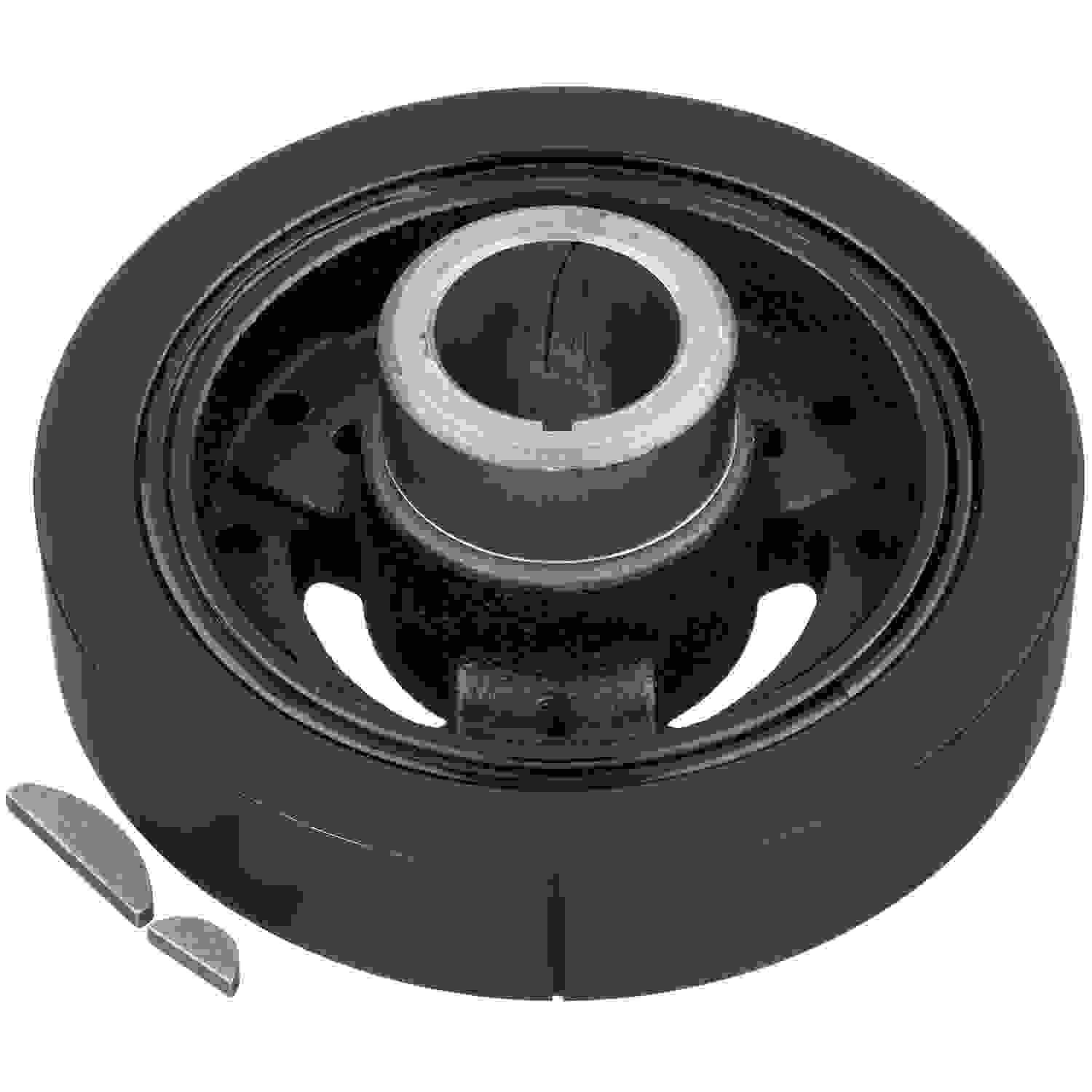

Graywerks Engine Harmonic Balancer 102039

Engine Harmonic Balancer. (102039) by Graywerks

The purpose of an harmonic balancer is to absorb crankshaft vibrations. Harmonic balancers are typically constructed in three pieces. The first piece is often called a hub. It bolts to directly to the crankshaft. The hub is surrounded by rubber or fluid which dampens crankshaft vibrations. The outside layer is metal which has grooves on it for the belt. Over time the rubber and/or fluid layer deteriorate causing the outer pulley to shift forward. This causes belt miss alignment and can ultimately result in crankshaft failure. When the harmonic balancer is broken, it must be replaced. ATP Harmonic Balancers fit and function just like the original part restoring the engine to normal operation.

Fits: Chevrolet Bel Air 72-71, 69-66, Chevrolet Biscayne 72-66, Chevrolet Brookwood 72, 70, Chevrolet C10 Pickup 72-68, Chevrolet C10 Suburban 72-68, Chevrolet C20 Pickup 72-68, Chevrolet C20 Suburban 72-68, Chevrolet C30 Pickup 72-68, Chevrolet Camaro 72-67, Chevrolet Caprice 72-66, Chevrolet Chevelle 72-66, Chevrolet Chevy II 68, Chevrolet Corvette 69-66, Chevrolet El Camino 72-67, Chevrolet Impala 72-66, Chevrolet K10 Pickup 69-68, Chevrolet K10 Suburban 72-68, Chevrolet K20 Pickup 69-68, Chevrolet K30 Pickup 71-68, Chevrolet Kingswood 72-70, Chevrolet Malibu 67-66, Chevrolet Monte Carlo 72-70, Chevrolet Nova 70-69, Chevrolet Townsman 72-70, GMC C15/C1500 Pickup 72-68, GMC C15/C1500 Suburban 72-68, GMC C25/C2500 Pickup 72-68, GMC C25/C2500 Suburban 72-68, GMC C35/C3500 Pickup 72-68, GMC K15/K1500 Pickup 69-68, GMC K15/K1500 Suburban 72-70, 68, GMC K25/K2500 Pickup 69-68, GMC K25/K2500 Suburban 68, GMC K35/K3500 Pickup 71-68, GMC Sprint 75-74, 72-71

Vehicle Fitments:
