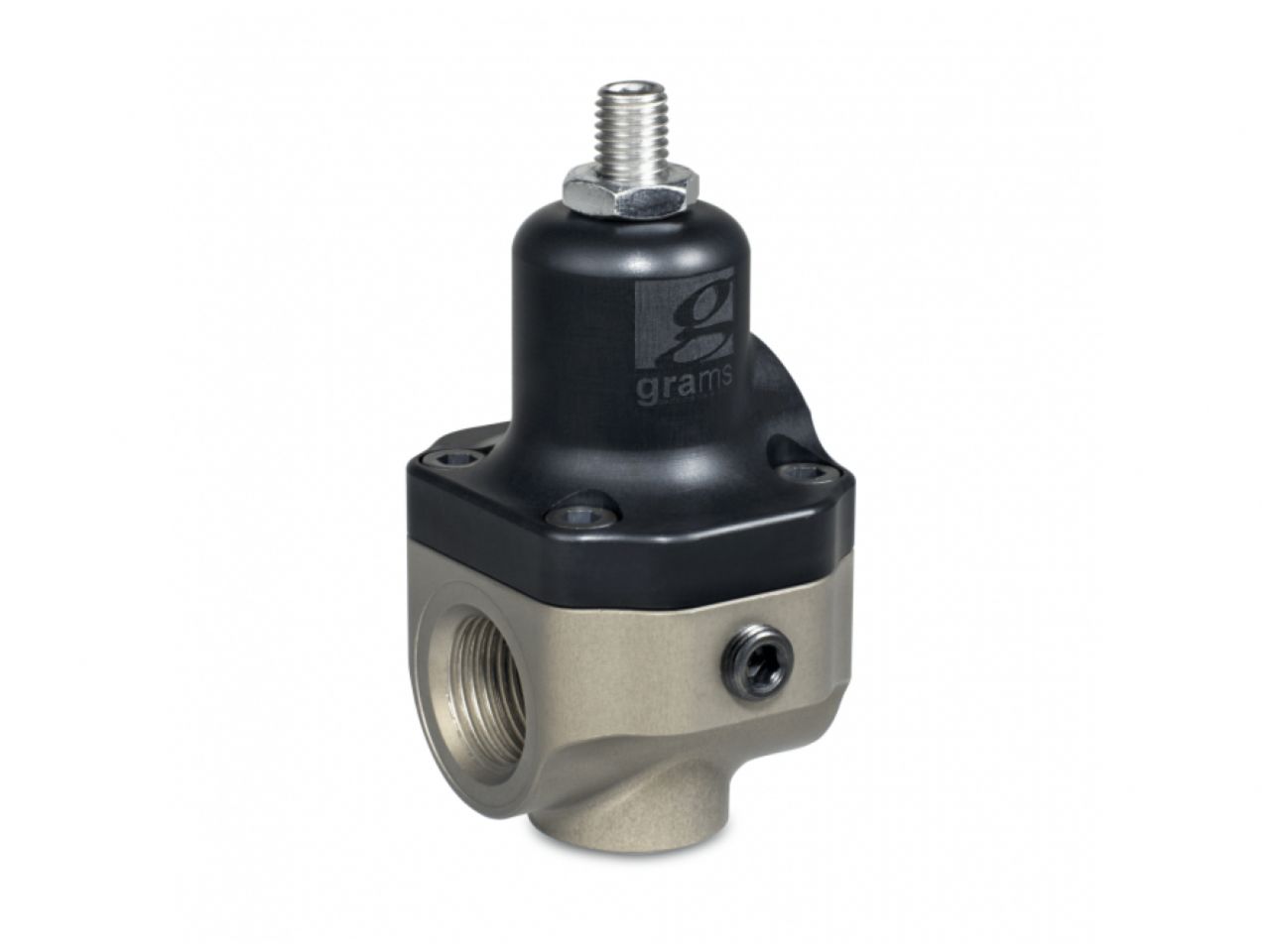

Grams Performance 35-115 PSI Fuel Pressure Regulator
Grams Performance 35-115 PSI Fuel Pressure Regulator
Out of stock
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

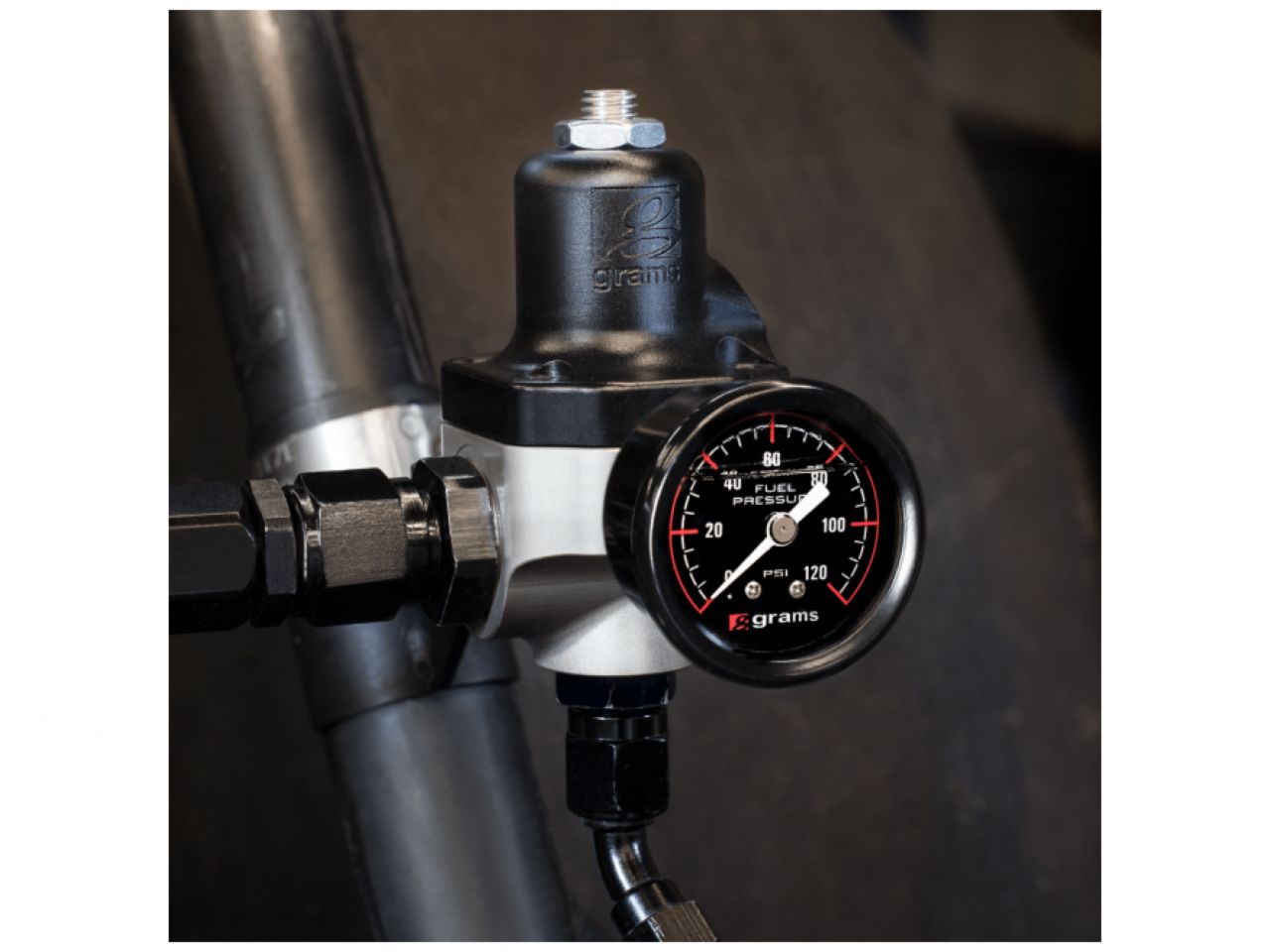

Control your fuel system with the Grams Performance fuel pressure regulator. These regulators feature a black anodized top and high quality 6061 hard anodized aluminum bottom. At the heart of the regulator is a durable custom diaphragm, a stainless steel internal orifice, and a high-pressure spring that allows for pressure adjustment ranging from 30 - 118 psi (2 - 8 bar). Each regulator features two AN -10 ORB inlets, one AN -06 ORB outlet, boost/vacuum port, gauge port and provisions for a mounting bracket.
FEATURES:
30 - 118 psi (2 - 8 bar). pressure range
-10 ORB Inlets Ports
-6 ORB Outlet/ Return Port
1/8" NPT Boost/ Vacuum Port
1:1 Boost/ Vacuum Rise Ratio
Hard Anodized Body
Black Anodized Top
Compatible w/ All Fuel Types
Rebuild-able Internals
M6 x 1.0 Mounting Thread
