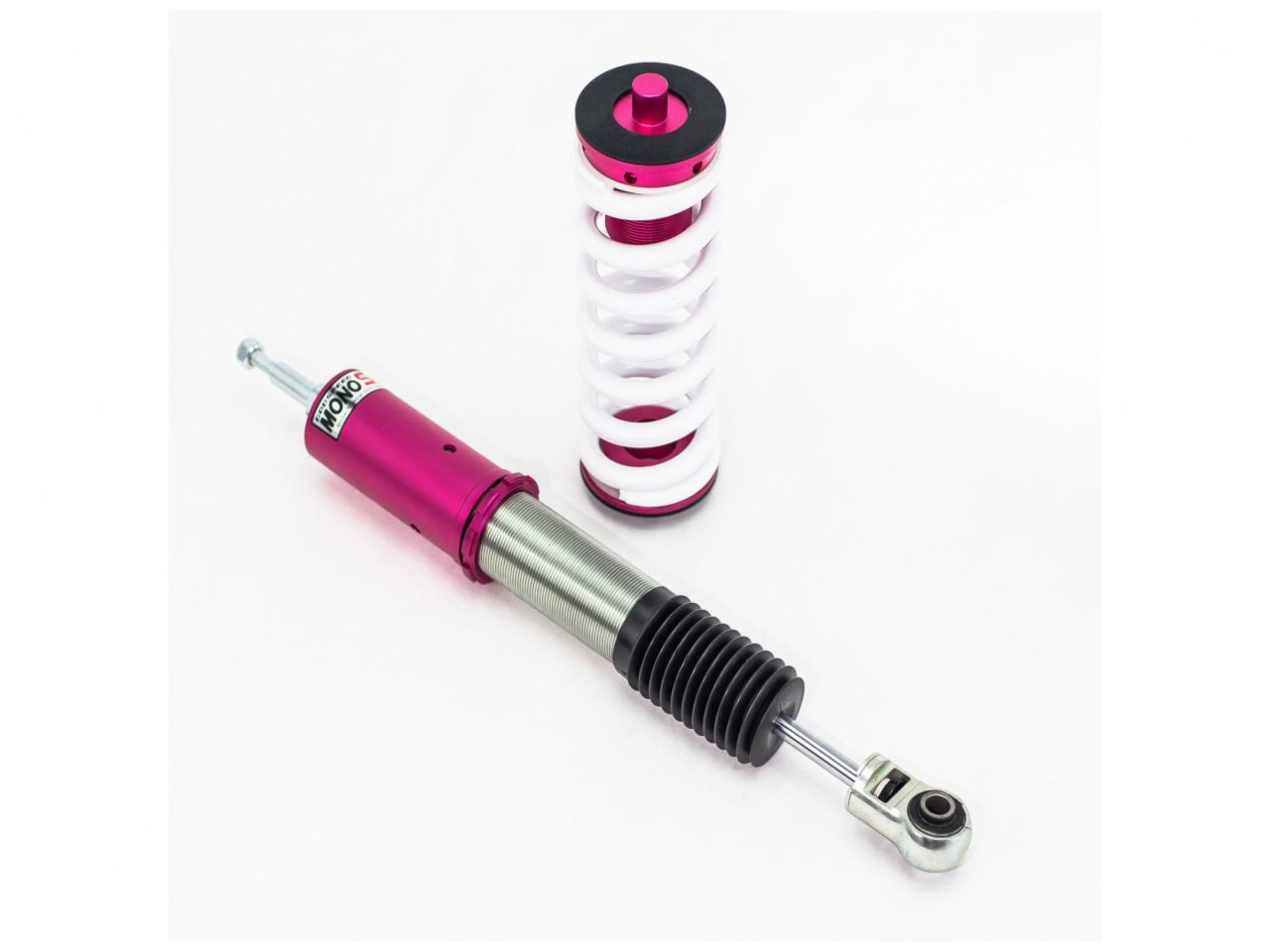

Godspeed Audi Q5/SQ5 Coilovers Audi Q5/SQ5 8R, 2009-2017, MonoSS

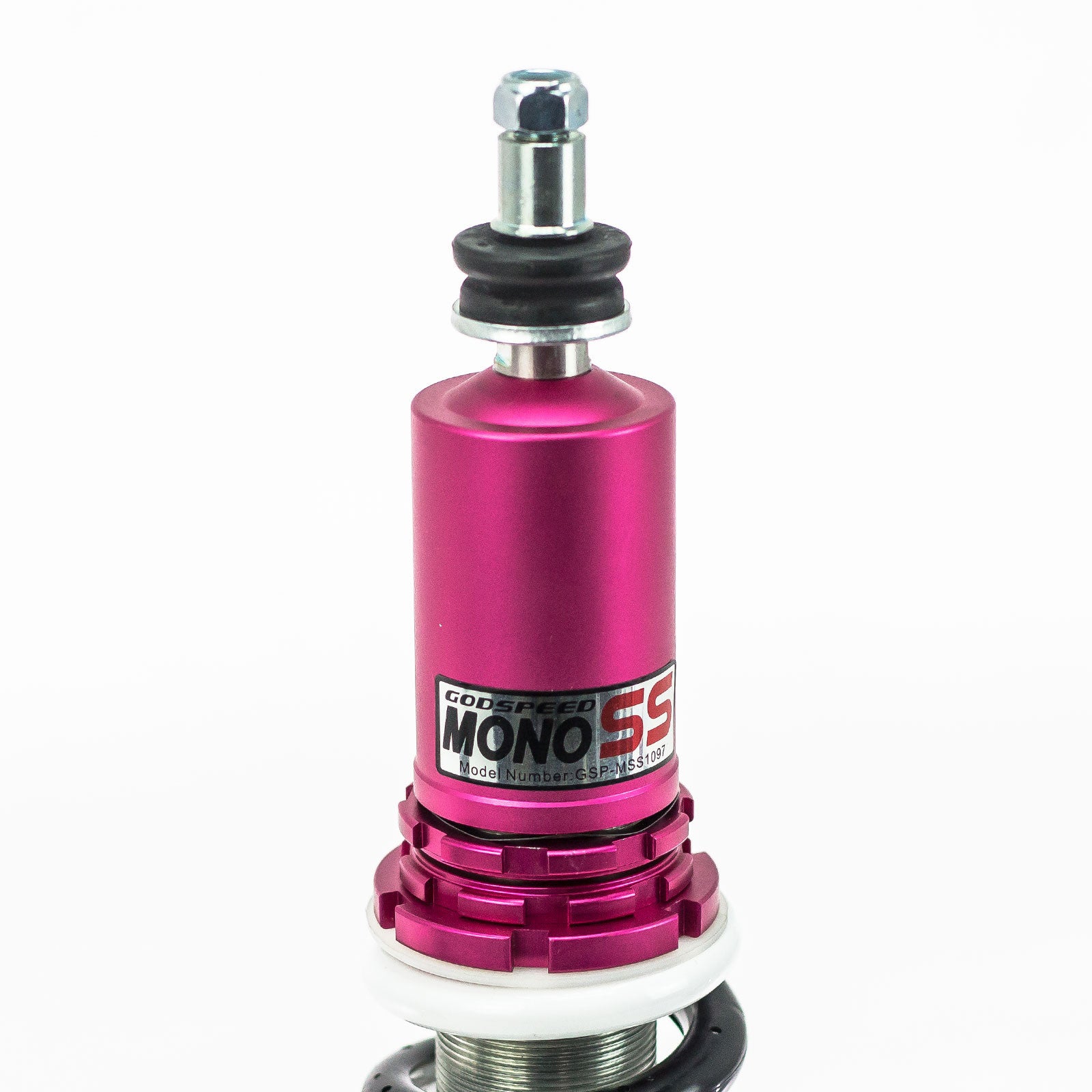

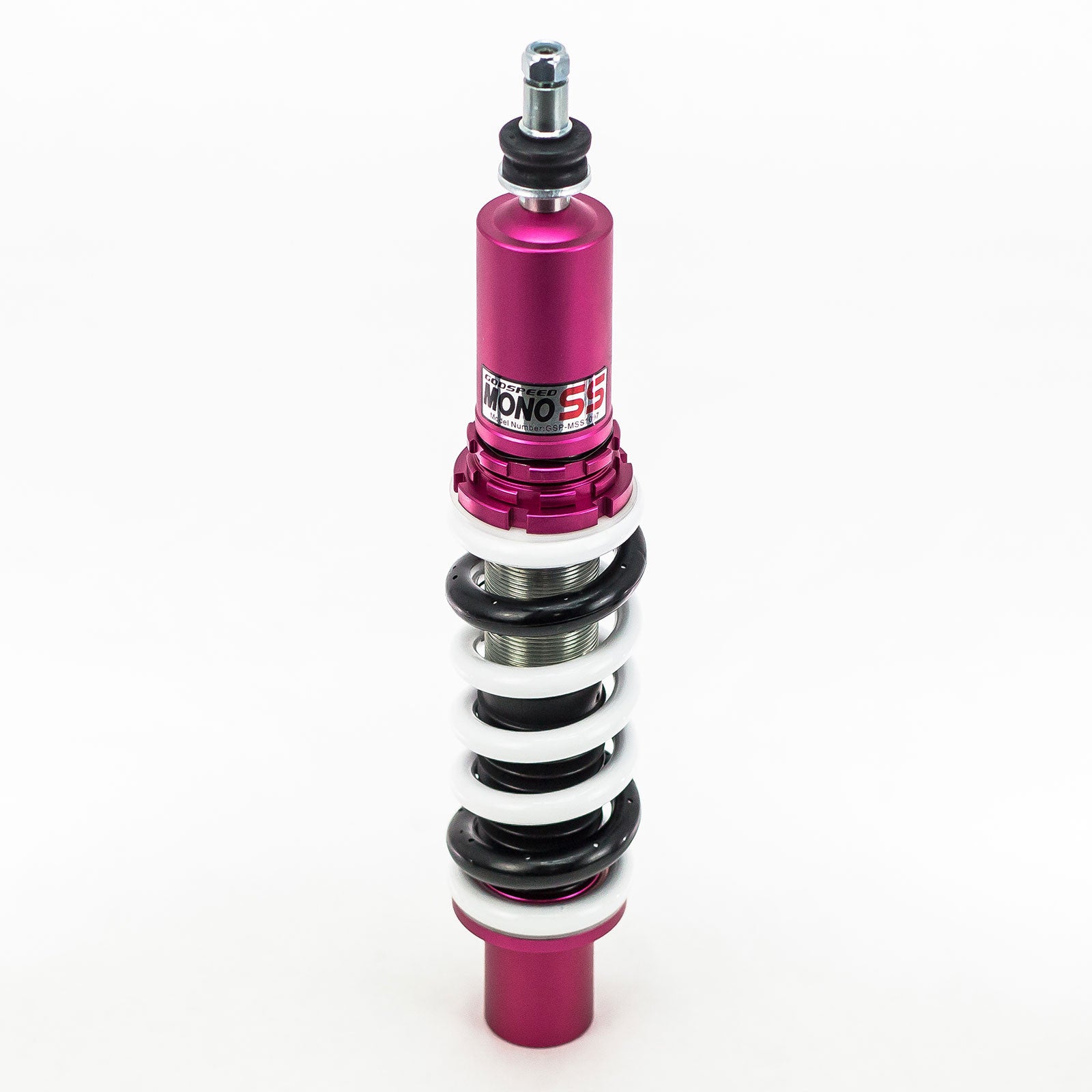

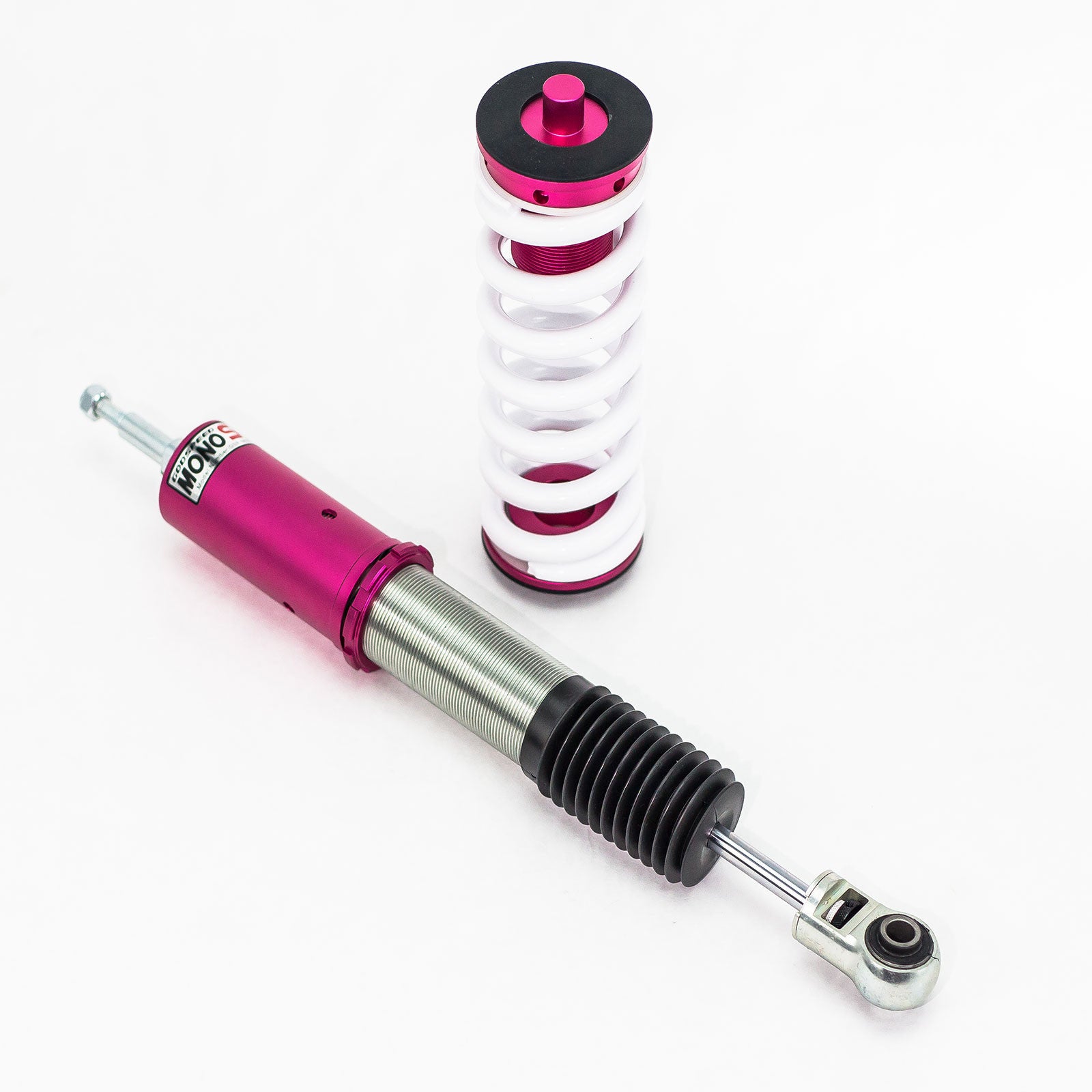

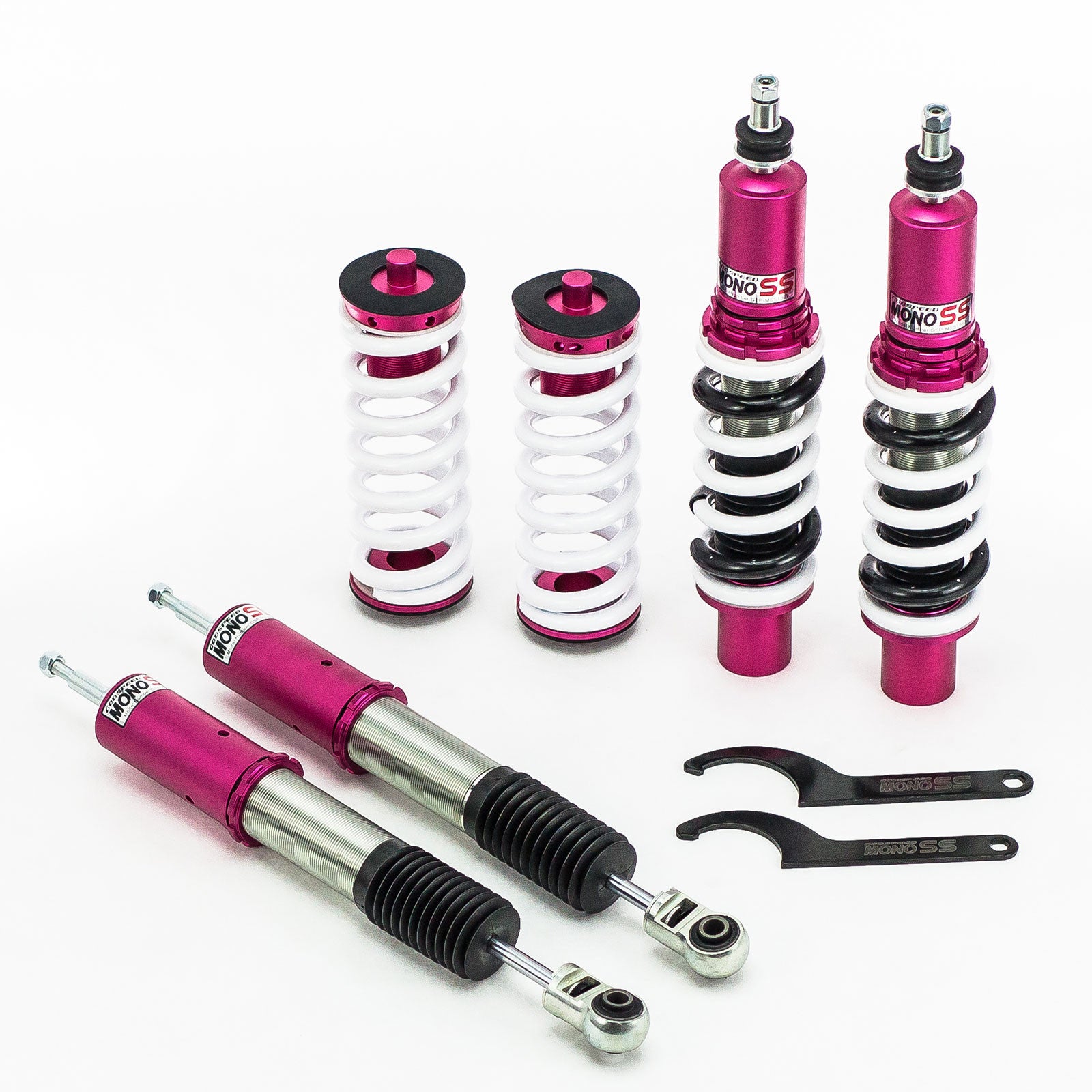

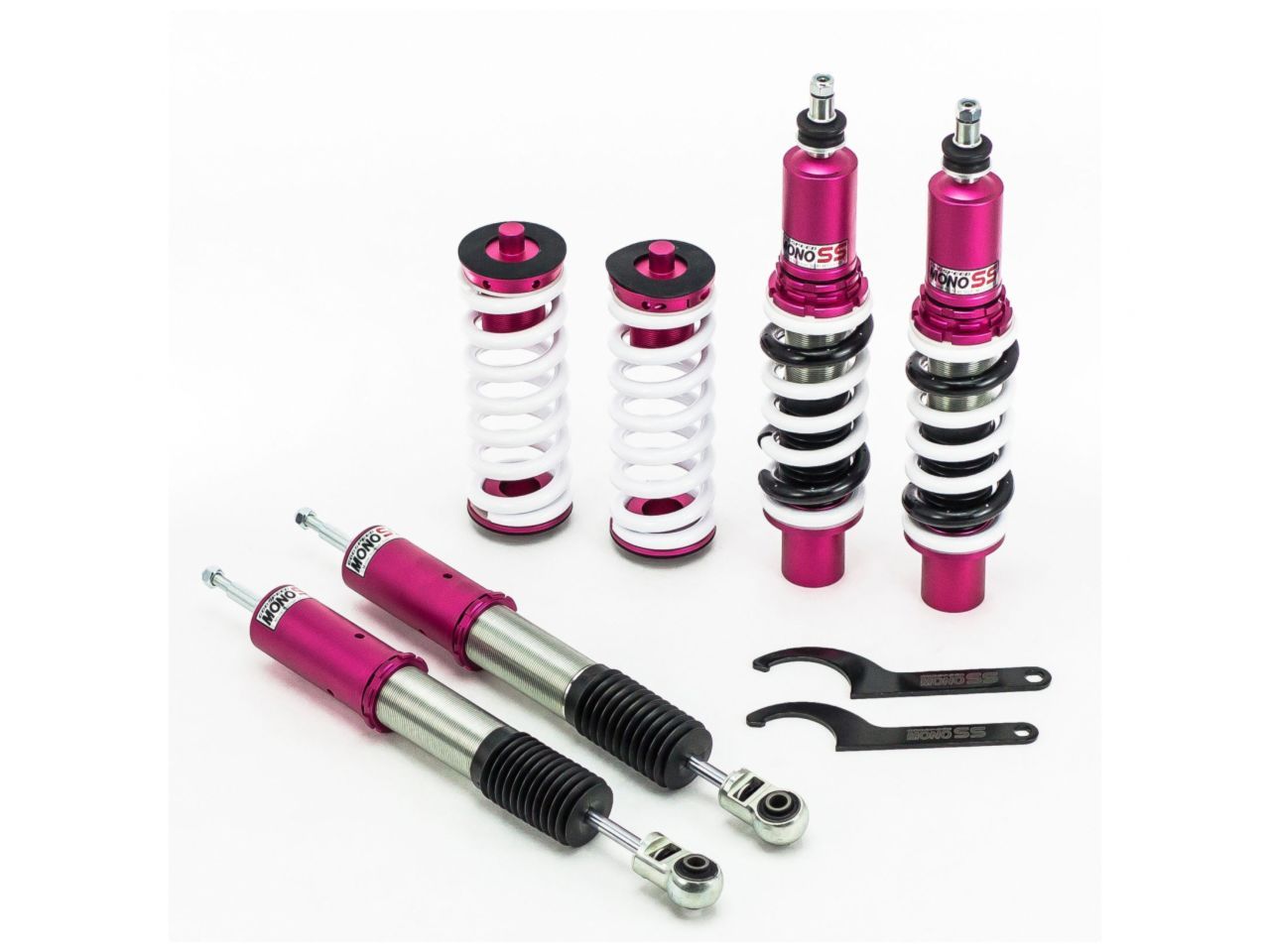

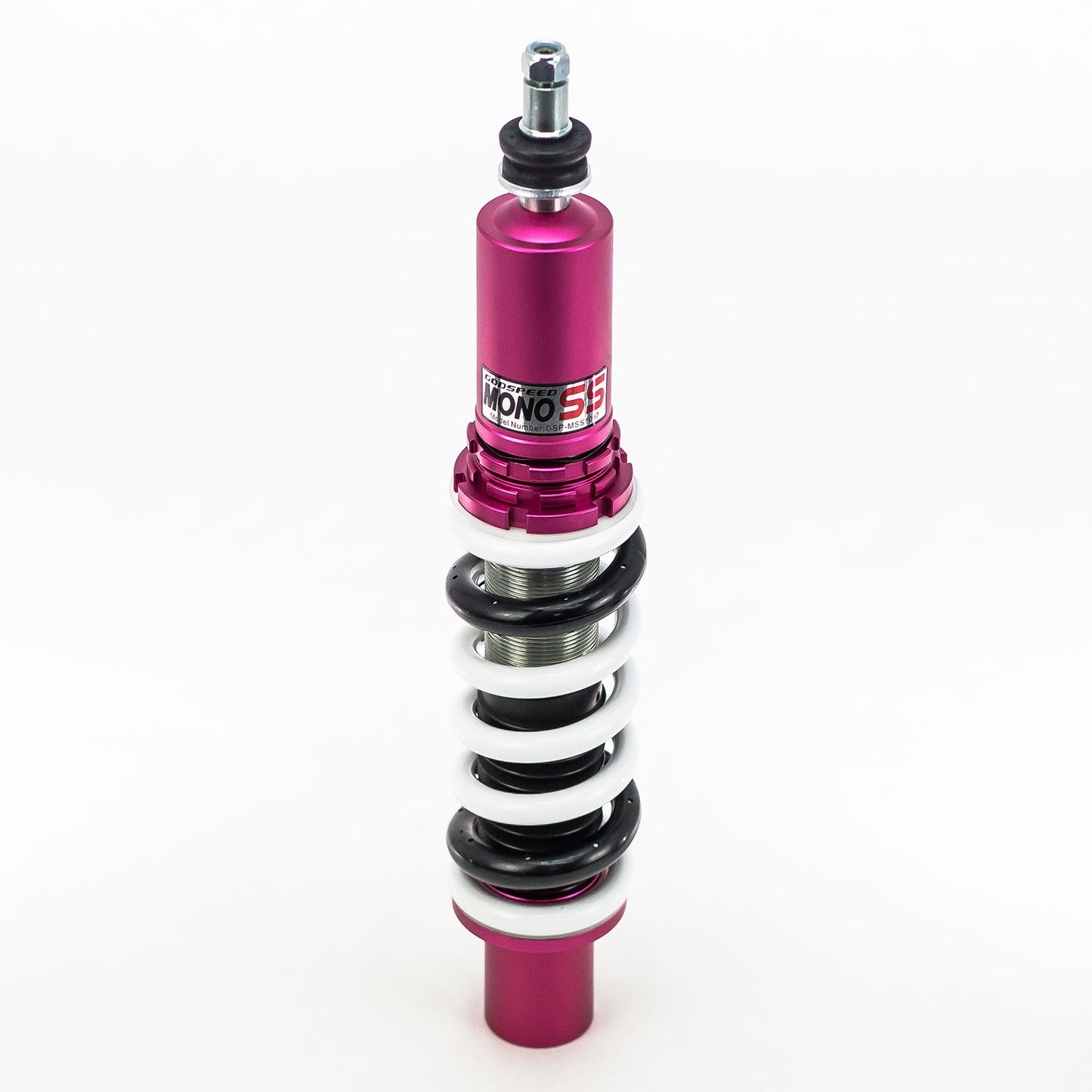

Audi Q5/SQ5 8R, 2009-2017, MonoSS
Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
---|---|

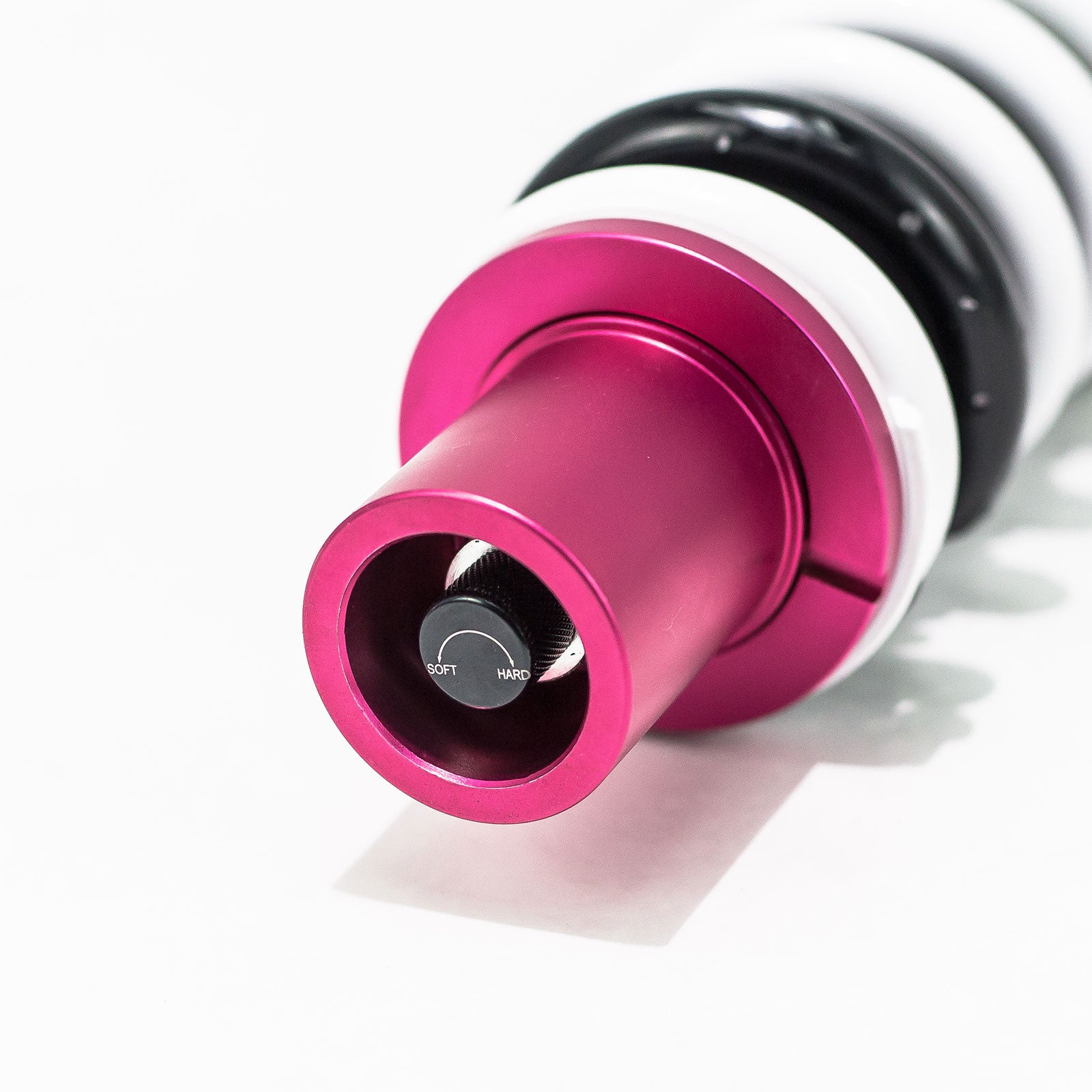

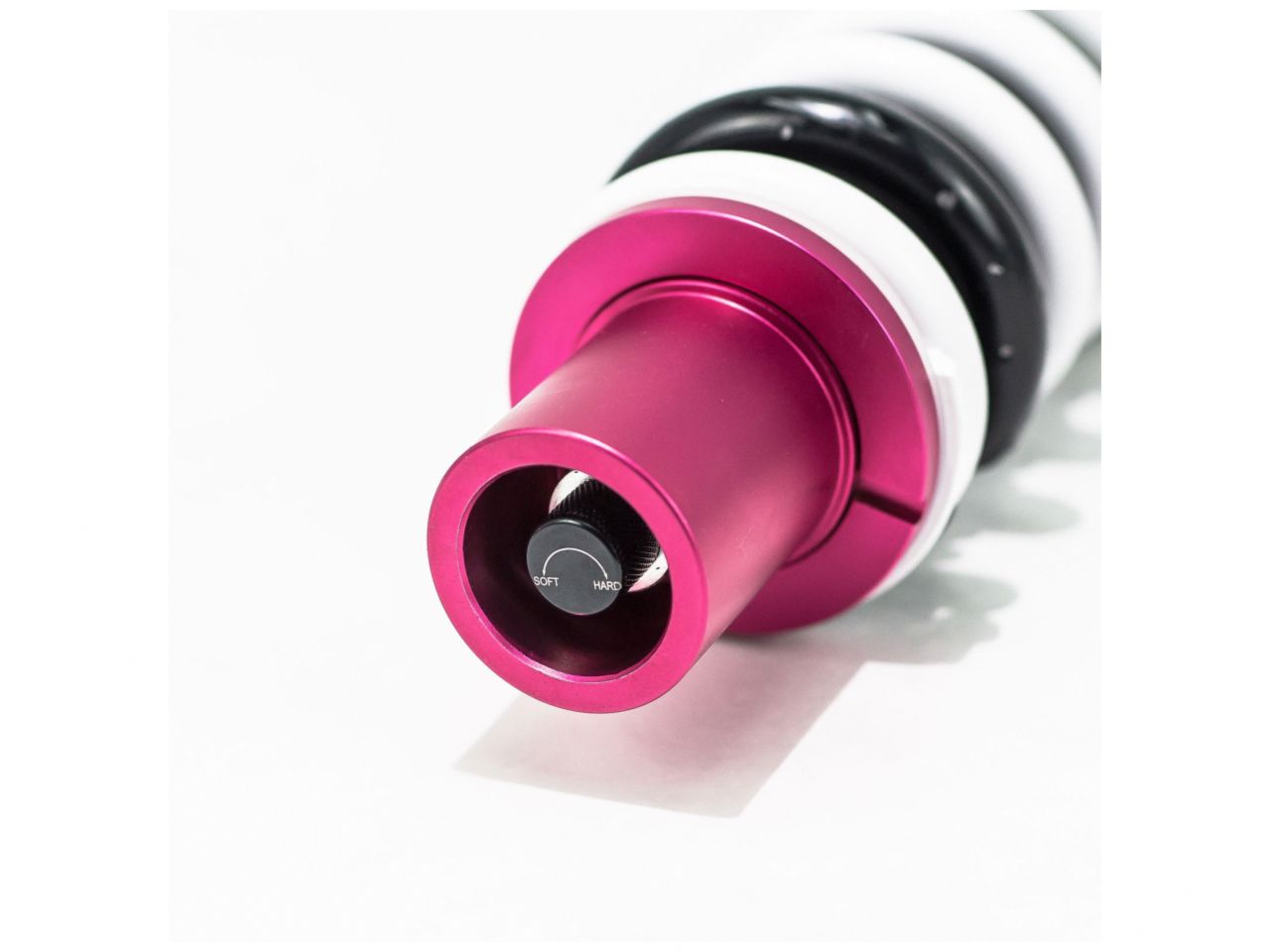

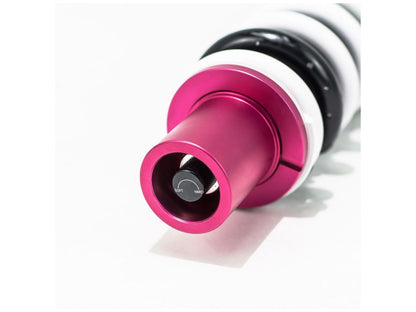

Damping Levels | 16-Level |
Height Adjustment | Yes |
Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
Spring Rate(Rear) | 12 kg/mm (672 lbs/inch) |
Spring Length(Front) | 200 mm |
Spring Length(Rear) | 220 mm |
Front Top Mount | No, Reuse Factory |
Rear Top Mount | No, Reuse Factory |
Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
Warranty Note | No |
User Guide | Coilover User Guide |

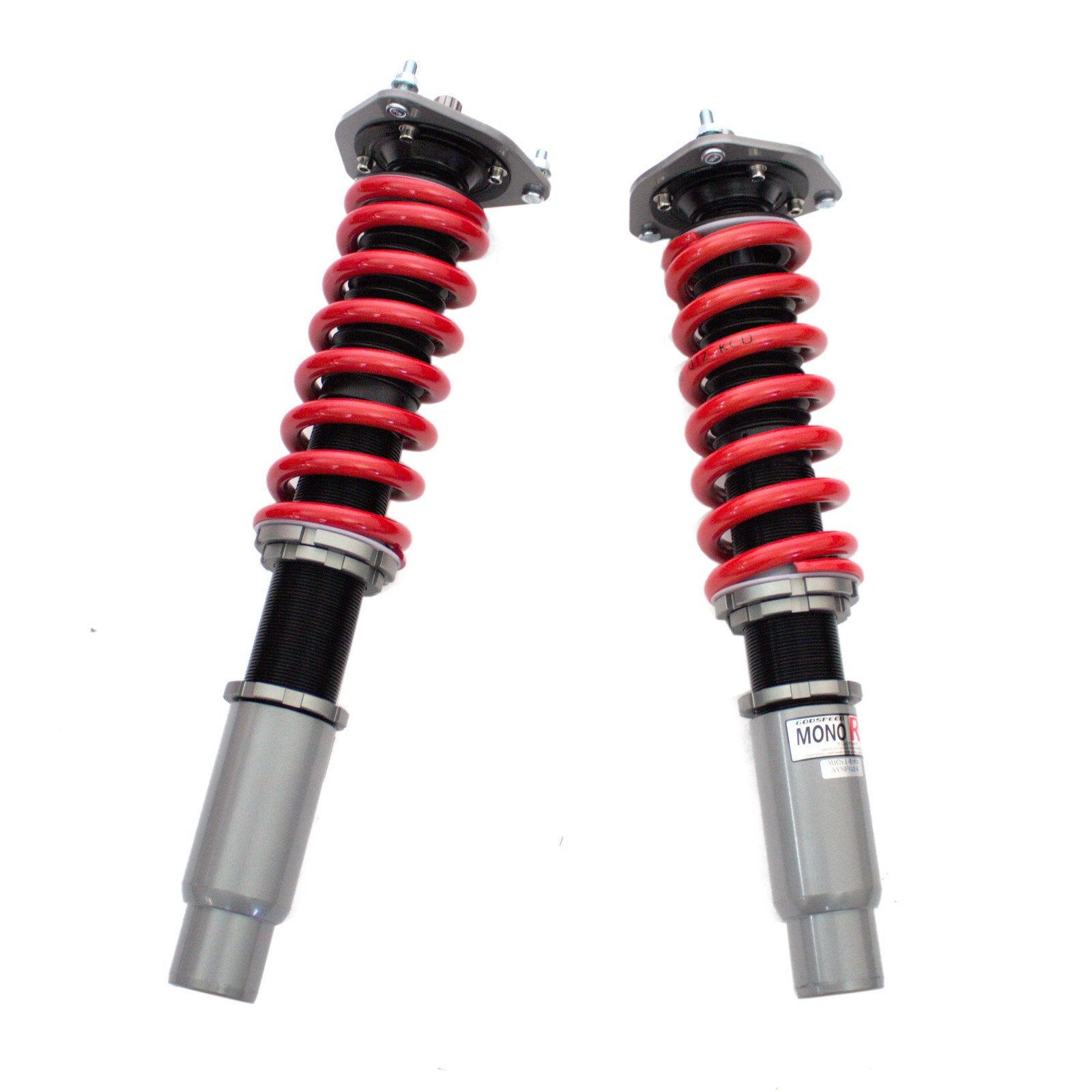

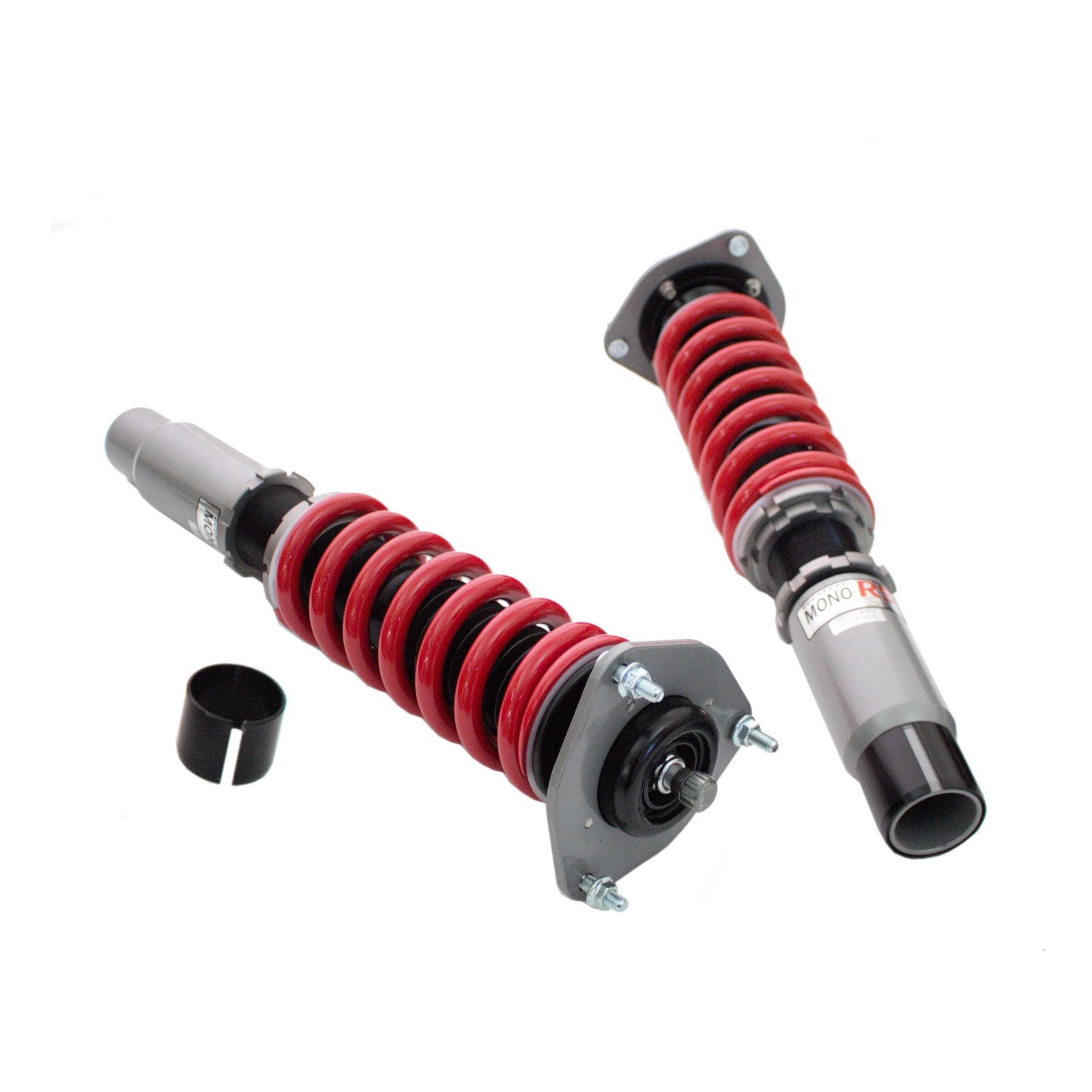

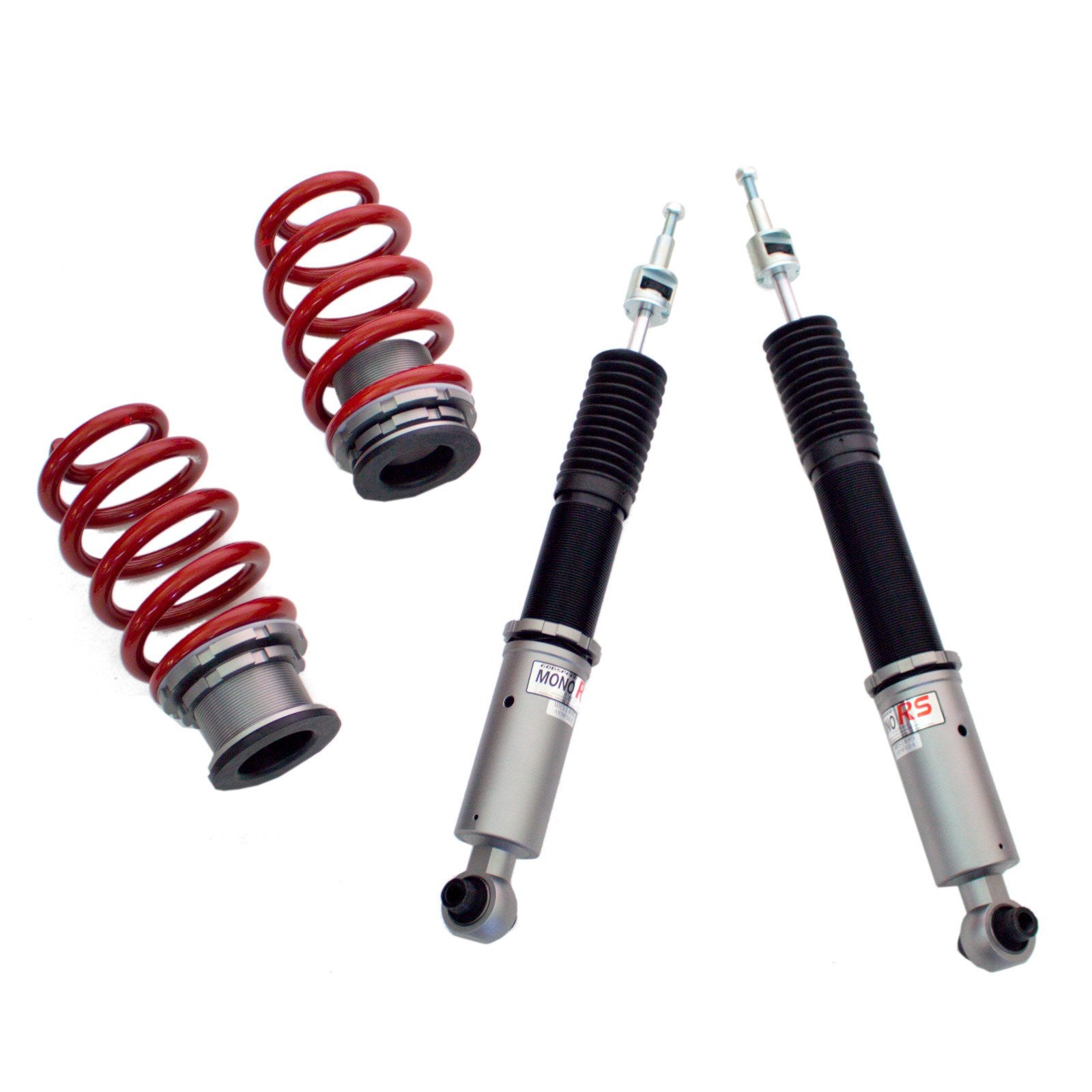

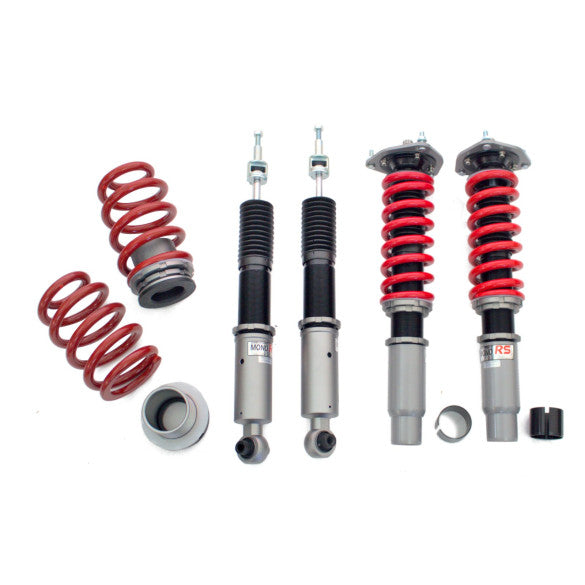

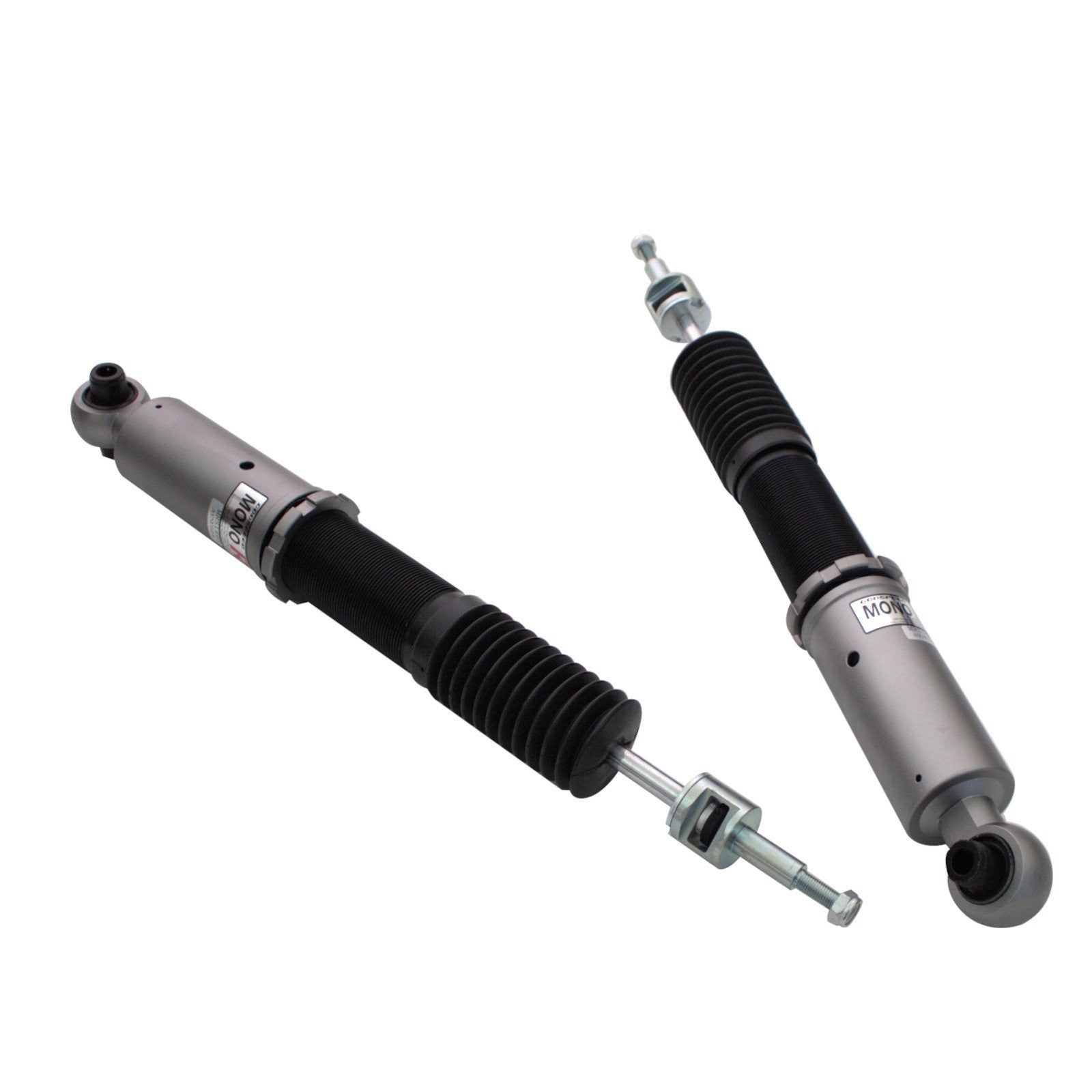

Audi Q5 (FY), 2018-2024, MonoRS (48/53mm)
Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
---|---|
Damping Levels | 32-Level |
Height Adjustment | Yes |
Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
Spring Length(Front) | 220 mm |
Spring Length(Rear) | 200 mm |
Front Top Mount | Yes, Standard Type |

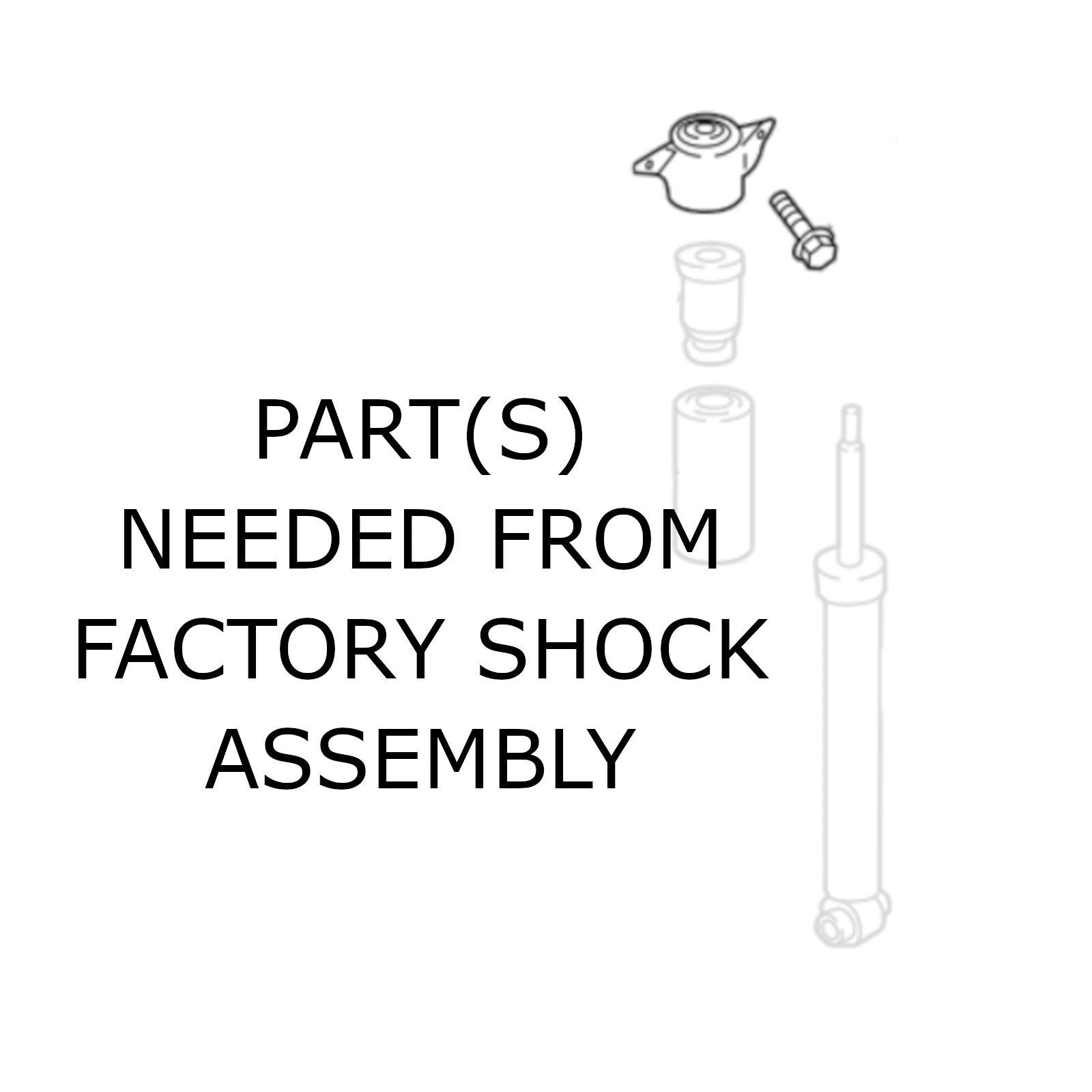

Rear Top Mount | No, Reuse Factory |
Spring Inner Diameter(Front) | 62 mm |
Spring Inner Diameter(Rear) | 62-80 mm (2.44-3.15 inch) |
Warranty Note | 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable. |
User Guide | Coilover User Guide |

Godspeed Audi Q5/SQ5 Coilovers
Sale price$750.00 USD
