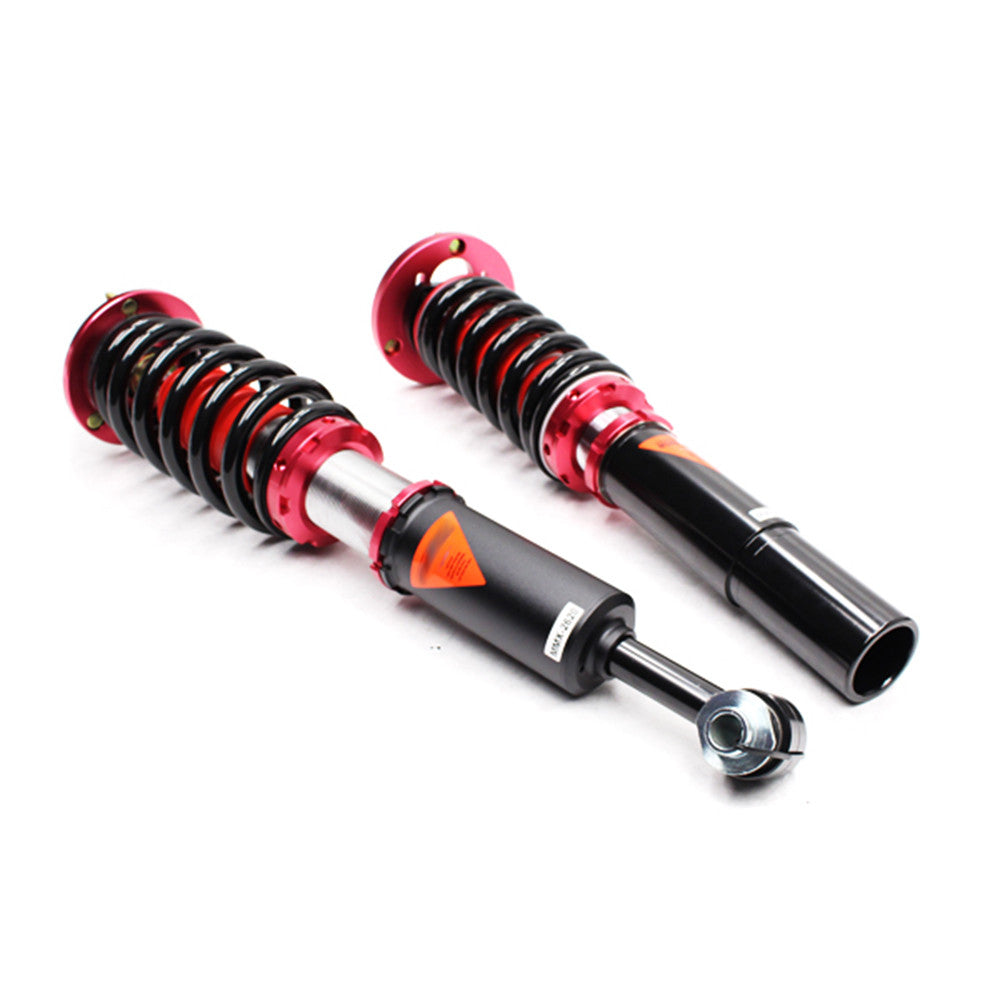

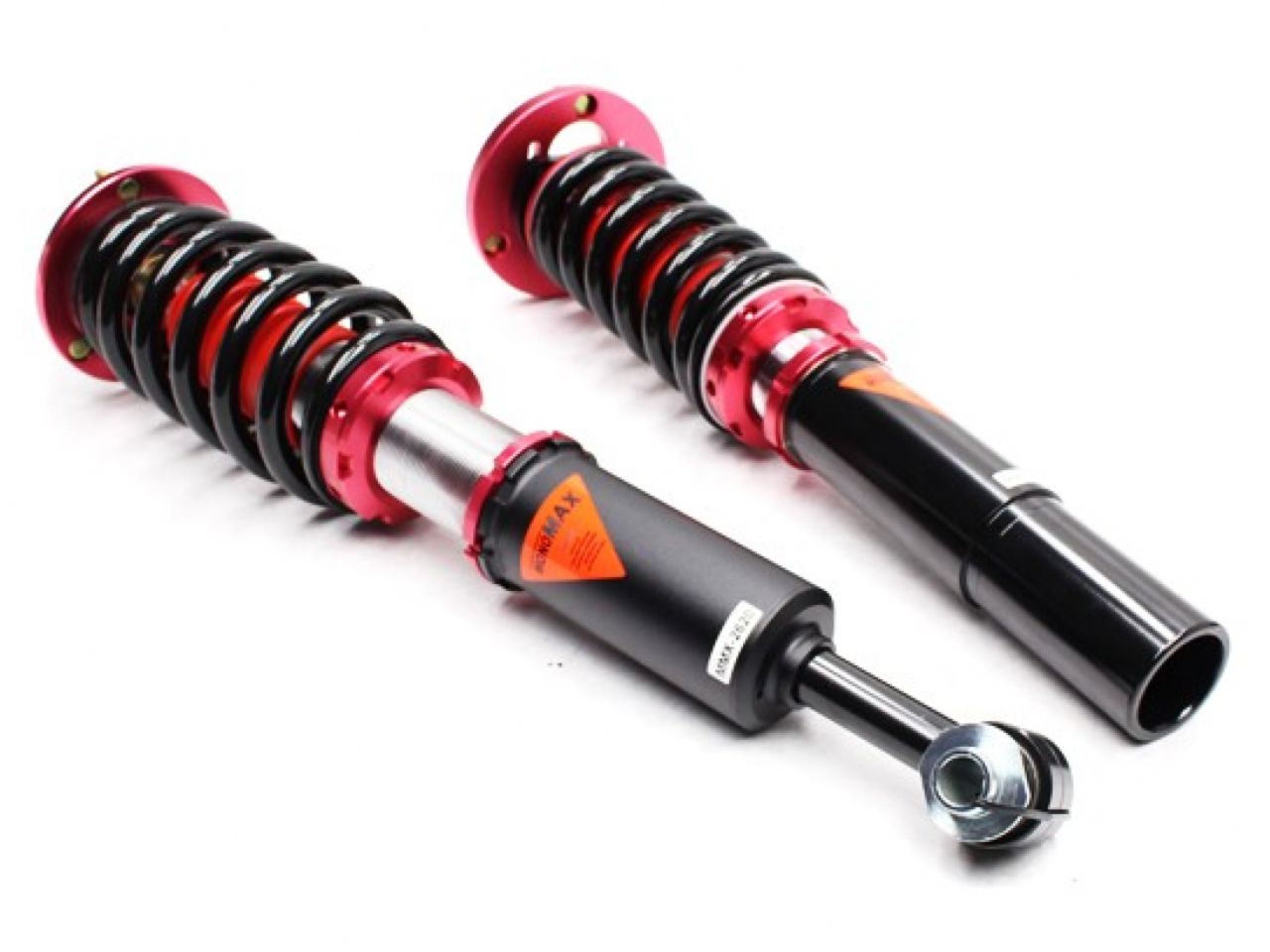

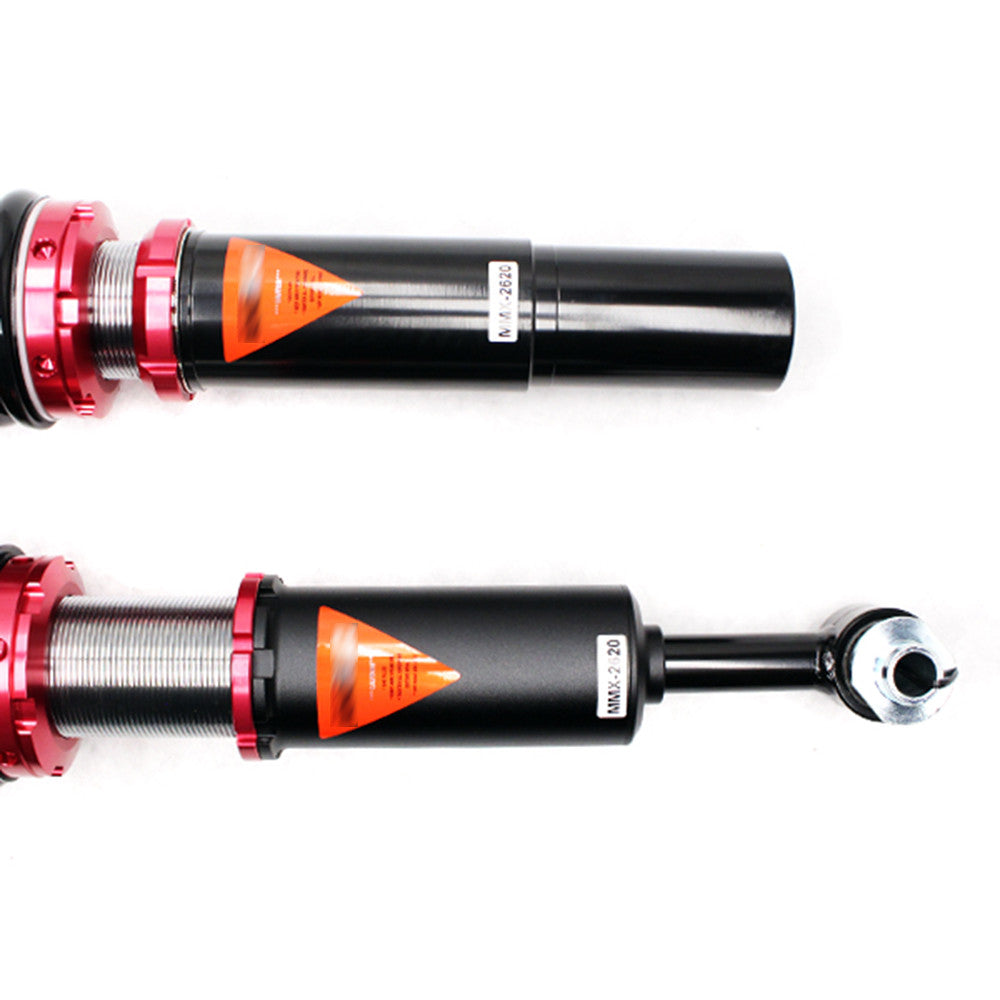

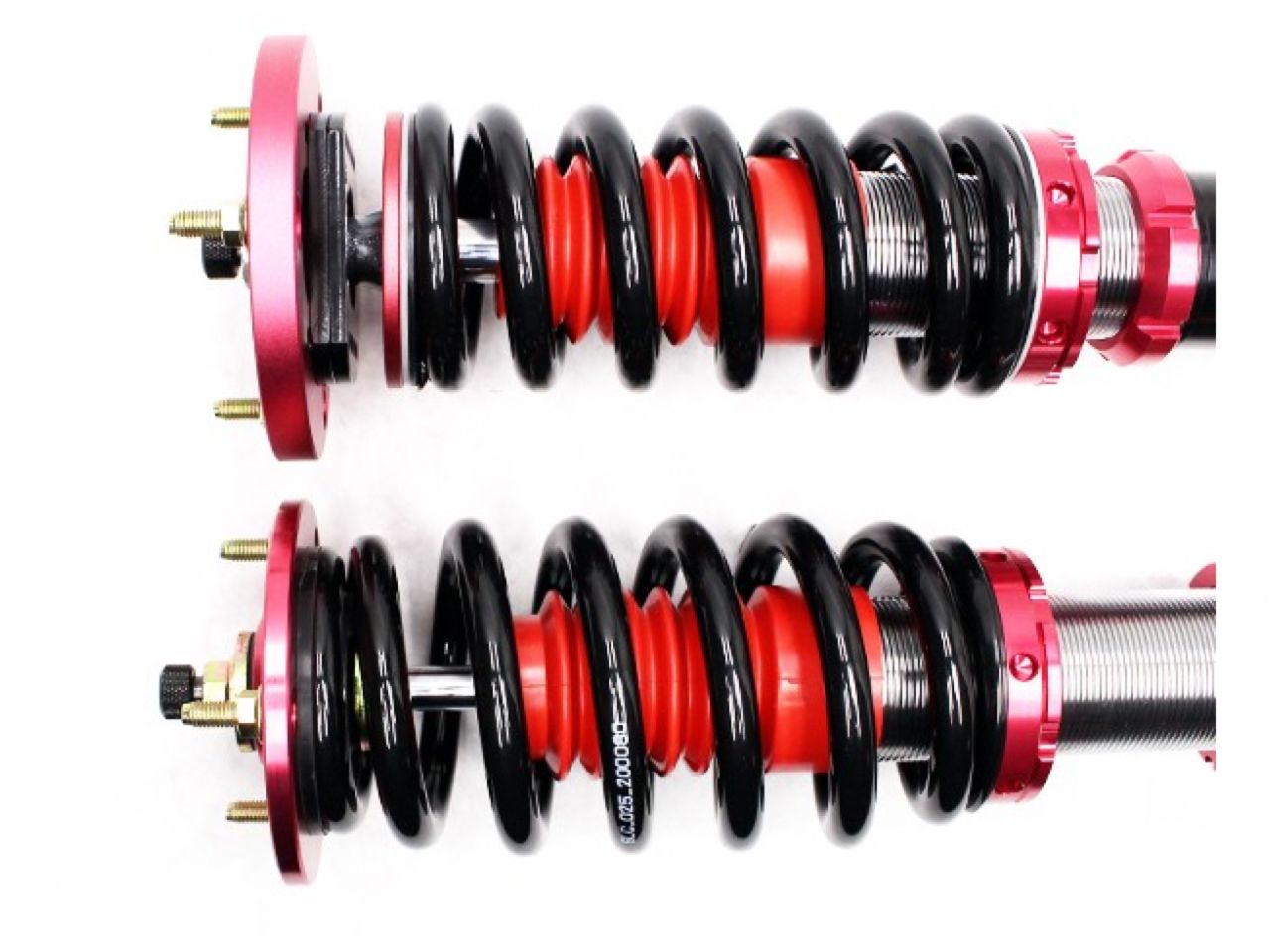

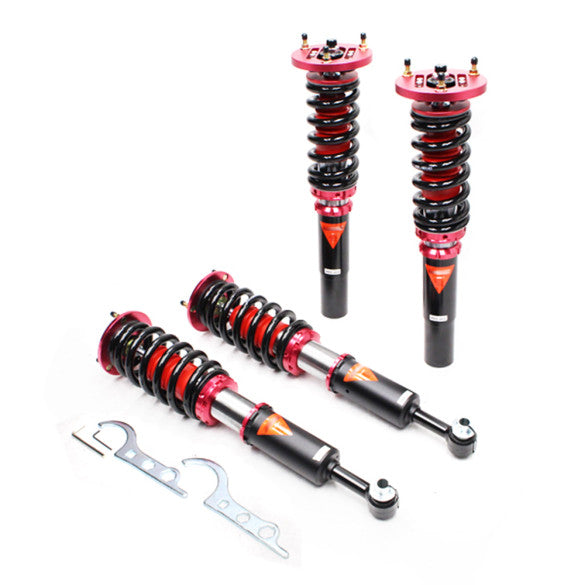

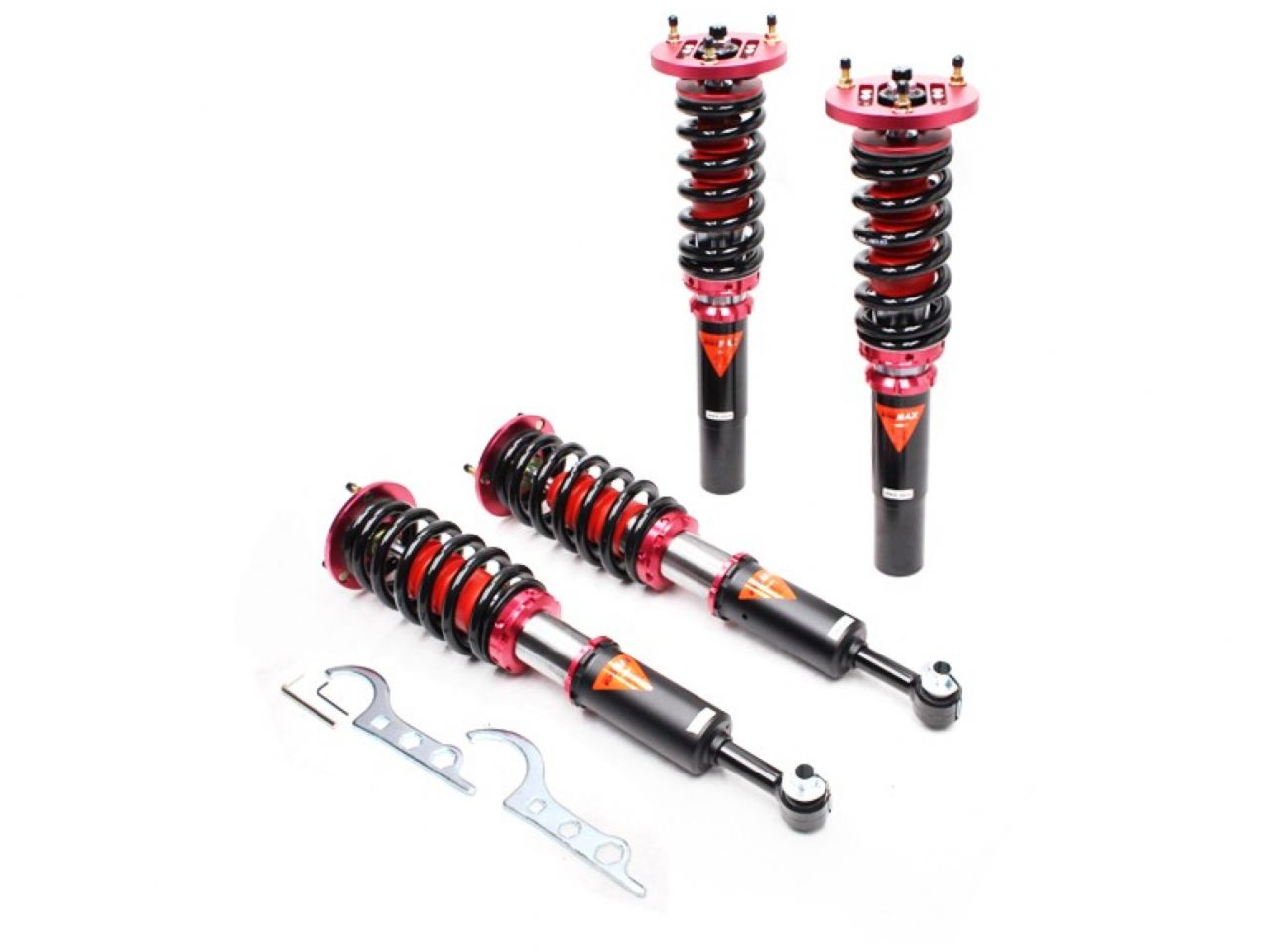

Godspeed BMW 5-Series Sedan/M5 RWD (E39) 1997-03 Coilovers MAXX

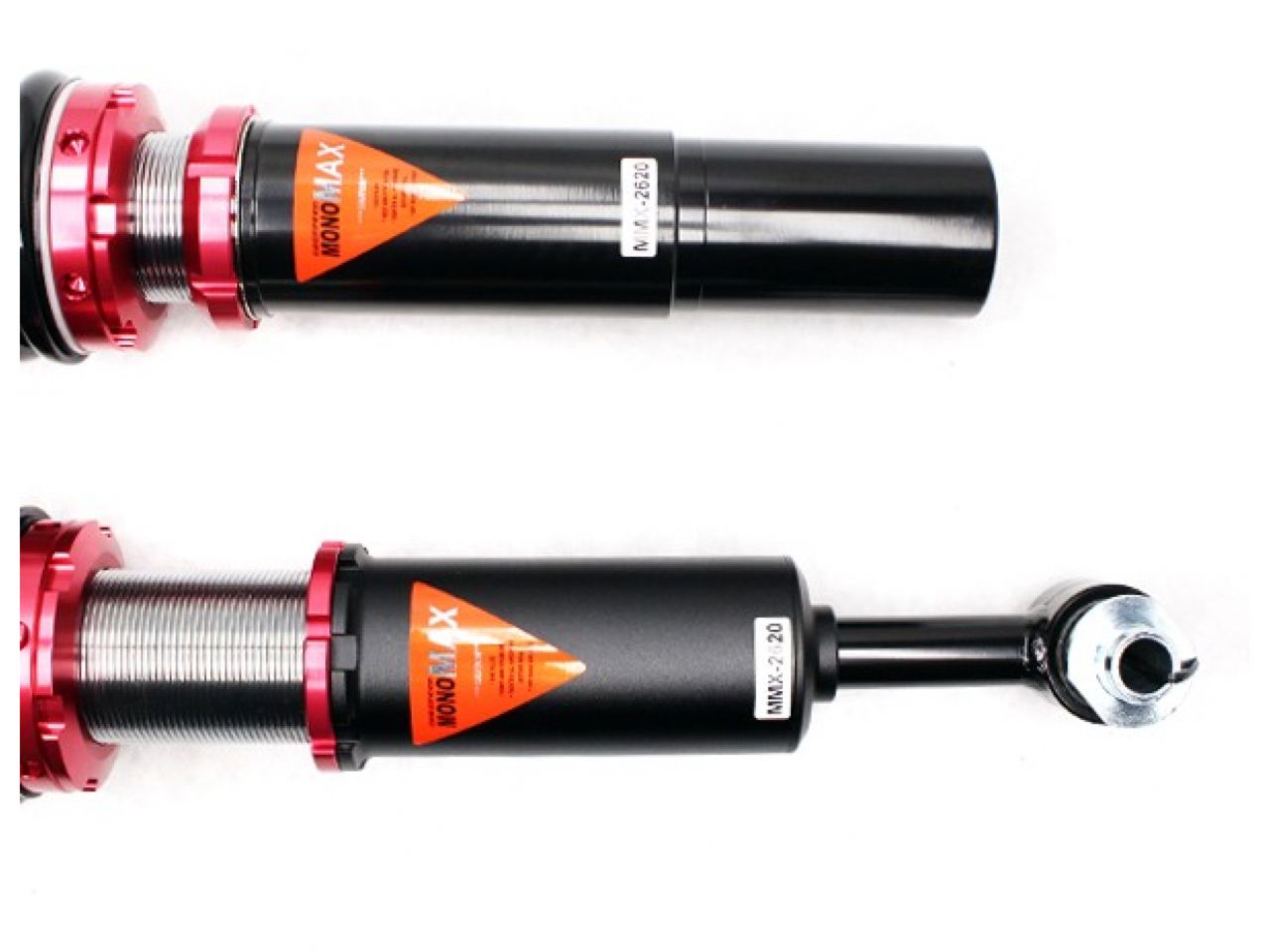

SKU: 0MWVG | MPN:  MMX2620
In stock
Sale price$990.00 USD

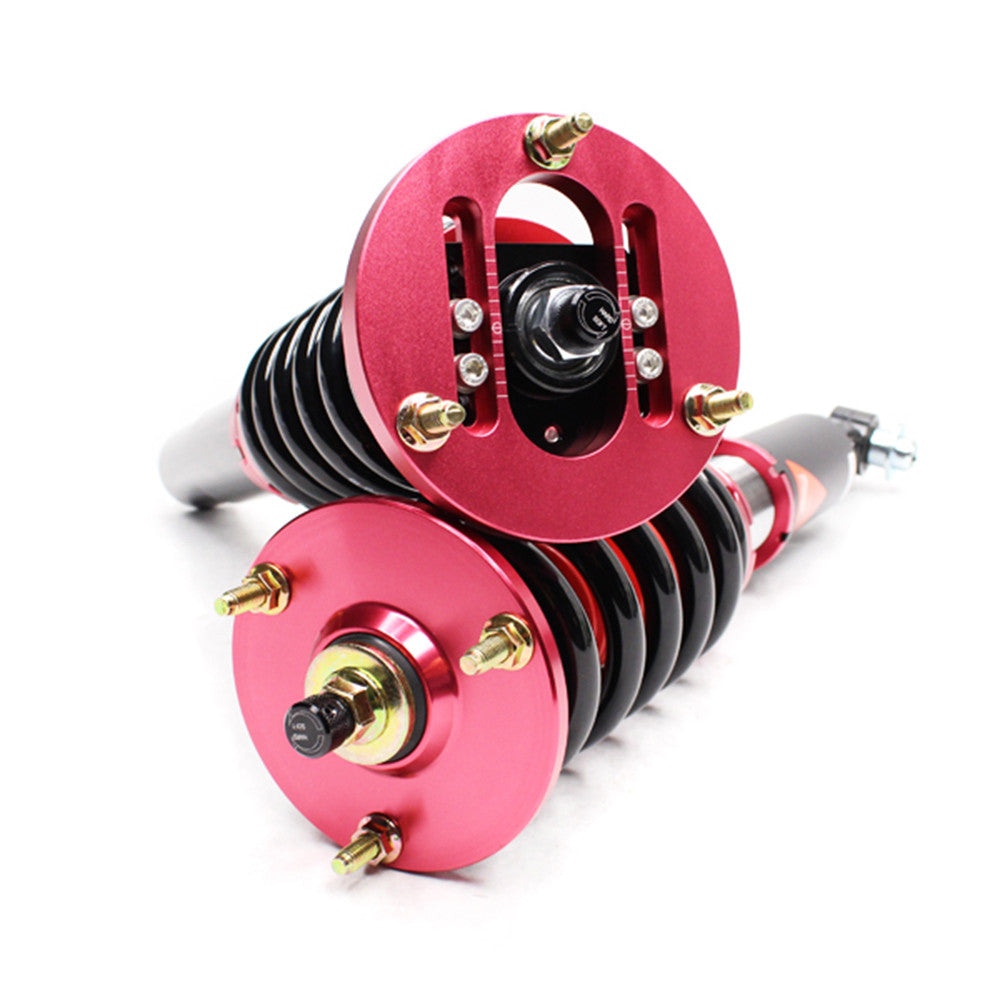

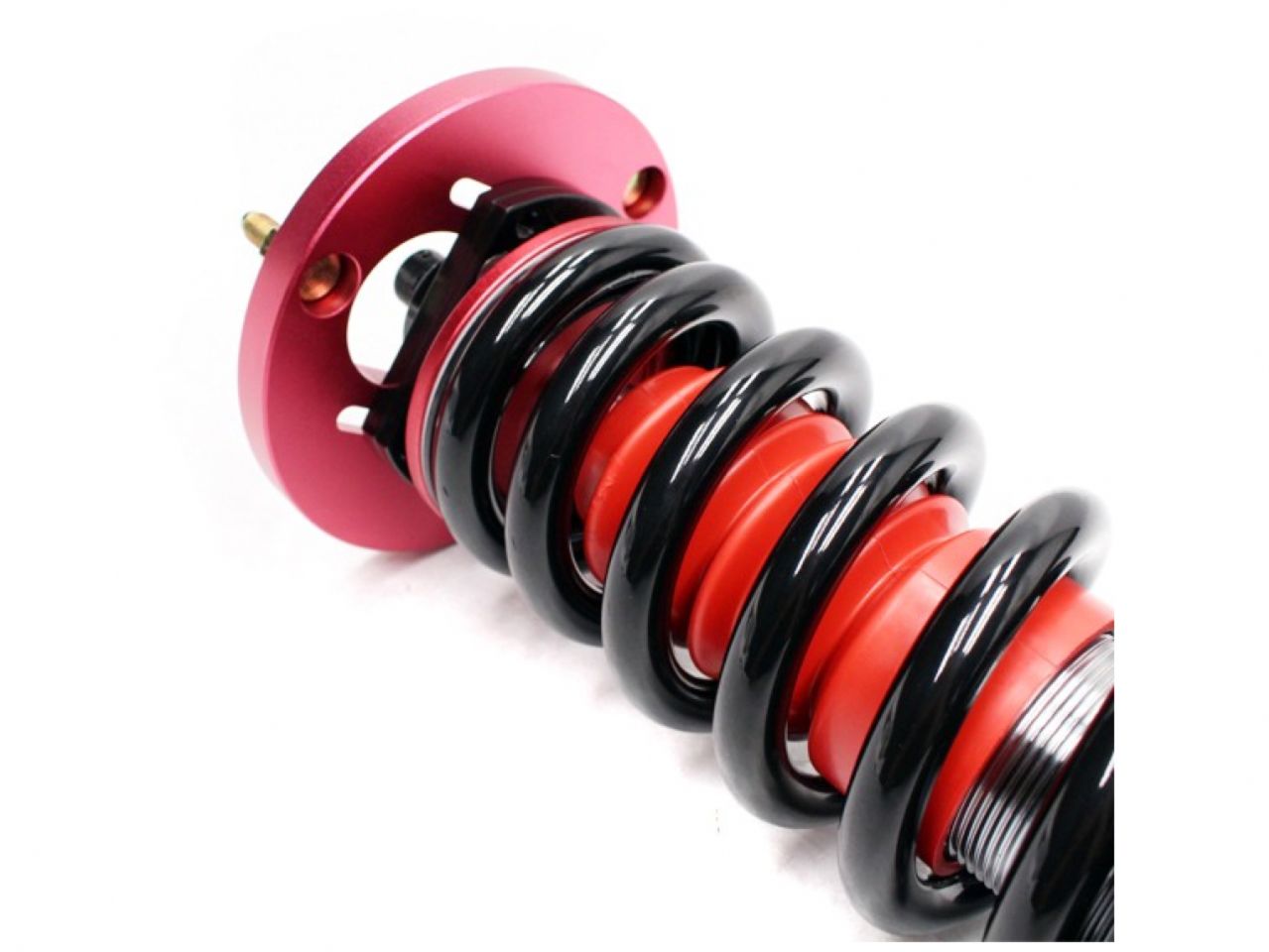

Style: MAXX

Style


MAXX

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 10 kg/mm (560 lbs/inch)
Spring Length(Front) 170 mm
Spring Length(Rear) 180 mm

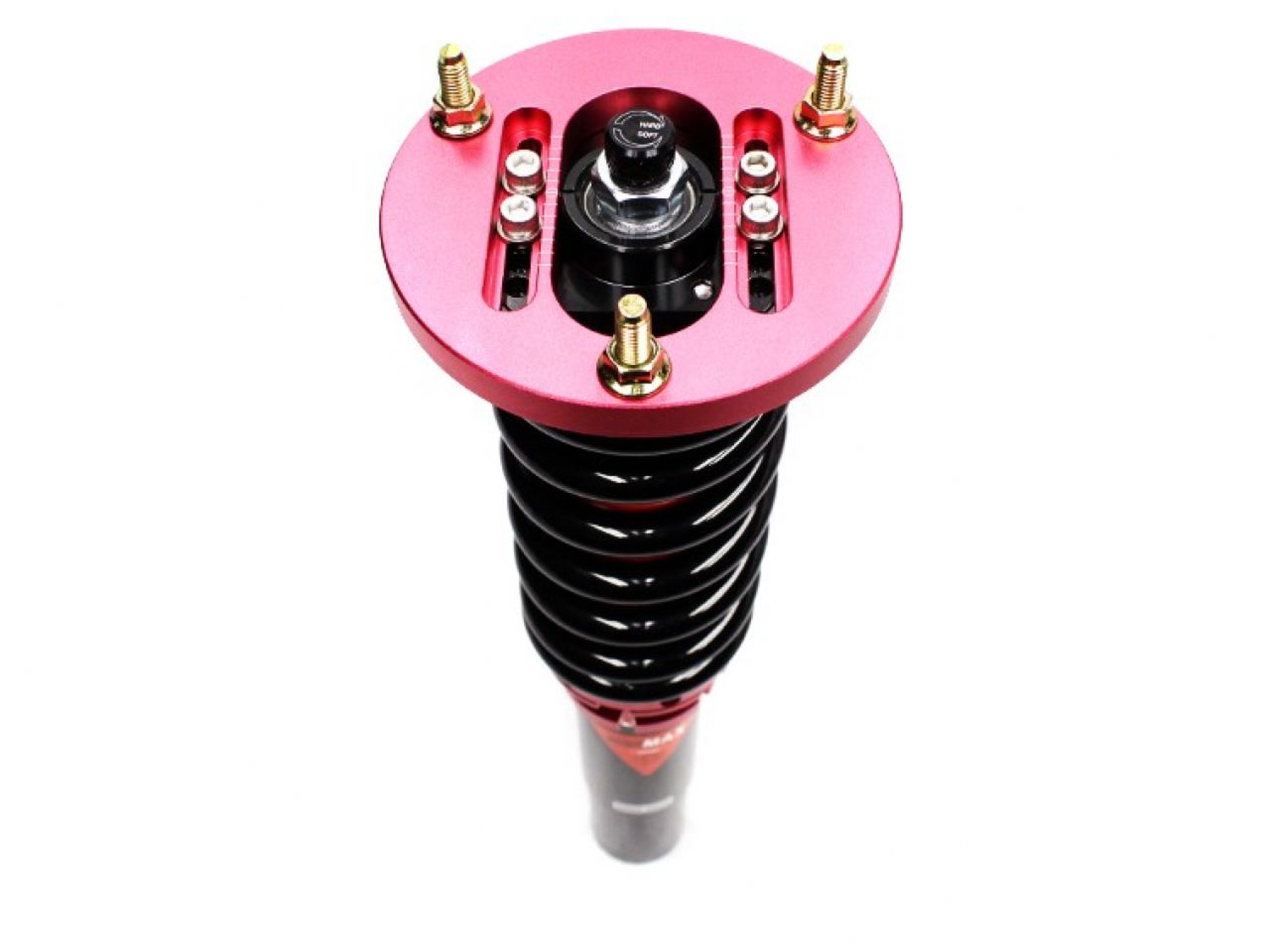

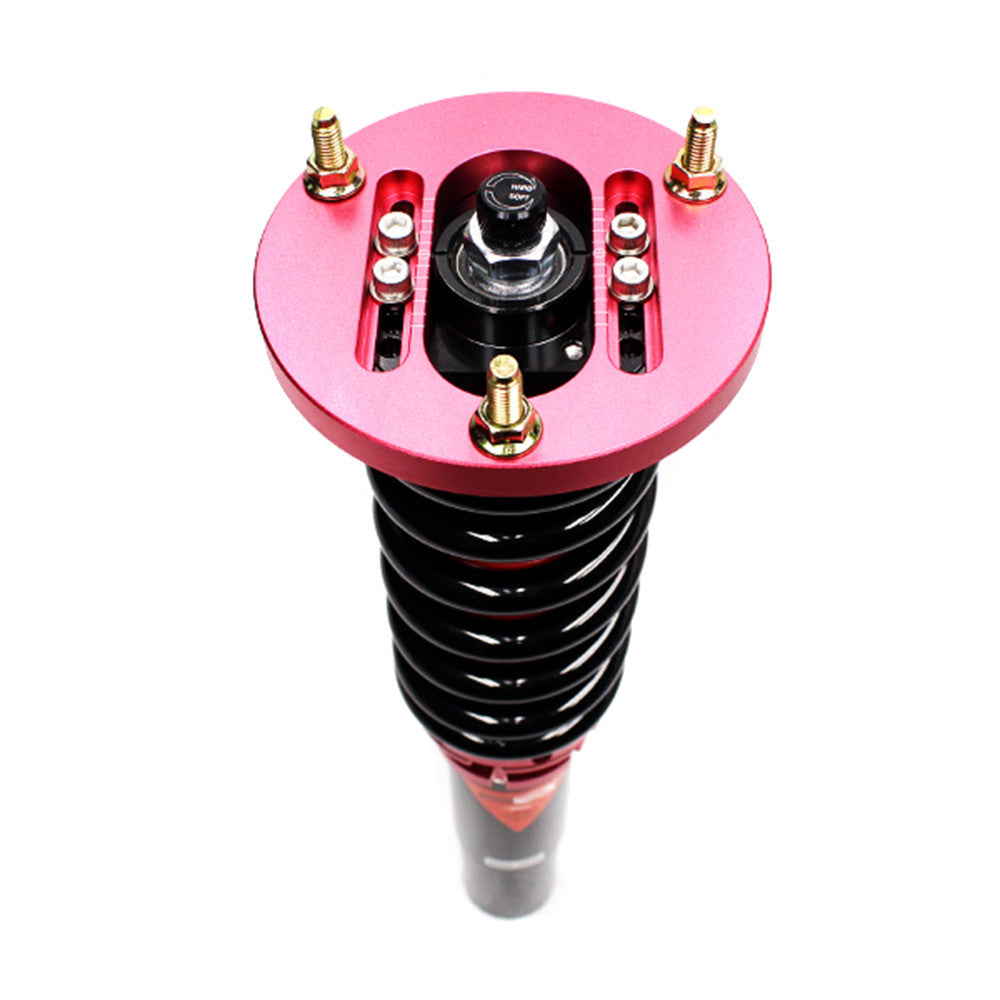

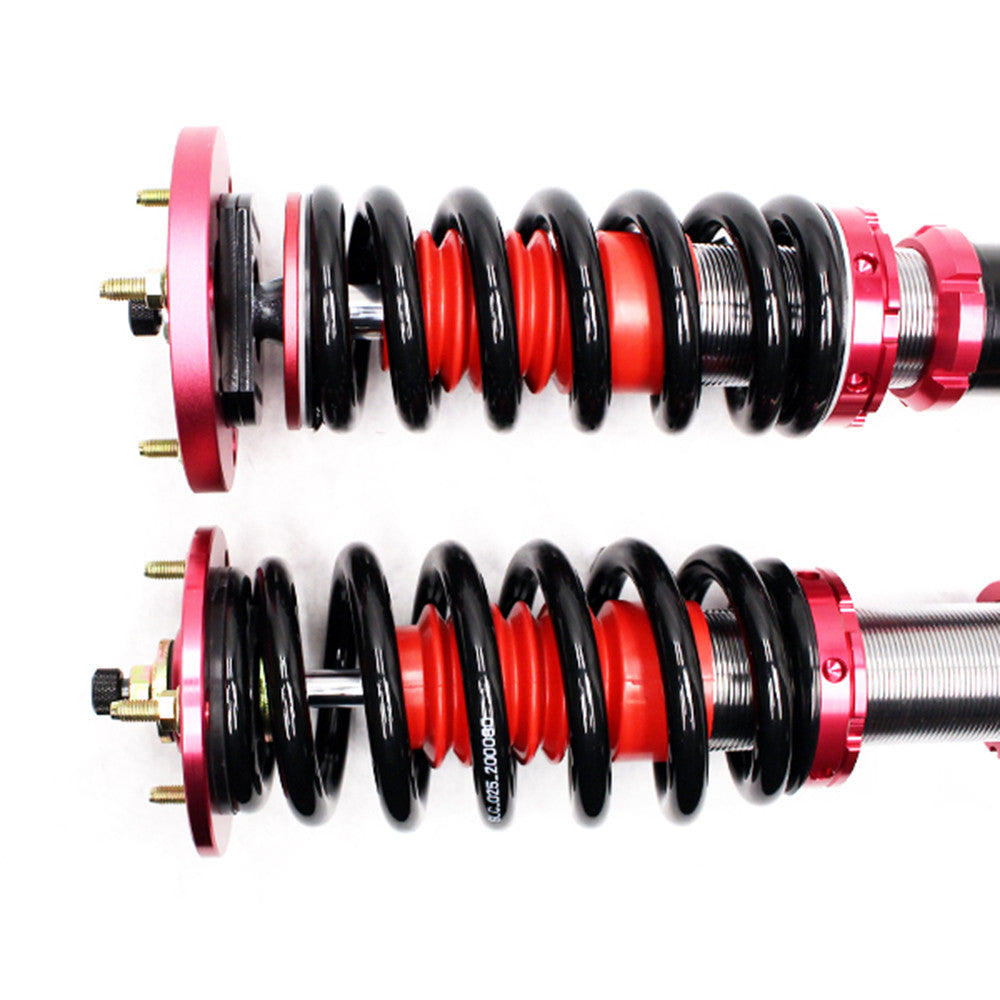

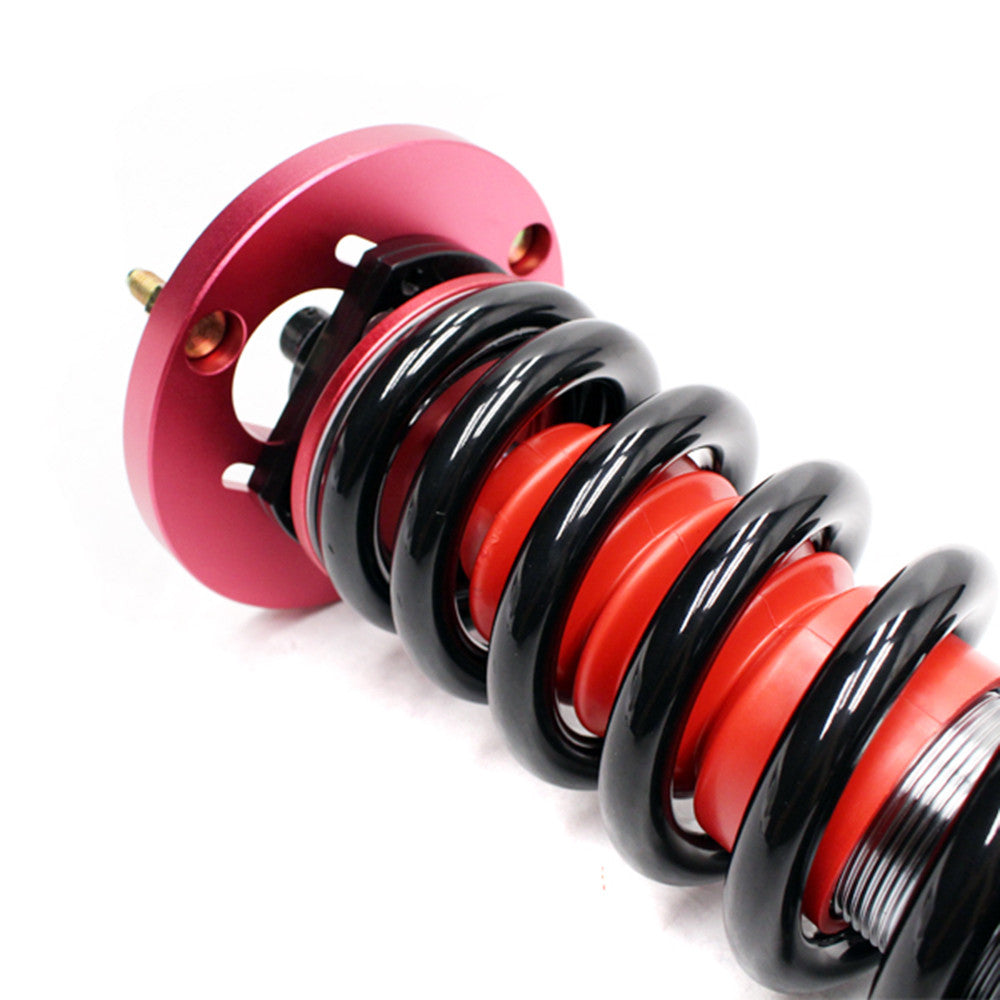

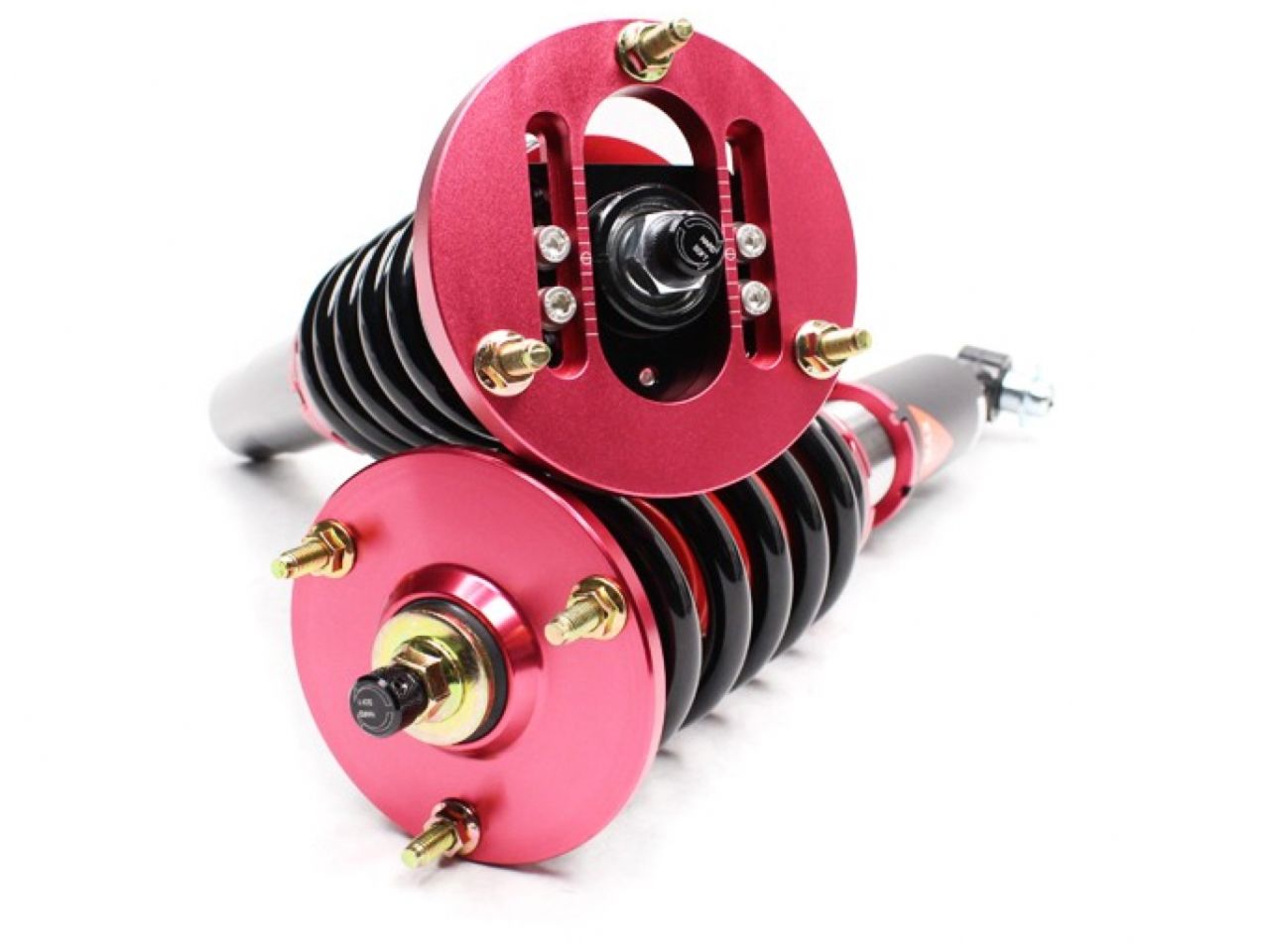

Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 43-62 mm (1.69-2.44 inch)
Warranty Note No
User Guide Coilover User Guide

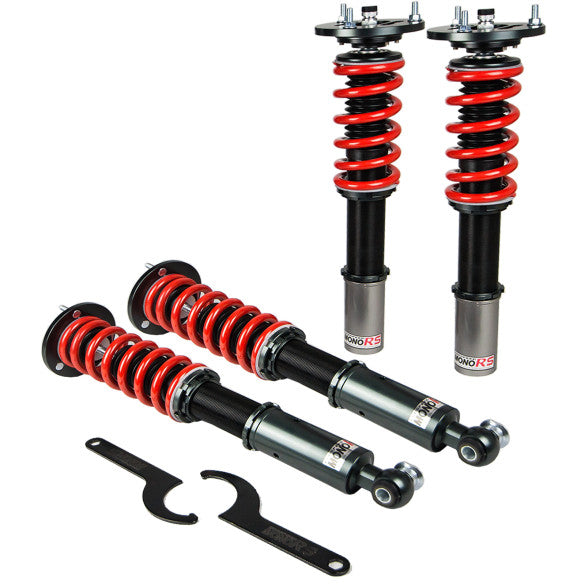

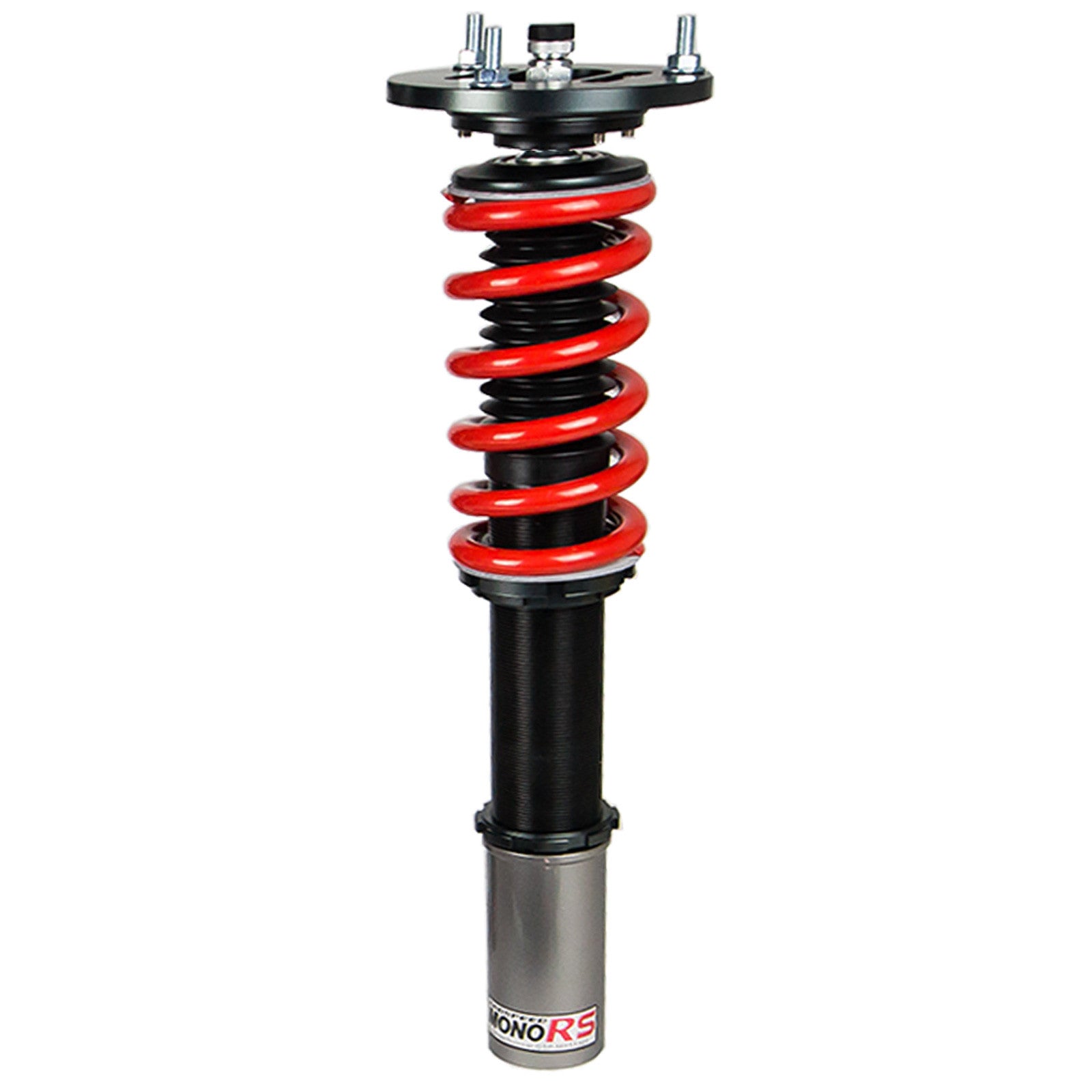

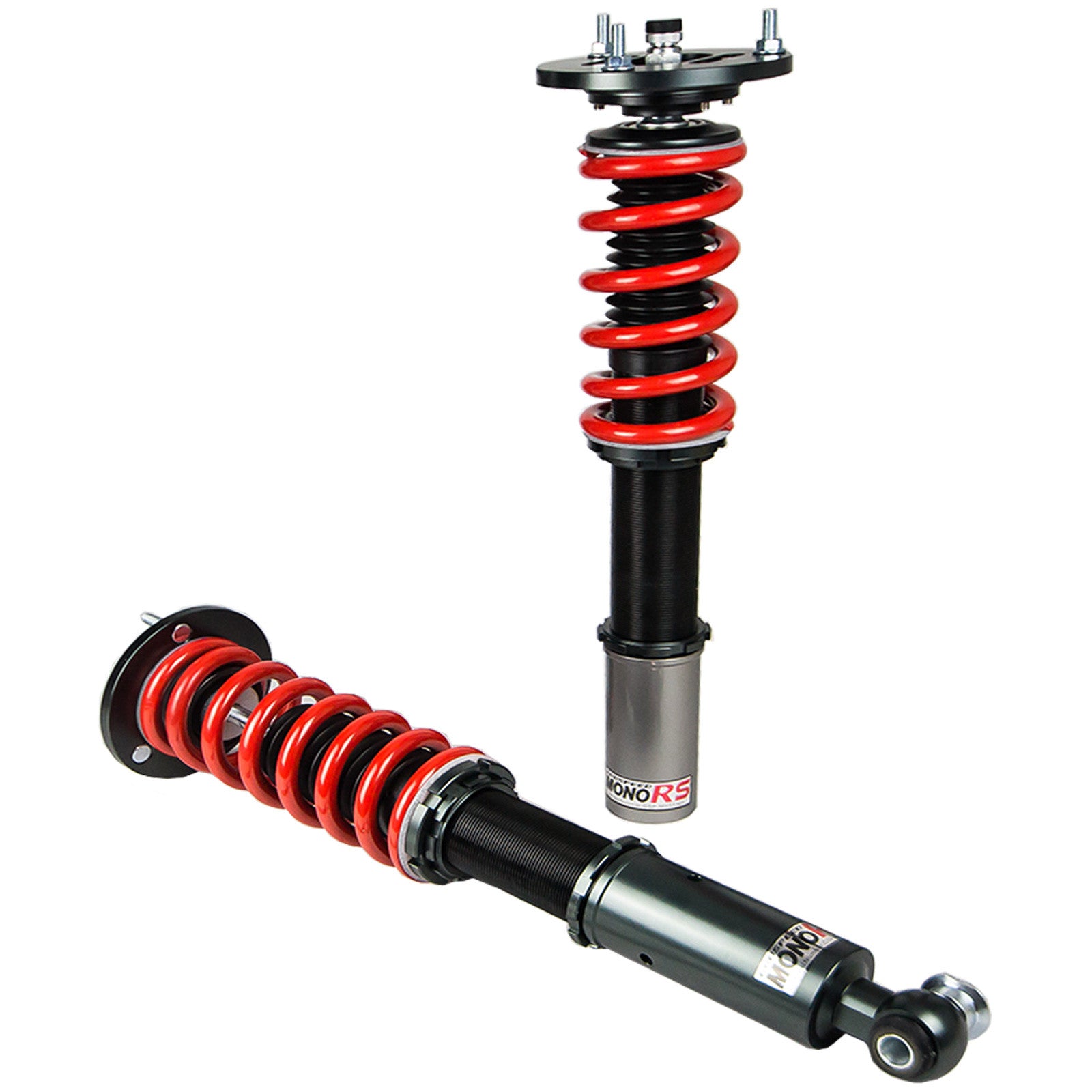

MonoRS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm
Spring Rate(Rear) 8 kg/mm
Spring Length(Front) 180 mm
Spring Length(Rear) 220 mm

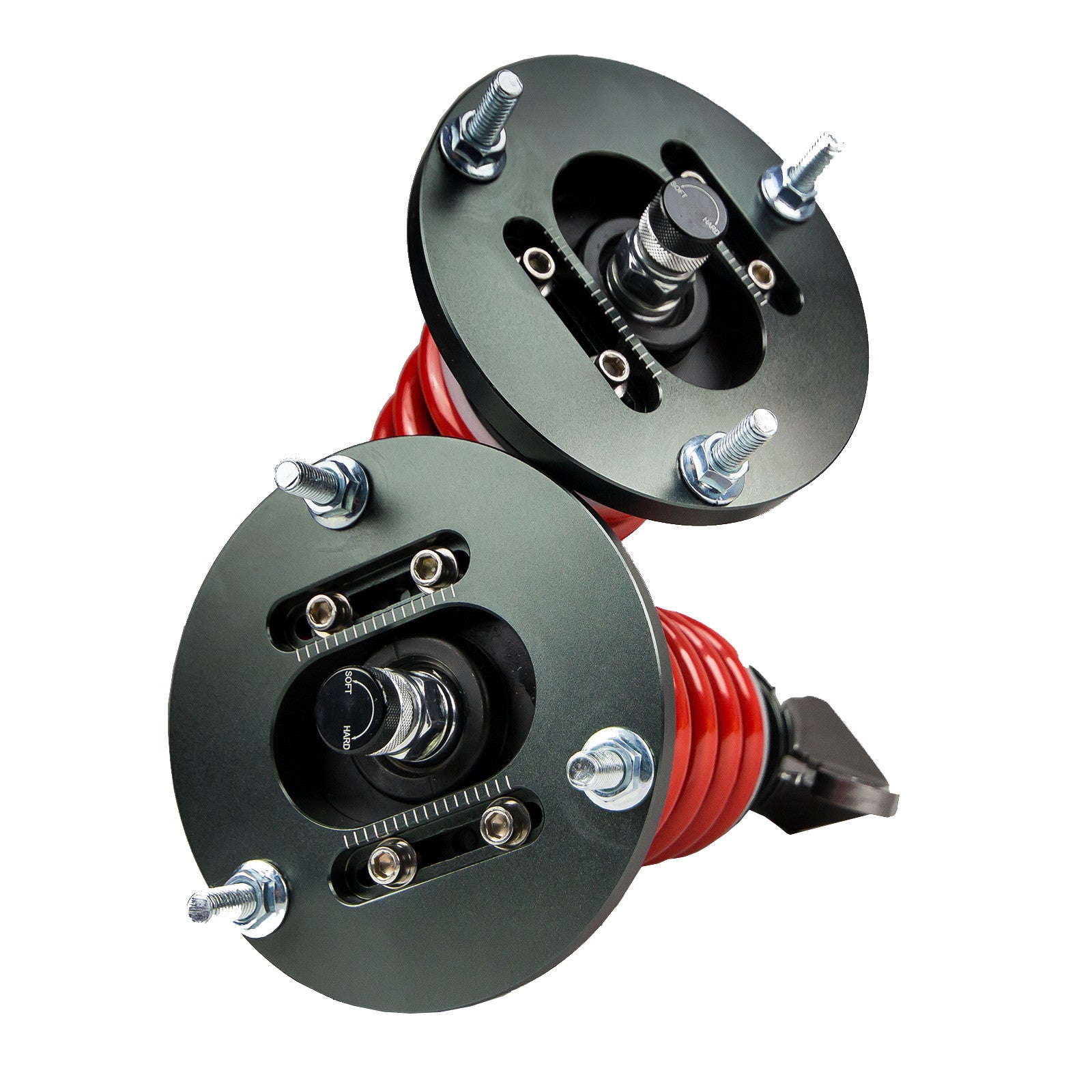

Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm
Spring Inner Diameter(Rear) 62 mm
Warranty Note N/A
User Guide Coilover User Guide

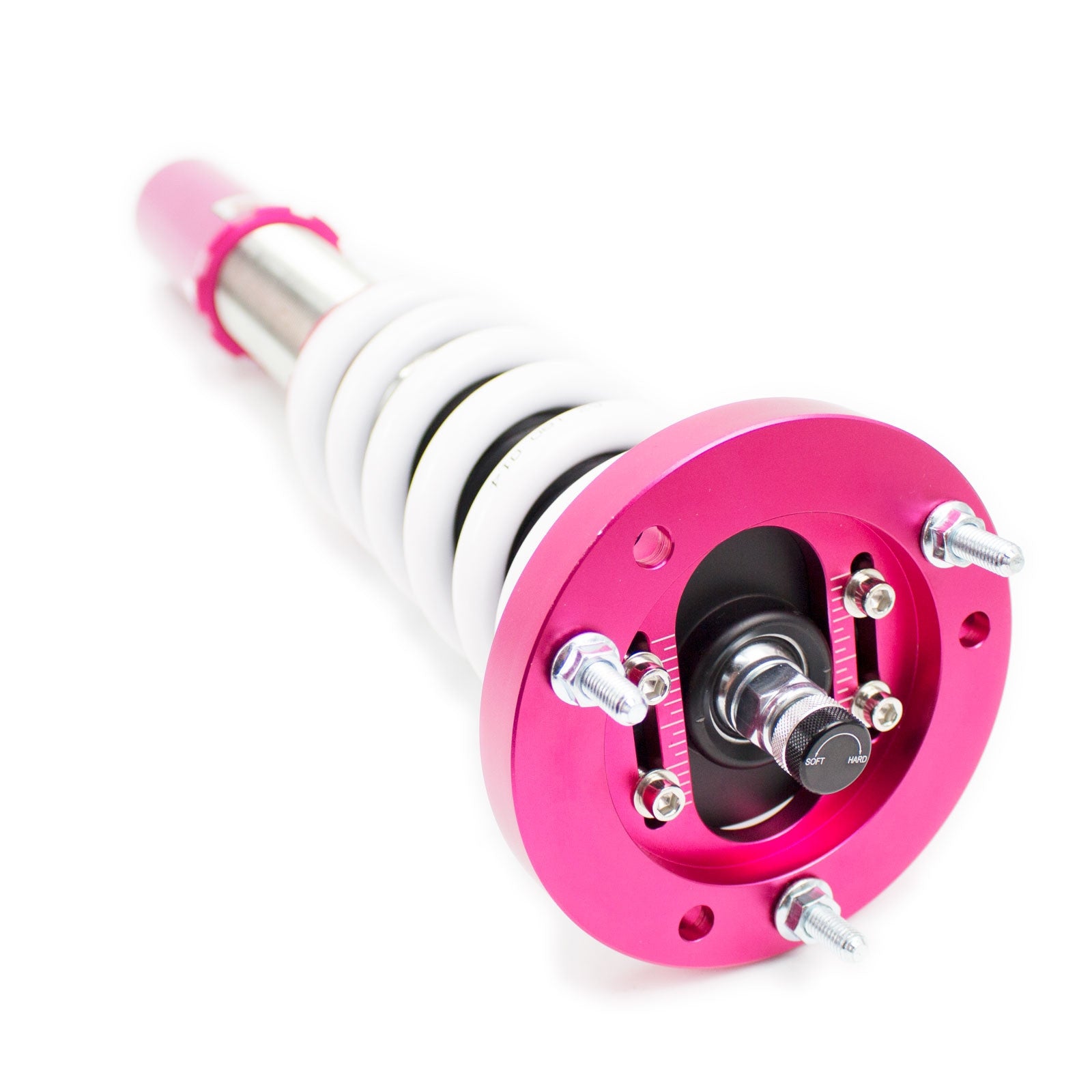

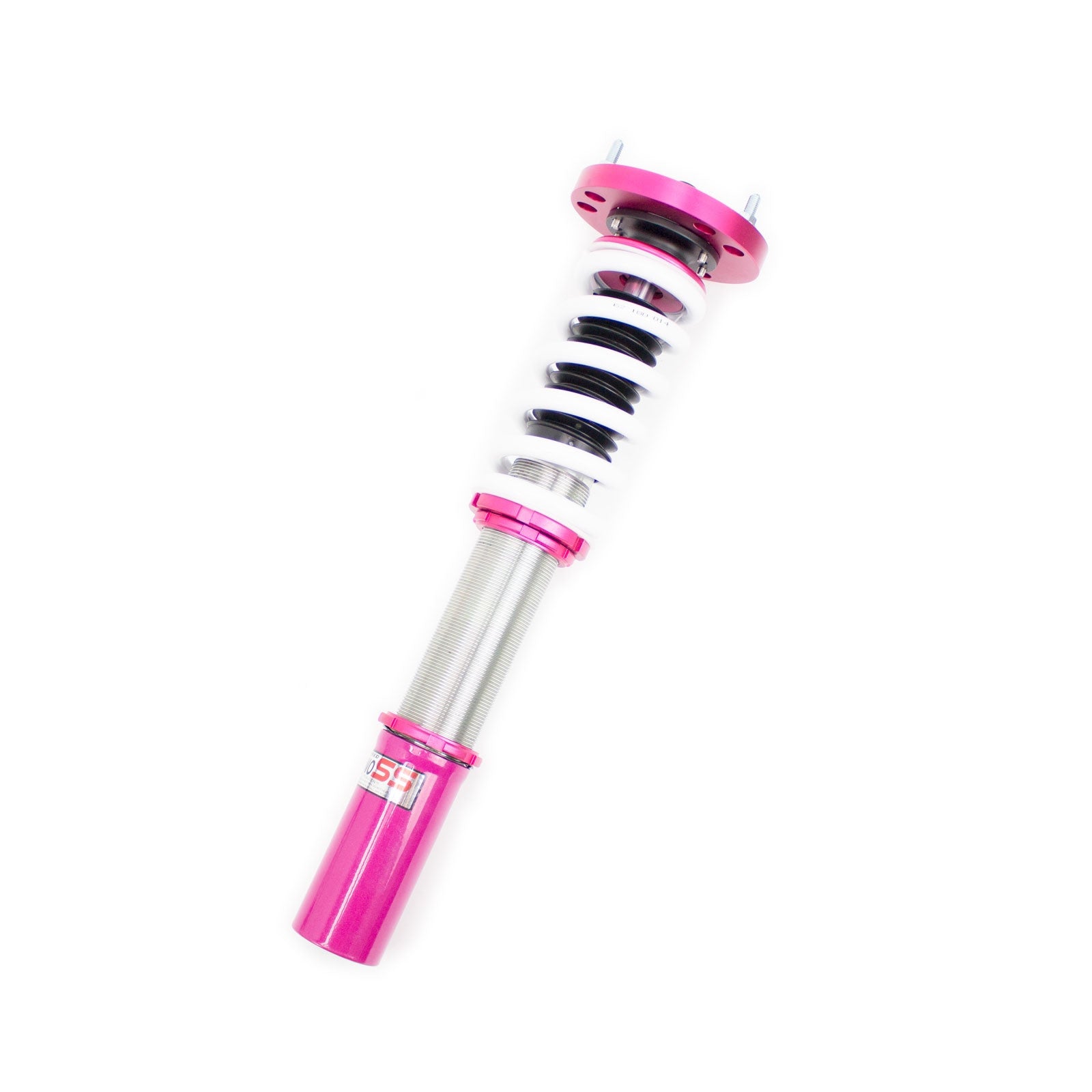

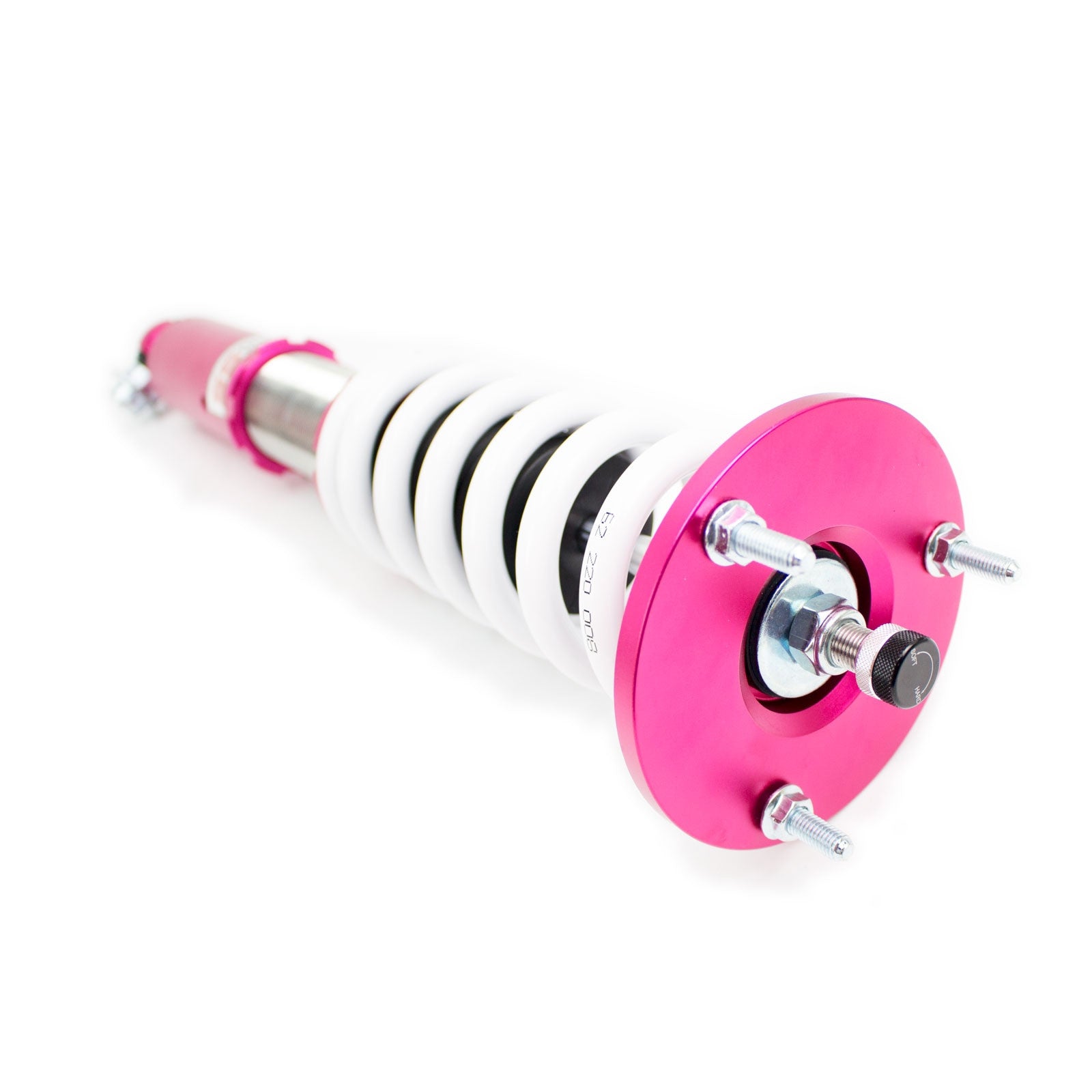

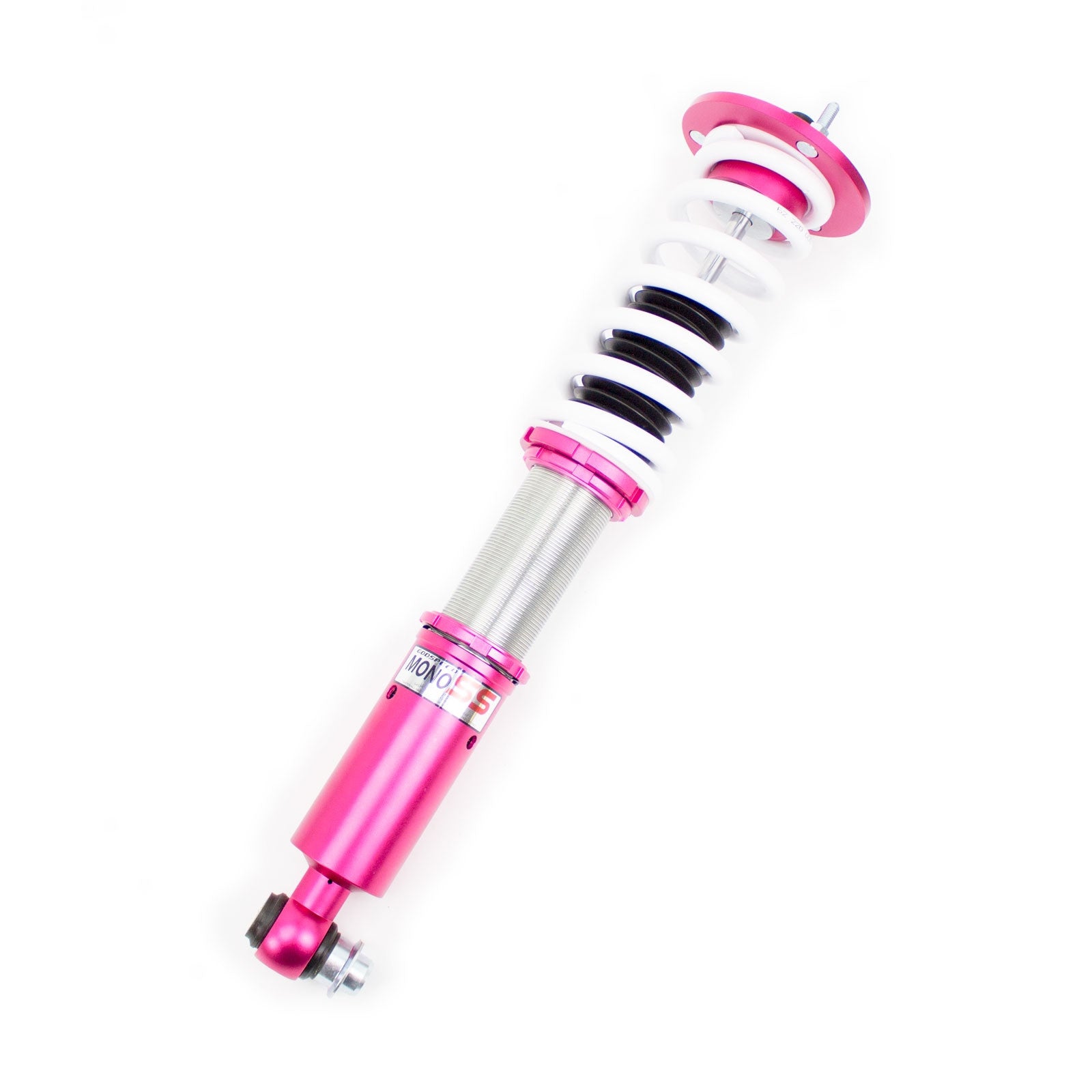

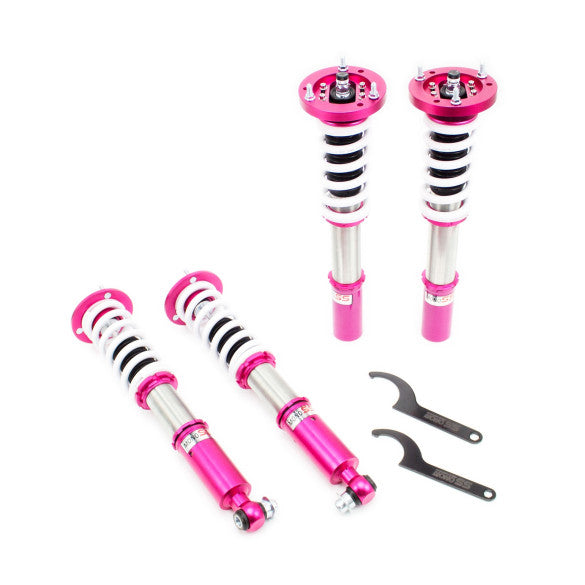

MonoSS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 8 kg/mm (448 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 220 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 in.)
Spring Inner Diameter(Rear) 62 mm (2.44 in.)
Warranty Note No
User Guide Coilover User Guide
