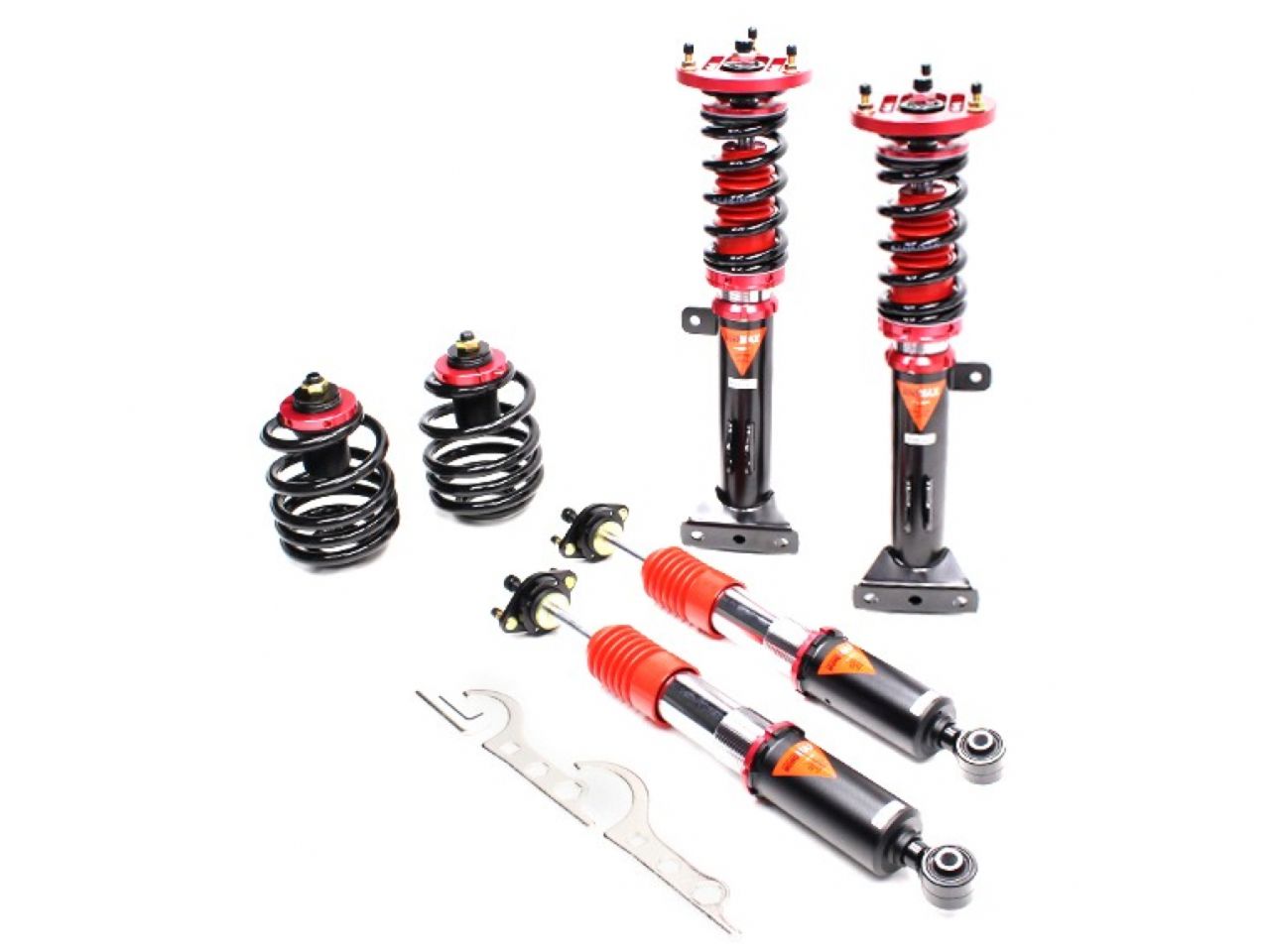

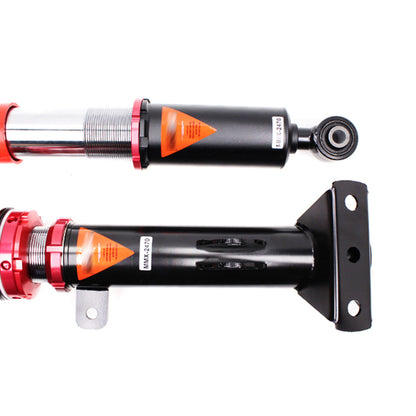

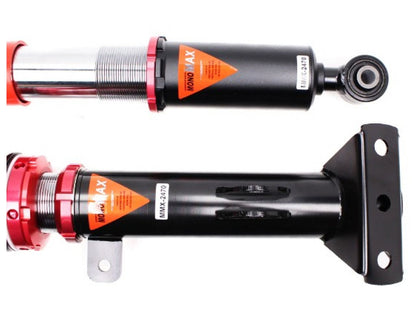

Godspeed BMW Z4 M Coupe/M Roadster (E85/E86)/None-M (E85/E86) Coilovers M Coupe/M Roadster E85/E86, 2006-2008, MAXX
Godspeed BMW Z4 M Coupe/M Roadster (E85/E86)/None-M (E85/E86) Coilovers
sku: 0MWVJ | mpn: MMX2470
Regular price
$990.00
Regular price
$990.00
Sale price
$990.00
Shipping calculated at checkout.
Low stock: 2 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

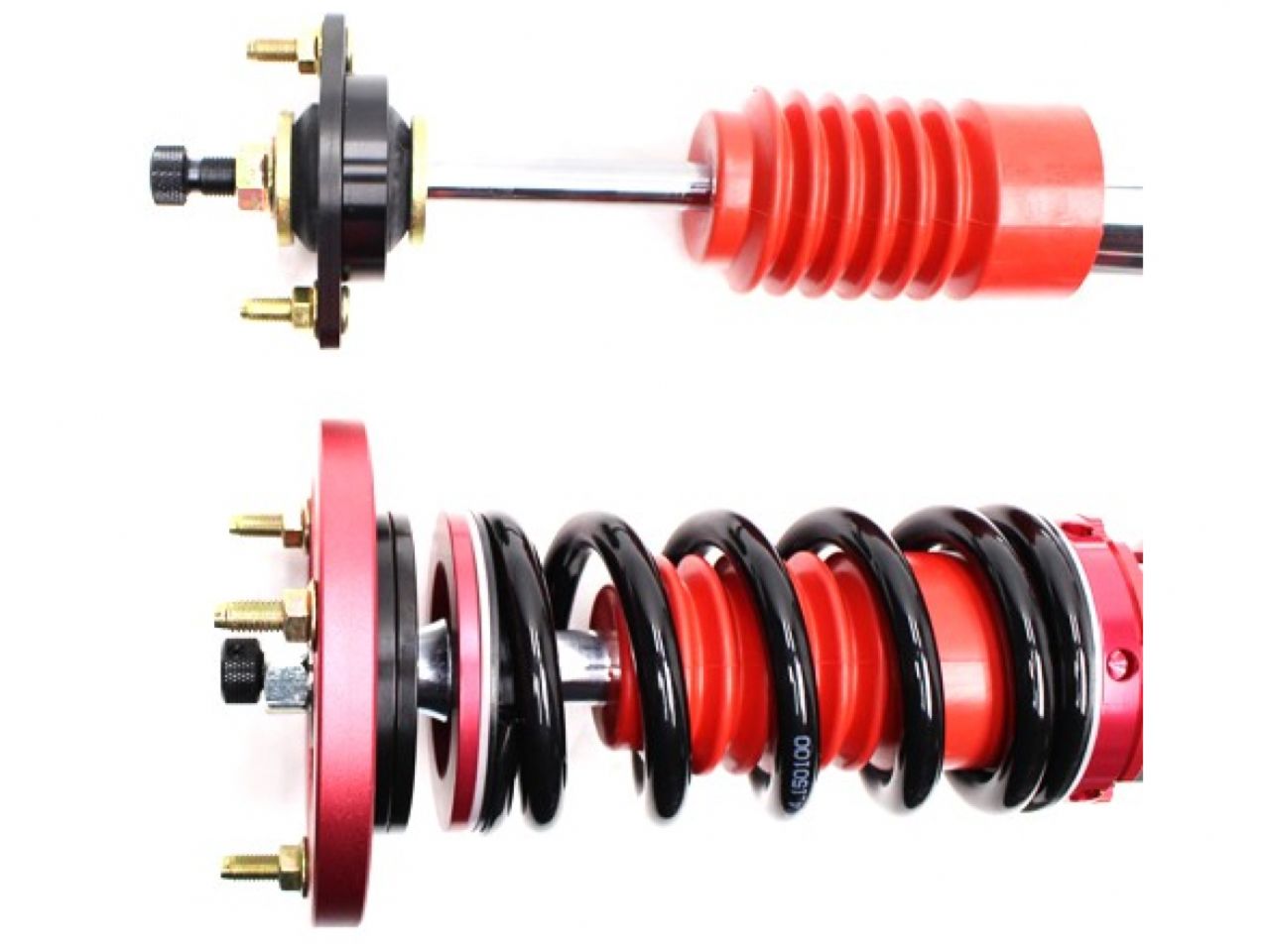

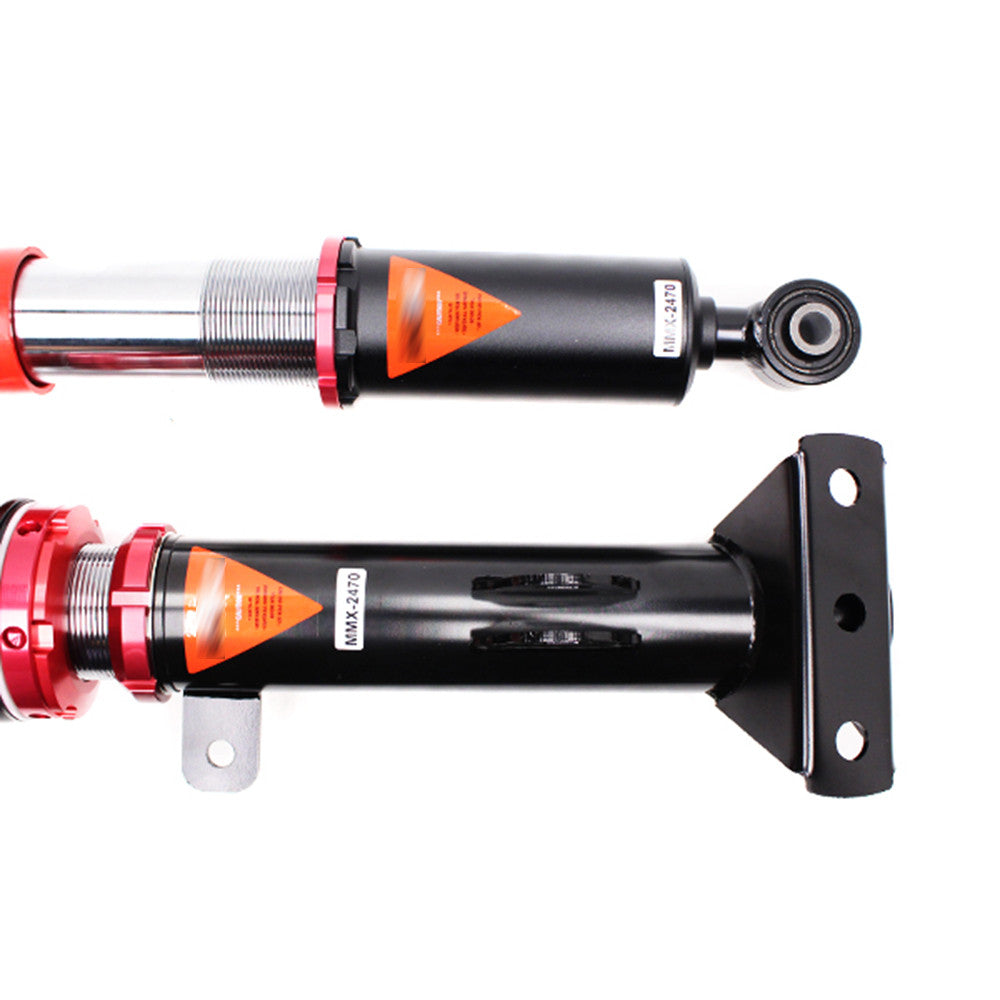

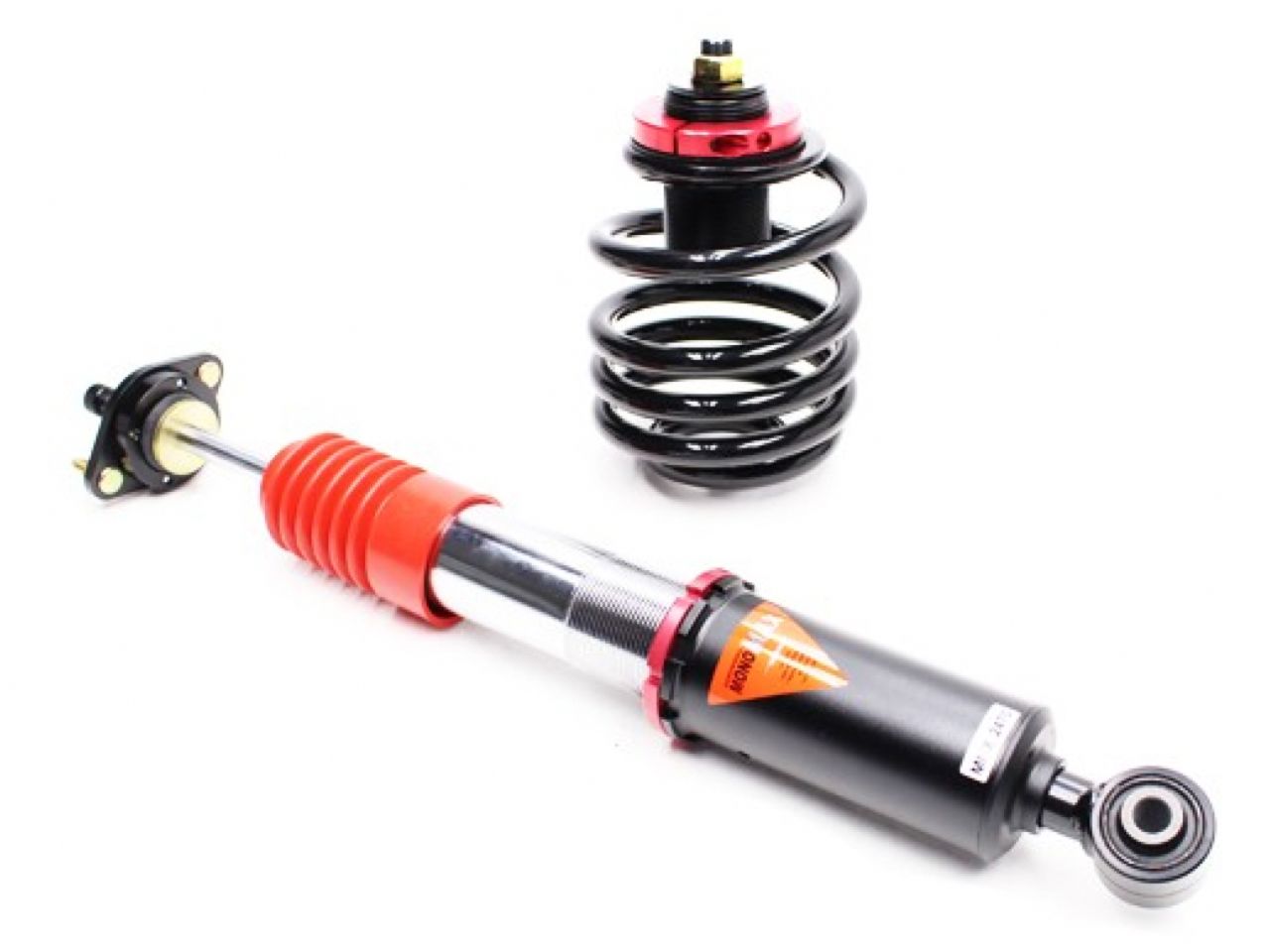

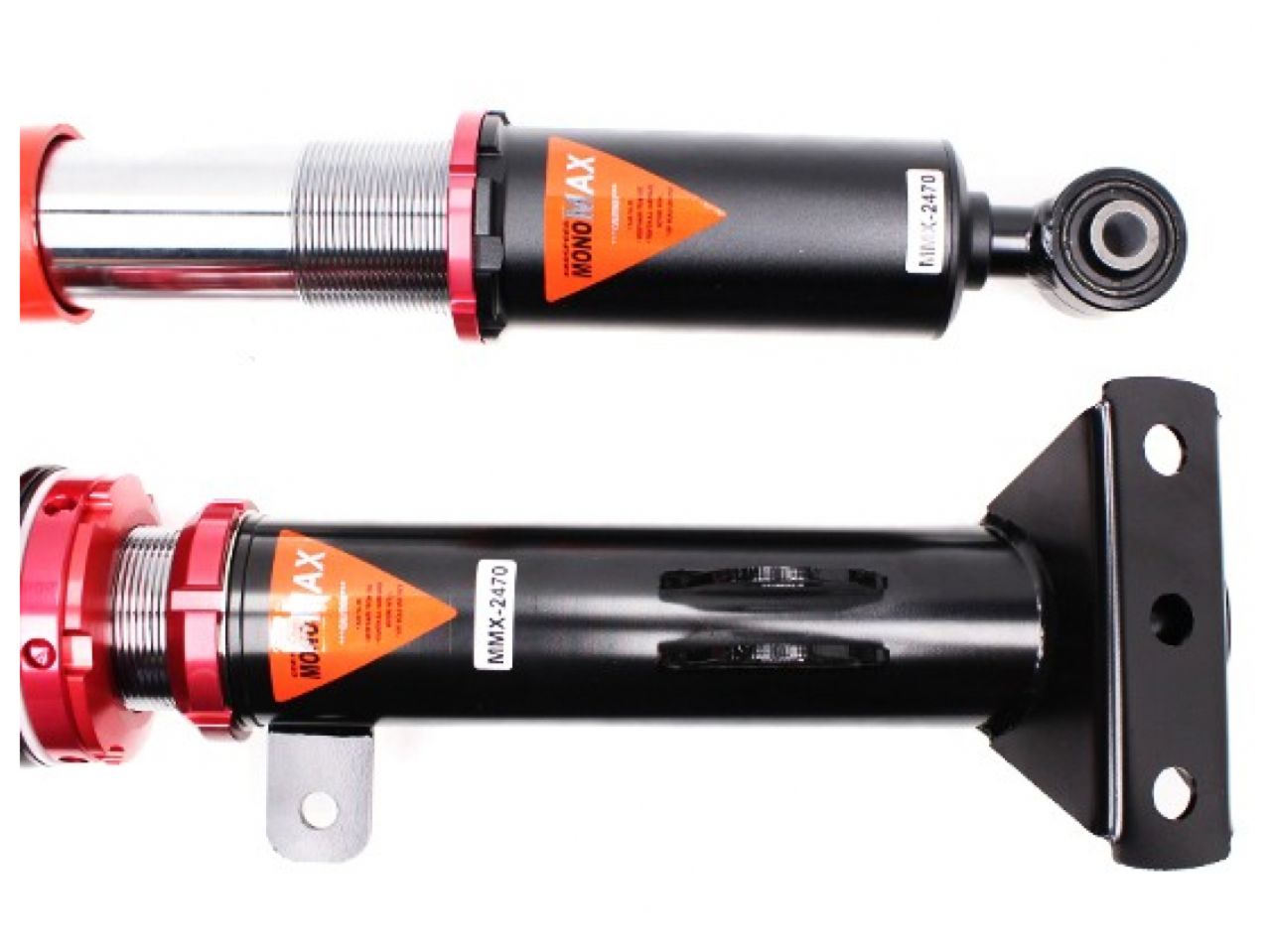

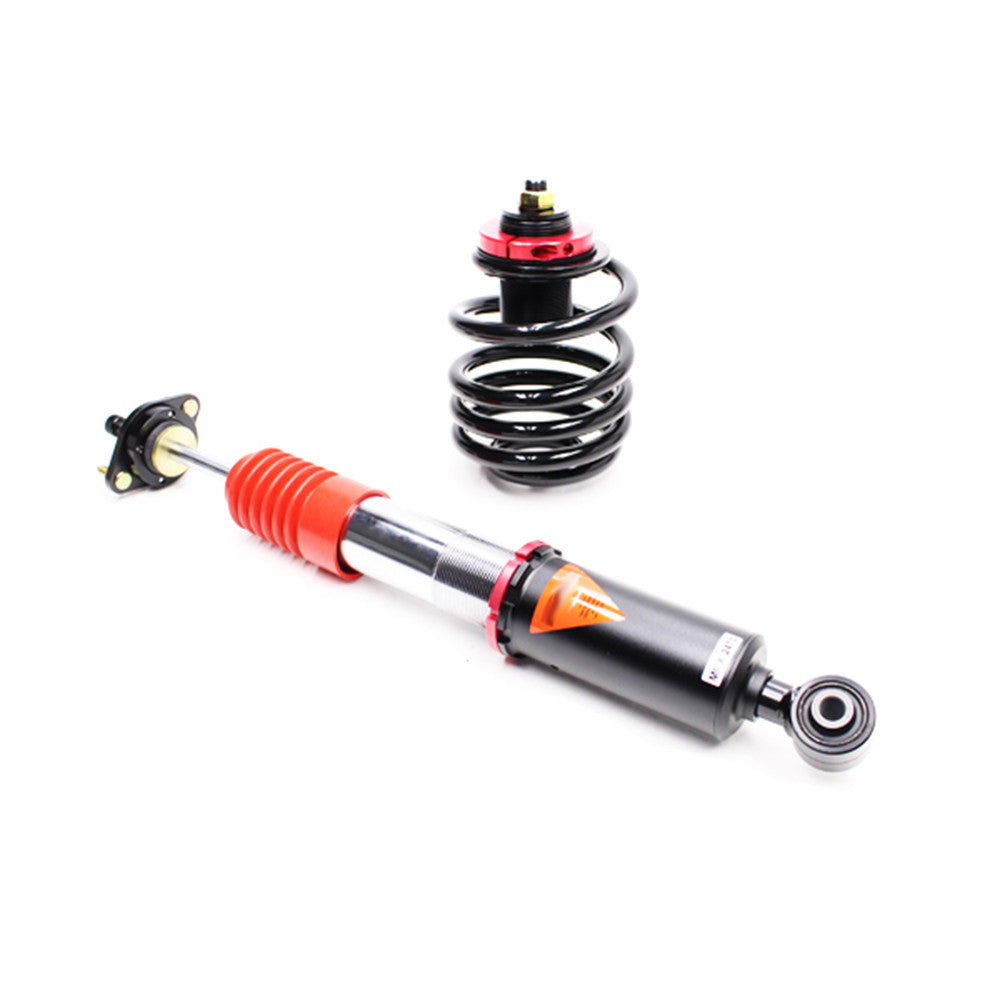

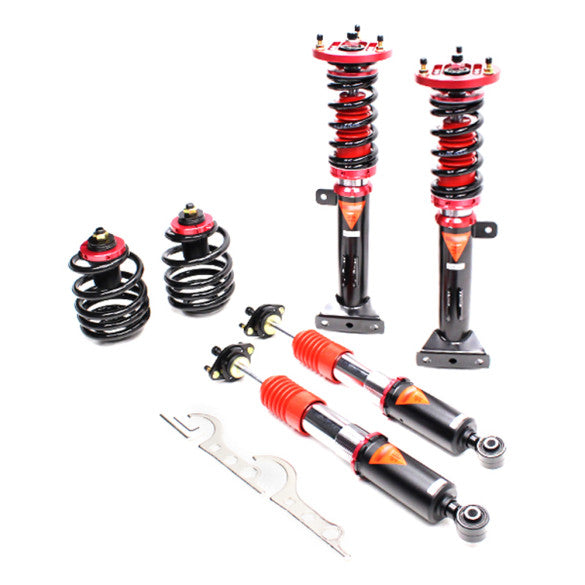

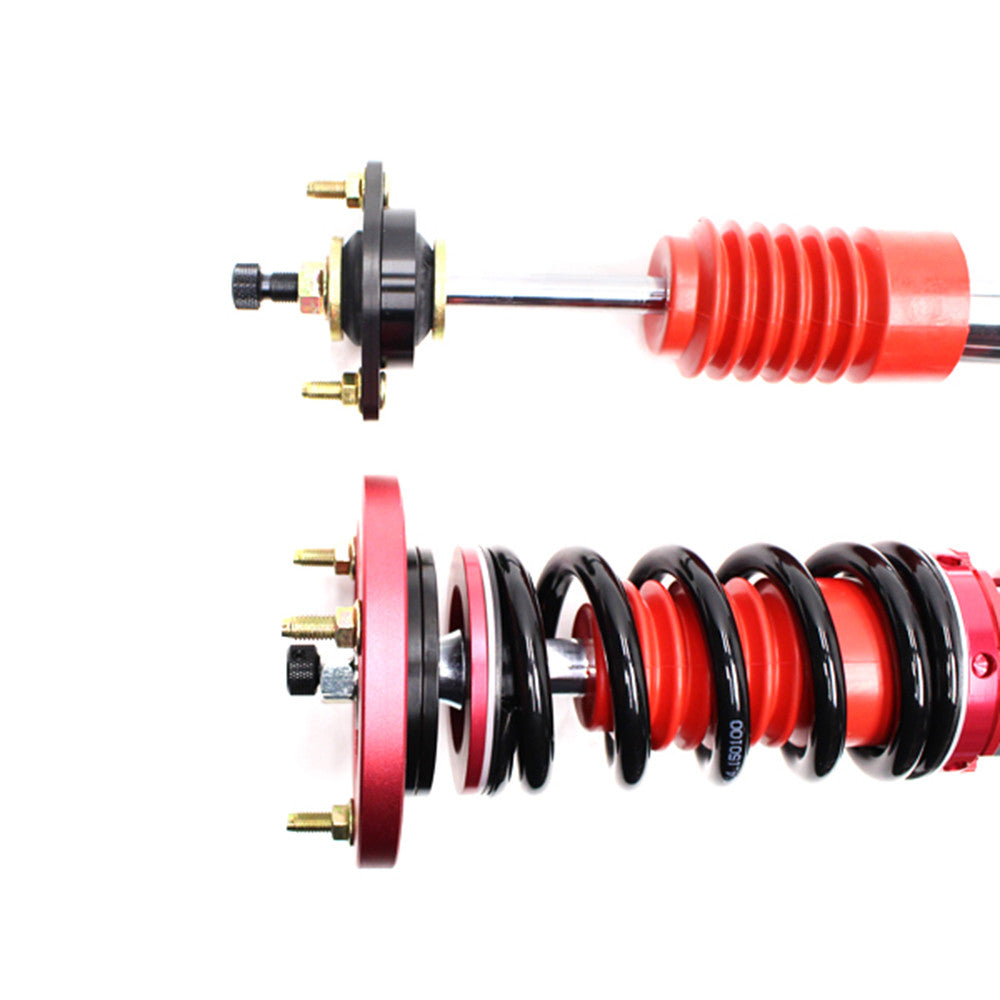

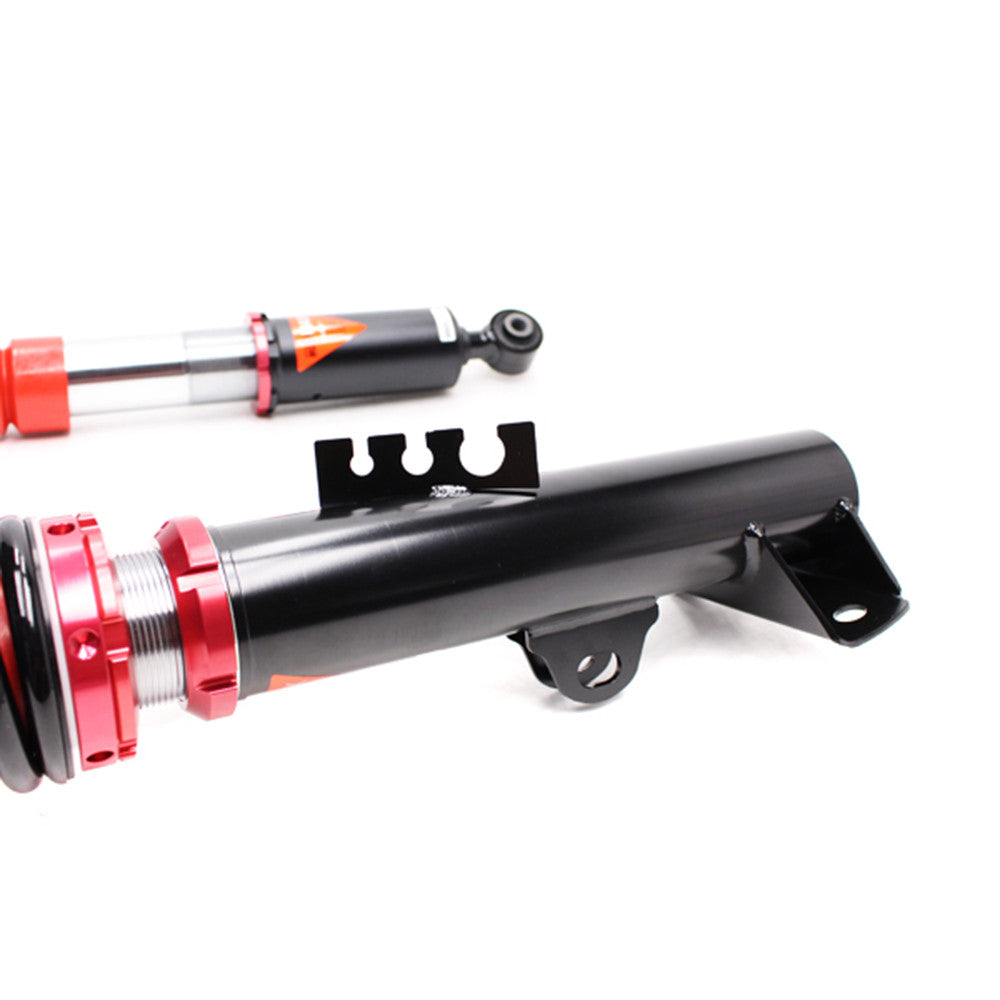

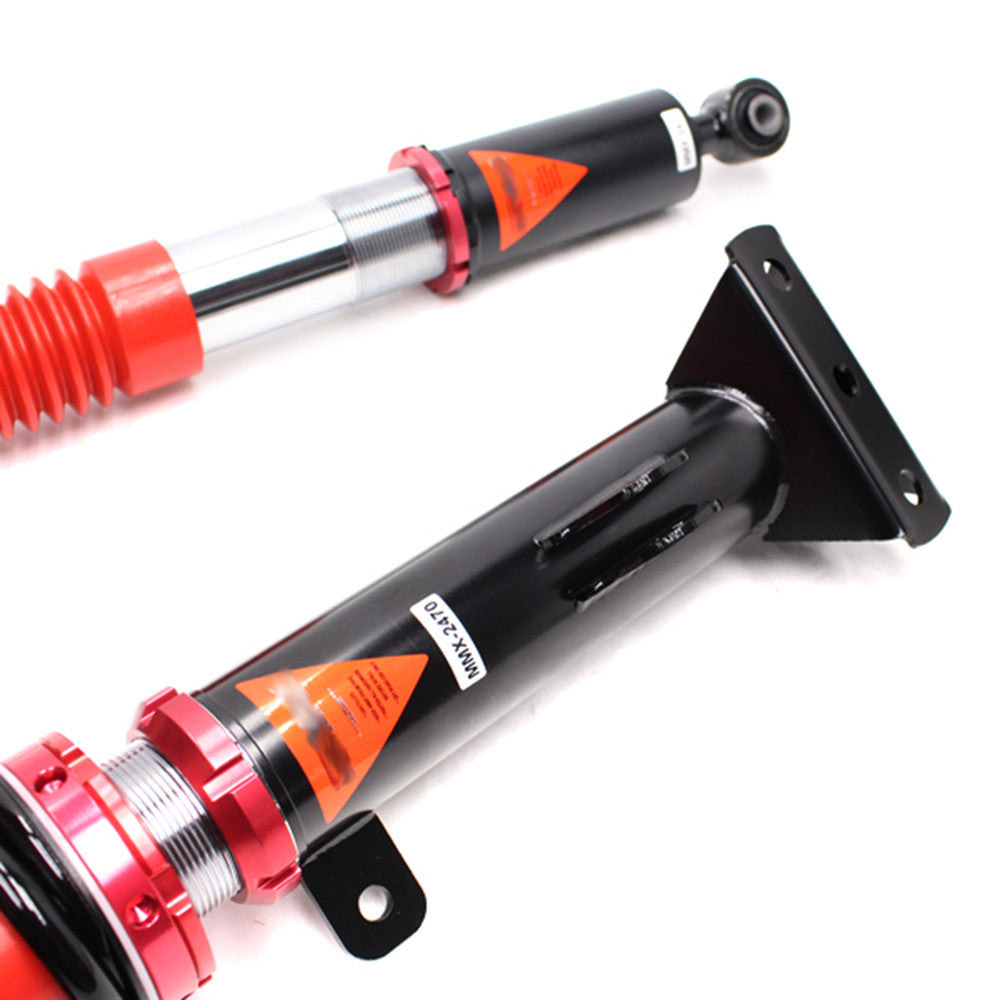

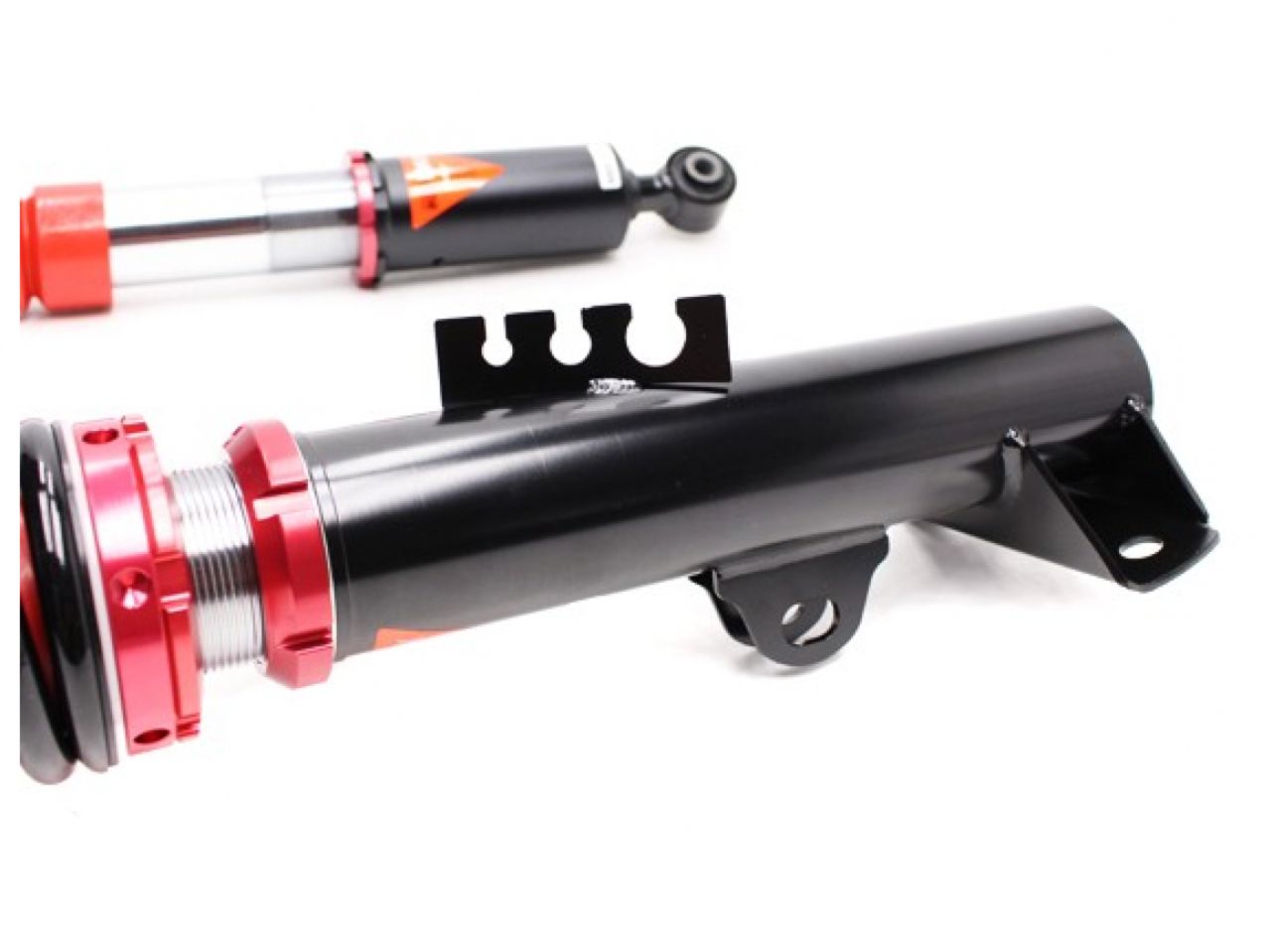

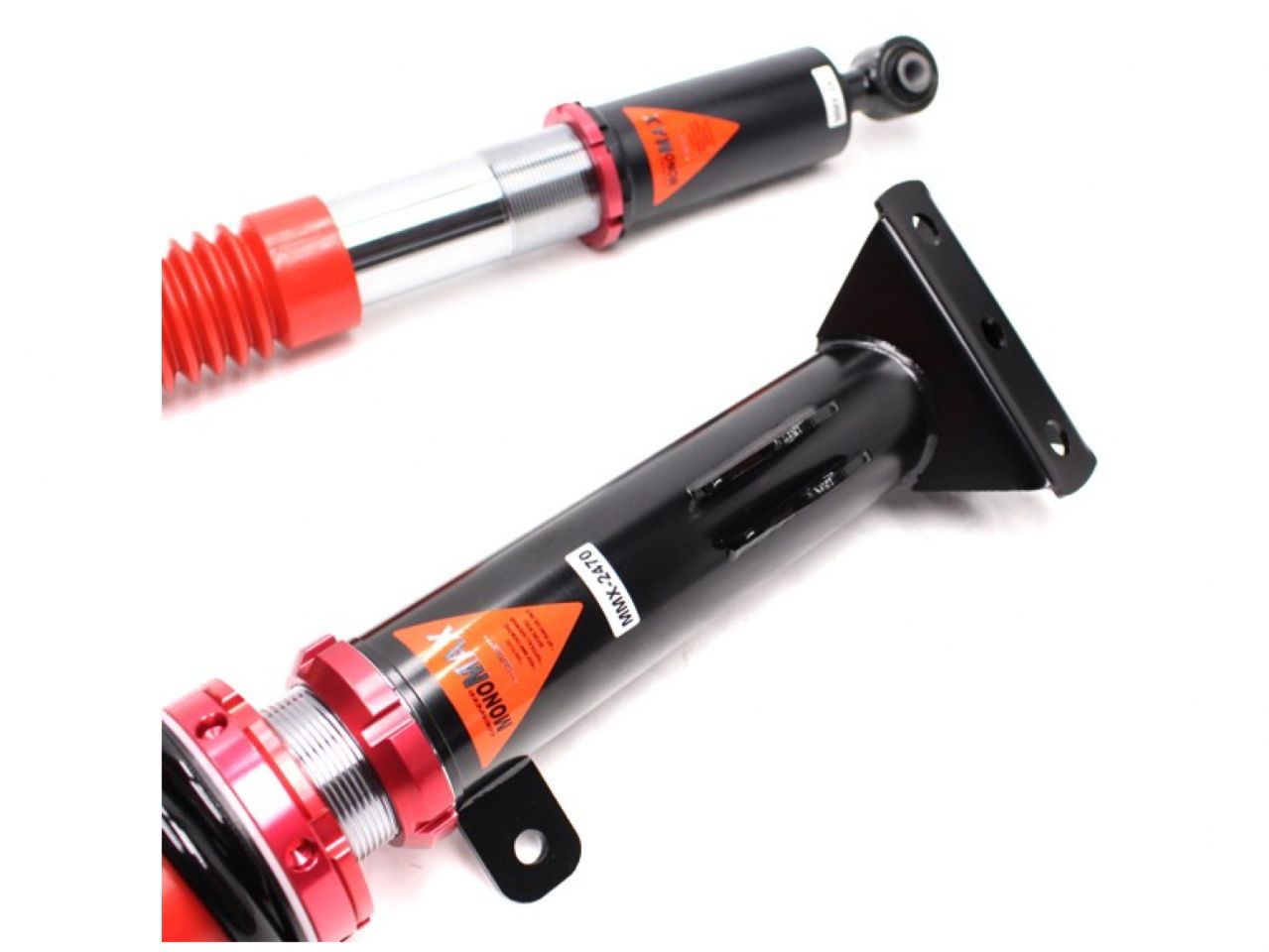

M Coupe/M Roadster E85/E86, 2006-2008, MAXX
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 10 kg/mm (560 lbs/inch) |
| Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 170 mm |

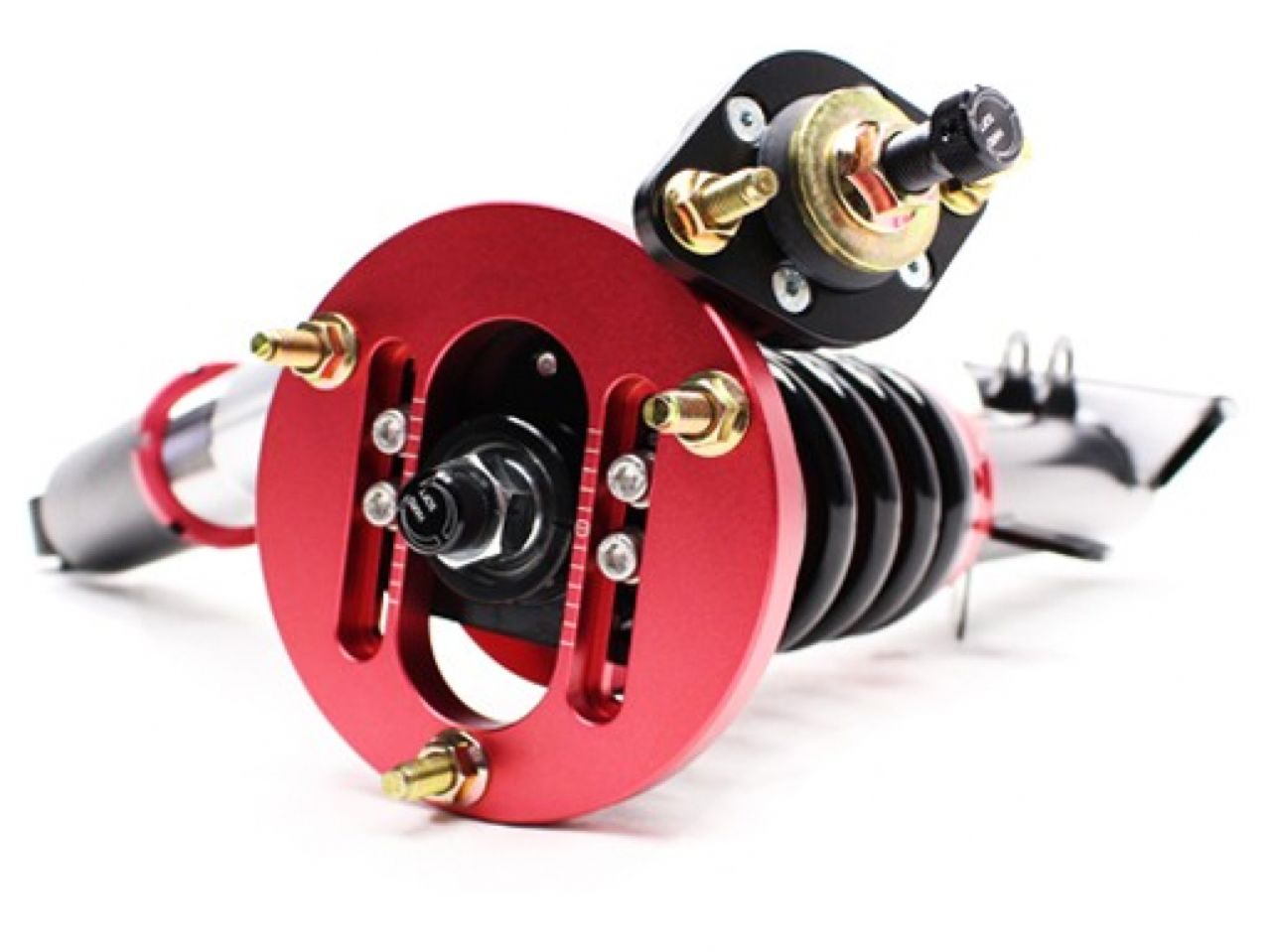

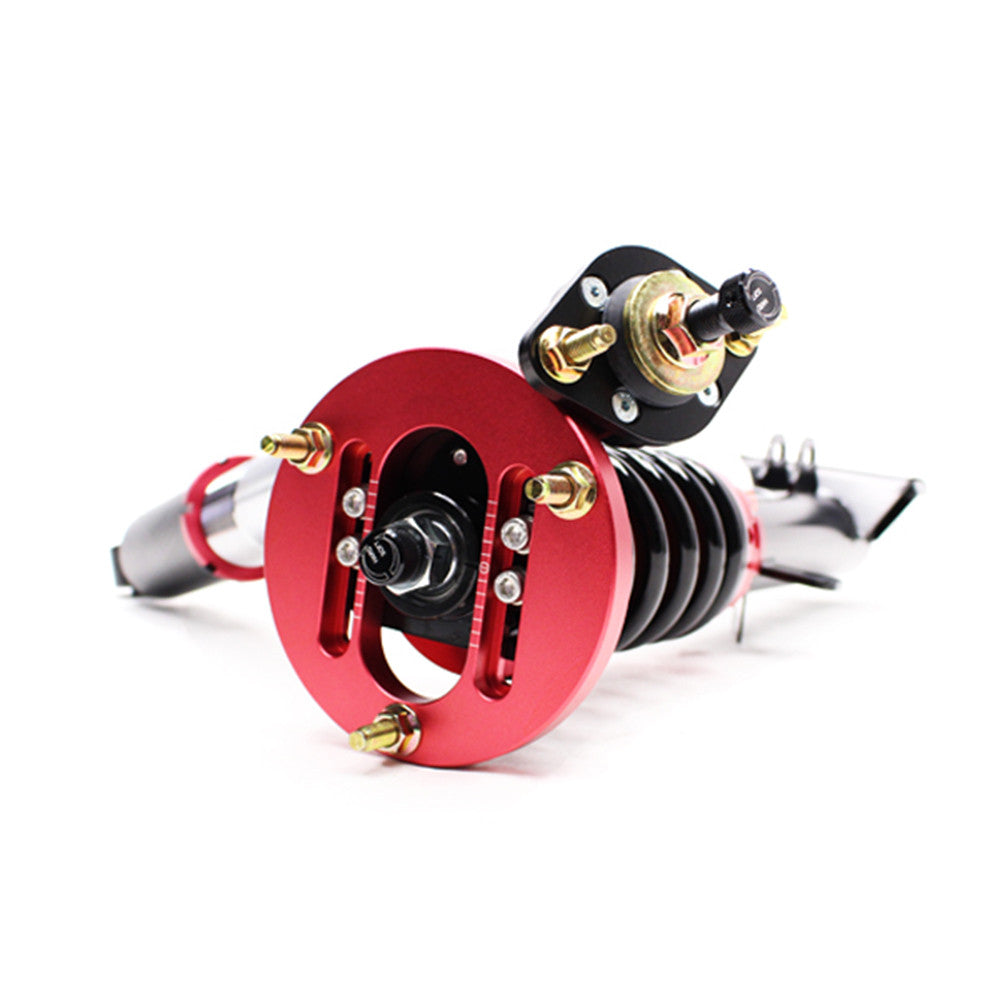

| Front Top Mount | Yes, Pillow Ball w/ Camber Plate |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 43-62 mm (1.69-2.44 inch) |
| Warranty Note | N/A |
| User Guide | Coilover User Guide |

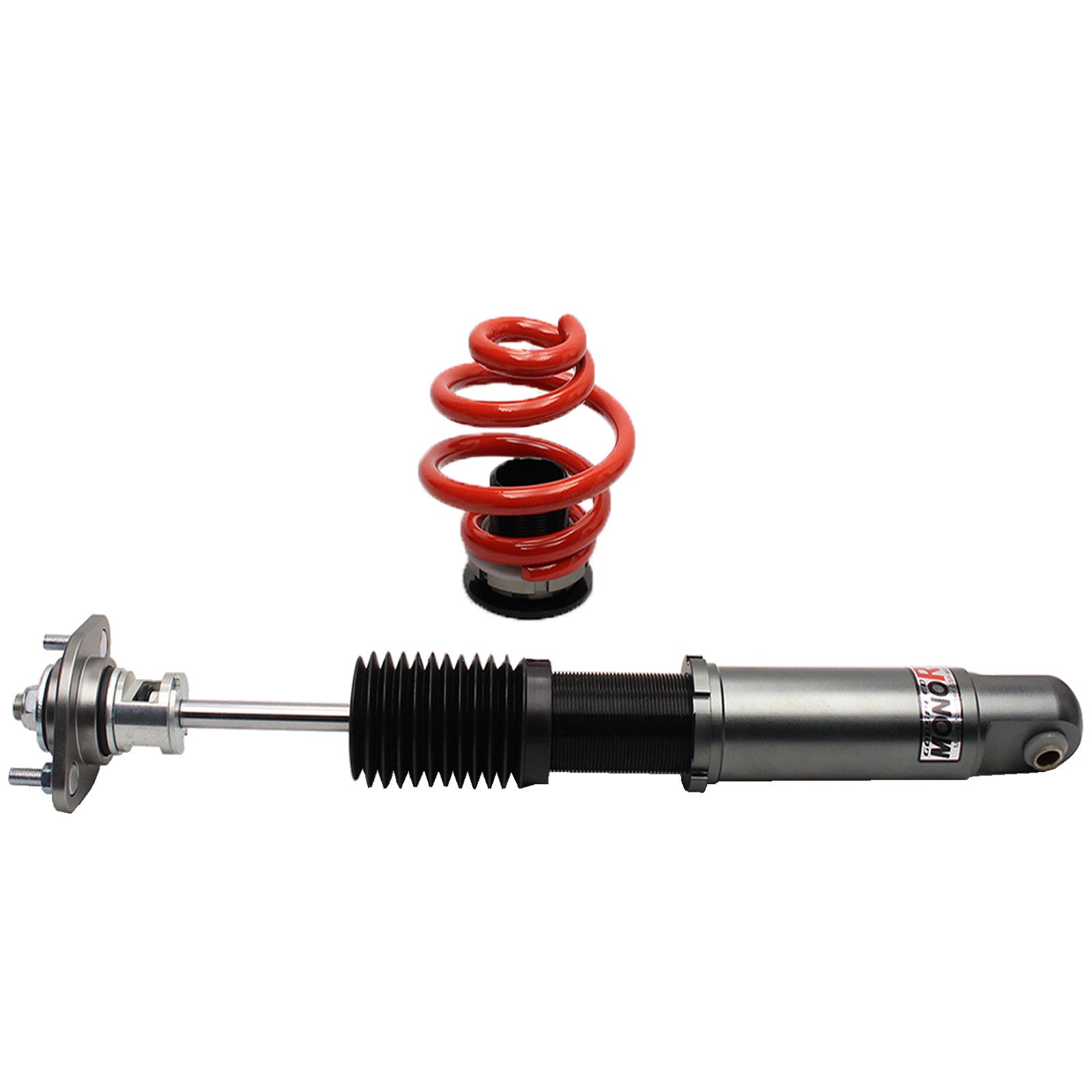

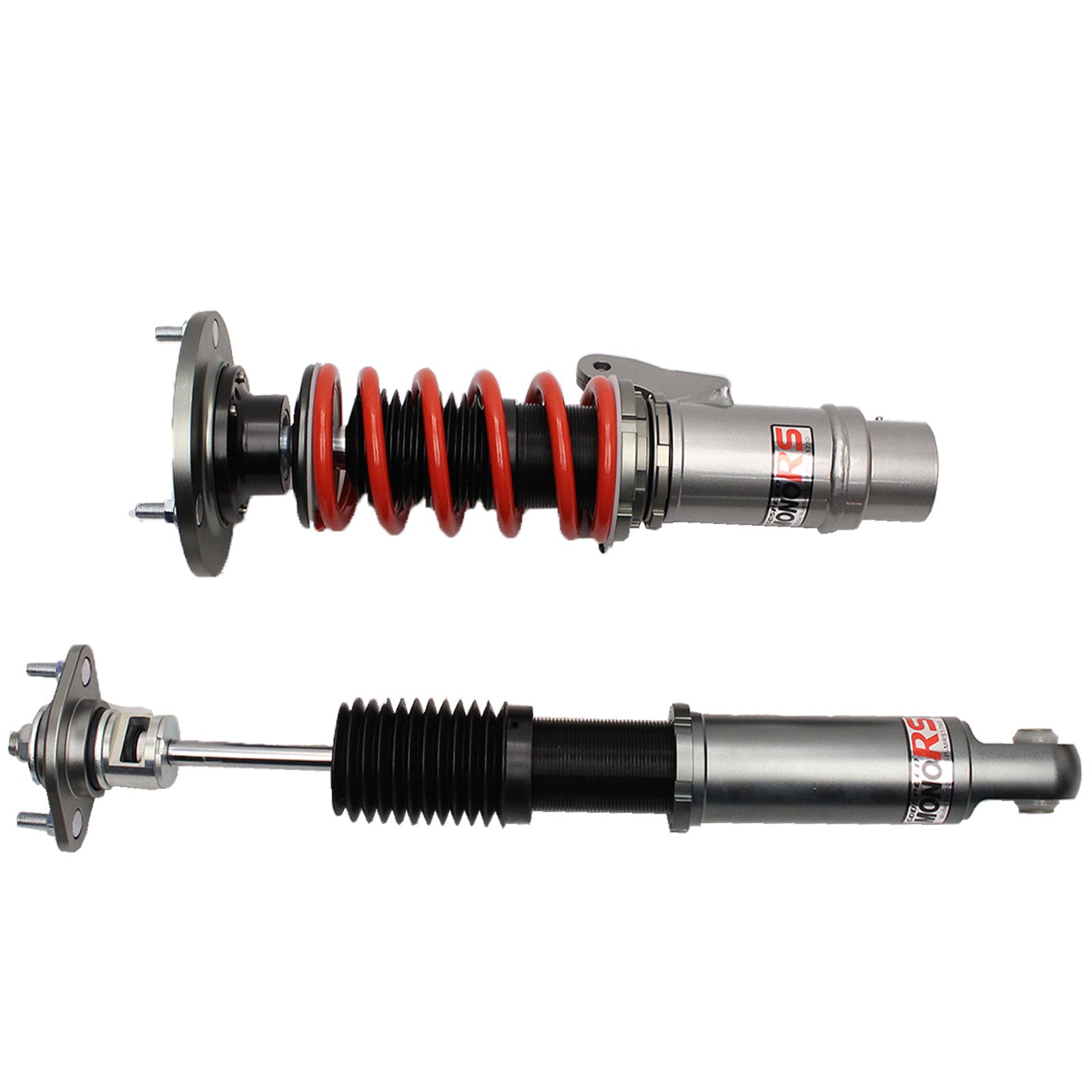

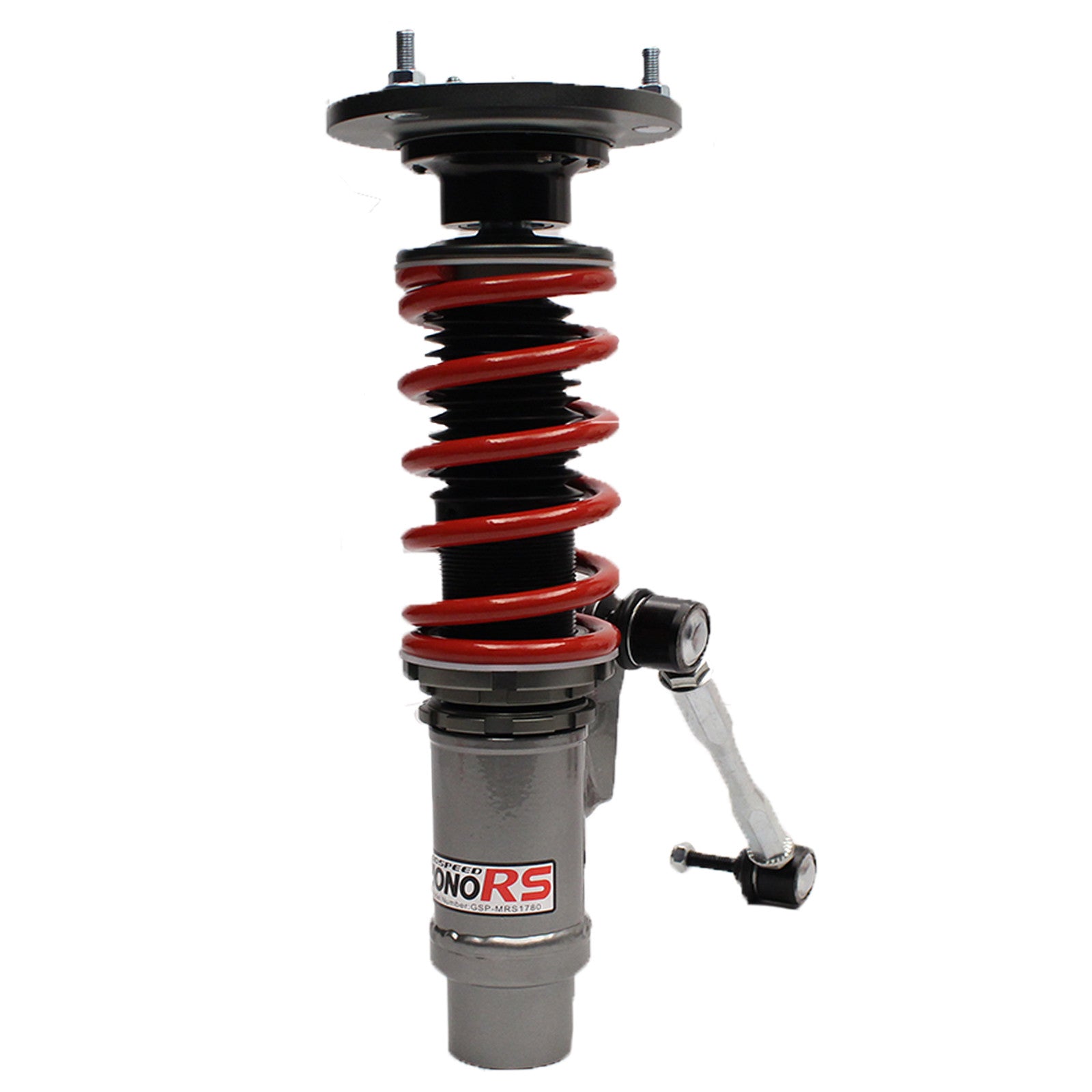

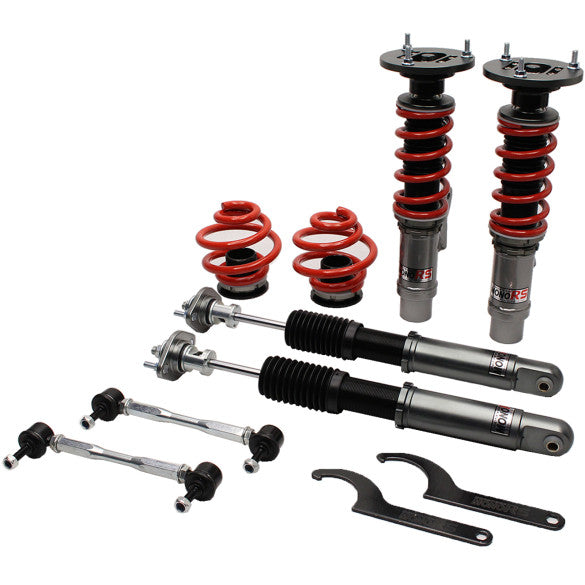

E85/E86 None-M, 2003-2008, MonoRS
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 32-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 7 kg/mm |
| Spring Rate(Rear) | 11 kg/mm |
| Spring Length(Front) | 170 mm |
| Spring Length(Rear) | 125 mm |
| Front Top Mount | Yes, Pillow Ball w/ Camber Plate |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm |
| Spring Inner Diameter(Rear) | 62 mm |
| Warranty Note | No |
| User Guide | Coilover User Guide |

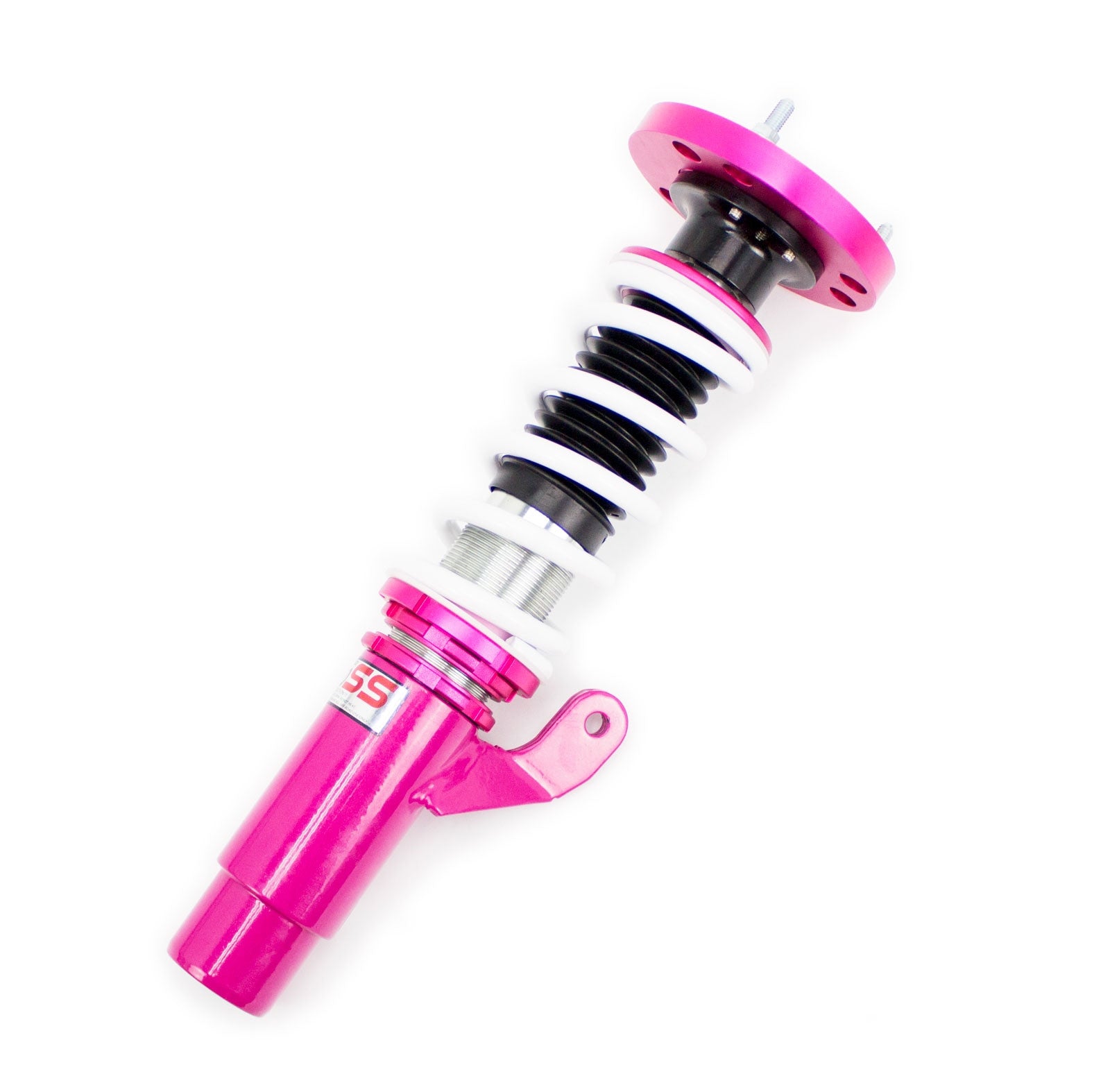

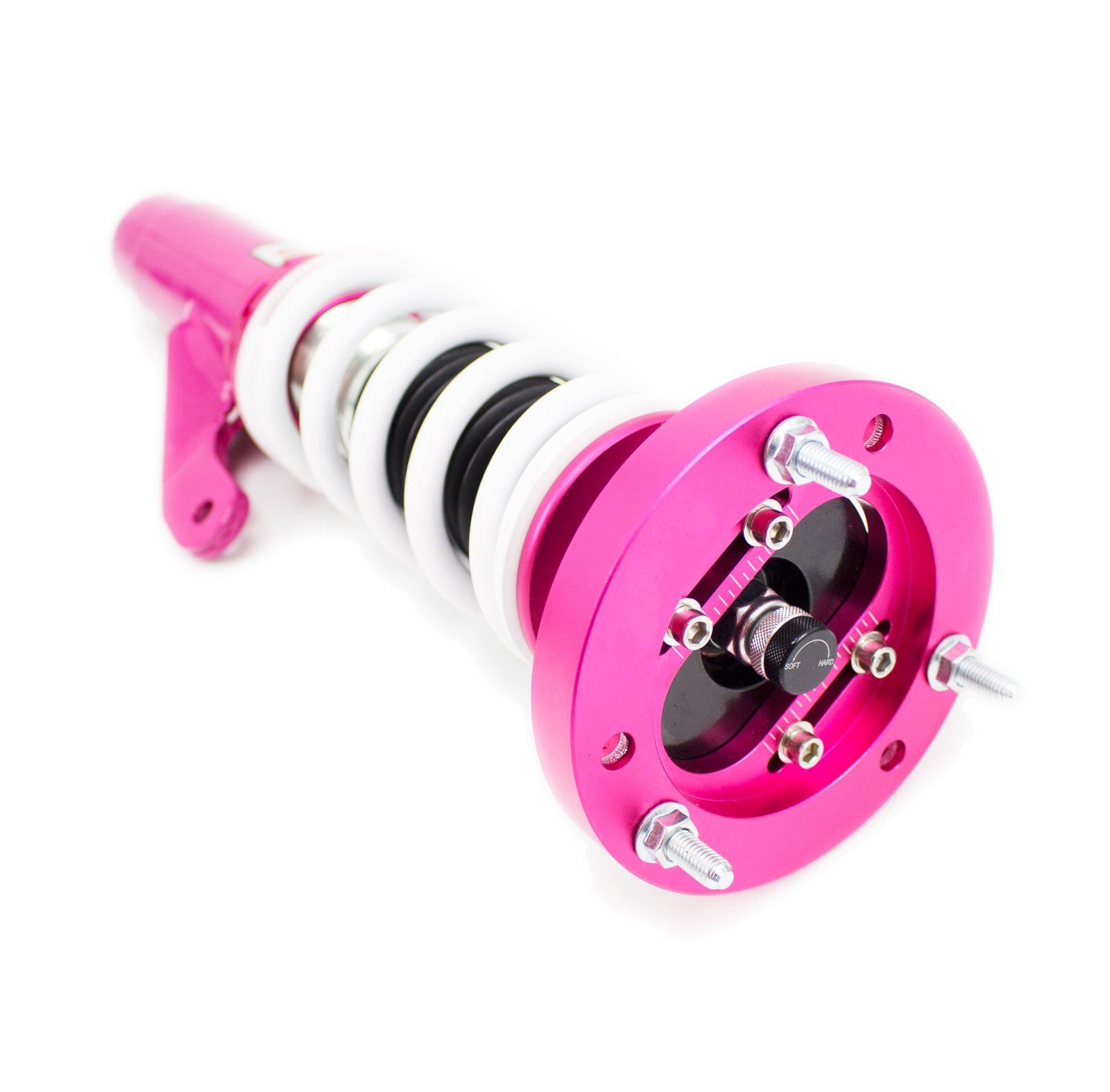

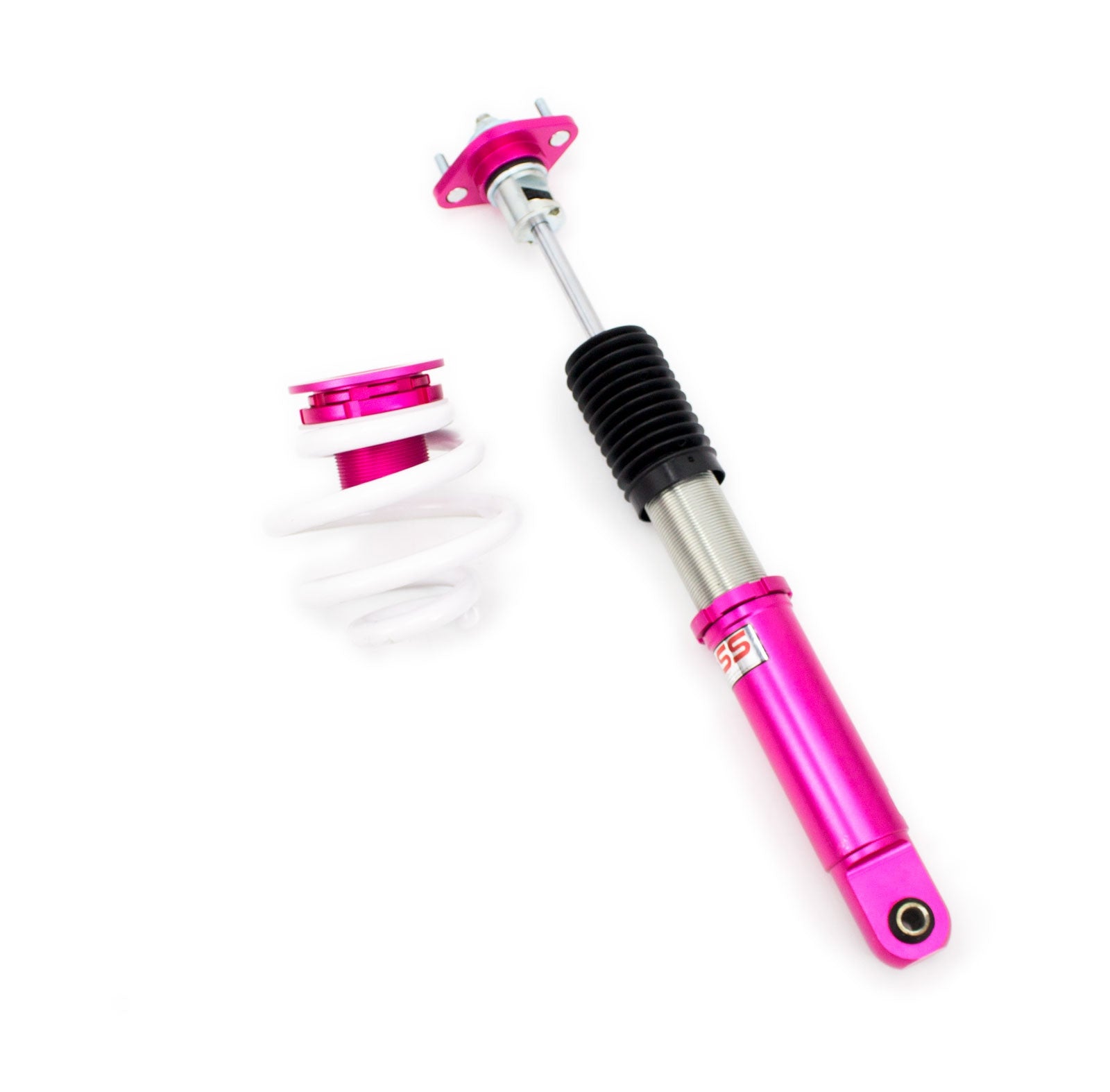

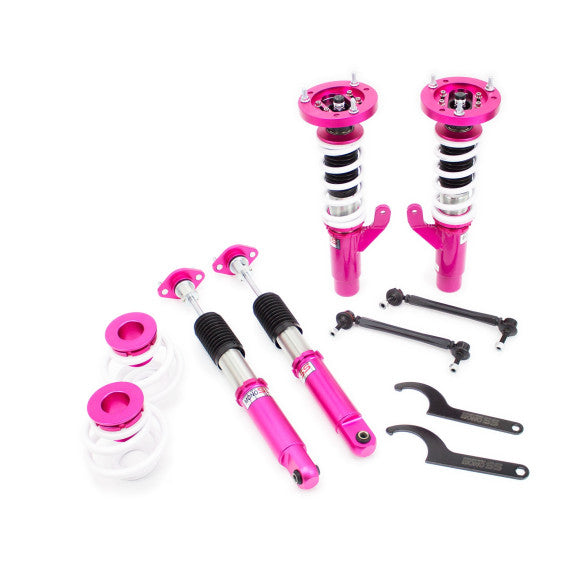

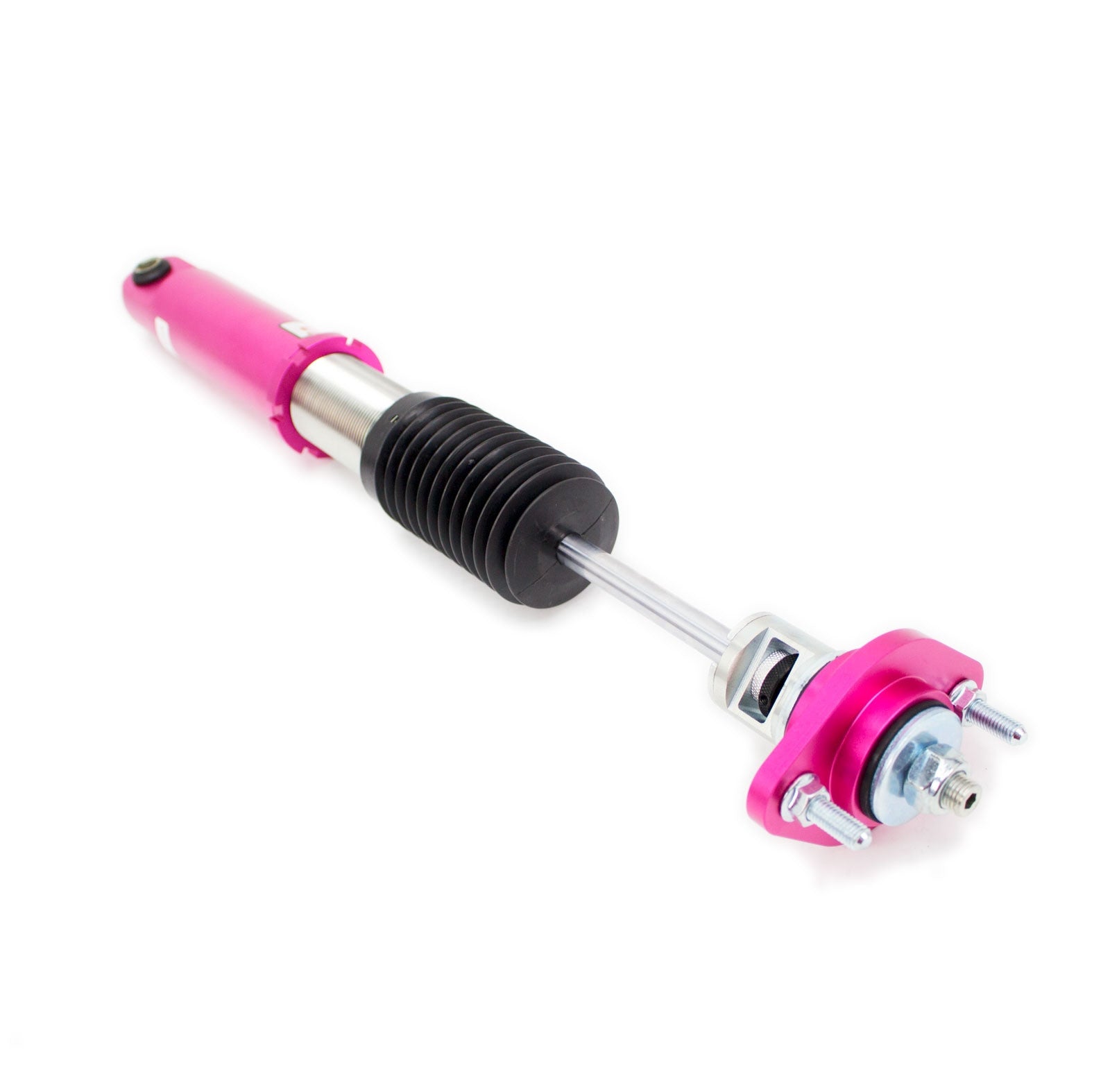

E85/E86 None-M, 2003-2008, MonoSS
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 8 kg/mm (448 lbs/inch) |
| Spring Rate(Rear) | 11 kg/mm (616 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 125 mm |
| Front Top Mount | Yes, Pillow Ball w/ Camber Plate |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 in.) |
| Spring Inner Diameter(Rear) | 47-62 mm |
| Warranty Note | N/A |
| User Guide | Coilover User Guide |
