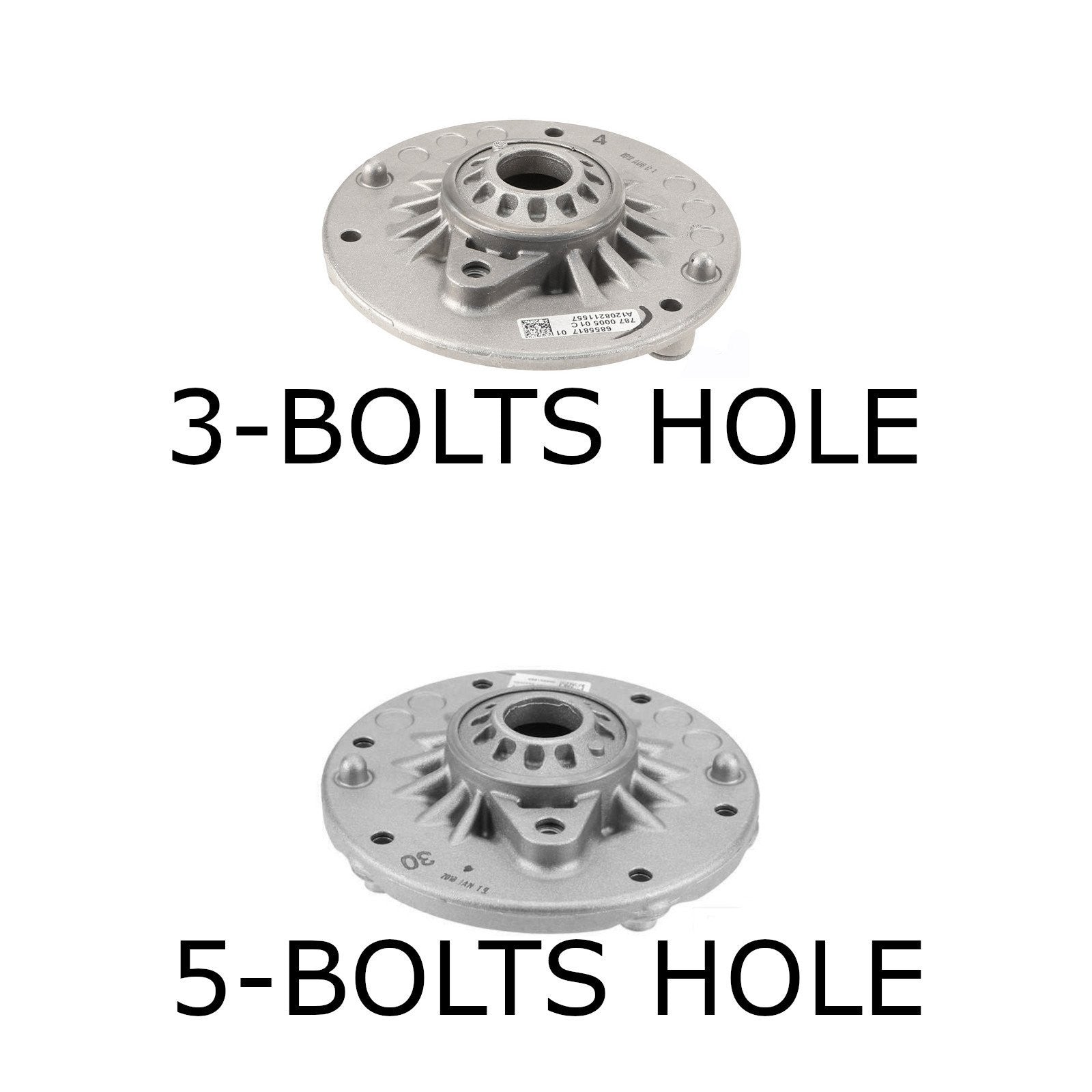

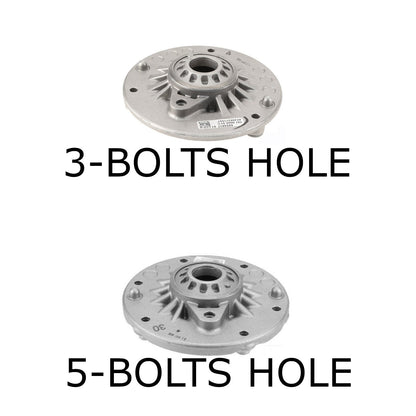

Godspeed BMW 228i/230i/M235i (F22/F23) MAXX Coilovers  228i/230i/M235i RWD, 2015-2021, 3-Bolts w/ EDC

Godspeed BMW 228i/230i/M235i (F22/F23) MAXX Coilovers

sku: 9CHV9 | mpn: MMX2320-AWD-D
$990.00
$990.00 $990.00
Sale Sold out
Shipping calculated at checkout.
Model, Style

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

228i/230i/M235i RWD, 2015-2021, 3-Bolts w/ EDC

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 12 kg/mm (672 lbs/inch)
Spring Length(Front) 140 mm
Spring Length(Rear) 245 mm

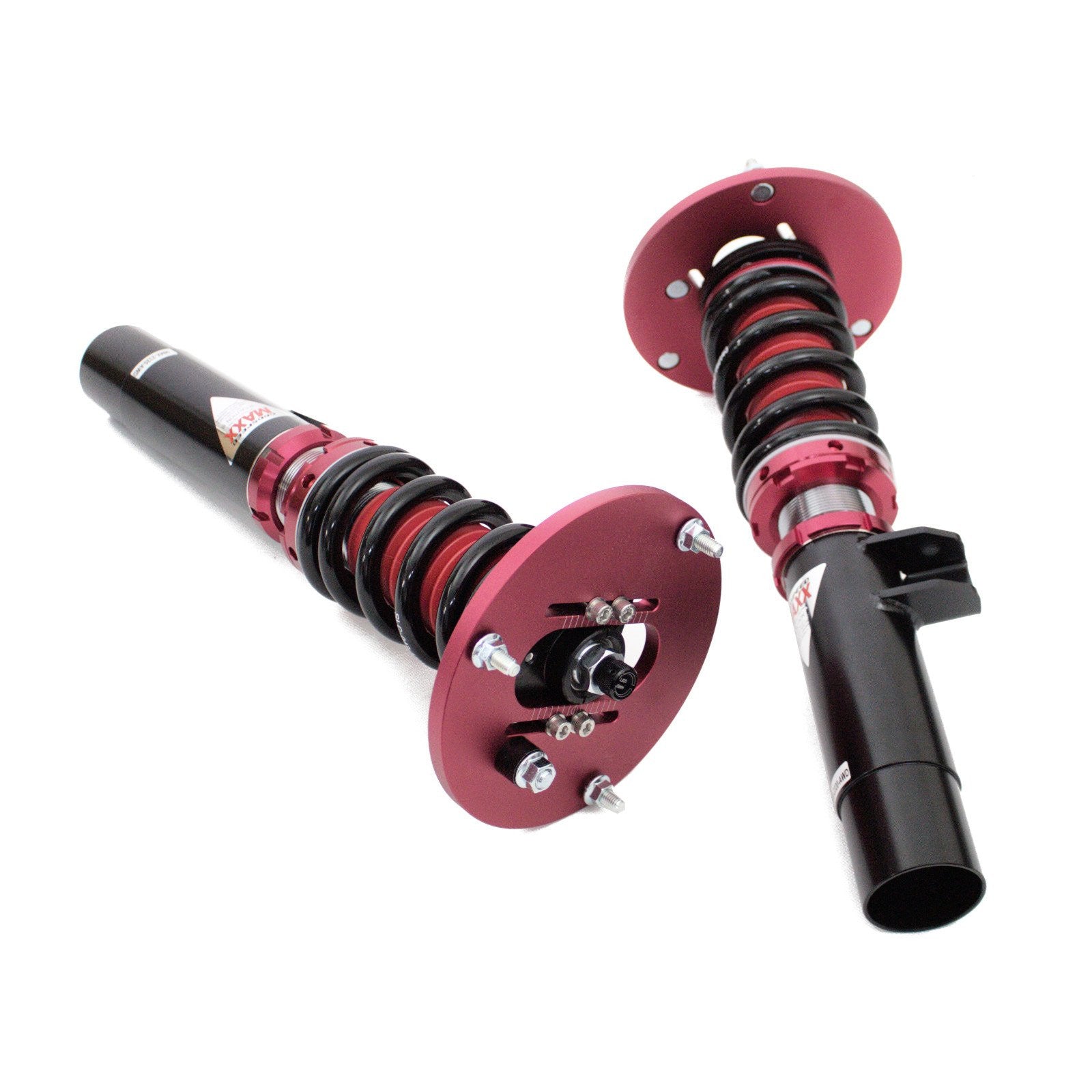

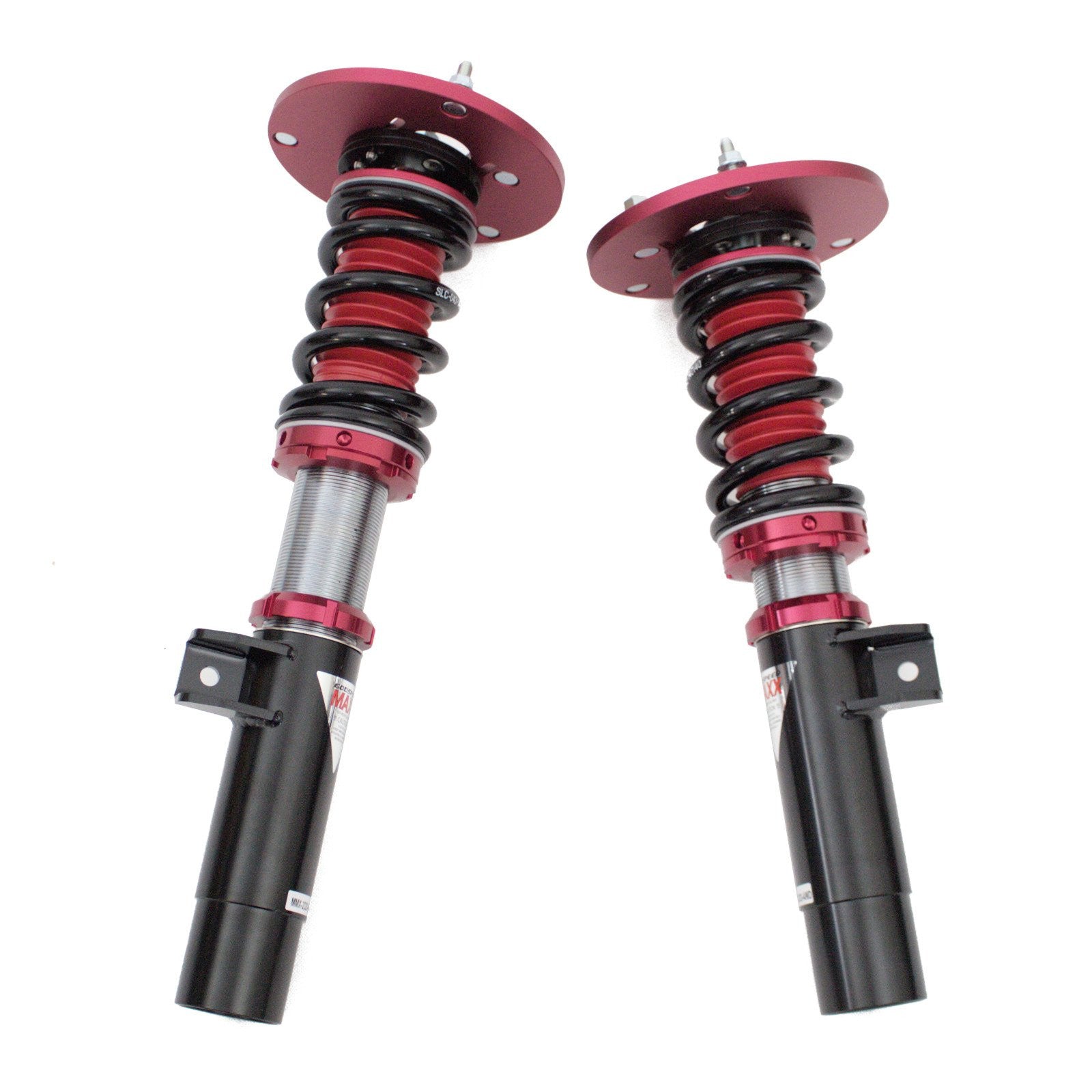

Front Top Mount Yes, Pillow Ball w/ Camber Plate

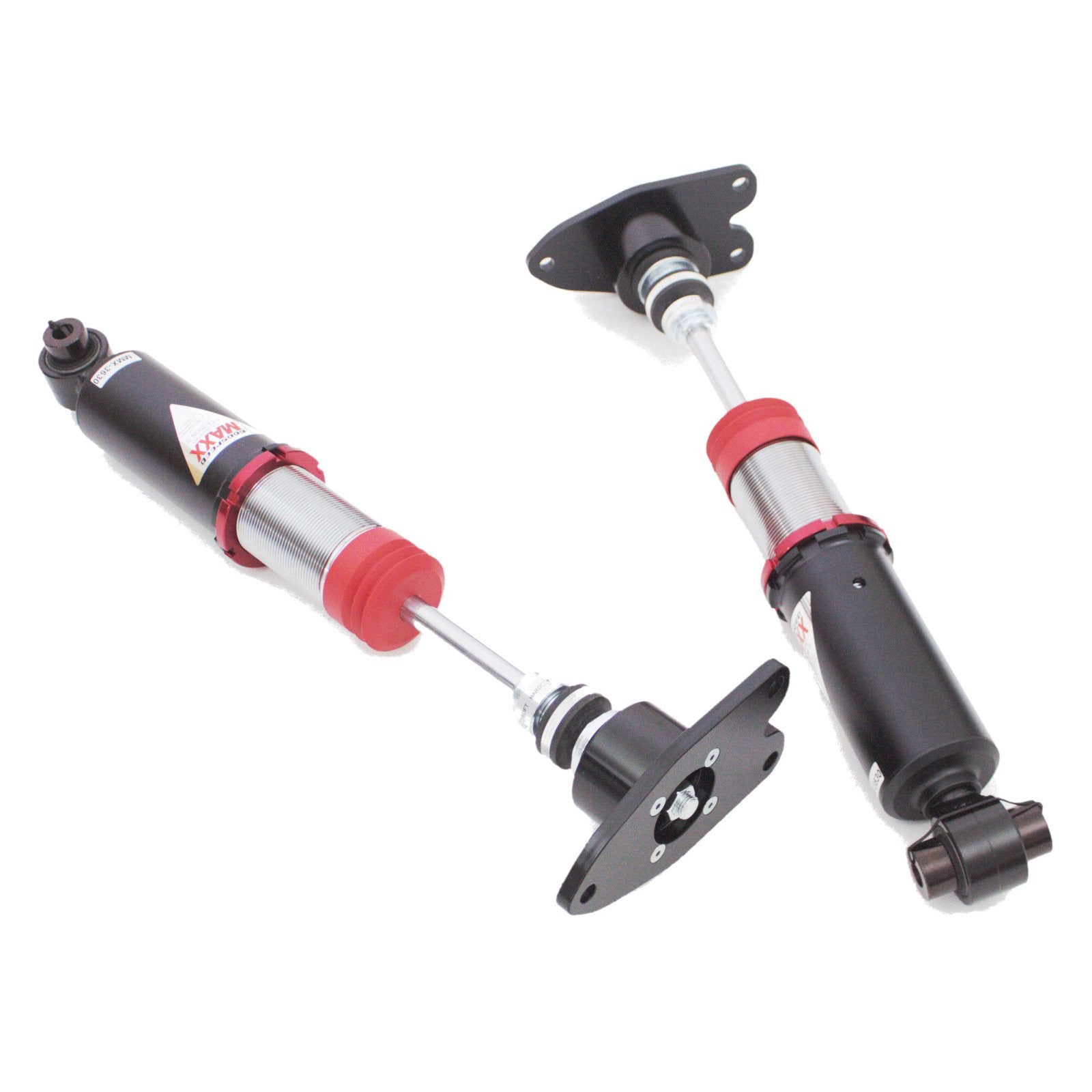

Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable.
User Guide Coilover User Guide

228i/230i/M235i xDrive, 2014-2015, 3-Bolts

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 12 kg/mm (672 lbs/inch)
Spring Length(Front) 140 mm
Spring Length(Rear) 245 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable.
User Guide Coilover User Guide
View full details
