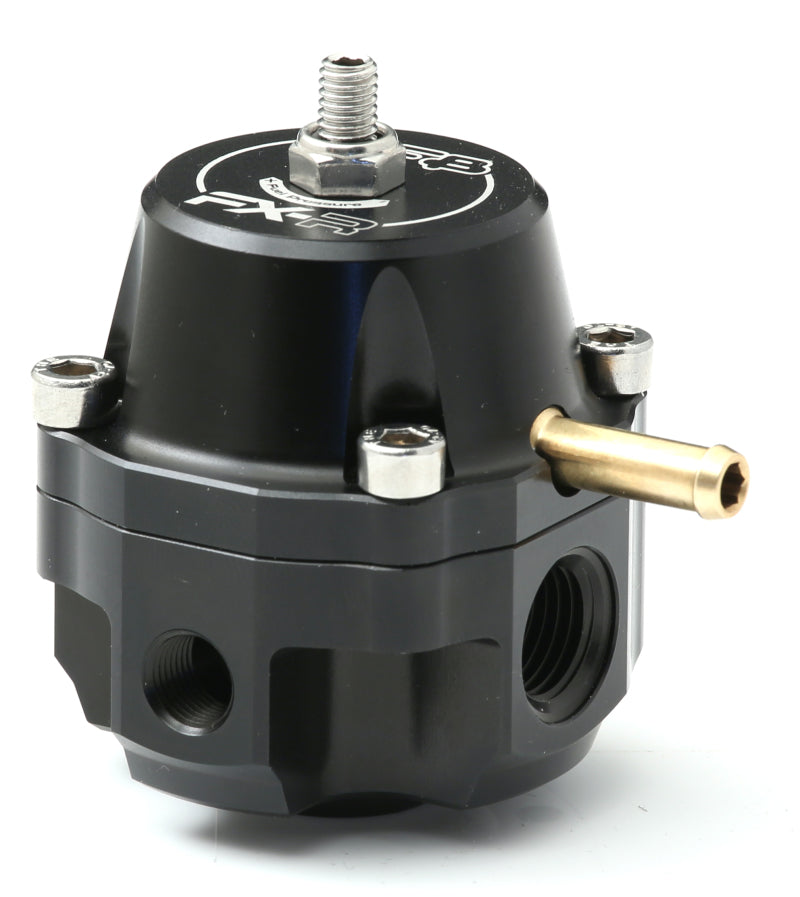

Go Fast Bits FX-R (Race) Fuel Pressure Regulator - Up To 1500hp
Here at Go Fast Bits, we have incorporated a softer, more compliant yet resilient material for the valve seat, which will always positively seal and hold fuel pressure on shut down, designed to give factory-like sealing and reliable startup, as well as superior fuel resistance suitable for Unleaded, Ethanol, Methanol, and Diesel fuels.
We also use a double layer diaphragm, which means we have twice the reinforcing material, and as a result the burst strength exceeds 1000psi!
The FX-R also offers multiple fuel inlet and gauge ports that allow for a wide range of fuel system setups beyond the usual inlet/outlet, including parallel fuel rail or returnless "deadhead" systems. The two gauge ports allow you to run a mechanical fuel pressure gauge AND an ECU fuel
pressure sensor if you want to.
FEATURES
- 1:1 fuel pressure rise rate
- Double layer/double reinforced diaphragms with a burst strength exceeding 1000psi
- Teflon co-polymer seat with stainless valve to retain fuel pressure longer after shut down
- Spring pre-load adjustment screw is o-ring sealed and does not leak vacuum/boost
- Static pressures adjustable from 28psi to 72psi
- Completely serviceable
- Multiple body ports allow for a large variety of setup options
- Features 2x -6 AN ports for fuel inlet/s, 2x 1/8" NPT ports for pressure gauge and/or ECU sensor, and 1x -6 AN return port
SPECIFICATION
- Color : Black
- Type : Fuel Pressure Regulator
