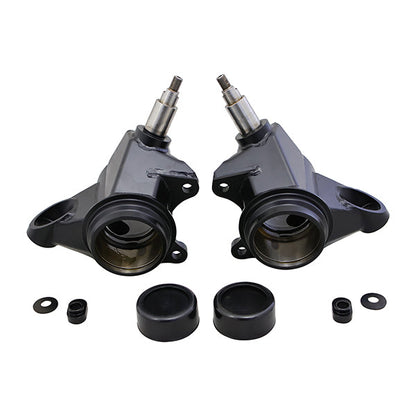

GKTECH V3 Super Lock R32/R33/R34/Z32 Pro Drop Knuckles
GKTECH V3 Super Lock R32/R33/R34/Z32 Pro Drop Knuckles
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Available to order
Shipping & returns
Available to order. Contact us before ordering to confirm lead time.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
- Shipping dimensions (L × W × H)
- Shipping weight
- 10.0 lb
Billable shipping weight; may include dimensional weight.

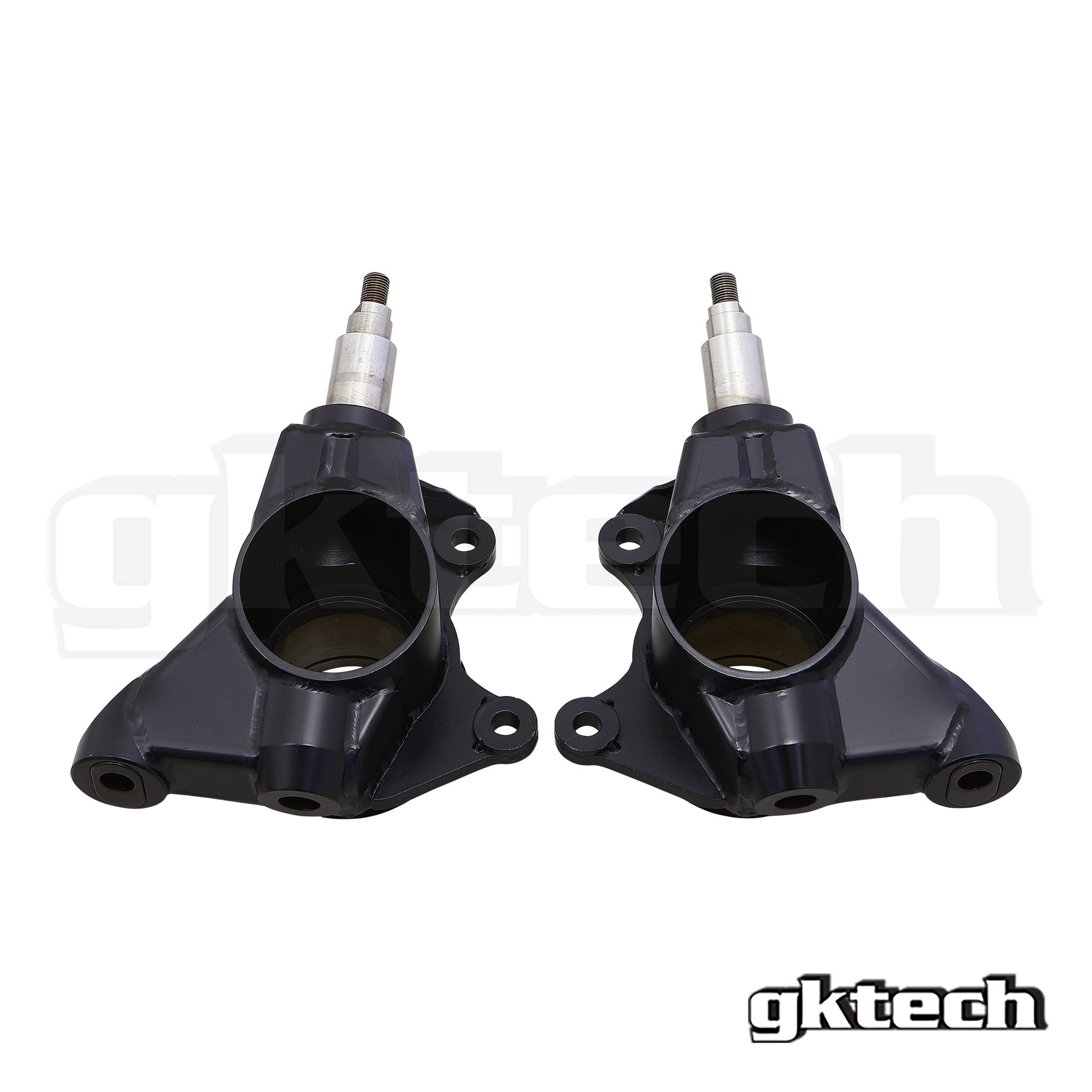

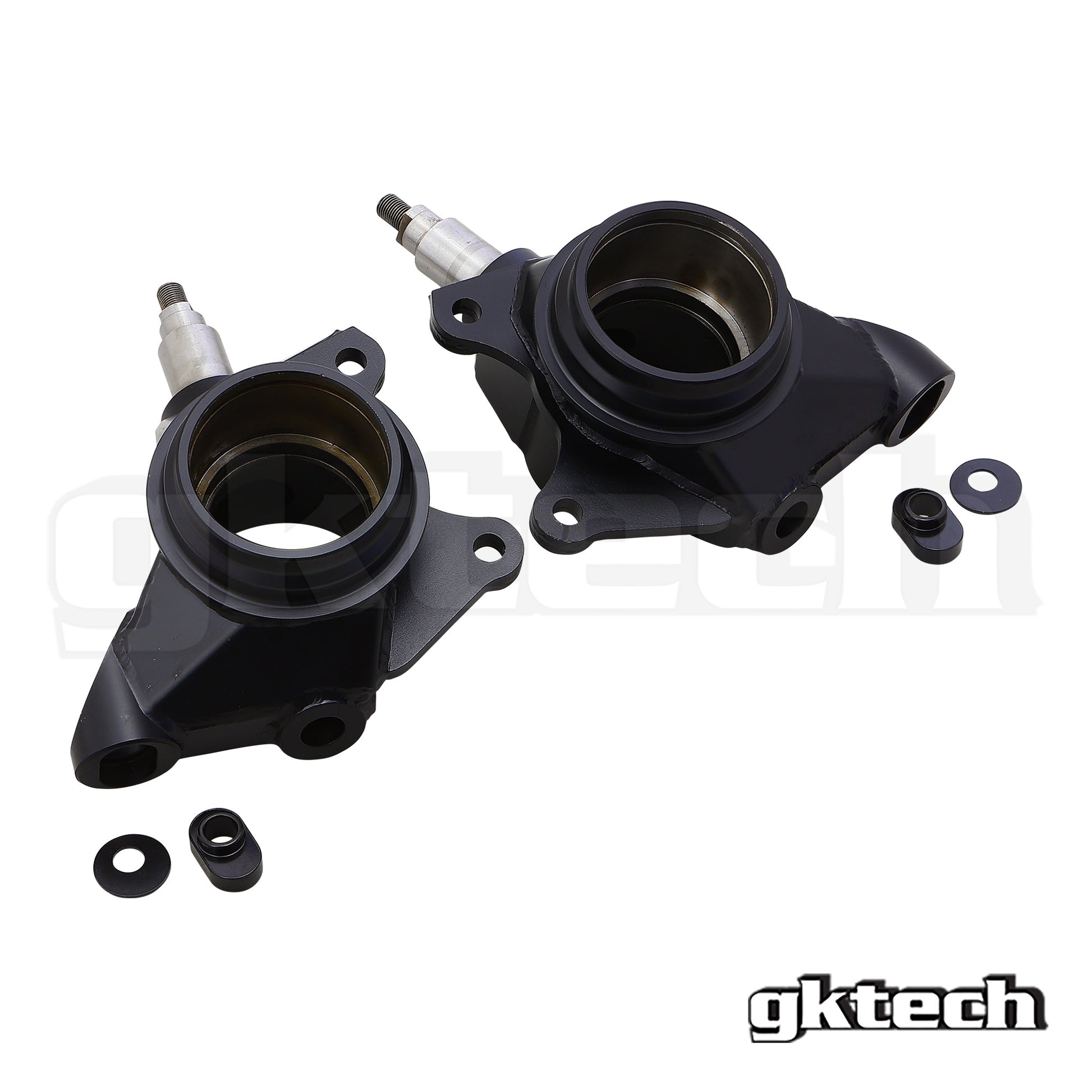

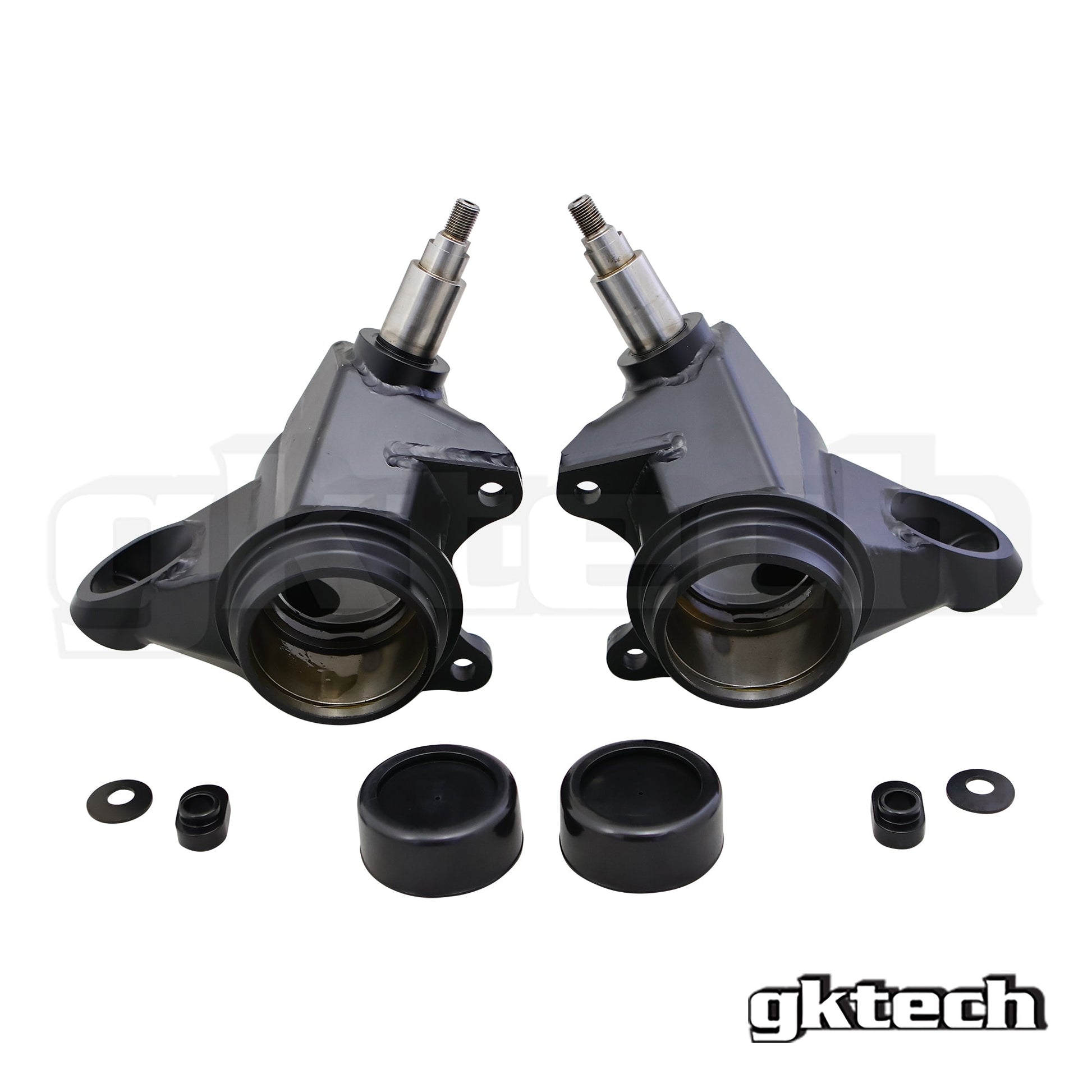

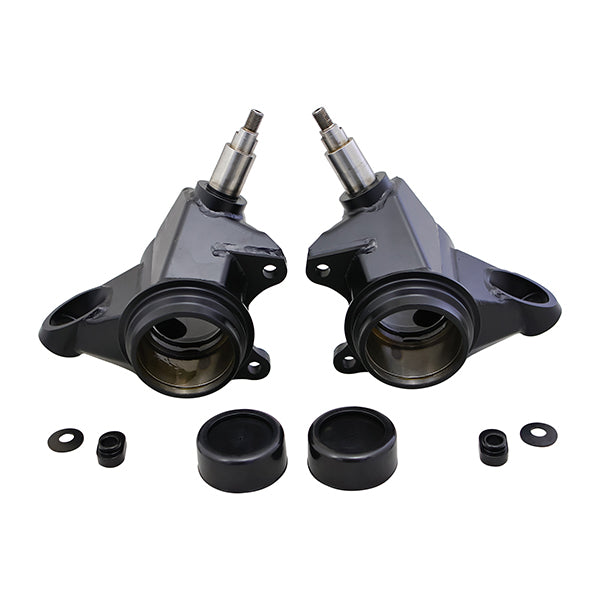

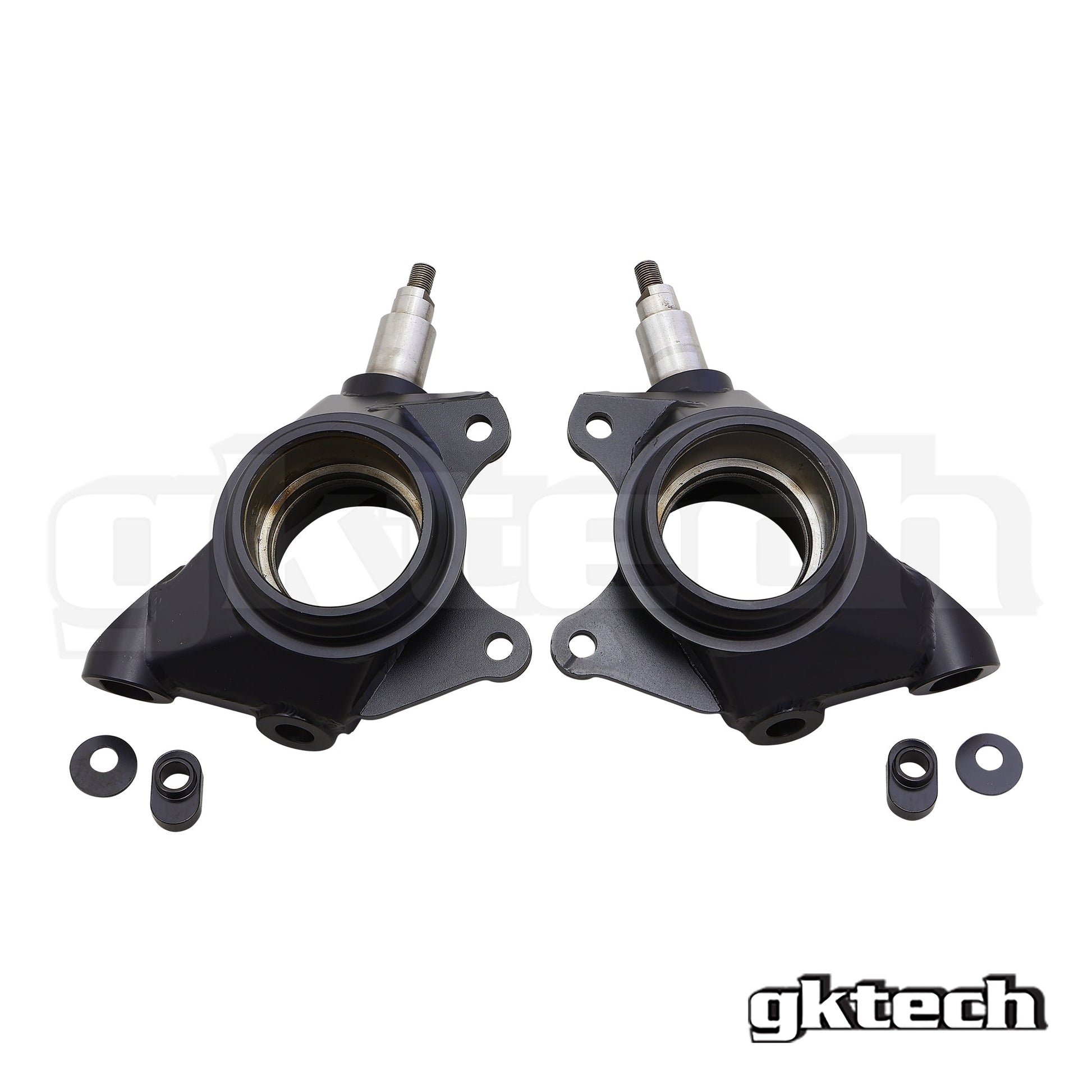

Introducing the V3 GKTECH Super Lock Pro Drop Front Knuckles for R32, R33, R34, and Z32 models. These knuckles represent a significant evolution from our previous designs, leveraging extensive Finite Element Analysis (FEA) to deliver a lightweight, sheet metal construction that enhances both strength and agility.

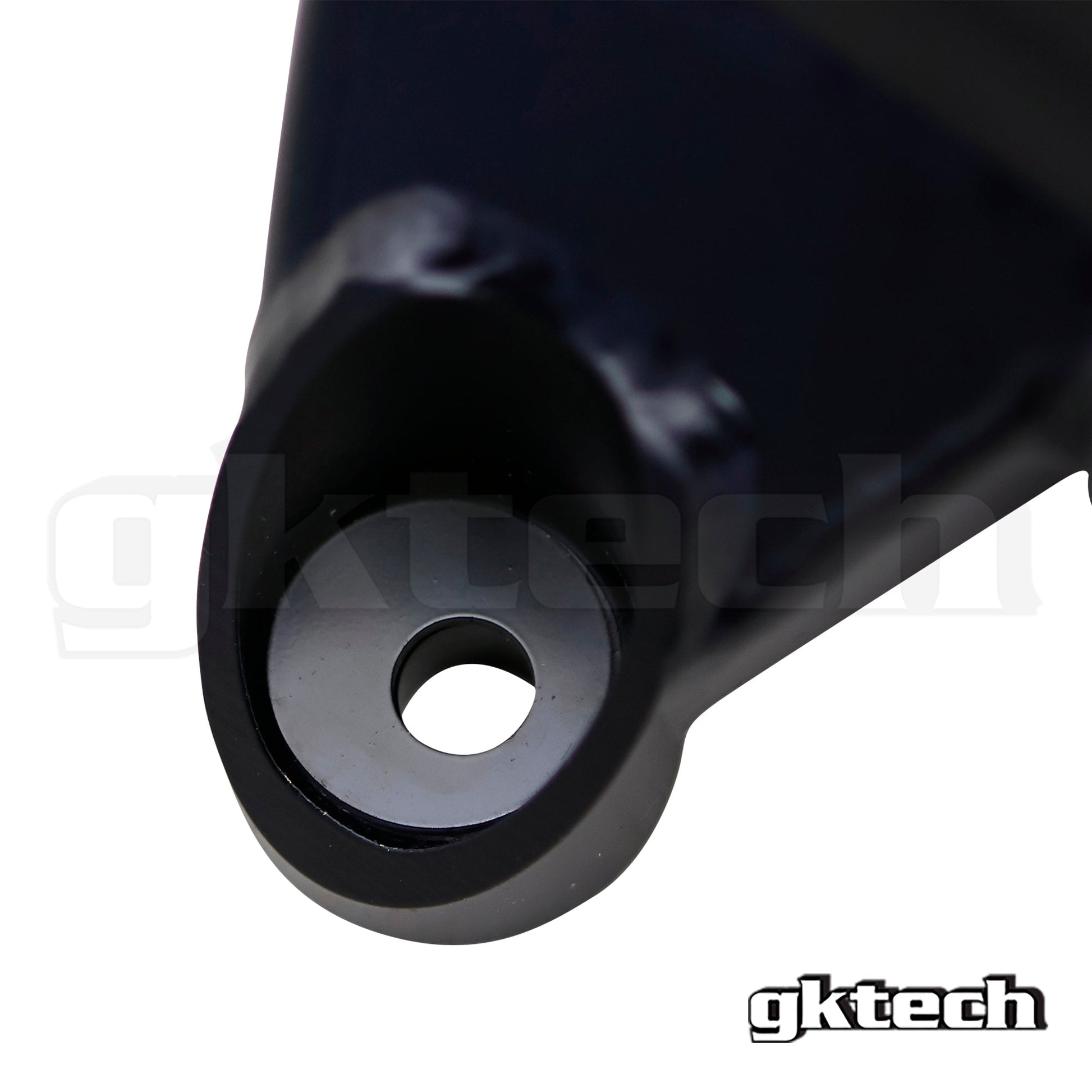

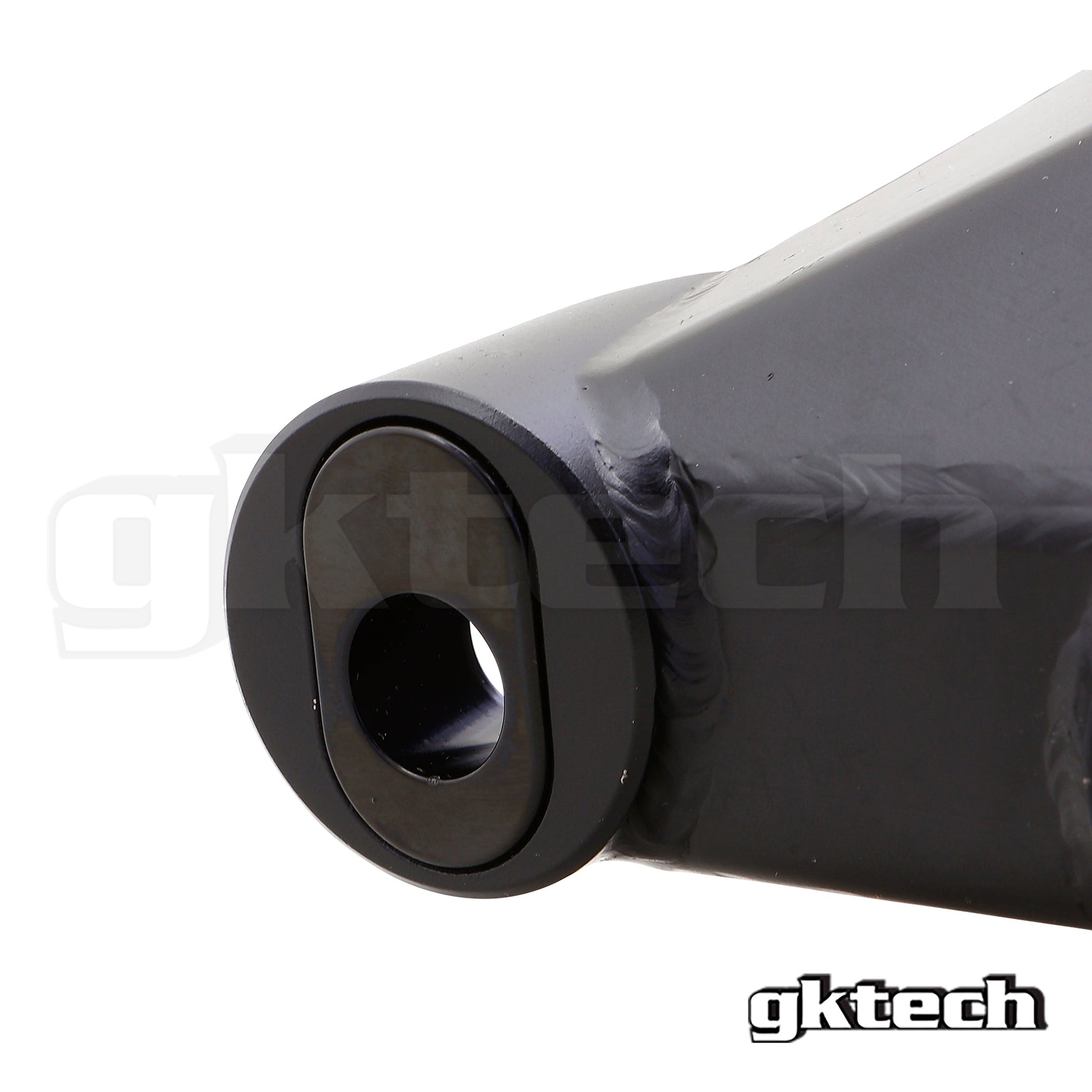

Designed to achieve over 65 degrees of steering lock effortlessly, these knuckles ensure a precise, linear steering response ideal for both drift and circuit racing applications. The adjustable ackermann feature allows for fine-tuning between ackermann and parallel steering setups with a single insert on the tie rod pickup.
Key Features:
- Enhanced spindle height for improved roll center and bump steer correction
- Over 65 degrees of steering lock capability
- Adjustable ackermann for tailored steering characteristics
- Lightweight design, reducing weight by 3.08 lbs per knuckle
- Available in specific versions for R32/Z32 and R33/R34 platforms
- Provides a linear steering response for optimal control
Further refinements include:
- Increased steering angle of 60-65° (varies with steering rack and modifications)
- Reduced bump steer and camber gain for more consistent tire wear and increased grip
- Raised roll center height to enhance chassis stability
- Minimized jacking and tire scrub for improved handling and grip
- Total weight reduction of 2.8 kg reduces unsprung mass for enhanced road adherence
- Based on precise 3D scanned OEM knuckle dimensions
- CAD engineered for precision, FEA optimized for durability and weight savings
- Utilizes high-strength CrMo steel throughout
- CNC machined components for straightforward installation
- TIG welded construction ensures strength, lightness, and aesthetic appeal
- Zinc coating provides durability against corrosion
- Not compatible with wheel speed sensors
The V3 GKTECH Super Lock Pro Drop Front Knuckles set a new standard in performance and reliability, ideal for drivers seeking uncompromising steering precision and responsiveness on the track.
Want more technical information, product benefits and a look into the design process? Click here:
GKTECH R CHASSIS STEERING KNUCKLE (R32/R33/R34/Z32 FRONT KNUCKLES)
Installation Notes
- For Z32 owners these knuckles are designed on using a J-arm top bearing with I.D of 28mm, this is 98% of all J-arms, but may be worth checking to ensure it is a straight fit. If not, the 28mm I.D bearing can be purchased and will be needed.
- Also for Z32 owners, these knuckles will only work with the use of either OEM S/R outer tie rod ends, or ours which can be seen here:
S/R Chassis M14 Tie Rod Ends
- Only suits RWD steering setups. GTS-4 and GTR front suspension setups are different and these knuckles will NOT work with them.
- When using R34 front brake calipers the mounting holes need to be drilled out from 12mm to 14mm (there is enough material to cater for the increase in hole diameter).
- Does NOT have a provision for ABS
- If you are running Gktech front brake lines please check the brake line clearance on full lock between the J-arm and the brake line as depending on your setup, it may interfere and the J-arm brace needs to be clearanced to suit.
