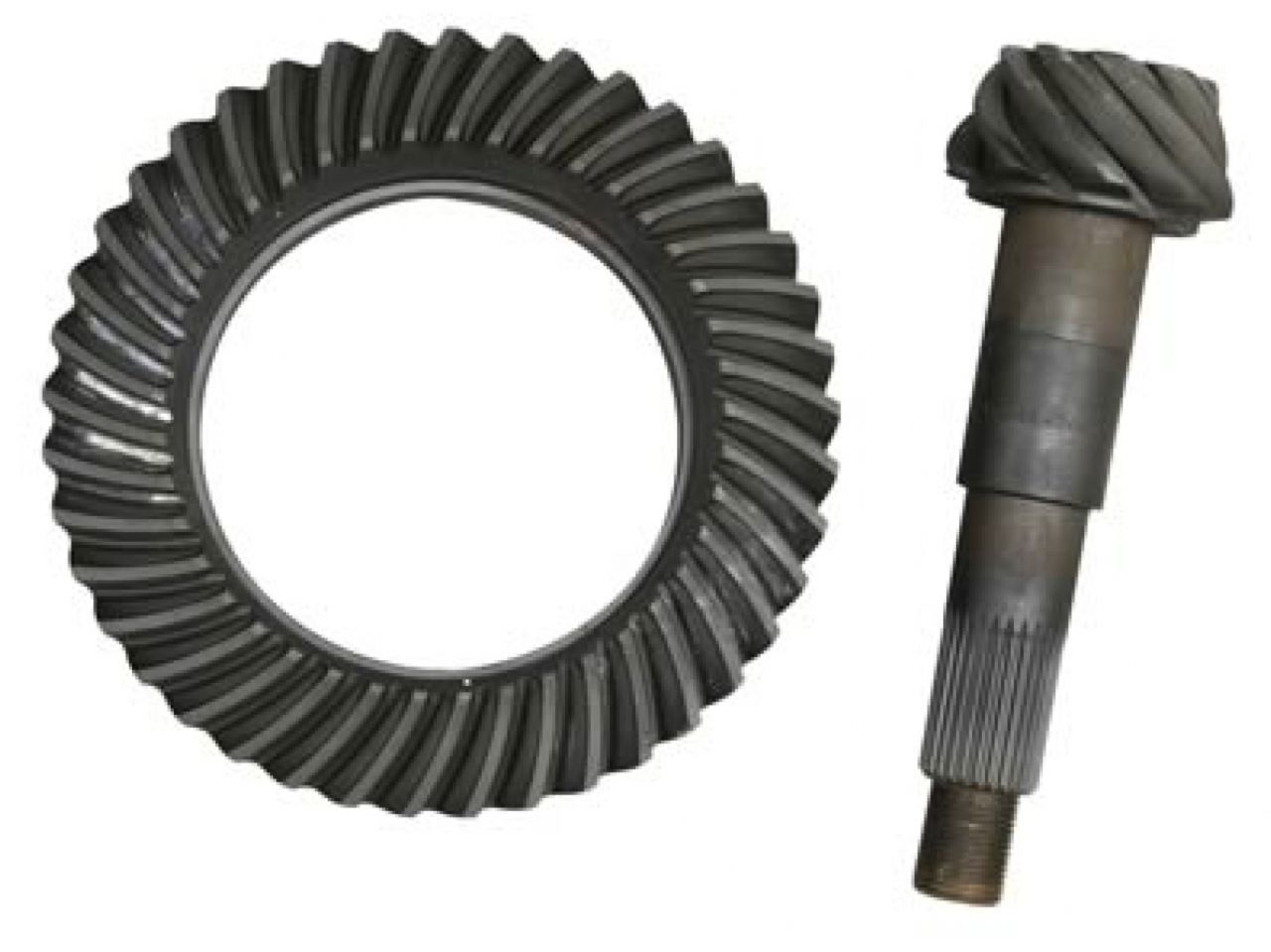

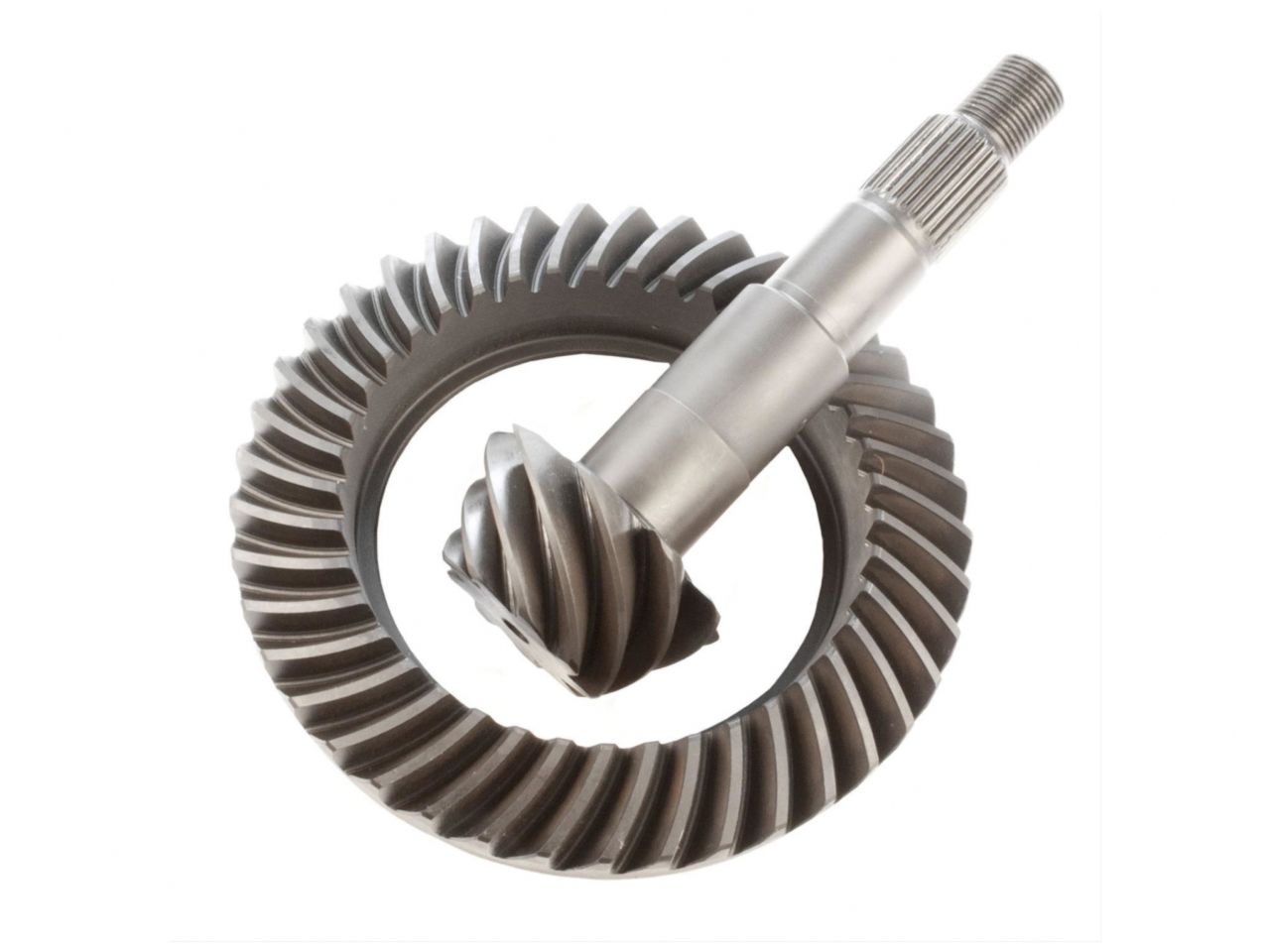

Richmond Gear Ring and Pinion Sets

Richmond Gear is the leading manufacturer of professional-quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. Richmond also offers these gear sets in a lightened version for the weight-conscious enthusiast. Their lightened ring and pinion sets feature an outstanding rotating weight loss of up to 6 lbs., ground pinion threads for trouble-free installation, and a special heat treatment for improved strength.

SPECIFICATIONS:

• Part Type:Gear Ring and Pinion Sets
• UPC:698231703977
• Ring and Pinion Ratio: 4.56:1
• Cover Bolts:10
• Ring Gear Bolts:10
• Pinion Spline Count:27
• Carrier Series:3
• Ring Gear Rotation:Standard
• Ring Gear Teeth: 41
• Pinion Gear Teeth:9
• Ring Gear Diameter (in): 7.500 in.
• Pinion Shaft Diameter (in):1.438 in.
• Installation Kit Included:No
• Quantity:Sold as a set.
• Notes:3.23:1 or numerically higher carrier. Requires special cross pin not included. Not for use on 1999 and up F-bodies if it has the factory torsen positraction, unless you purchase a special split paddle block kit. Richmond does not recommend use with a mini-spool.
