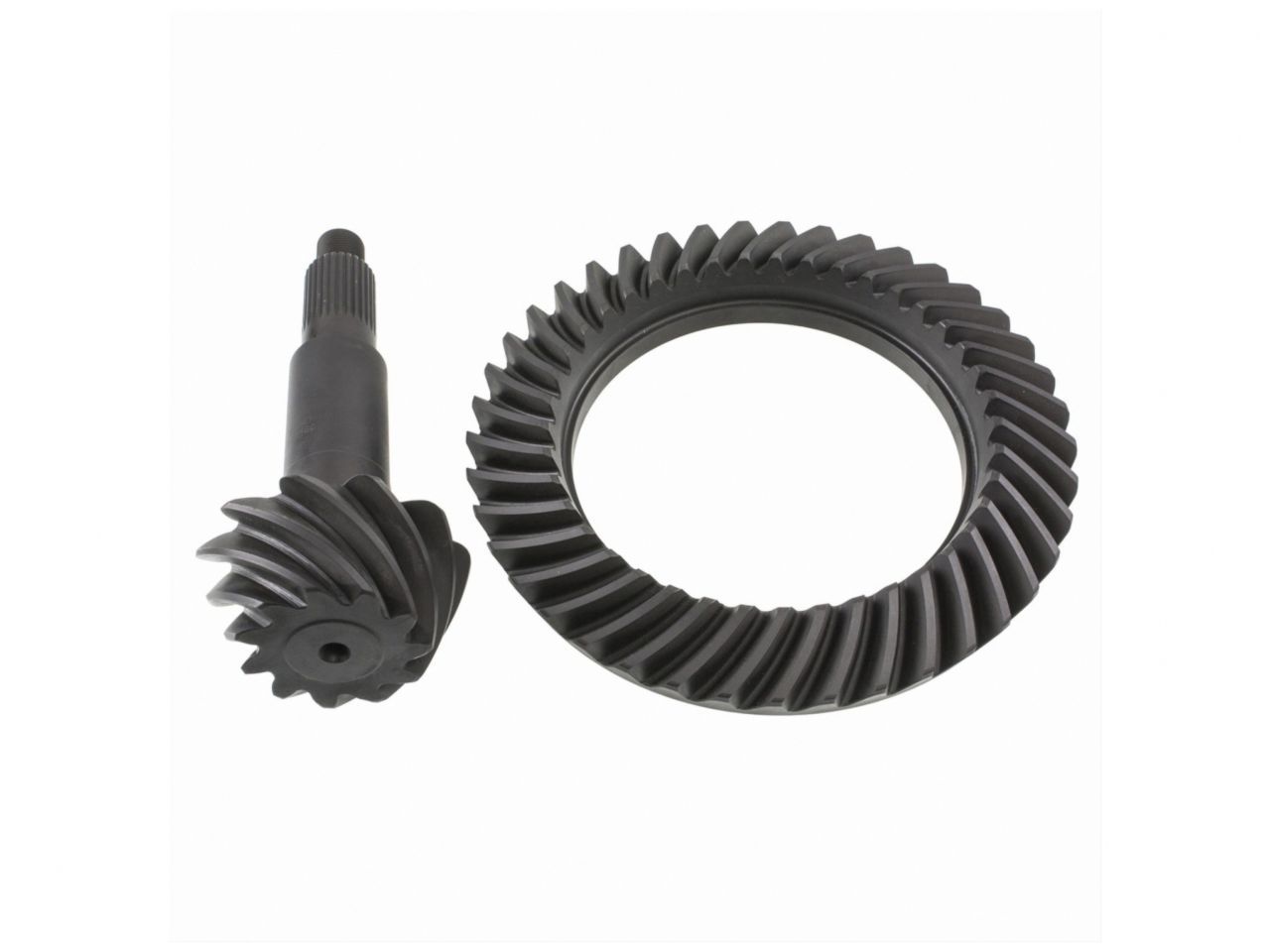

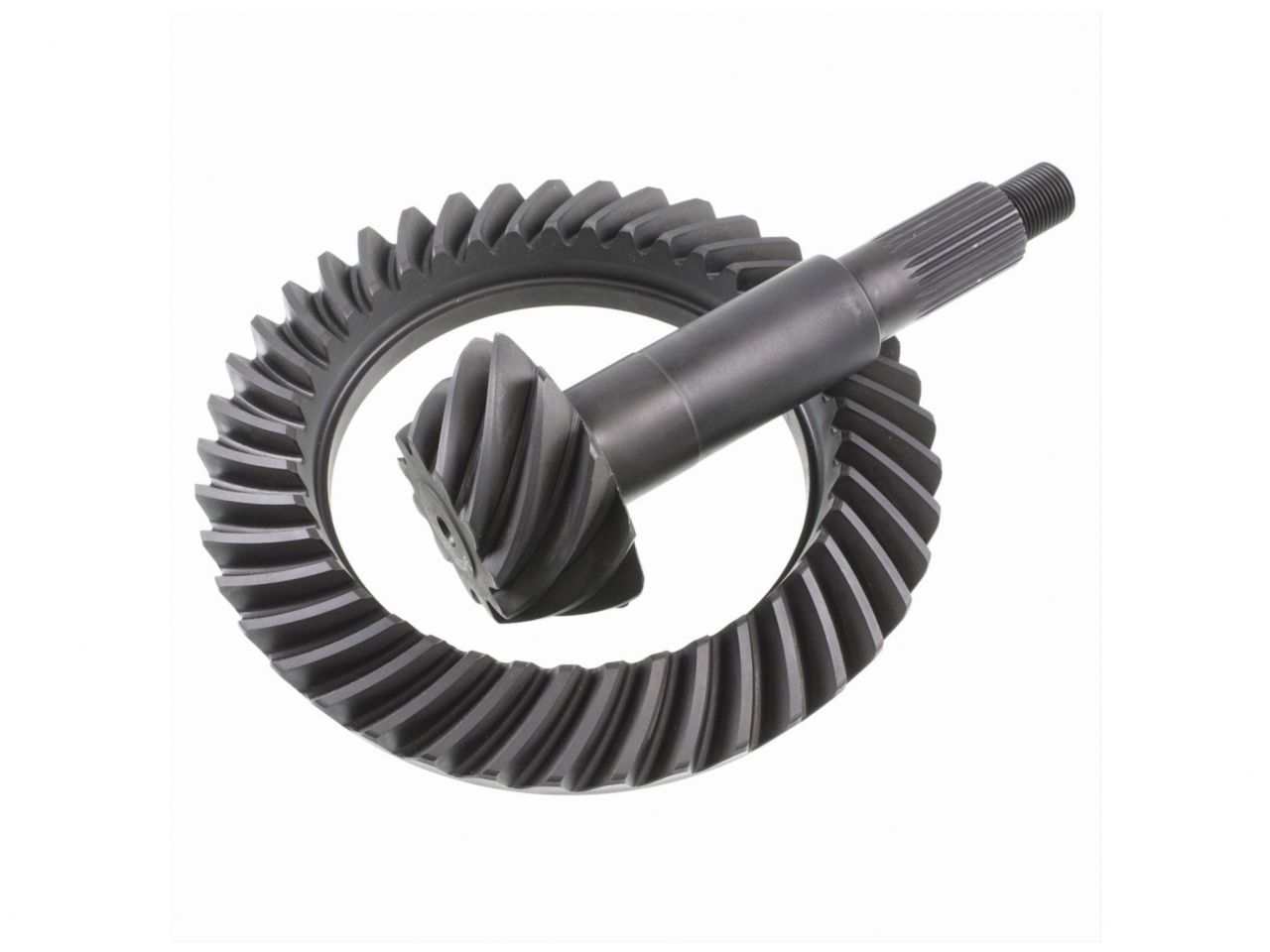

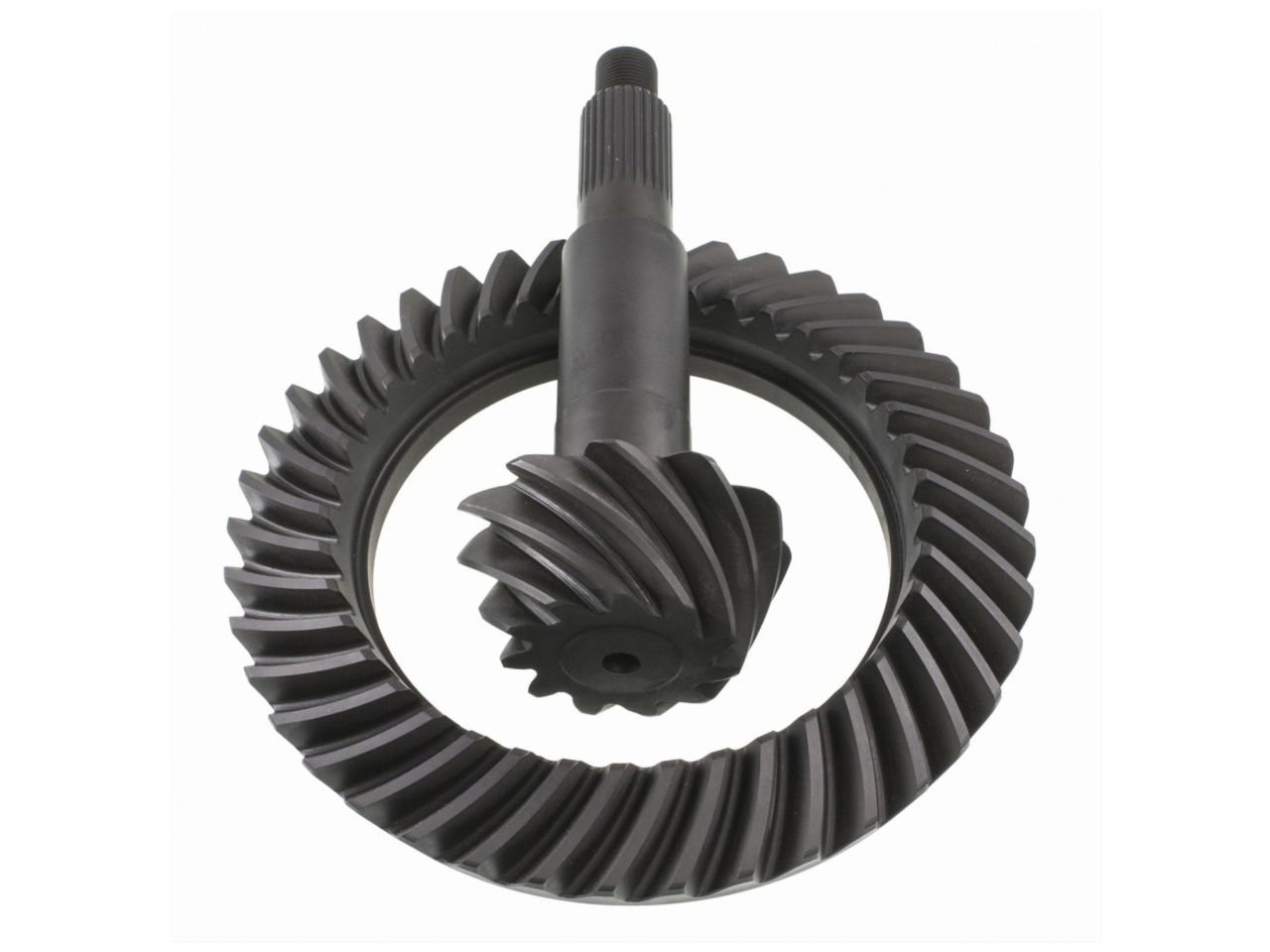

Richmond Gear Ring and Pinion Sets

Richmond Gear is the leading manufacturer of professional-quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. Richmond also offers these gear sets in a lightened version for the weight-conscious enthusiast. Their lightened ring and pinion sets feature an outstanding rotating weight loss of up to 6 lbs., ground pinion threads for trouble-free installation, and a special heat treatment for improved strength.

SPECIFICATIONS:

• Part Type: Ring and Pinion Gear
• UPC:698231685228
• Ring and Pinion Ratio:3.73:1
• Cover Bolts:10
• Ring Gear Bolts:12
• Pinion Spline Count:29
• Carrier Series:3
• Ring Gear Rotation:Standard
• Ring Gear Teeth:41
• Pinion Gear Teeth:11
• Ring Gear Diameter (in):9.750 in.
• Pinion Shaft Diameter (in):1.626 in.
• Installation Kit Included:No
• Quantity:Sold as a set.
