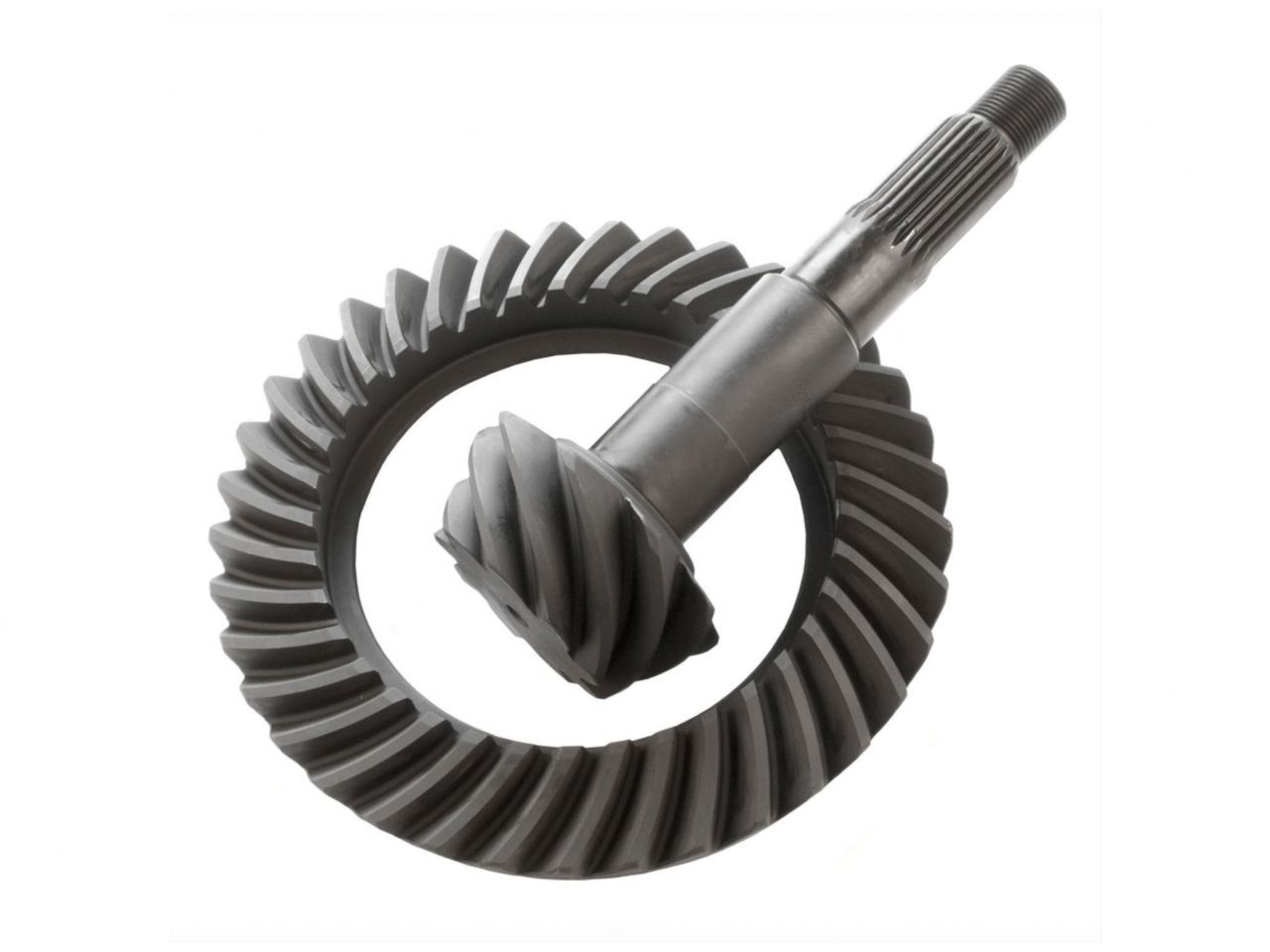

Richmond Gear Ring and Pinion Sets

Richmond Gear is the leading manufacturer of professional-quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. Richmond also offers these gear sets in a lightened version for the weight-conscious enthusiast. Their lightened ring and pinion sets feature an outstanding rotating weight loss of up to 6 lbs., ground pinion threads for trouble-free installation, and a special heat treatment for improved strength.

SPECIFICATIONS:

• Part Type:Ring and Pinion Gears
• UPC: 698231705360
• Ring and Pinion Ratio:4.56:1
• Cover Bolts:10
• Ring Gear Bolts:10
• Pinion Spline Count: 25
• Carrier Series:3
• Ring Gear Rotation: Standard
• Ring Gear Teeth: 41
• Pinion Gear Teeth:9
• Ring Gear Diameter (in):8.200in.
• Pinion Shaft Diameter (in):1.438 in.
• Installation Kit Included:No
• Quantity:Sold as a set.
• Notes:3.08:1 or numerically higher carrier.
