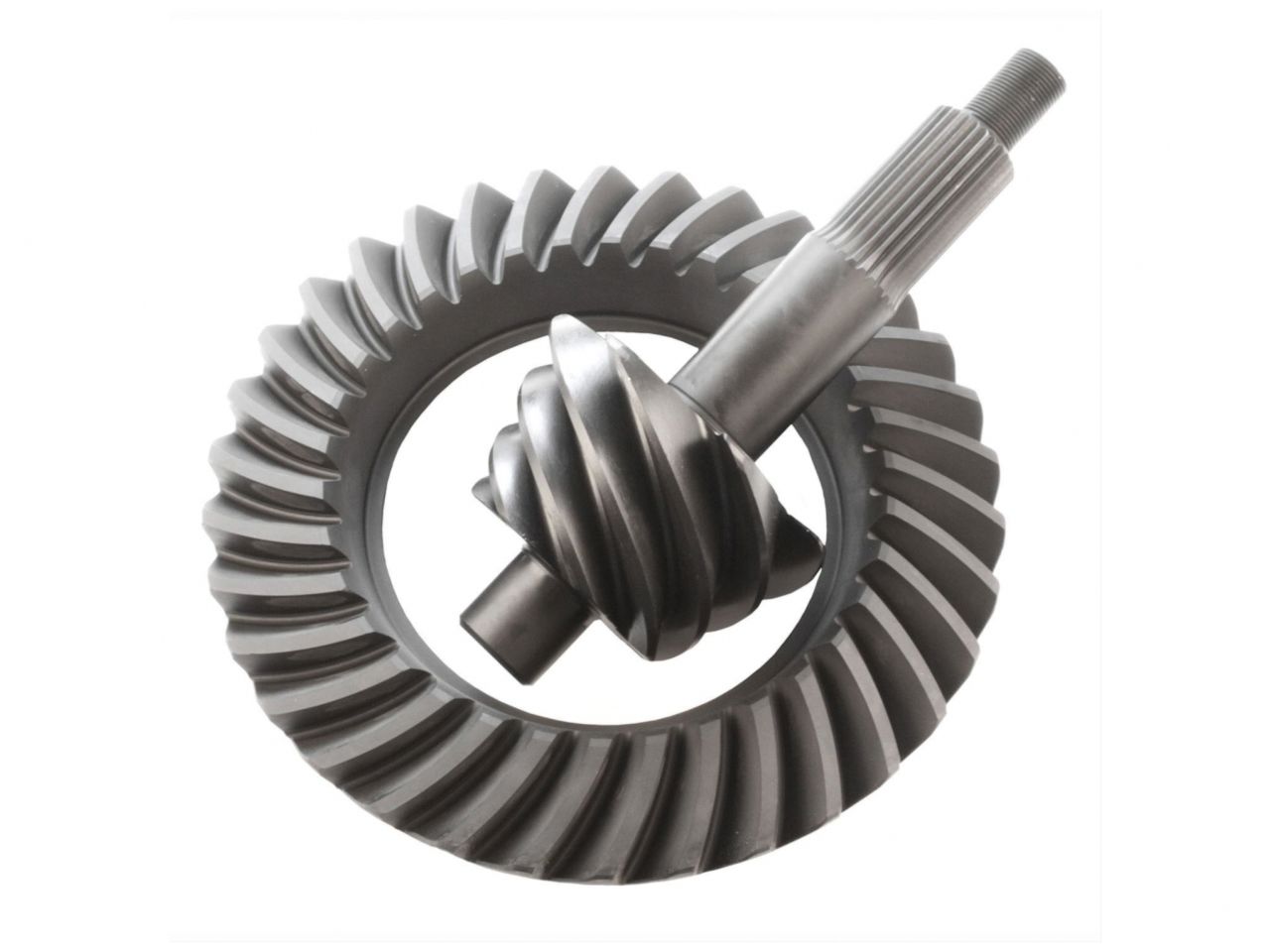

Richmond Gear Ring and Pinion Sets

Richmond Gear is the leading manufacturer of professional-quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. Richmond also offers these gear sets in a lightened version for the weight-conscious enthusiast. Their lightened ring and pinion sets feature an outstanding rotating weight loss of up to 6 lbs., ground pinion threads for trouble-free installation, and a special heat treatment for improved strength.

SPECIFICATIONS:

Part Type:Ring and Pinion Gears

Ring and Pinion Ratio: 4.86:1

Ring Gear Bolts: 10

Pinion Spline Count: 28

Ring Gear Rotation: Standard

Ring Gear Teeth: 34

Pinion Gear Teeth: 7

Ring Gear Diameter (in): 9.000 in.

Pinion Shaft Diameter (in): 1.313 in.

Installation Kit Included: No

Quantity: Sold as a set.
