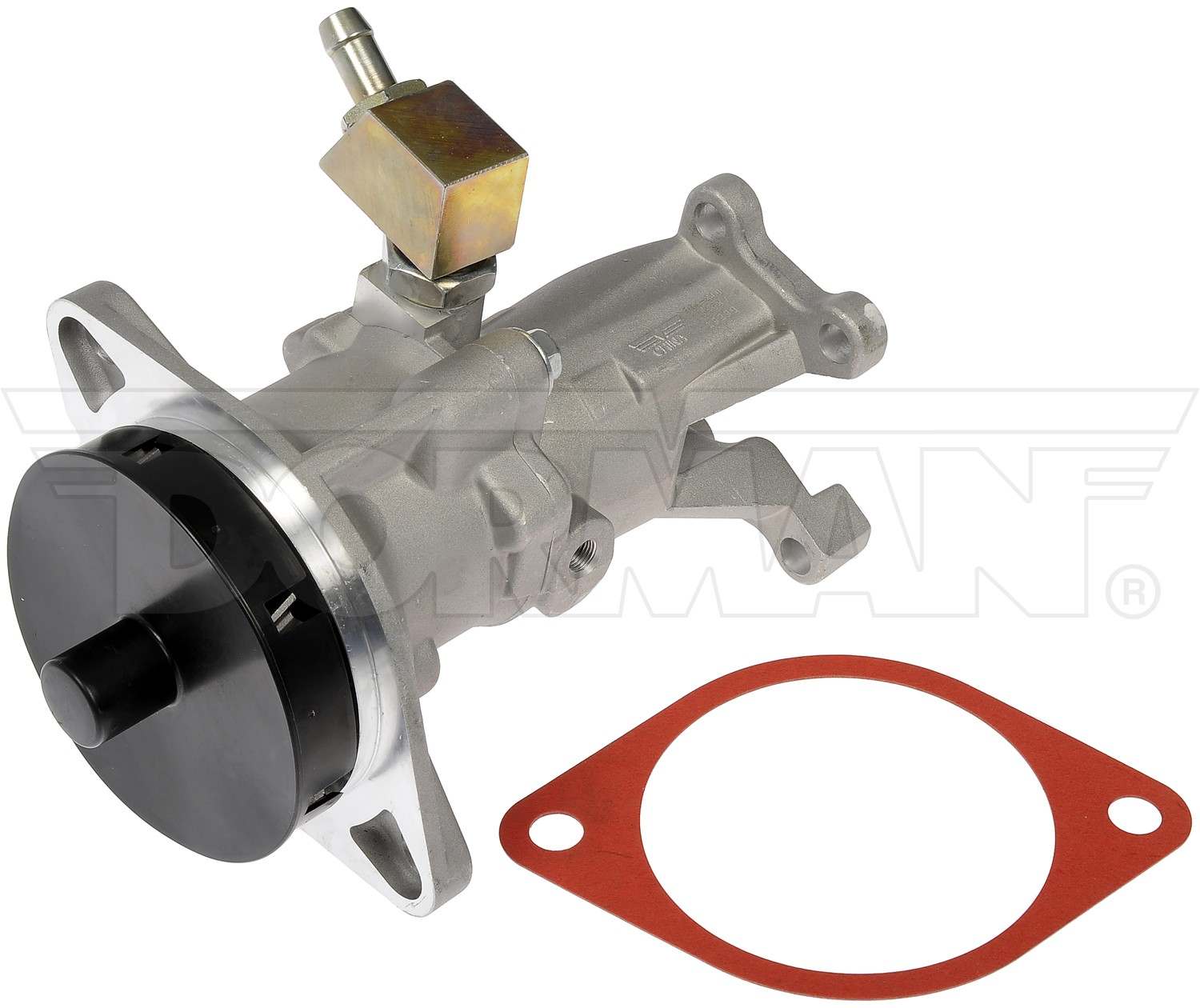

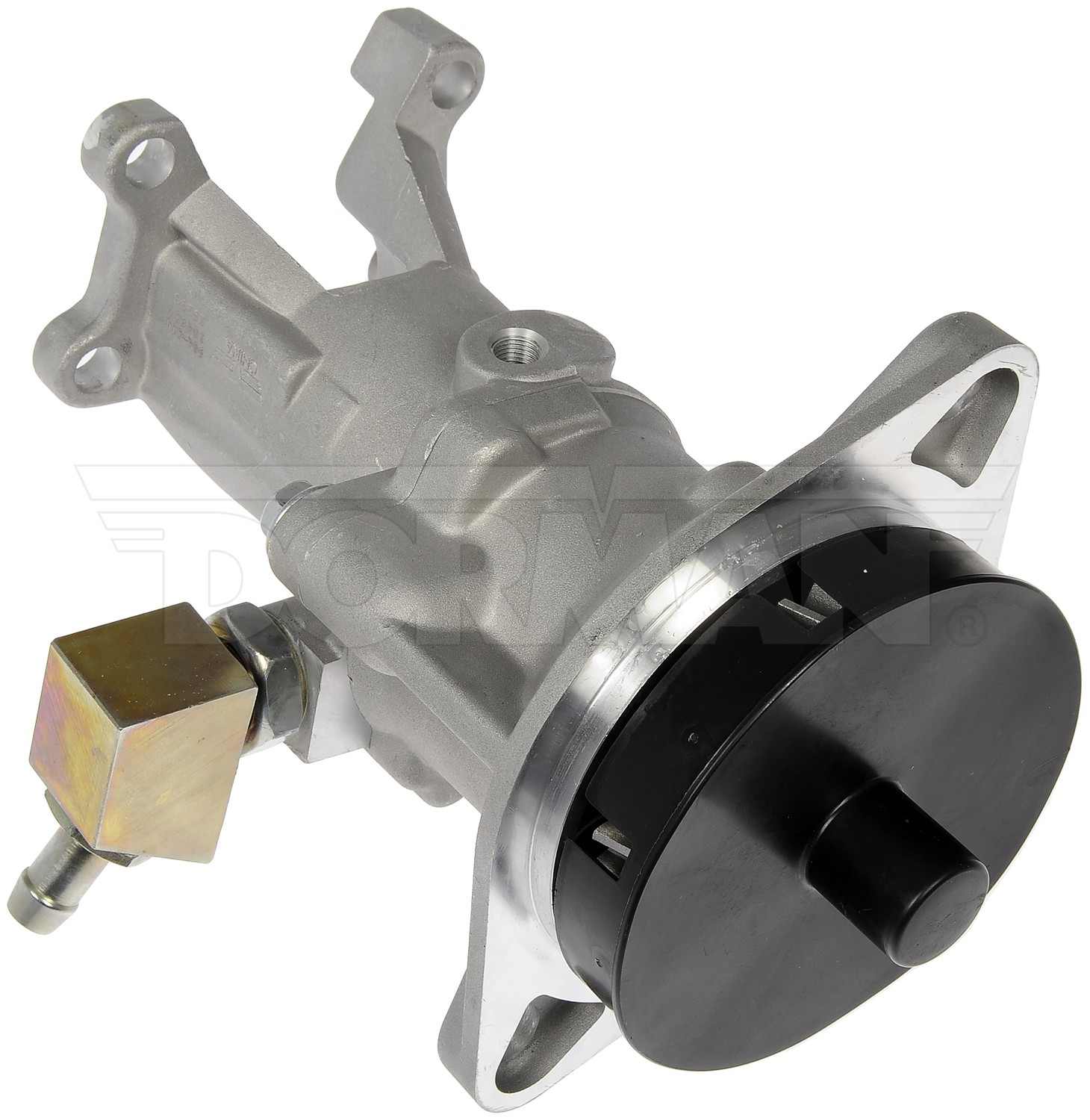

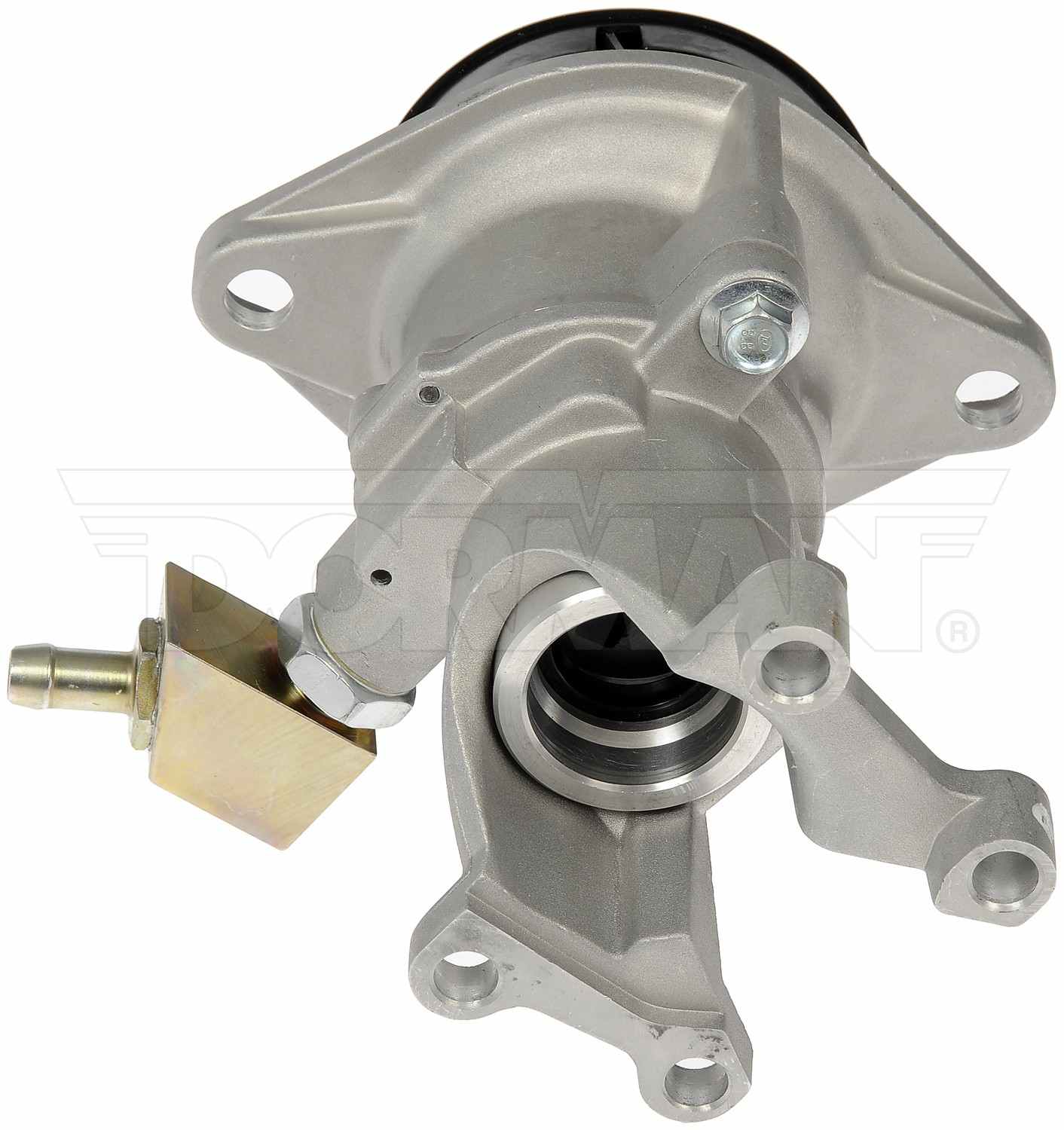

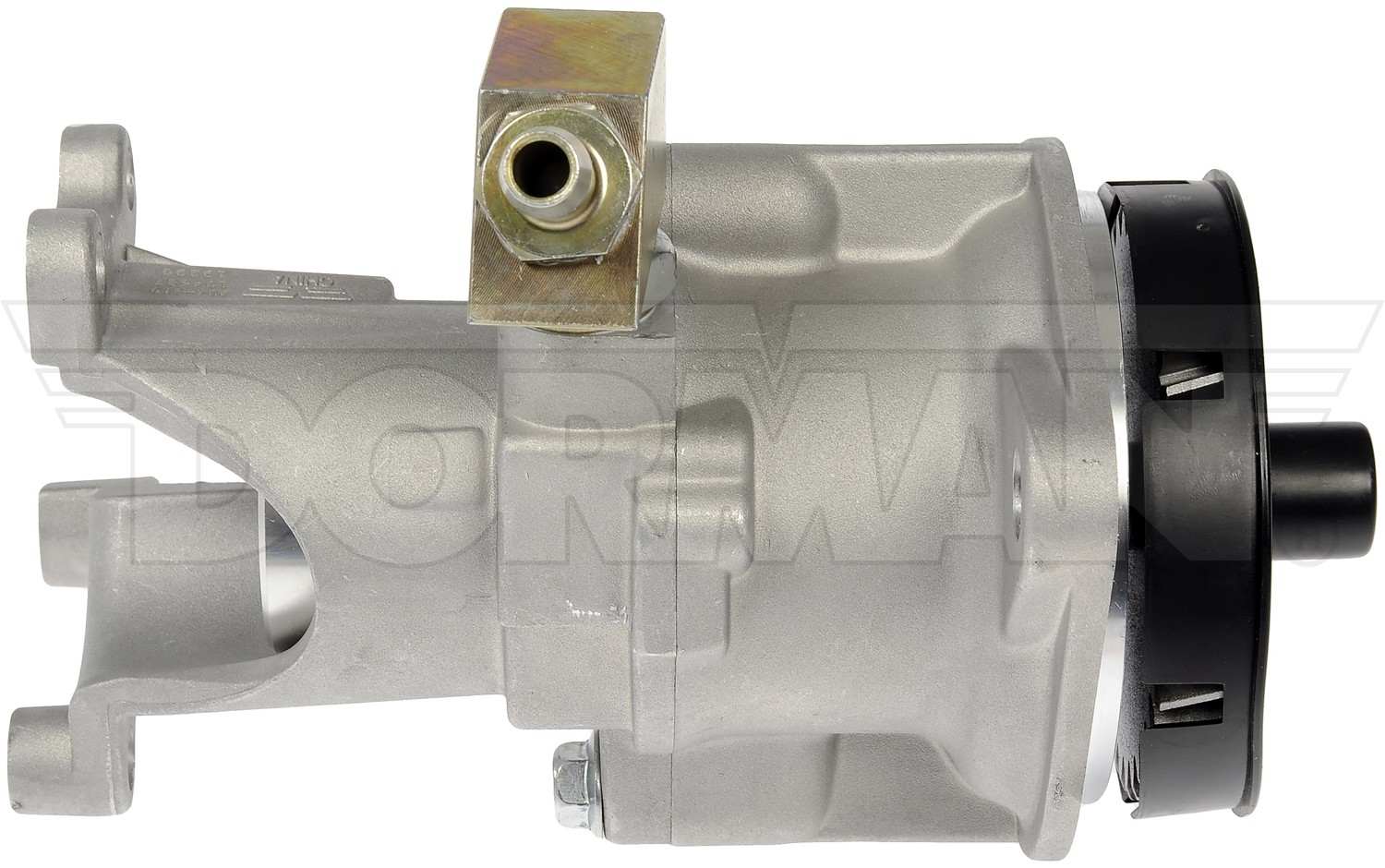

Dorman Gear Driven Mechanical Vacuum Pump

Dorman's Vacuum Pumps are 100% new, not remanufactured. Since they are new, they do not contain any used components that could lead to premature failure. Most premature failures occur with the bearing. A bearing failure will prevent the pump from producing vacuum. Depending on the vehicle, this may result in a loss of vent or temperature control inside the cabin, impaired or partial loss of braking or 4WD.

Direct replacement for ease of installation

Vehicle try-on testing has been conducted on this part to ensure trouble-free performance

Mechanical and electric vacuum pumps available

No core return hassles

Product Specifications

Gasket or Seal Included: Yes

Housing Material: Metal

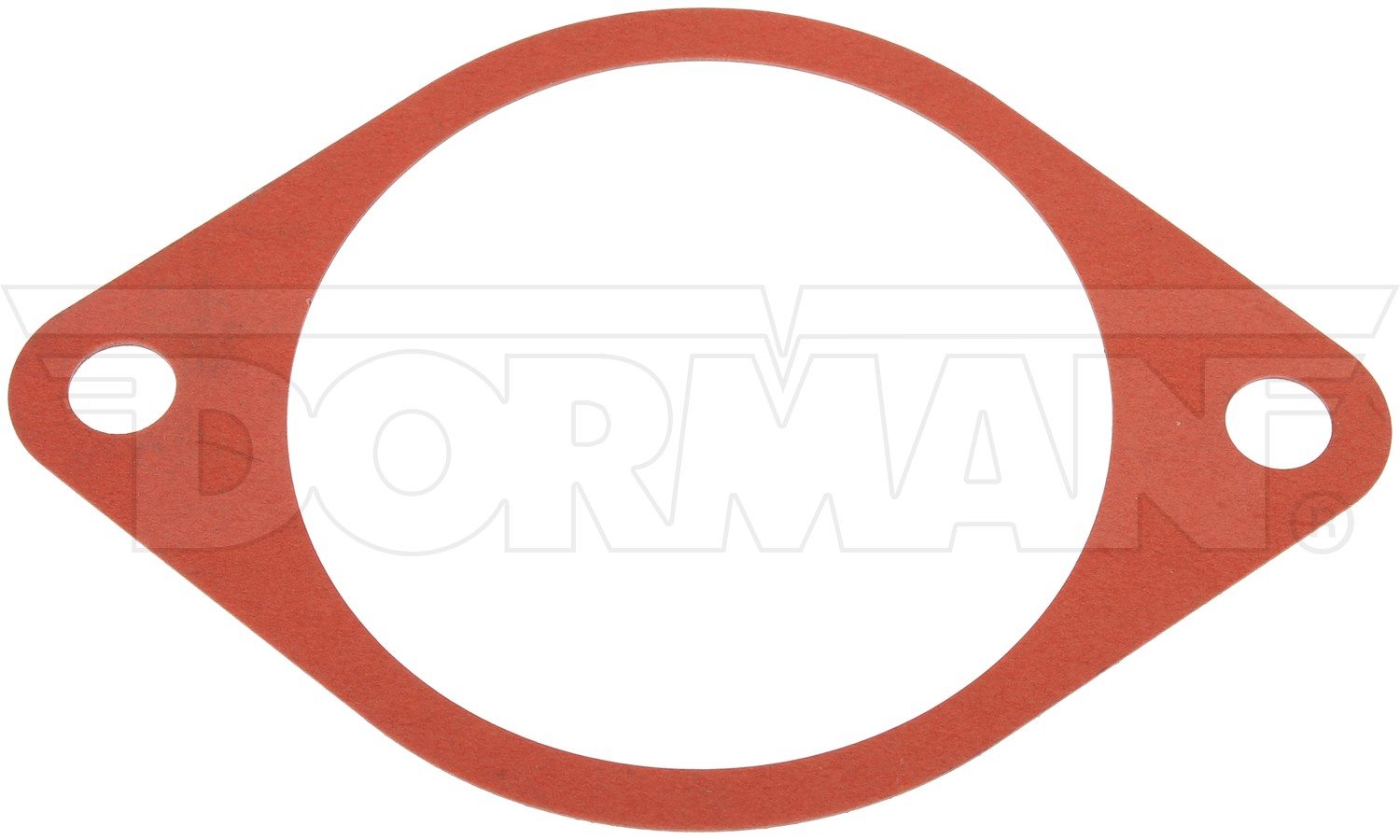

Package Contents: Pump Assembly, Gasket

Package Quantity: 1

Packaging Type: Box

Pulley Included: Yes

Vacuum Pump Connector: Barbed

Vacuum Pump Drive System: Gear Drive

Vacuum Pump Inlet: 3/8 In.

Vacuum Pump Outlet: 3/8 In.

Vacuum Relief Valve: Yes

Application Summary: Dodge Ram 2500 2002-94, Dodge Ram 3500 2002-94
