Richmond Gear Complete Ring and Pinion Installation Kits

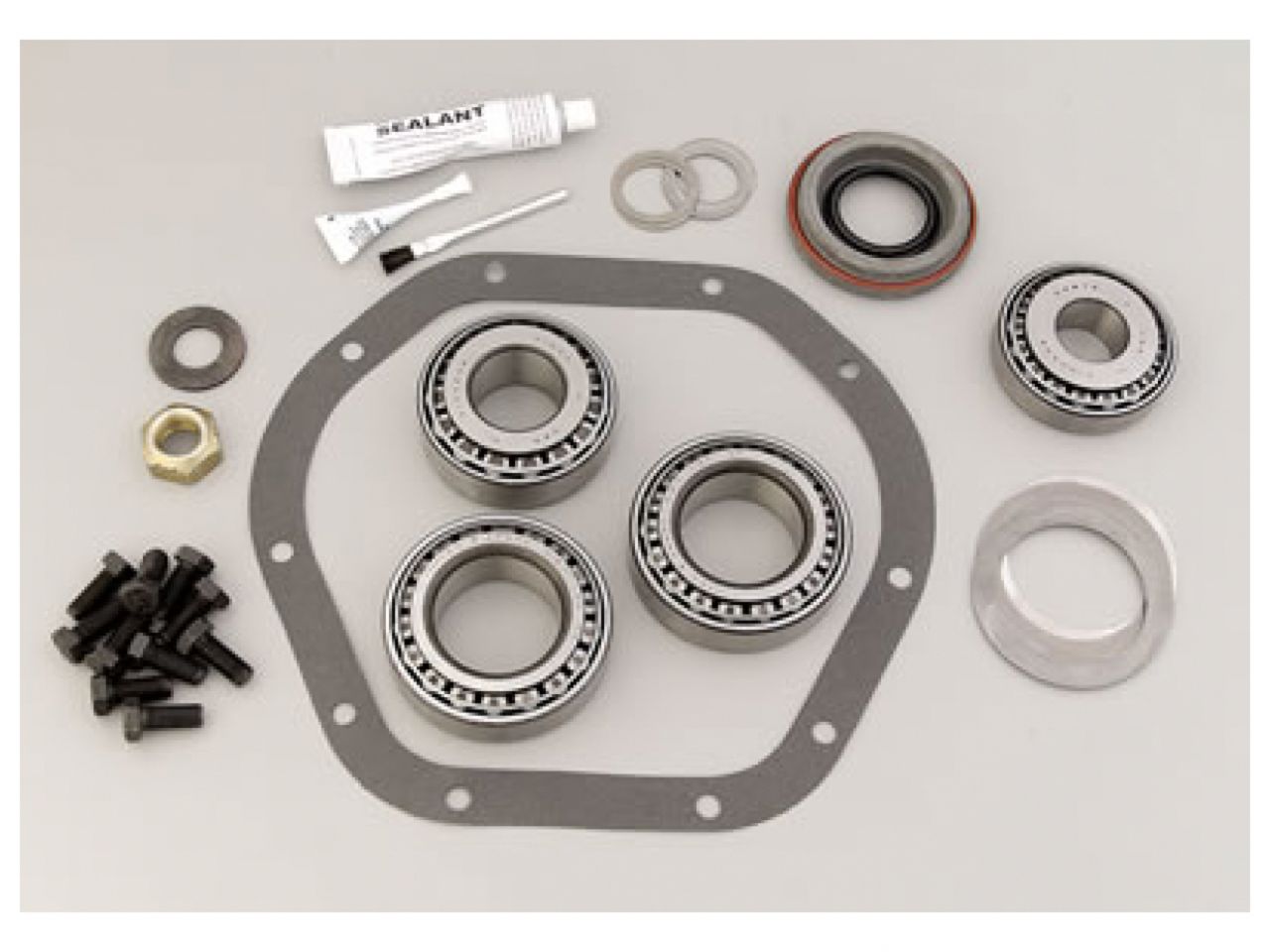

Richmond Gear complete ring and pinion installation kits include Grade 8 ring gear bolts, bearings, seals, shims, marking compound, thread-locking compound, and silicone sealer. To ensure proper fitment, order the kit designed for your make/model application.

SPECIFICATIONS:

• Part Type: Ring and Pinion Gear Installation Kit
• UPC:698231755457
• Cover Bolts:10
• Ring Gear Bolts:10
• Pinion Spline Count:26
• Cover Gasket Included:Yes
• Pinion Shims Included:Yes
• Carrier Shims Included:Yes
• Crush Sleeve Included:No
• Pinion Seal Included:Yes
• Pinion Nut Included:Yes
• Ring Gear Bolts Included:Yes
• Head Bearing Included:Yes
• Tail Bearing Included:Yes
• Carrier Bearings Included:Yes
• Axle Seals Included:No
• Axle Bearings Included:No
• Quantity:Sold as a kit.
• Notes:Will not fit 1984 and later Chevy Corvette or 1992 and later Dodge Viper applications.
