Gates Radiator Coolant Hose 24220
Flexible hose that is part of the engine cooling system. (24220) by Gates

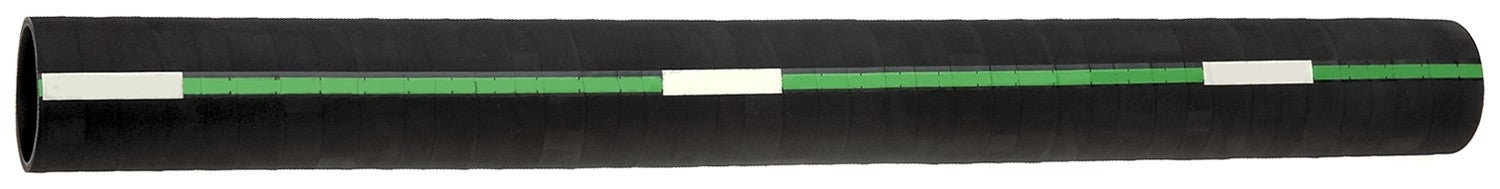

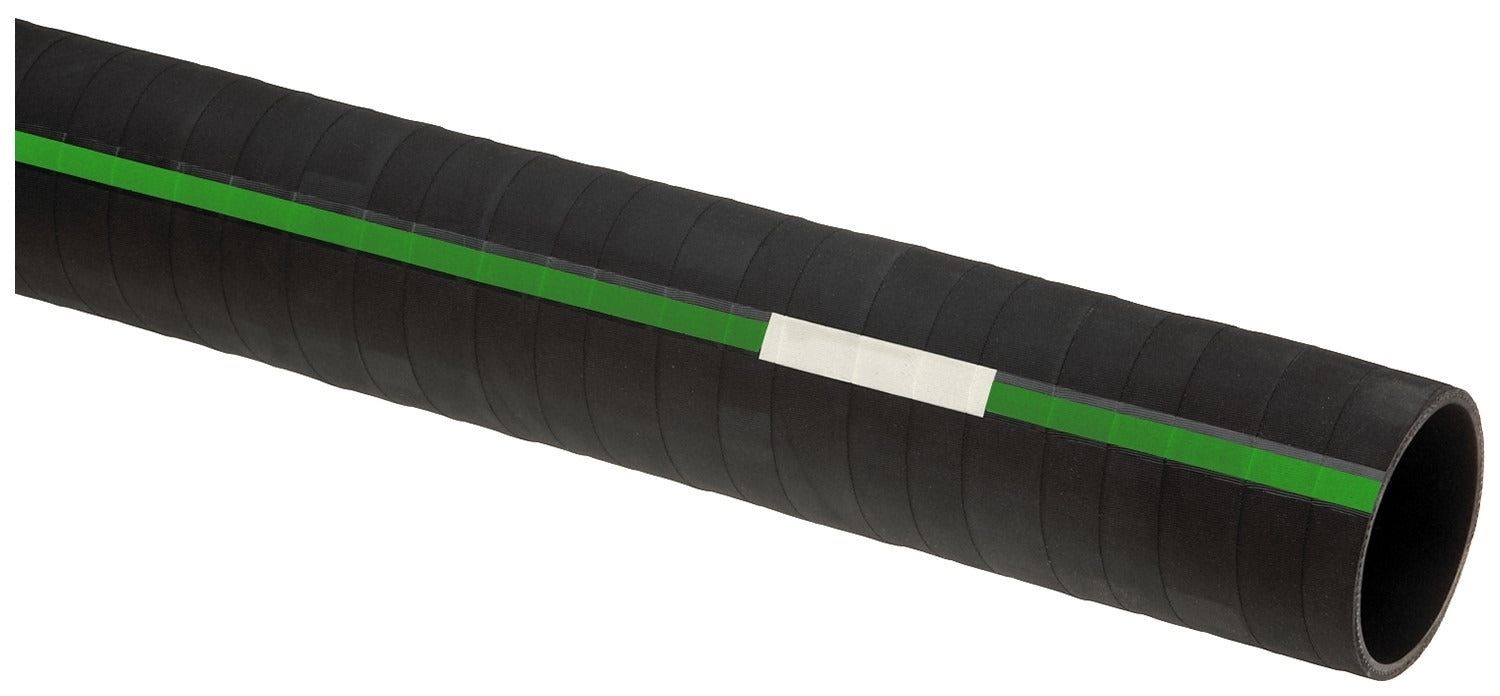

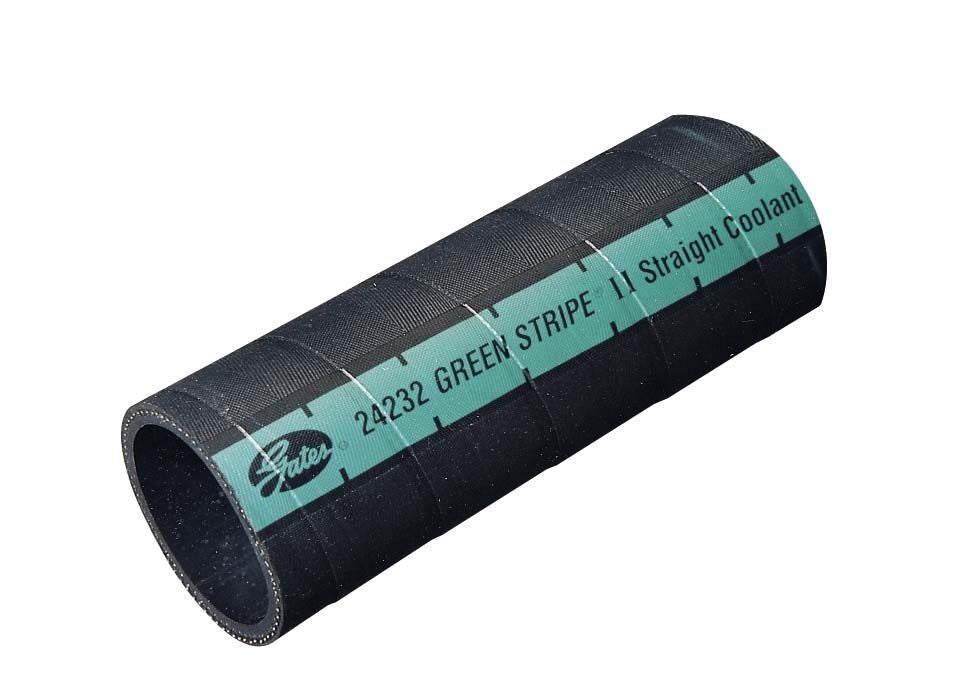

Green Stripe 2-Ply Straight Coolant Hose is designed for demanding heavy-duty coolant/air applications. The two-ply bias fabric construction maximizes flexibility and strength, with an advanced EPDM tube and cover that resist "cold water leaks" and remain soft and pliable, even under adverse operating conditions.
- Cover marked in 1 in. increments to facilitate approximate cut lengths, allows ÎÃ! £custom-fit" installations
- Engineered with compounds that resist electrochemical degradation
- Approved for marine applications
- Exceeds SAE 20R1 Type EC (Class D-1 Tube, and cover, Standard Wall)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
NOTE: For a maintenance free connection, use PowerGrip SB clamps.
CAUTION: Do not use for fuel or oil transfer applications.
Fits: 1999-1989 Mack, CH Series, Mack 6-Cyl. 12.0 L Diesel, By Pass - Inlet
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988 | Autocar | ACL | Base |
| 1983 - 1987 | Autocar | AT | Base |
| 1983 - 1984 | Autocar | C / DC | Base |
| 1986 - 1988 | Autocar | DK | Base |
| 1986 - 1988 | Autocar | DS | Base |
| 1990 - 1991 | Ford | CL9000 | Base |
| 1990 - 1991 | Ford | CLT9000 | Base |
| 1988 - 1991 | Hino | FD17 | Base |
| 1992 | Hino | FD20 | Base |
| 1993 - 1997 | Hino | FD2218 | Base |
| 1993 - 1997 | Hino | FD2218LP | Base |
| 1985 - 1991 | Hino | FE17 | Base |
| 1995 - 1996 | Hino | FE2618 | Base |
| 1985 - 1991 | Hino | FF17 | Base |
| 1988 - 1991 | Hino | FF19 | Base |
| 1992 | Hino | FF20 | Base |
| 1992 | Hino | FF23 | Base |
| 1993 - 1997 | Hino | FF3018 | Base |
| 1993 - 1997 | Hino | FF3020 | Base |
| 1990 - 1991 | Hino | GC17 | Base |
| 1992 | Hino | GC20 | Base |
| 1988 - 1991 | Hino | SG19 | Base |
| 1992 | Hino | SG20 | Base |
| 1988 - 1992 | Hino | SG23 | Base |
| 1989 | Hino | SG231 | Base |
| 1993 - 1997 | Hino | SG3320 | Base |
| 1993 - 1997 | Hino | SG3323 | Base |
| 1993 - 1996 | Hino | SG5523 | Base |
| 1985 - 1987 | International | 2275 | Base |
| 1985 - 1987 | International | 2574 | Base |
| 1985 - 1987 | International | 2575 | Base |
| 1985 - 1987 | International | 2674 | Base |
| 1990 - 1992 | International | 3800 | Base |
| 1991 - 1992 | International | 3900FC | Base |
| 1990 | International | 8200 | Base |
| 1988 - 1990 | International | 8300 | Base |
| 1989 - 1990 | International | 9600 | Base |
| 1990 | International | 9700 | Base |
| 1985 - 1987 | International | F2275 | Base |
| 1985 - 1987 | International | F2574 | Base |
| 1985 - 1987 | International | F2575 | Base |
| 1985 - 1987 | International | F2674 | Base |
| 1987 - 1988 | International | S1853 | Base |
| 1989 - 1999 | Mack | CH | CH600 |
| 1990 - 1999 | Mack | CH | CH600K |
| 1992 - 1995 | Mack | CL | CL600 |
| 1993 - 1995 | Mack | CL | CL700K, CL700 |
| 1981 - 1985 | Mack | DM | DM400S |
| 1981 - 1998 | Mack | DM | DM600K, DM600SX, DM600S |
| 1981 - 1997 | Mack | DM | DM600X |
| 1982 - 1987 | Mack | DM | DM800K |
| 1982 - 1985 | Mack | DM | DM800ST |
| 1981 - 1987 | Mack | DM | DM800SX |
| 1987 - 1998 | Mack | DMM | DMM6006EX |
| 1981 - 1998 | Mack | DMM | DMM6006S |
| 1985 - 1995 | Mack | DMM | DMM6006SX |
| 1982 - 1998 | Mack | DMM | DMM600EX |
| 1981 - 1990 | Mack | DMM | DMM600S |
| 1985 - 1989 | Mack | DMM | DMM600SX |
| 1981 - 1982 | Mack | F | F700ST |
| 1993 - 1994 | Mack | FDM | FDM700 |
| 1981 | Mack | MC | MC400F |
| 1981 - 1982 | Mack | MC | MC400fC |
| 1983 - 1984 | Mack | MC | MC400P |
| 1981 - 1984 | Mack | MC | MC600F |
| 1981 - 1991 | Mack | MC | MC600FC |
| 1981 - 1987 | Mack | MC | MC600FCS, MC600S |
| 1985 | Mack | MC | MC600K |
| 1982 - 1987 | Mack | MC | MC600P |
| 1984 - 1994 | Mack | MH | MH600 |
| 1984 - 1991 | Mack | MH | MH600K |
| 1981 | Mack | MR | MR400K |
| 1981 - 1986 | Mack | MR | MR400P |
| 1981 - 1985 | Mack | MR | MR400S |
| 1985 - 1987 | Mack | MR | MR600RP |
| 1988 | Mack | MR | MR600RS |
| 1981 - 1994 | Mack | MR | MR600S, MR600P, MR600K |
| 1981 - 1986 | Mack | R | R400P |
| 1984 | Mack | R | R600F |
| 1982 - 1990 | Mack | R | R600FC |
| 1983 - 1990 | Mack | R | R600FCS |
| 1988 | Mack | R | R600S |
| 1981 - 1990 | Mack | R | R600ST, R600K, R600T |
| 1982 - 1983 | Mack | R | R600SX |
| 1981 - 1985 | Mack | R | R700ST, R700K, R700S |
| 1990 - 1999 | Mack | RB | RB600K |
| 1989 - 1999 | Mack | RB | RB600S |
| 1989 - 1997 | Mack | RB | RB600SX |
| 1981 - 1984 | Mack | RD | RD400S, RD700SX |
| 1981 - 1999 | Mack | RD | RD600SX, RD800SX, RD600P, RD600S, RD600K |
| 1981 - 1985 | Mack | RD | RD700K, RD400P |
| 1990 - 1991 | Mack | RD | RD8006S |
| 1985 - 1996 | Mack | RD | RD8006SX |
| 1989 - 1999 | Mack | RD | RD800K |
| 1984 - 1996 | Mack | RD | RD800S |
| 1981 - 1986 | Mack | RL | RL600K |
| 1981 - 1987 | Mack | RL | RL600LST, RL600LS |
| 1981 - 1993 | Mack | RM | RM6004X, RM6006S |
| 1983 - 1991 | Mack | RM | RM6006SX |
| 1981 | Mack | RM | RM600EX |
| 1981 - 1990 | Mack | RM | RM600S |
| 1981 - 1982 | Mack | RM | RM600SX |
| 1981 - 1987 | Mack | RS | RS600K |
| 1981 - 1988 | Mack | RS | RS600LT, RS600LST, RS600LS |
| 1989 | Mack | RS | RS700LT |
| 1987 - 1993 | Mack | RW | RW600K |
| 1985 - 1993 | Mack | RW | RW700, RW600 |
| 1987 - 1992 | Mack | RW | RW700K |
| 1981 - 1985 | Mack | RWL | RWL700LS, RWL700LST, RWL700K |
| 1981 - 1984 | Mack | RWS | RWS700L |
| 1981 - 1985 | Mack | RWS | RWS700LST, RWS700K, RWS700LS, RWS700LT |
| 1982 | Mack | WL | WL700K |
| 1983 | Mack | WL | WL700LS |
| 1982 - 1983 | Mack | WL | WL700LST |
| 1981 - 1983 | Mack | WS | WS700LST, WS700LS, WS700K |
| 1982 - 1983 | Mack | WS | WS700LT |
| 1949 - 1950 | Studebaker | 2R10 | Base |
| 1950 - 1953 | Studebaker | 2R11 | Base |
| 1950 - 1953 | Studebaker | 2R14 | Base |
| 1949 - 1953 | Studebaker | 2R15 | Base |
| 1949 - 1953 | Studebaker | 2R16 | Base |
| 1949 - 1953 | Studebaker | 2R16A | Base |
| 1949 - 1953 | Studebaker | 2R17 | Base |
| 1949 - 1953 | Studebaker | 2R17A | Base |
| 1949 - 1950 | Studebaker | 2R5 | Base |
| 1950 - 1953 | Studebaker | 2R6 | Base |
| 1954 | Studebaker | 3R11 | Base |
| 1954 | Studebaker | 3R14 | Base |
| 1954 | Studebaker | 3R15 | Base |
| 1954 | Studebaker | 3R16 | Base |
| 1954 | Studebaker | 3R17 | Base |
| 1954 | Studebaker | 3R6 | Base |
| 1941 - 1948 | Studebaker | M5 | Base |
| 1990 | Western Star | 3800 | 3800-0 |
| 1990 - 1991 | Western Star | 3800 | 3842T-1, 3864-2, 3842-1, 3864T-2 |
| 1990 - 1991 | Western Star | 4800 | 4864T-2, 4864-2, 4800-0, 4842-1 |
| 1988 | White | WCA | WCA84T, Base, WCA64T, WCA42T |
| 1984 - 1987 | White | WCL | WCL42T |
| 1986 | White | WCL | WCL62T |
| 1984 - 1988 | White | WCL | WCL64 |
| 1982 - 1988 | White | WCL | WCL64T, Base |
| 1984 - 1987 | White | WCM | WCM42 |
| 1984 - 1988 | White | WCM | WCM62T |
| 1982 - 1988 | White | WCM | WCM64 |
| 1981 - 1988 | White | WCM | WCM64T, WCM42T |
| 1987 | White | WCS | WCS62T |
| 1982 - 1988 | White | WCS | WCS64, WCS42 |
| 1981 - 1988 | White | WCS | WCS64T, WCS42T |
| 1985 - 1986 | White | WHL | WHL42 |
| 1987 | White | WHL | WHL62 |
| 1981 - 1987 | White | WHL | WHL64T, WHL42T, WHL64 |
| 1981 - 1986 | White | WHM | WHM42T |
| 1984 | White | WHM | WHM62T |
| 1985 | White | WHM | WHM64 |
| 1985 - 1987 | White | WHM | WHM64T |
| 1982 - 1985 | White | WHS | Base |
| 1981 - 1987 | White | WHS | WHS42T, WHS64, WHS64T |
| 1988 | White | WIA | WIA64, WIA64T, WIA62T, WIA42T |
| 1986 - 1987 | White | WIL | WIL42T |
| 1986 | White | WIL | WIL64 |
| 1984 - 1988 | White | WIL | WIL64T |
| 1986 | White | WIM | Base |
| 1985 - 1987 | White | WIM | WIM62T |
| 1986 - 1988 | White | WIM | WIM64 |
| 1984 - 1988 | White | WIM | WIM64T, WIM42T |
| 1981 - 1988 | White | WX | WX42, WX42T, WX64T, WX64 |
| 1983 - 1988 | White | WX | WX62 |
| 1982 - 1987 | White | WX | WX62T |
| 1988 | White/GMC | WCA | WCA42, WCA42T, WCA64, WCA64T, WCA62T |
| 1988 - 1989 | White/GMC | WCL | WCL42T, Base, WCL64T |
| 1989 | White/GMC | WCL | WCL64, WCL42 |
| 1988 - 1989 | White/GMC | WCM | WCM64, WCM42T, WCM62T, WCM64T, Base, WCM42 |
| 1989 | White/GMC | WCM | WCM84 |
| 1988 | White/GMC | WCS | WCS64, WCS64T, WCS42, WCS42T |
| 1990 - 1991 | White/GMC | WG | Base |
| 1990 - 1995 | White/GMC | WG | WG42T, WG64, WG42, WG64T |
| 1990 - 1993 | White/GMC | WG | WG62 |
| 1990 - 1994 | White/GMC | WG | WG62T |
| 1988 - 1989 | White/GMC | WHL | Base |
| 1989 | White/GMC | WHL | WHL42 |
| 1988 - 1990 | White/GMC | WHL | WHL42T, WHL64, WHL64T |
| 1990 | White/GMC | WHR | WHR62T |
| 1989 - 1990 | White/GMC | WHR | WHR64, WHR64T, WHR42T |
| 1989 | White/GMC | WHS | WHS42T, WHS64T, WHS64 |
| 1988 - 1993 | White/GMC | WIA | Base |
| 1990 | White/GMC | WIA | WIA106, WIA84, WIA66T |
| 1989 - 1993 | White/GMC | WIA | WIA42 |
| 1988 - 1995 | White/GMC | WIA | WIA42T, WIA64T, WIA62T, WIA64 |
| 1989 - 1994 | White/GMC | WIA | WIA44 |
| 1988 | White/GMC | WIA | WIA44T |
| 1992 | White/GMC | WIA | WIA62 |
| 1990 - 1991 | White/GMC | WIA | WIA84T |
| 1988 - 1989 | White/GMC | WIL | Base, WIL64T |
| 1988 | White/GMC | WIM | WIM42T, WIM64T |
| 1988 | White/GMC | WX | WX42T, WX64T, WX64, Base, WX62, WX42 |
Gates Radiator Coolant Hose 24220
Sale price$51.99 USD
