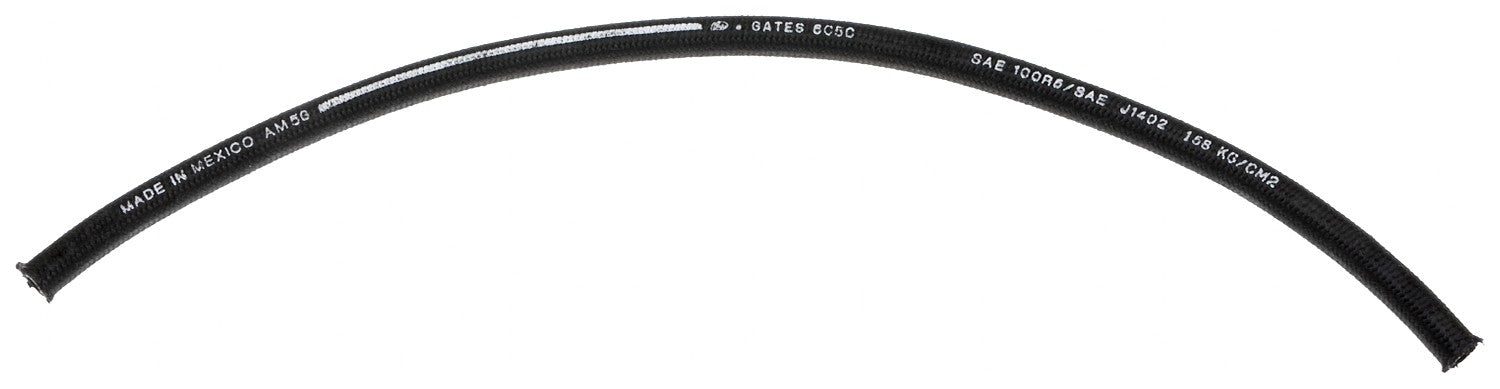

Gates Hydraulic Hose 86616

Hydraulic Hose. (86616) by Gates

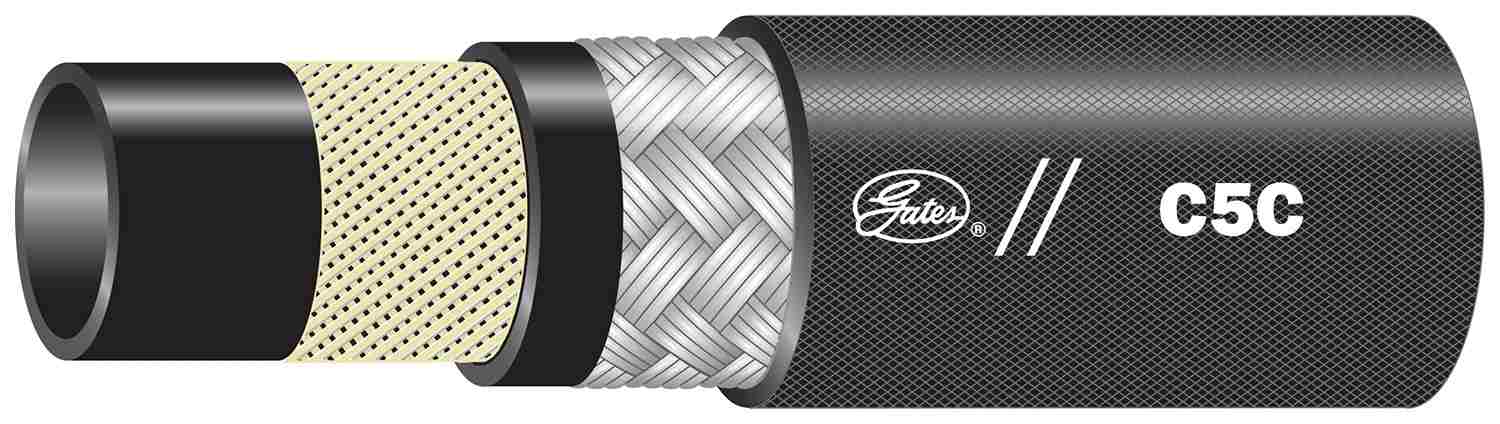

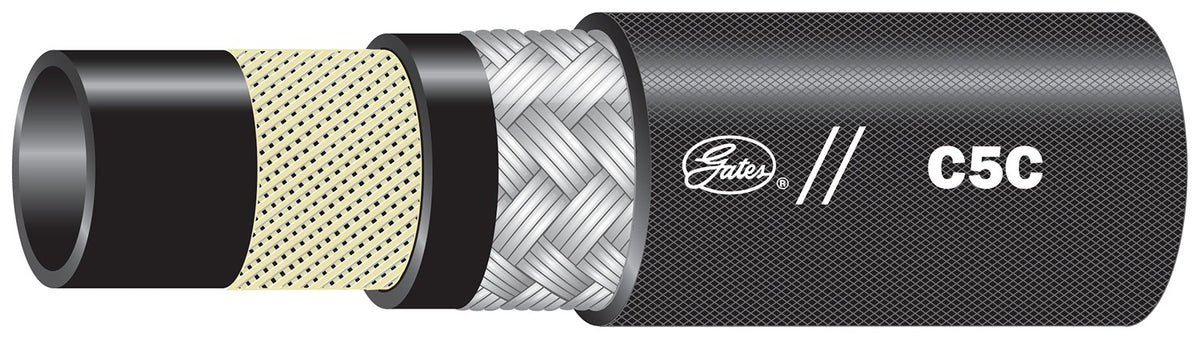

C5C hydraulic hoses are recommended for medium pressure hydraulic petroleum-based oil lines in impulse applications, lube oil. Also recommended for air and water in applications such as air brakes, turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Caution: Power Steering usage is intended for heavy duty commercial vehicle use only. Not recommended for gasoline or diesel fuel.

• For use with C5 and C5X Field Attachable Couplings [G34 Series]
• Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106ΓÇô74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
• Avoid continuous use at maximum temperature concurrent with maximum working pressures
• Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
