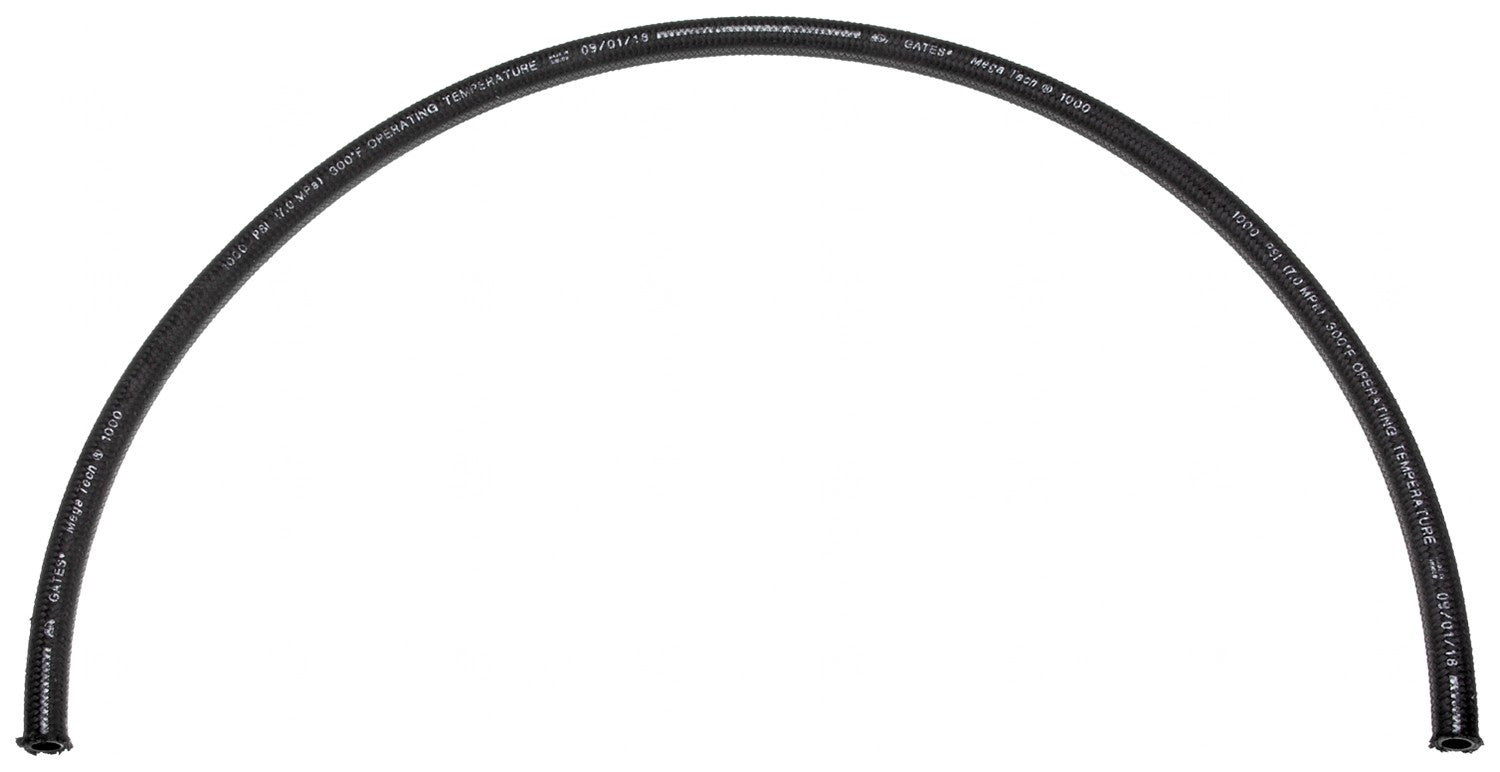

Gates Hydraulic Hose 85983

Hydraulic Hose. (85983) by Gates

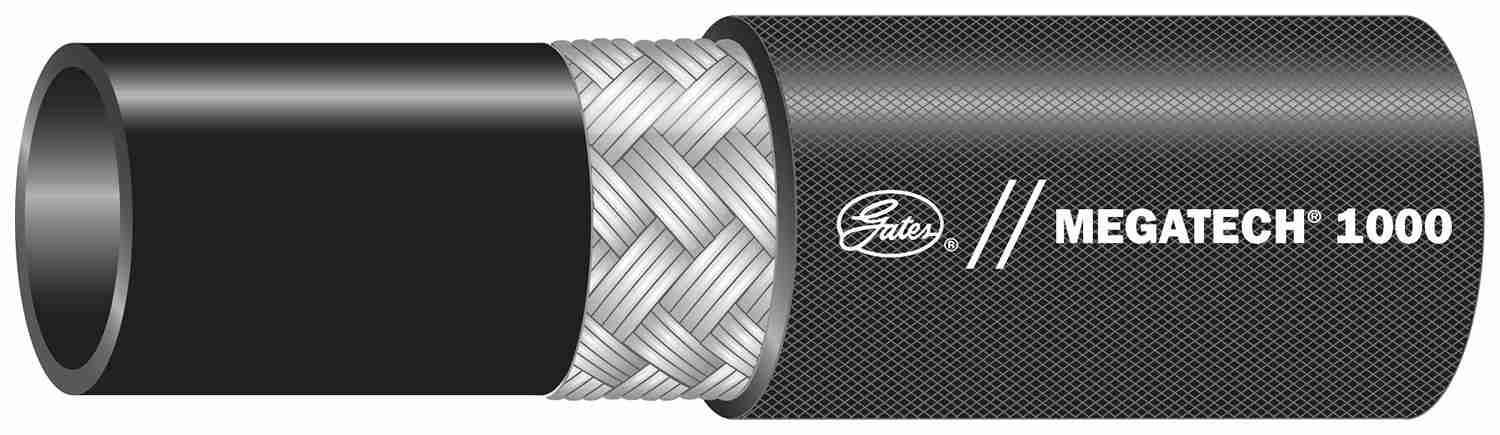

MegaTech 1000 High-Temp hose is recommended for air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Not recommended for gasoline or diesel fuel applications.

• For use with MegaCrimp Couplings [G25 Series]
• 1000 psi constant pressure for all ID's
• Meets the requirements of DOT FMVSS 106ΓÇô74, SAE J1402, for air brake hose (-4, -6, -8, -10)
• Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)

NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings. See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance.
