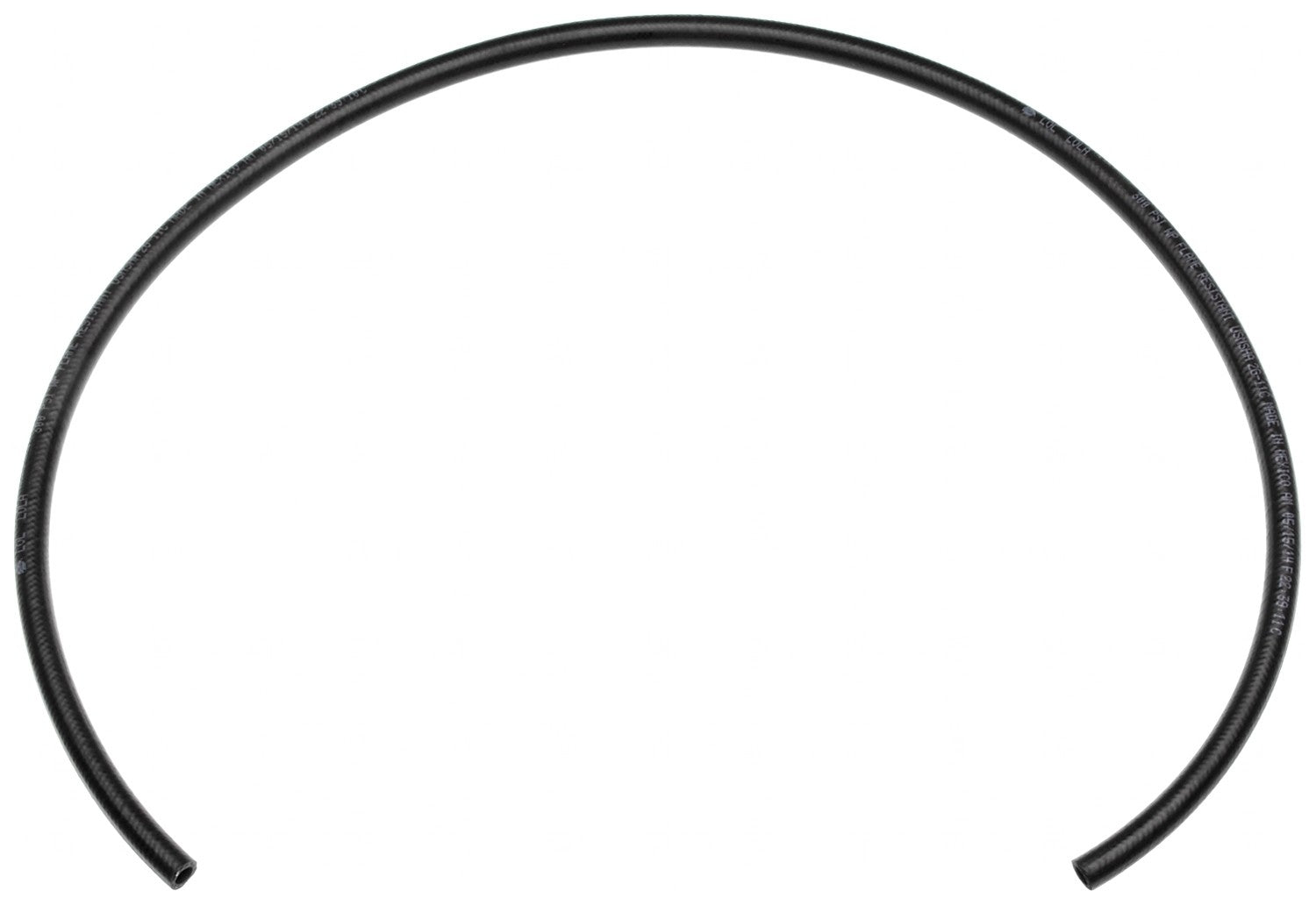

Gates Hydraulic Hose 85963
Gates Hydraulic Hose 85963
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

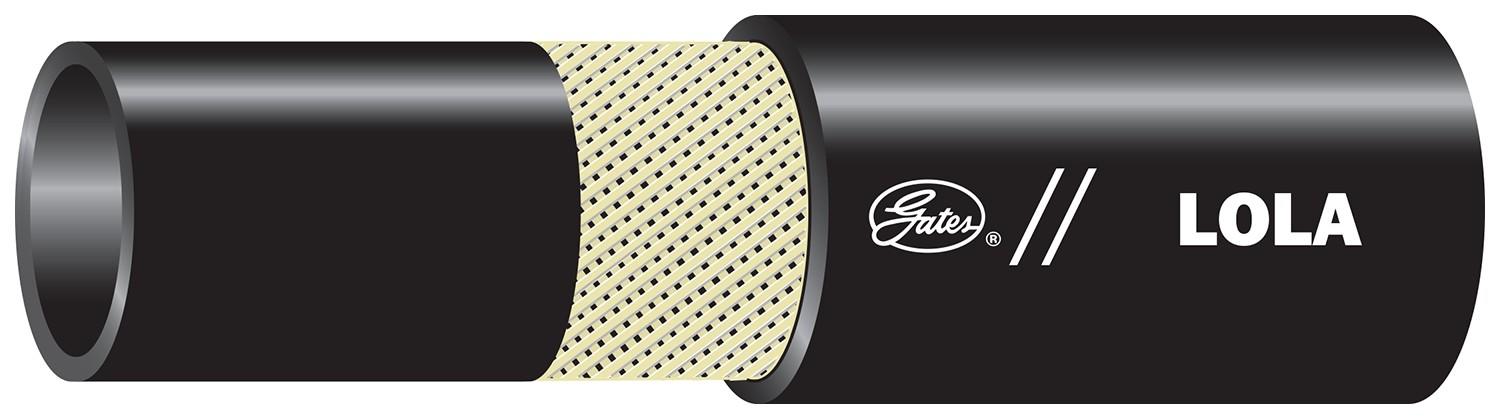

Read the shipping policyHydraulic Hose. (85963) by Gates
Recommended for petroleum-based hydraulic oils, water, glycol antifreeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings.
Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.
Black Cover Only Meets Flame Resistance Acceptance Designation MSHA 2G.
Temperatures Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C). For air: -40 Deg F to +160 Deg F (-40 Deg C to +71 Deg C). For water emulsions see Temperature Limits Table.
Recommended Couplings:
- Field Attachable LOL Couplings (Except -3)
- GLP Couplings (Except -3)
- GLX Couplings (-4, -6, -8, -12)
Special Order Couplings May Be Needed (-3).
Gates - Driven By Possibility
