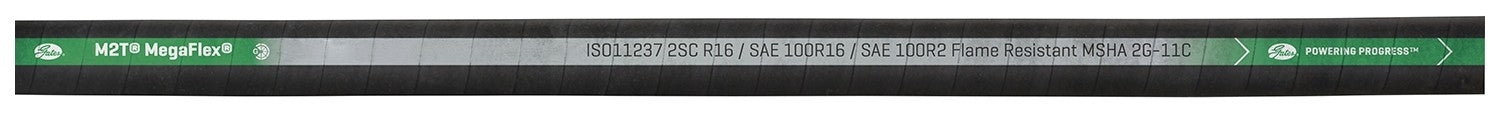

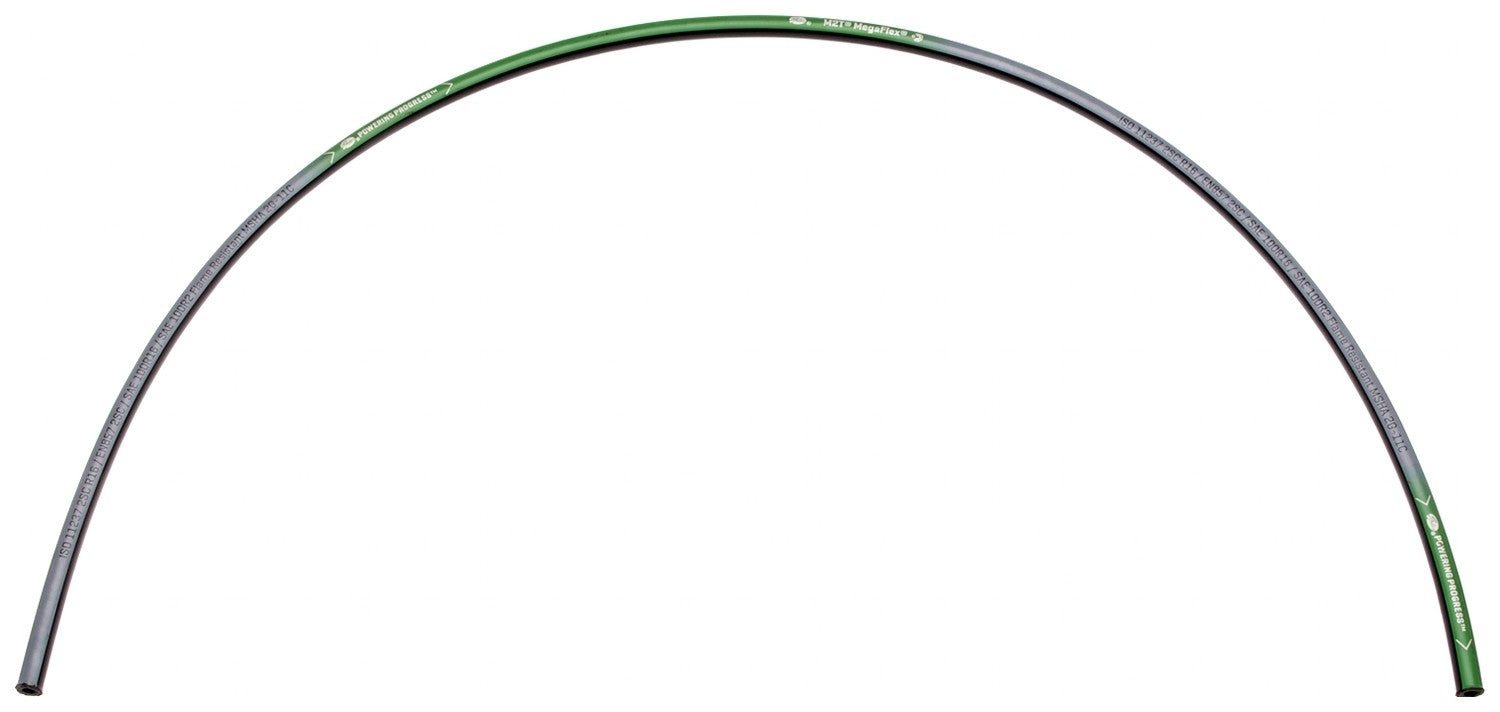

Gates Hydraulic Hose 85601

Hydraulic Hose. (85601) by Gates

M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.

• For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
• Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
• Tested to industry-leading 600,000 impulse cycles
• XtraTuff hose lasts up to 25 times longer than standard hose
• MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
• Meets Flame Resistance Acceptance Designation MSHA 2G
• Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
