Read the shipping policyHydraulic Hose. (85411) by Gates

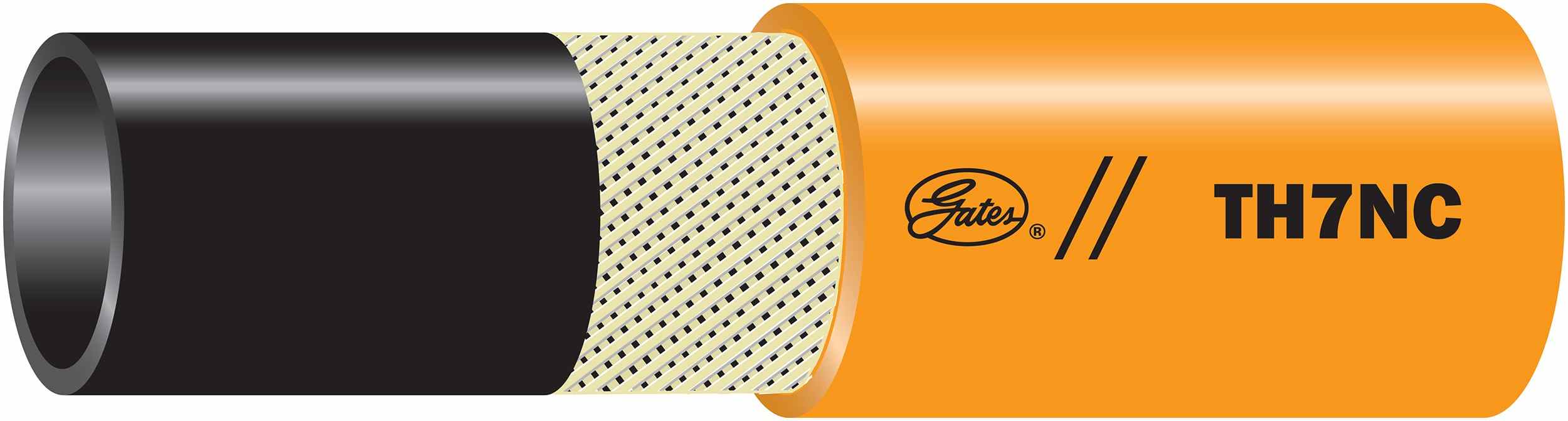

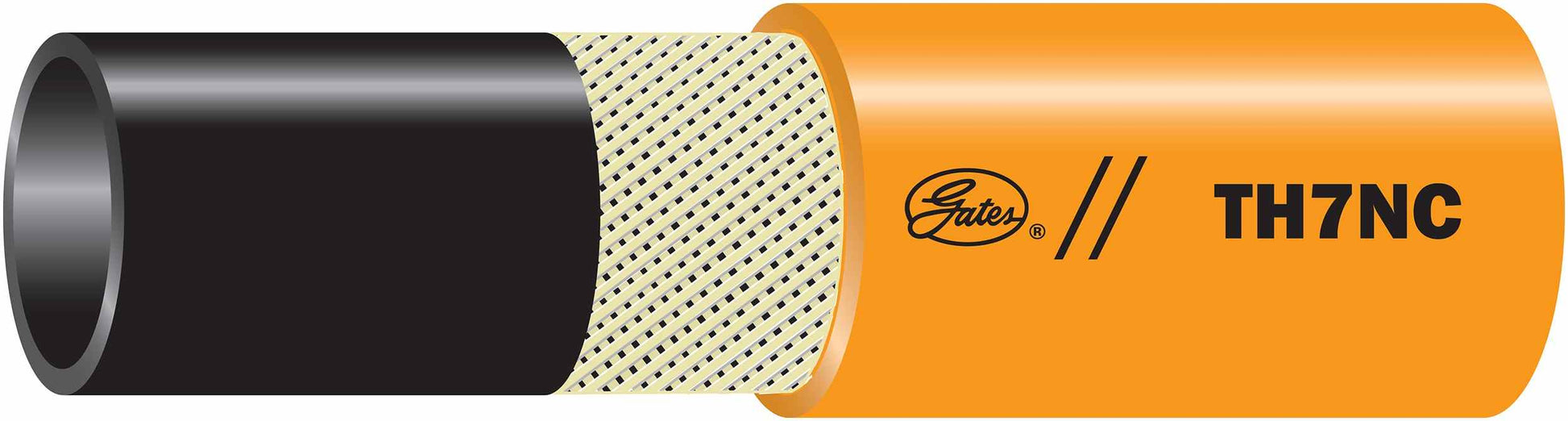

TH7NC Non-Conductive hydraulic hose is recommended for petroleum and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery.
- For use with MegaCrimp Couplings [G25 Series] and Swage PCTS Couplings [G51 Series]
- Orange color TH7NC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius
- Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Meets ANSI A92.2 for vehicle mounted aerial devices
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
